Automatic Polyurethane PU Air Filter Gasket Casting Making Machine
- Category: Foam Machinery >>>
- Supplier: Platinum,Overseas,Trade,Inc.
Share on:
Product Overview
Description
Product Description

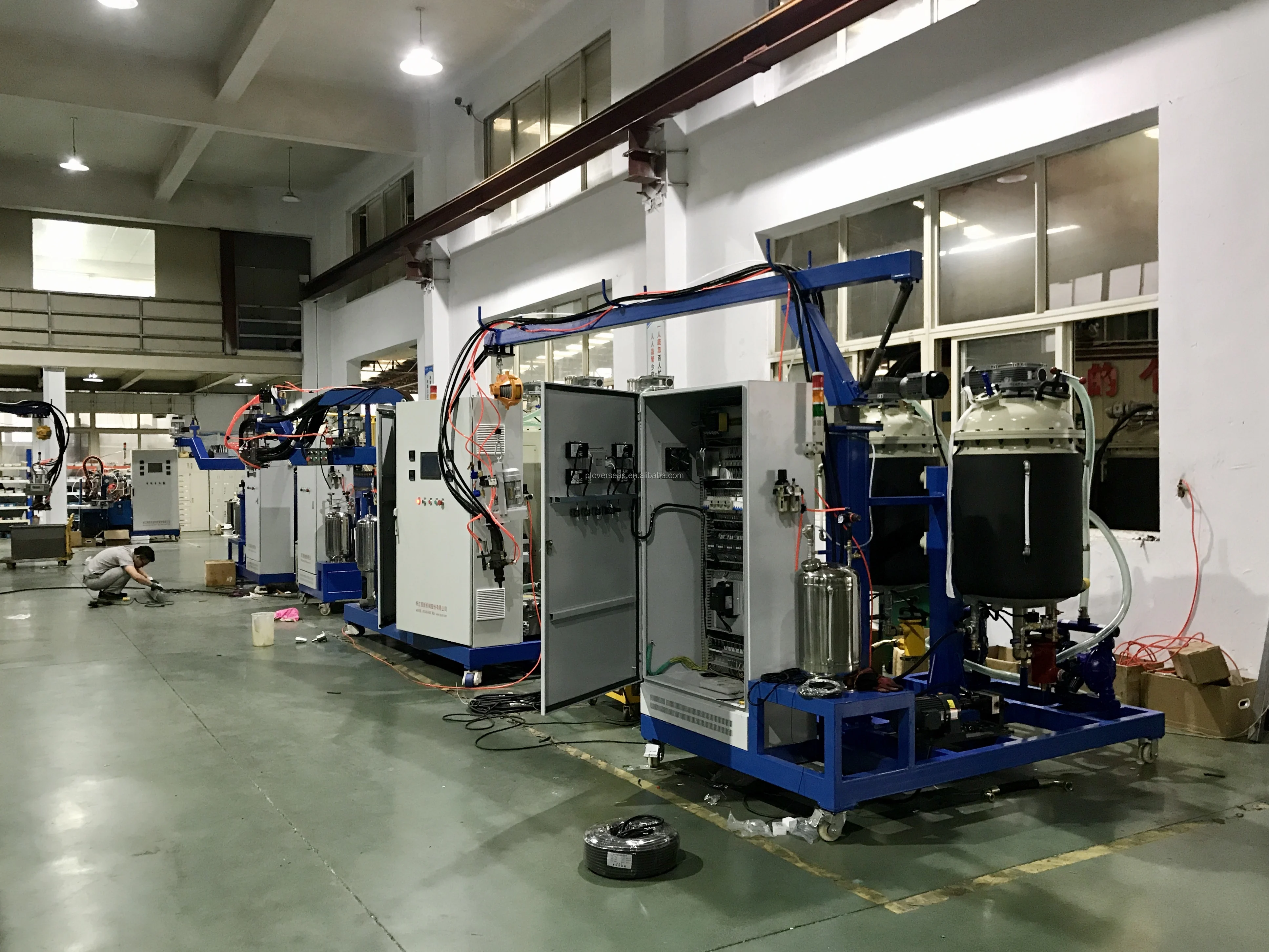

Automatic filter gasket casting machine is newly developed by our company based on learning and absorbing advanced techniques abroad, which is widely employed in the foaming production of automobile air filter . This machine has high repeat injection precision, even mixing, stable performance, easy operation, and high production efficiency.
Structure characteristics:
1. For sandwich type material bucket, it has good heat preservation
2. The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating
situation was absolutely clear.
3. Head fixing controlled directly by PLC operating system,easy of operation.
The adoption of new type mixing head makes the mixing even, with the characteristic of low noise, sturdy and durable.
4. Specialized head moving system, convenient and efficient.
5. High precision pump lead to measuring accurately.
6. Easy for maintenance, operation and repair.
7. Low energy consumption.
1. For sandwich type material bucket, it has good heat preservation
2. The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating
situation was absolutely clear.
3. Head fixing controlled directly by PLC operating system,easy of operation.
The adoption of new type mixing head makes the mixing even, with the characteristic of low noise, sturdy and durable.
4. Specialized head moving system, convenient and efficient.
5. High precision pump lead to measuring accurately.
6. Easy for maintenance, operation and repair.
7. Low energy consumption.
Specification
No. | Item | Technical Parameter |
1 | Foam Application | High resilience sealing strip |
2 | Raw material viscosity（22℃） | POL ～2500MPas ISO ～1000MPas |
3 | Injection Pressure | 0.01-0.1Mpa |
4 | Injection Output | 5-20g/s（adjustable） |
5 | Mixing ratio range | Around3:1 |
6 | Material temperature controlling error | ±2℃ |
7 | Repeat injection accuracy | ±1% |
8 | Mixing head | 2800-5000rpm, forced dynamic mixing |
9 | Material tank volume | 50L |
10 | Metering pump | JR6/JR2.4 |
11 | Compressed air requirement | Dry, oil free P：0.6-0.8Mpa Q：600NL/min（Customer-owned） |
12 | Temperature control system | Heat：2×3KW |
13 | Input power | 380V 50HZ Three-phase five line, 380V 50HZ |
14 | Rated power | 17KW |
15 | Color( customizable) | Red/Blue |
Packing & Delivery
Packing | |
Size | 1530x1600x1210mm |
Weight | 1500KG |
Packing Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
