Горячая резка, машина для переработки пневматического охлаждения ПВХ пластика

Hot face cutting, air cooling type PVC plastic recycling pellet machine

PVC plastic recycling pellet machine Description:

Twin screw extruder PVC plastic pelletizing machine are applied to the waste materials, which needs high processing performance of melting, volatilization, filtering etc., mainly works for the job of PVC scraps recycling and re-pelletizing.

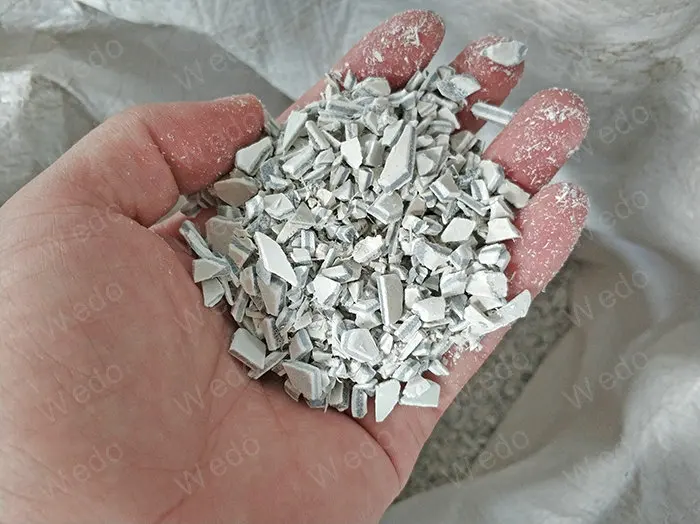

PVC plastic pelletizing machine with international advanced recycling technology and combined with the actual application condition. This PVC plastic pelletizing machine is design specializes for recycling the recycled washed plastic PVC plastic flakes/scraps, such as PVC pipe flakes/scraps, PVC sheet flakes/scraps etc.

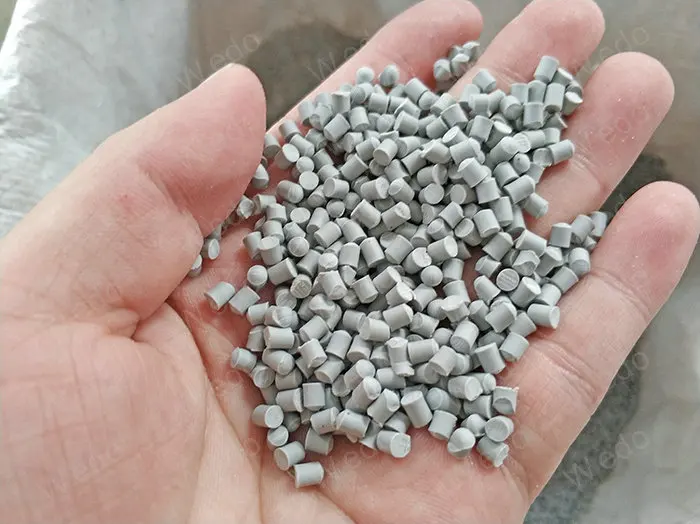

After processing techniques such as feeding, heating, melt, cutting, cooling etc., the final products are PVC plastic pellets/granules that can be to produce new PVC plastic products.

Working Flow of PVC plastic recycling pellet machine:
Screw feeder → Efficient extruder →  Cutting → Blower → Storage hopper → Blower → Storage hopper → Electric control panel

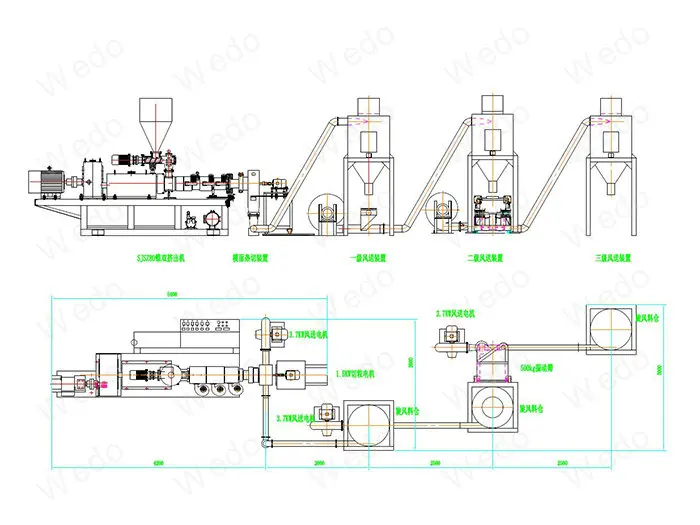

Flowchart of PVC plastic recycling pellet machine

Features of PVC plastic recycling pellet machine

The screw is made of high tool steel 38 CrMoALA or W6Mo5Cr4V2. Special screw combination Euro-style rectangle barrel, reflux refrigeration channel optimized and disposed, which makes temperature difference in D areas smaller.

Innovated design of heater-tightened style insures high efficiency of heat transfer and high longevity of heater.

The material is used high quality nitride steel, corrosion proof or antifriction with corresponding processed special designed two sets of vacuum.

New-style project of parallel three-axis driving makes the convex axis, convey Chain, decelerate and torque get together, which keep it compact, and the key bearings are imported soakage and spraying lubrication integrate smoothly technics, strengthening of tooth face, so they can ensure high torque, high precision and low noise

The selected material of drive components is dainty, including super intention alloy, cementiteing steel, cementiting and grinding.

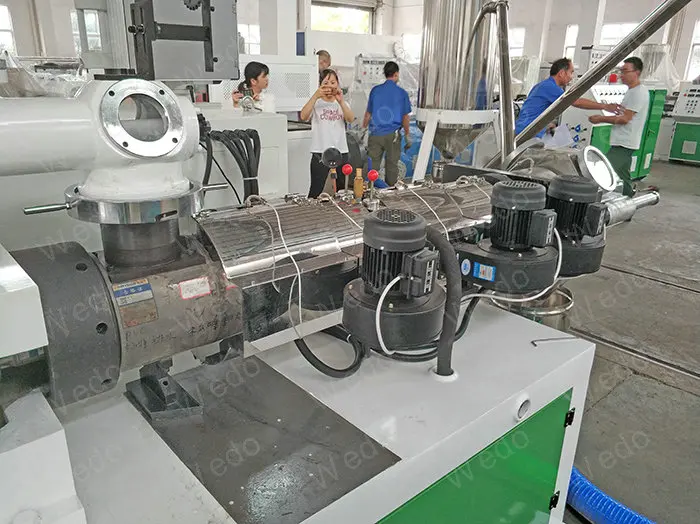

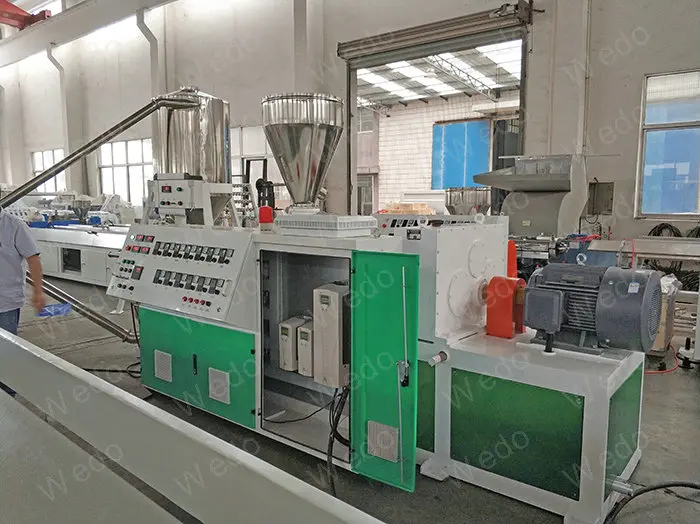

Photos of PVC plastic recycling pellet machine

Function of PVC plastic recycling pellet machine

1. Screw feeder: the first step of the pelletizing recycling machine, Pvc plastic flakes/scraps conveyed into the hopper through screw, the screw connect sensor to detect the material in hopper, once the flakes are full in hopper, the screw will stop; and once empty, the screw feeder will begin working.

2. Extruder: to plasticization and degassing, a specialized single screw extruder applied to melt the pre-compacted material. The plastic scraps will well melted, plasticized in the first stage extruder, and the plastic will be extrude by the second stage extruder. With double-zone vacuum degassing system, volatiles such as low molecular and moisture will be removed efficiency, especially suitable to heavy printed film and material with some water content.

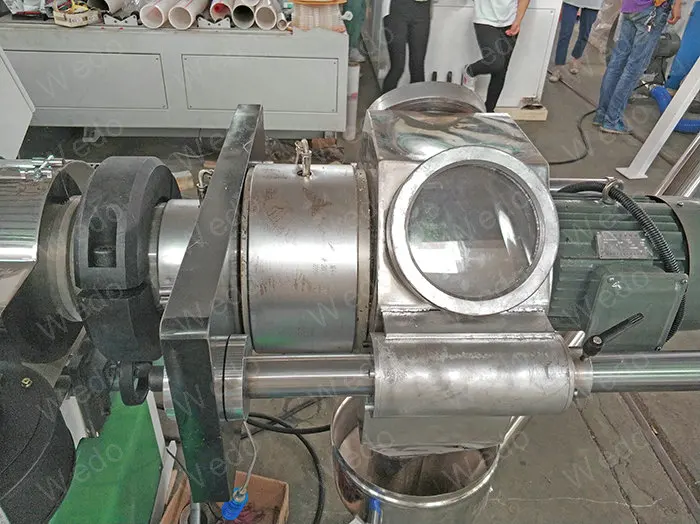

3. Cutting pelletizing: supplied with speed steel and hard alloy steel cutting blades for reliable performance. Compact structure allows less maintenance.

4, Blower and hopper: to cooling the PVC pellets and storage the pellets.

Technical Parameter of Main extruder:

PVC plastic recycling pellet machine Advantage:

Very low labor request.

Automatic constant temperature control.

CE certification, ISO9001 certification, SGS certification

Stable running, higher output and lower energy consumption.

Configuration based on client requirement and material, and give reasonable suggest.

Wedo have a fully step for the PVC plastic recycling pellet machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.

 We do best service for you in PVC plastic recycling pellet machine

 Professional PVC plastic recycling pellet machine factory

Wedo Machinery Co.,Ltd is specially for the plastic recycling machine and plastic extrusion machine. Wedo Machinery Co.,Ltd is continuously dedicates to the research & development and marketing of various types of plastic recycling machine and plastic extrusion machinery, PVC plastic recycling pellet machine. The Customer is always enjoy the expertise and professional-made solutions offered by the companies in the group. Professional technology can guarantee our machine works on high level of innovation, durability and operational reliability.

Workshop

Office

    We are professionally working for the plastic recycling machine and plastic extrusion machine in design, manufacturing, exporting and service, owning more than 15 years working experience. Our prouduct covers PVC plastic recycling pellet machine, PET plastic bottle washing recycling machine, PET plastic flakes pelletizing granulator machine, PE PP plastic film washing recycling machine, PE PP plastic film pelletizing recycling machine, PP HDPE plastic bottle crushing washing recycling machinne, , PP PE plastic flakes pelletizing granulating recycling machine, waste plastic crusher machine, wide use single shaft shredder machine, double shaft shredder machine, PP PE pipe extrusion line, PVC pipe extrusion line, HDPE dimpled drainage sheet extrusion line, and related auxiliary machinery.

    We Have Provided Our Machine To Many Plastic Product Enterprises Company In China And Other Countries In The Southeast Asia, Mid-East,South America,North America, Europe Union,Africa. Warmly Welcome The Friends From All The World To The Company And Develop Together And Create New Future.
