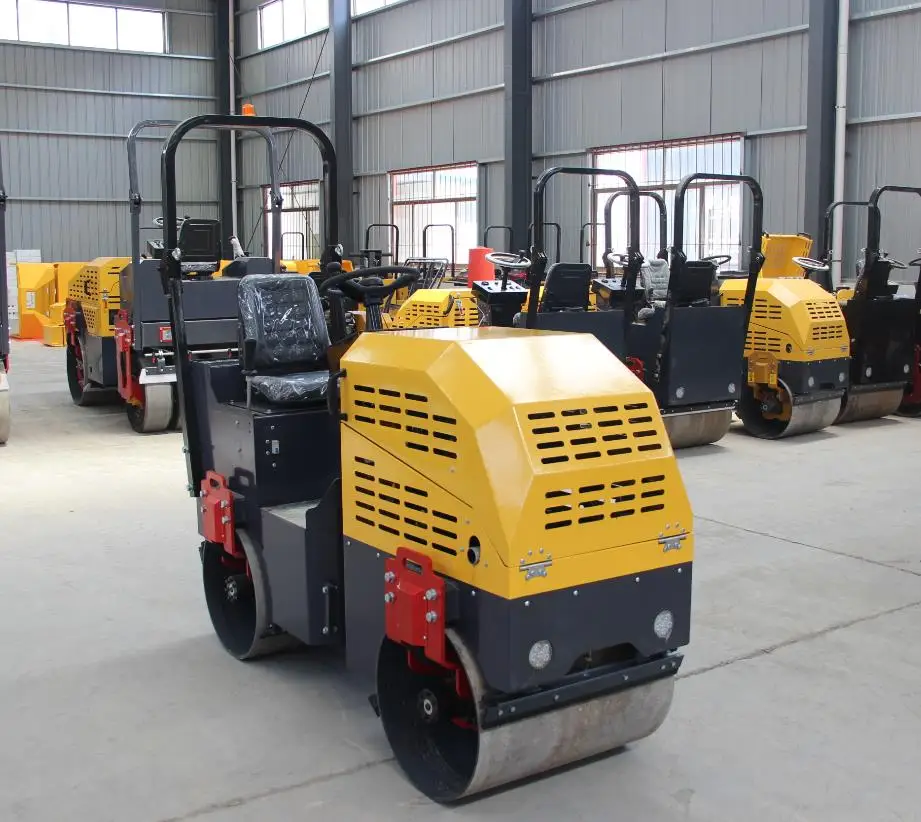

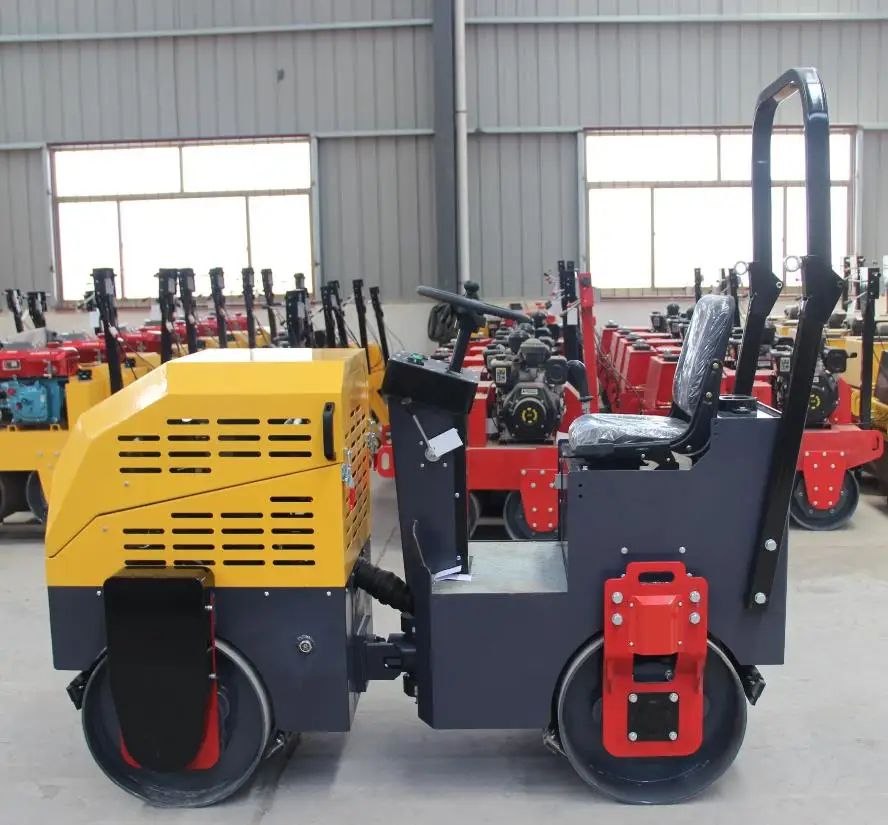

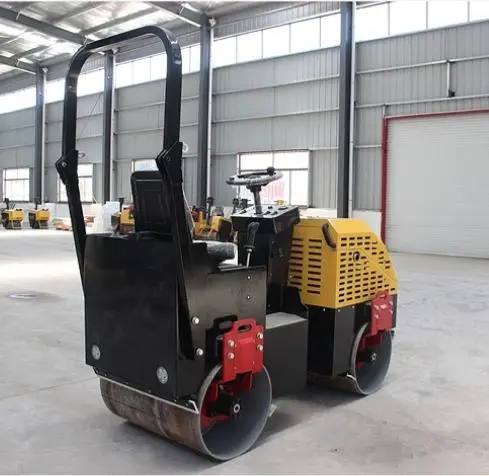

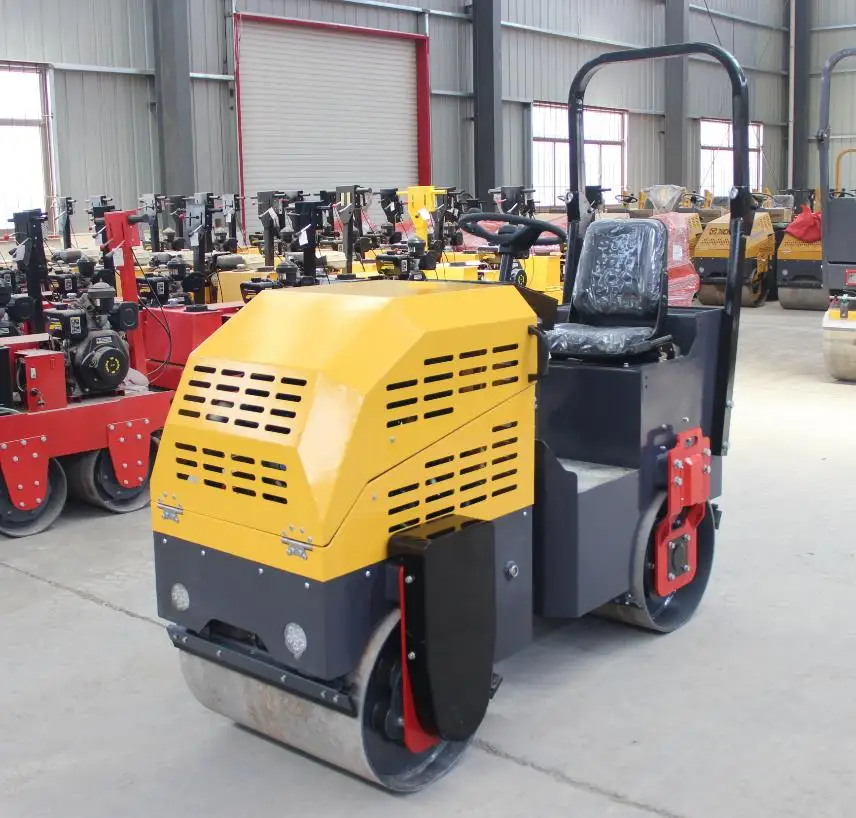

China small double drum roller compactor vibratory 1 ton road roller
China small double drum roller compactor vibratory 1 ton road roller
China small double drum roller compactor vibratory 1 ton road roller
China small double drum roller compactor vibratory 1 ton road roller
China small double drum roller compactor vibratory 1 ton road roller
China small double drum roller compactor vibratory 1 ton road roller
China small double drum roller compactor vibratory 1 ton road roller

China small double drum roller compactor vibratory 1 ton road roller

Share on (1600138606868):


Price:$4,100.00 - $4,300.00

Quantity:


Product Overview

Description









Speed
0-8KM/H
Model
Changfa CF186
Turning radius
2000mm
Types of
Diesel engine, air-cooled four-stroke
Gradeability
30%
Power
9HP/3600RPM
Before/after static line load
56N/cm
Fuel tank capacity
5.5L
Nominal amplitude
0.5mm
Fuel consumption
300/KW.H
Vibration frequency
75HZ
Steel wheel width
700mm
Exciting force
30KN
Steel wheel diameter
530mm
Drive method
Hydraulic drive, stepless speed change
Total length
2100mm
Vibration method
One-button vibration, electromagnetic clutch
Total width
860mm
Steering method
Hydraulic steering
Total height
1600mm
Sprinkling method
Electronically controlled pressure water spray
Package dimensions
2290*9500*1650mm
Working weight
1040KG








Imported Danfoss hydraulic motor;

Steel wheel width 700mm;

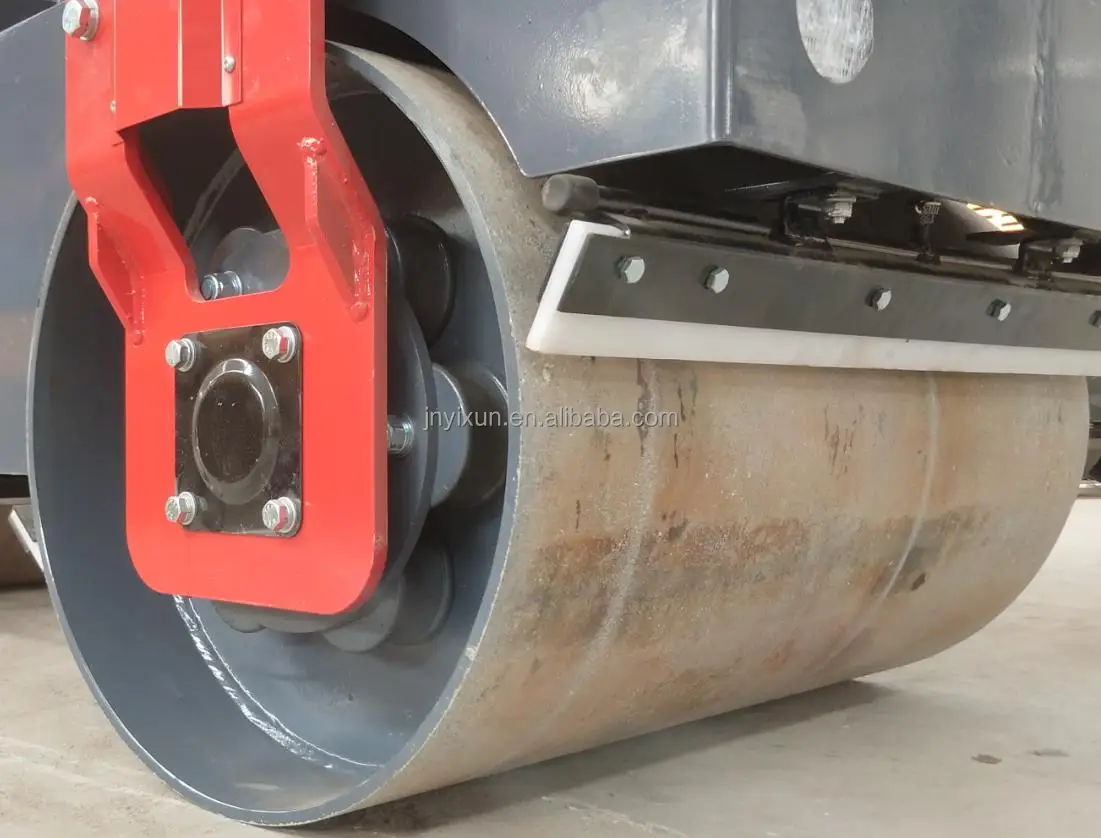

The diameter of the steel wheel is 530mm;

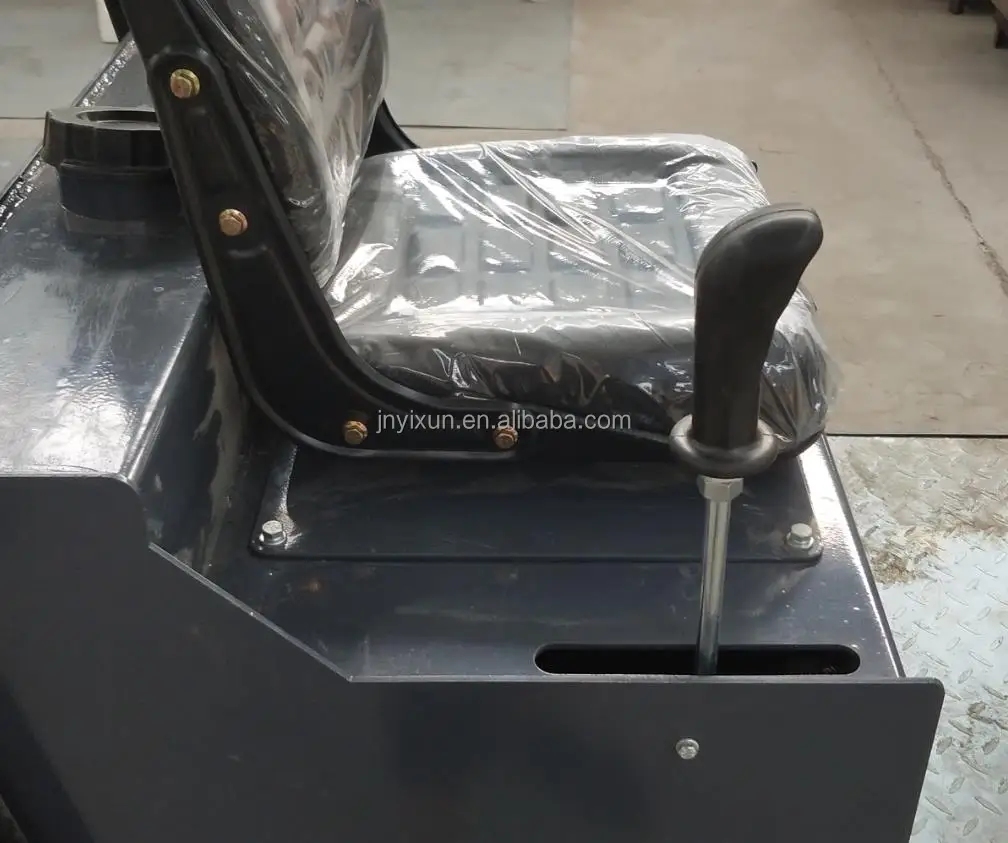

Leather seat；

safe and comfortable；

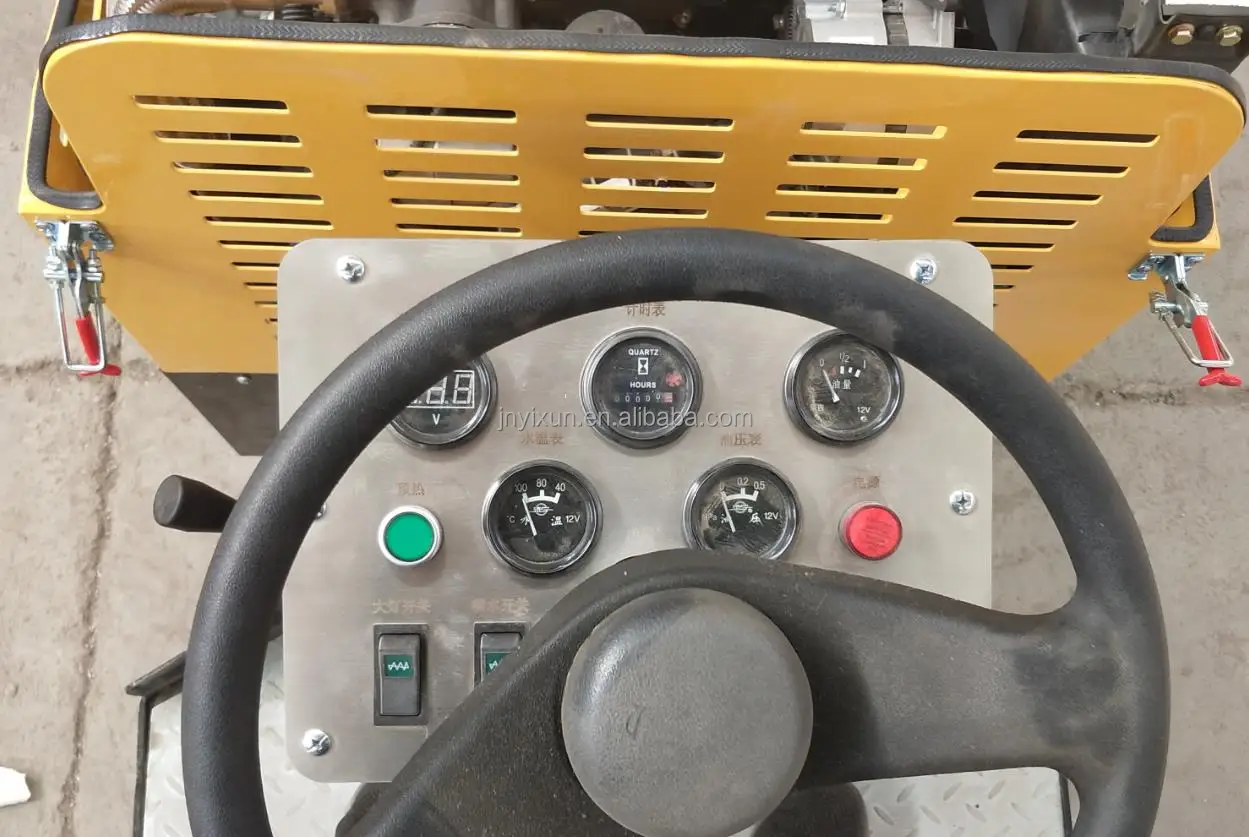

The console is simple and clear；

One-click vibration；

Front and rear two-wheel hydraulic drive;

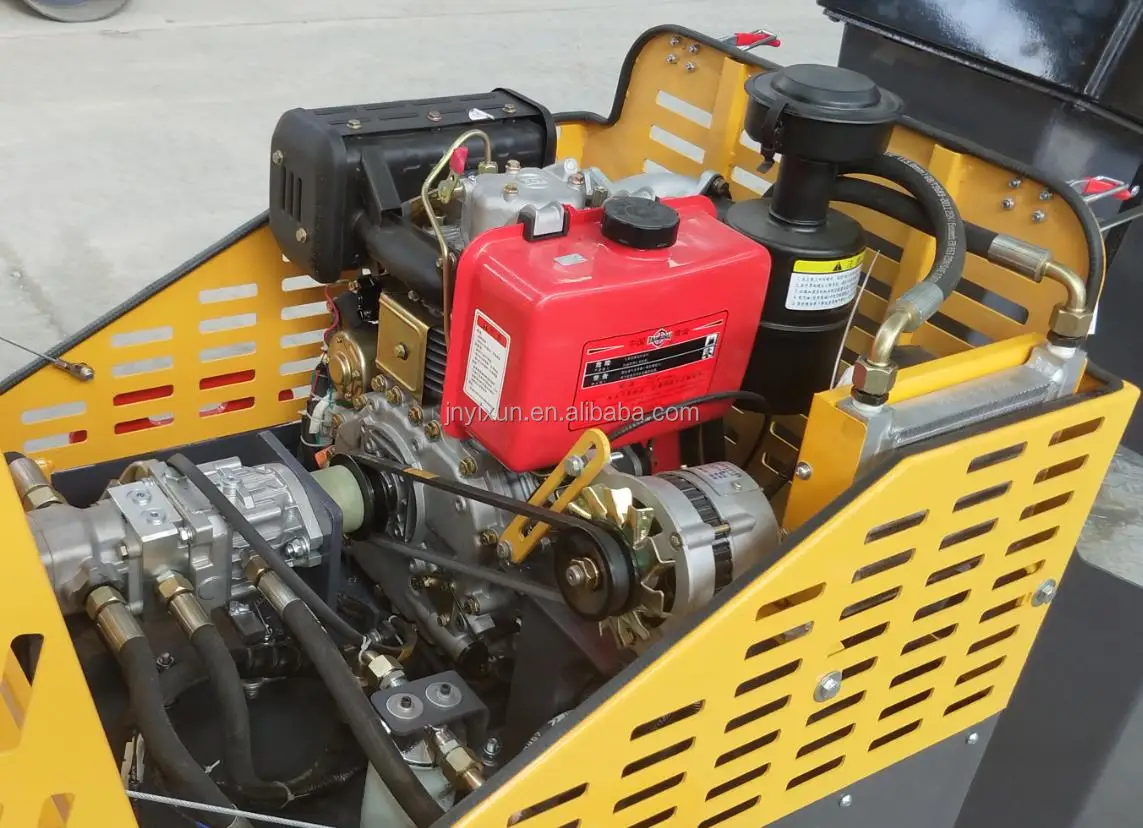

Diesel engine air-cooled four-stroke;

Full hydraulic system;

Stepless speed change;




320KG

590KG

720KG



1000KG

2000KG

3000KG



3000KG

4000KG

6000KG
