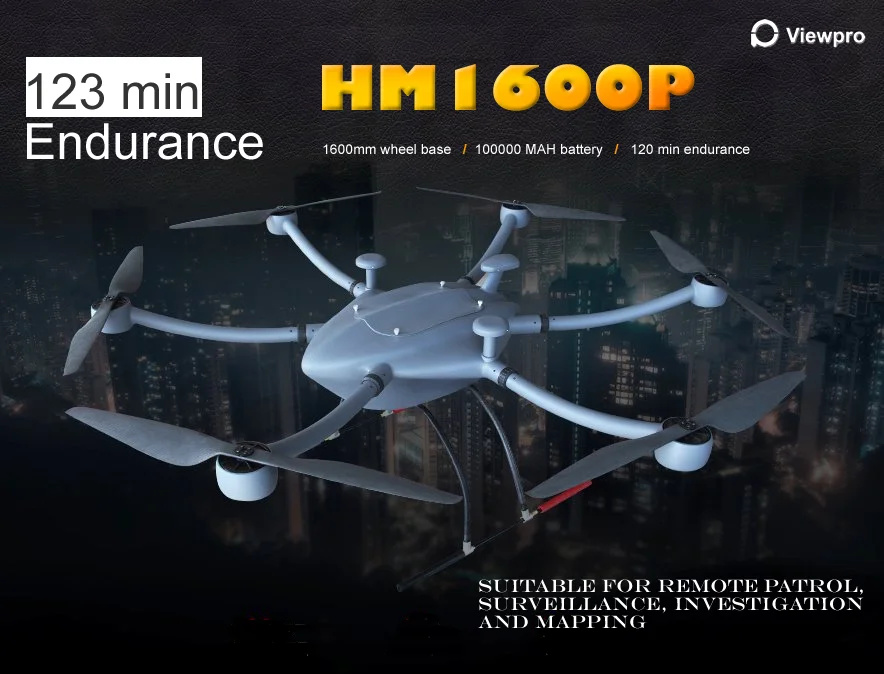

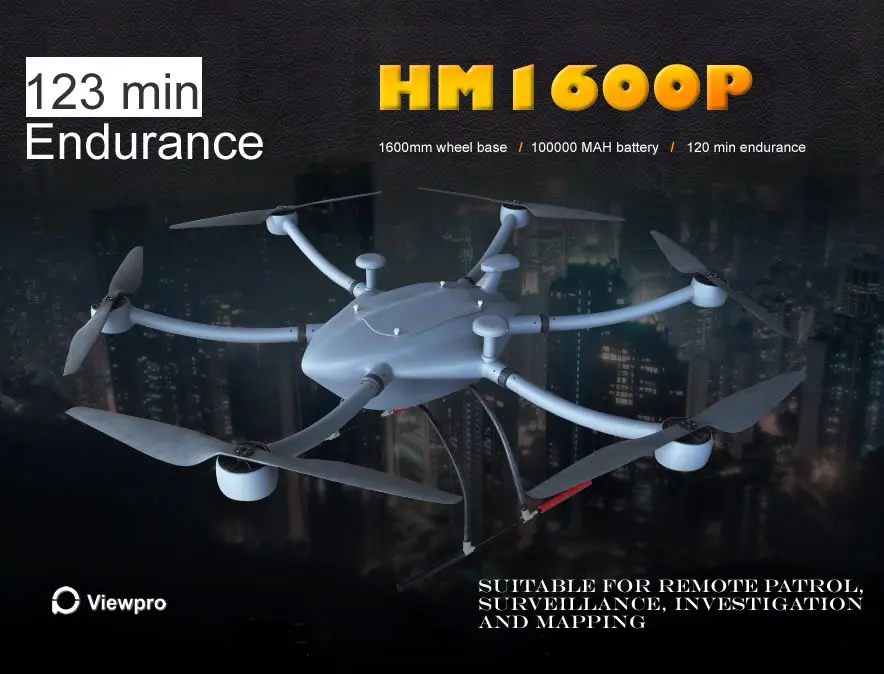

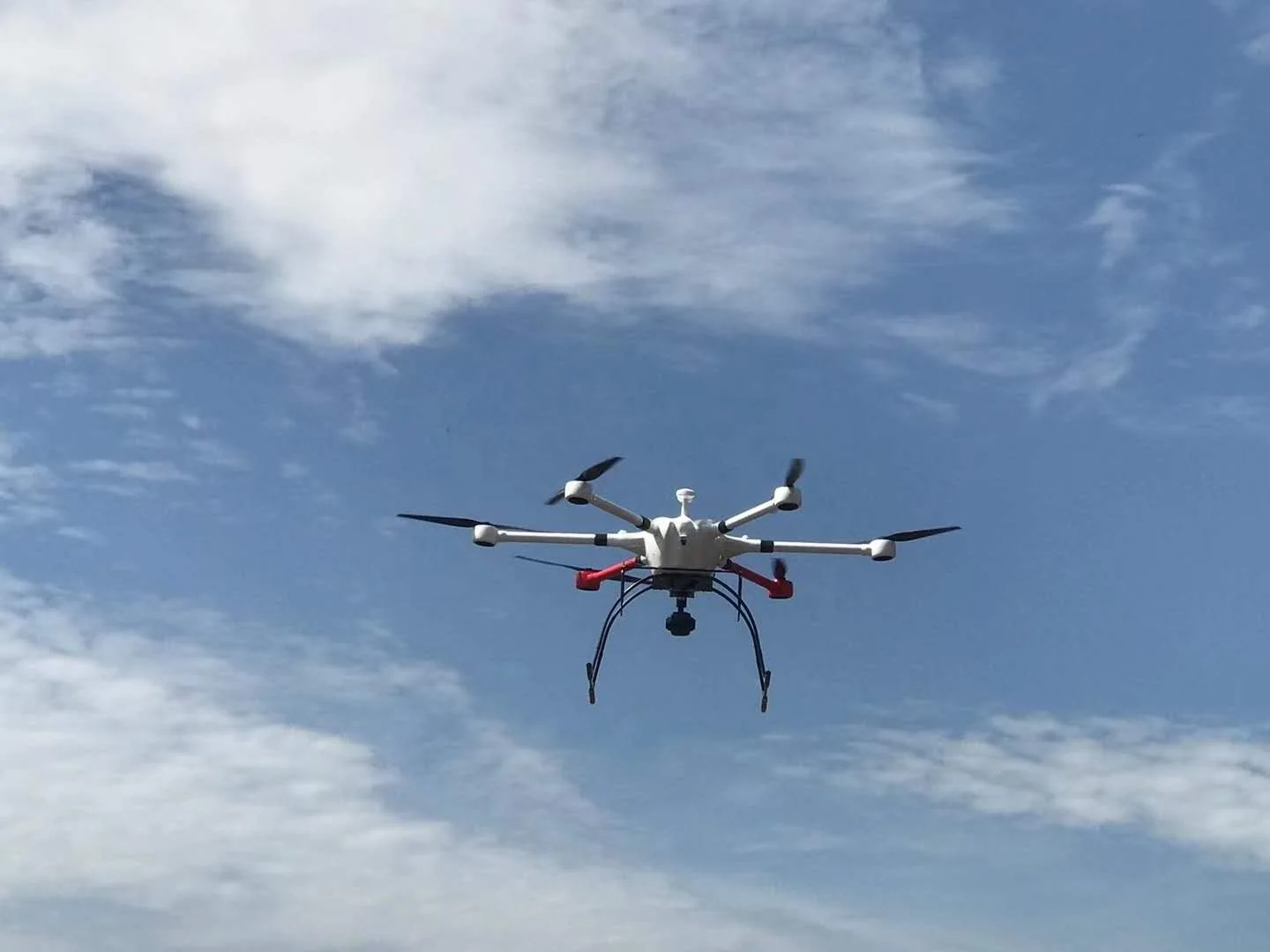

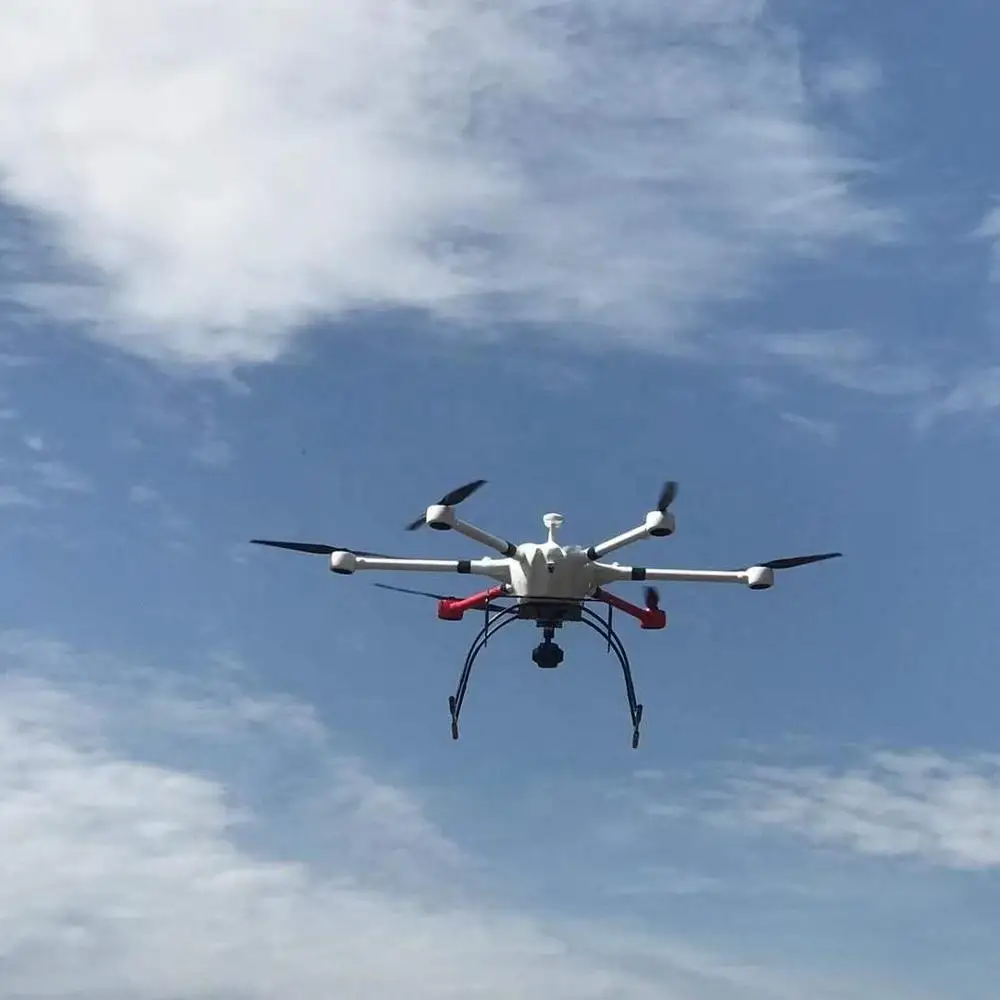

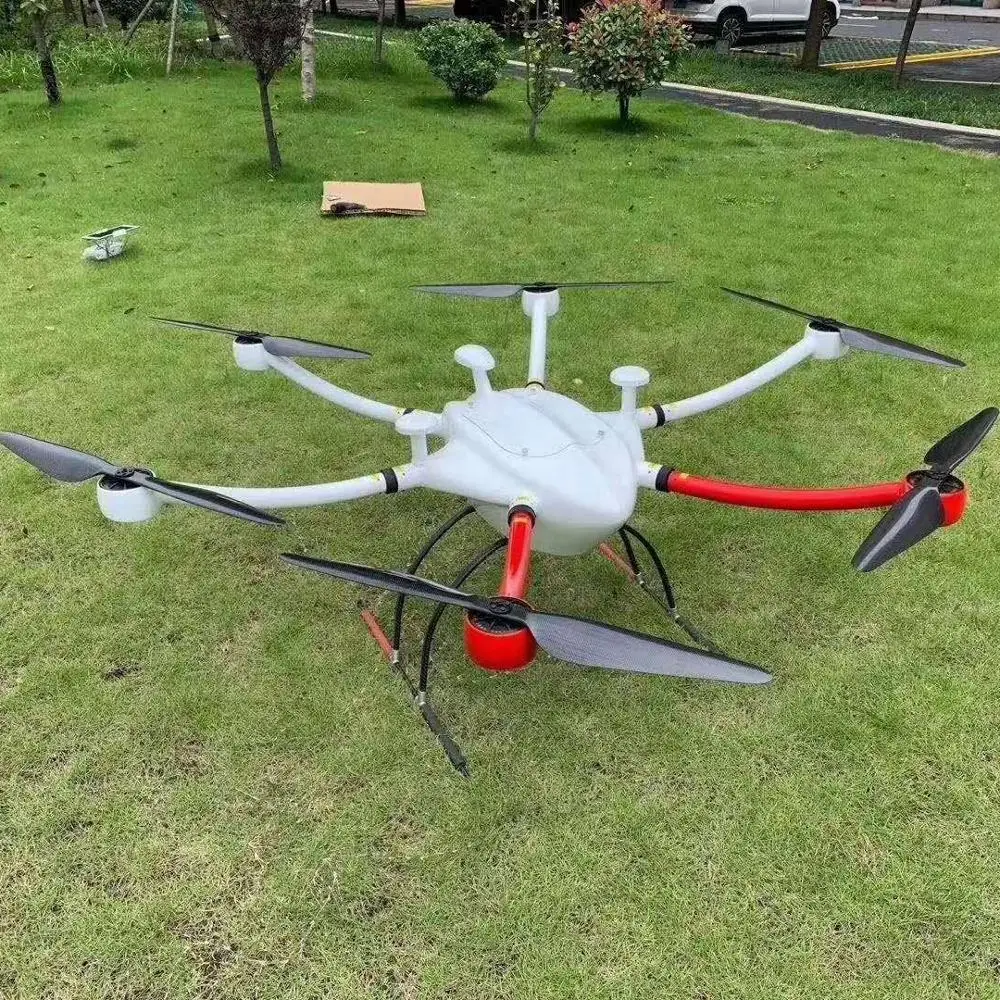

Viewpro Roc 4 M160 HEXA drone uav 120min flight time multi rotor for inspection and surveillance

Share on (1600138744579):


Price:RUB 921,581.72

Quantity:


Product Overview

Description

Viewpro Roc 4 M160 HEXA drone uav 120min flight time multi rotor for inspection and surveillance

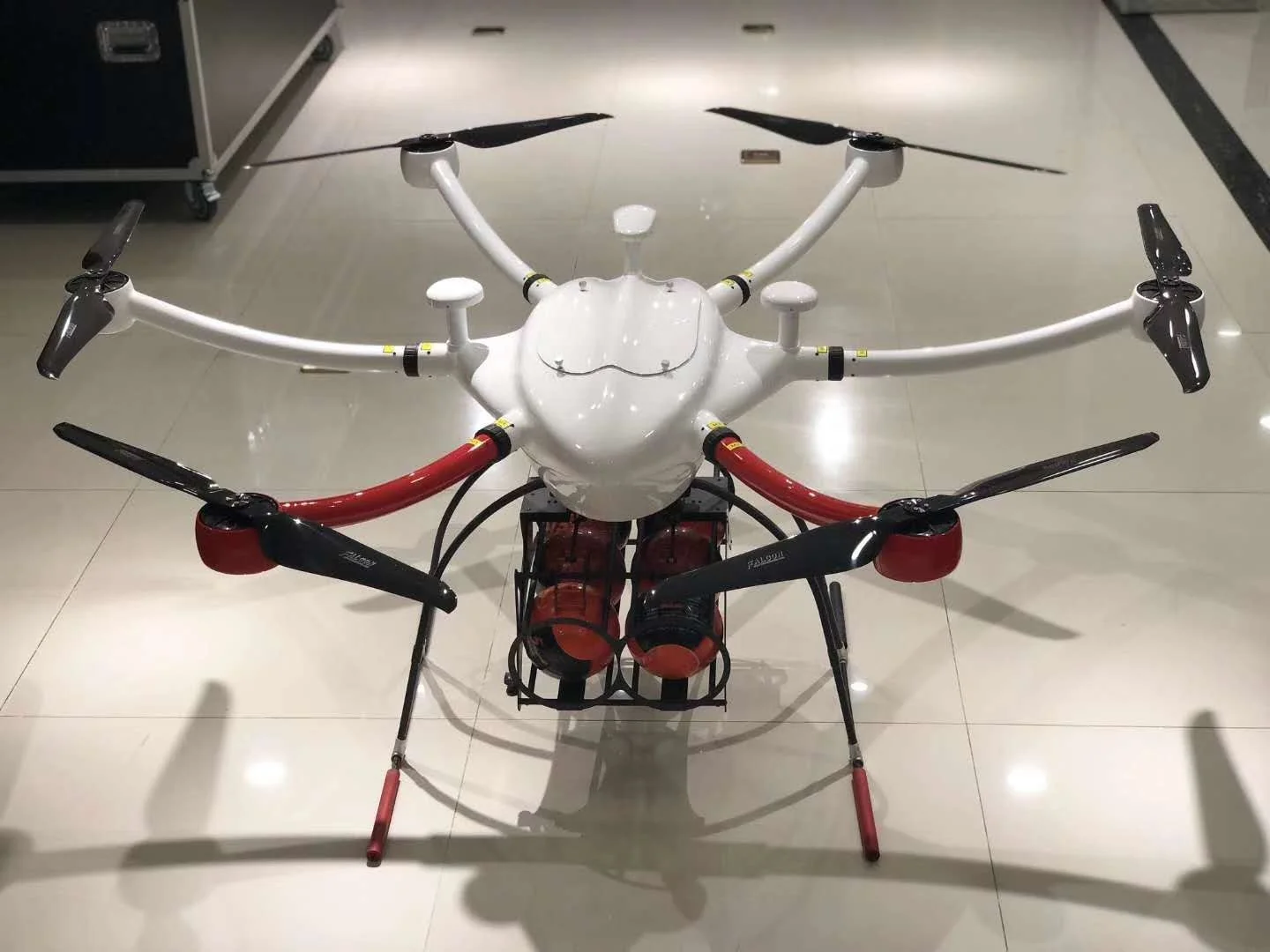

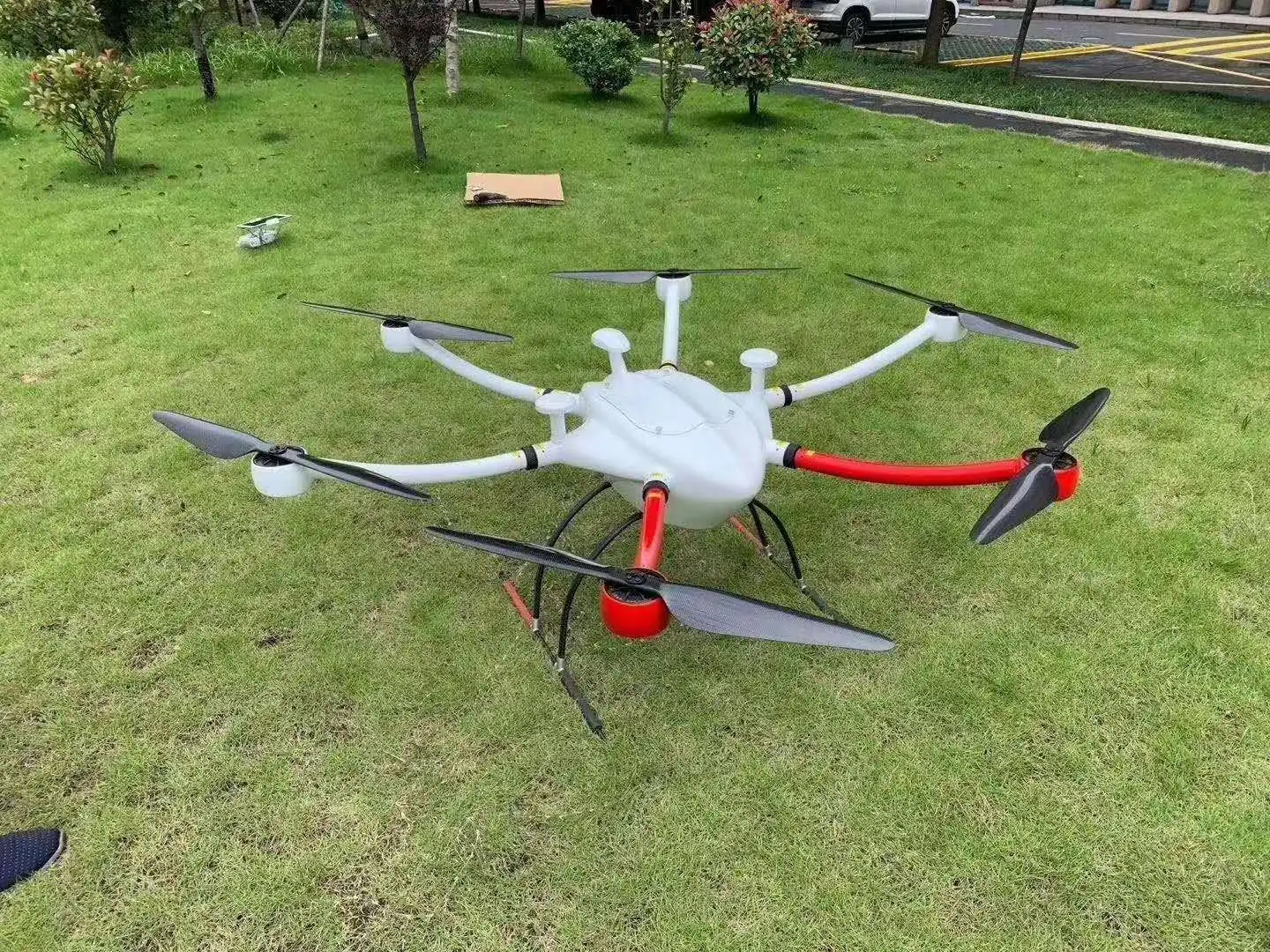

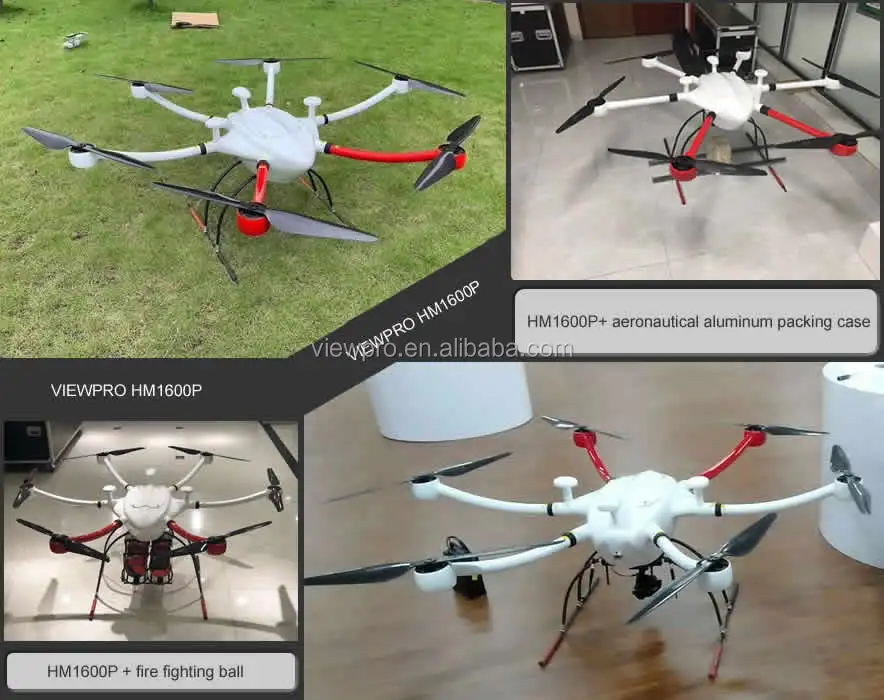

Details Images
Specification

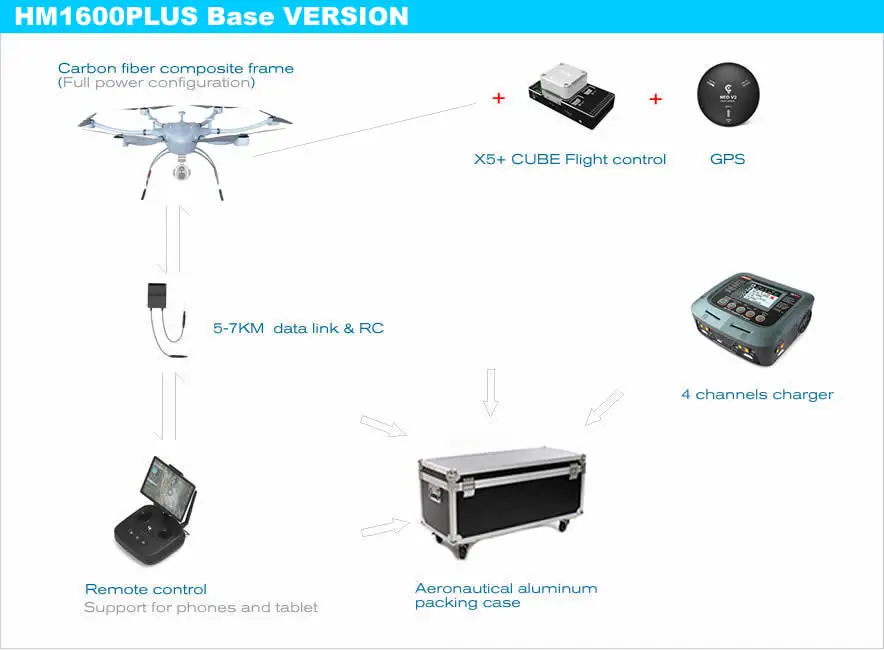

Product parameter ( HM1600P base version)













        UAV
   PLatform
Expanded dimensions
1962×1962×620mm
Folded dimensions
600×600×620mm
Wheelbase
1600MM

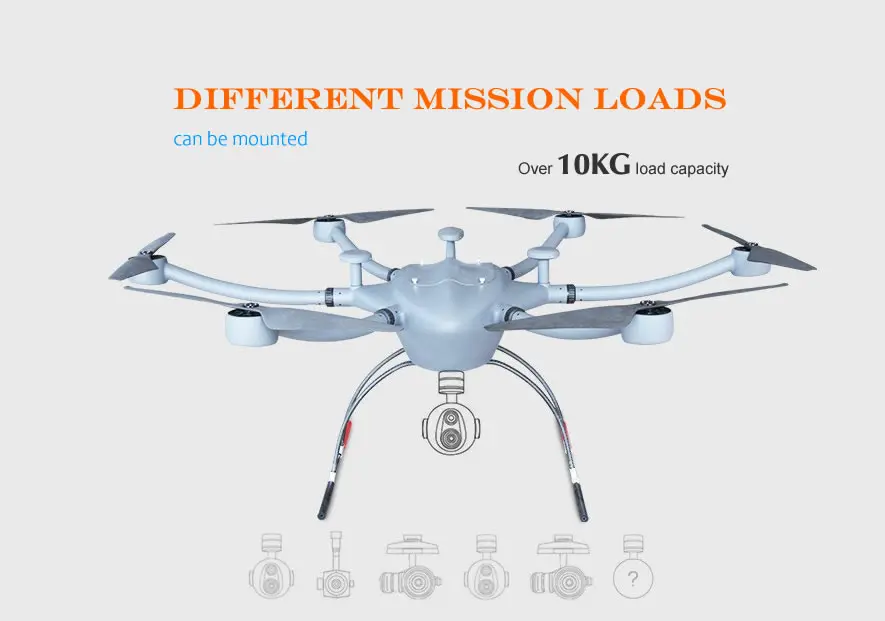

Maximum load
10KG
Maximum take-off weight
25KG
Positioning and navigation
GPS + GlONASS + BDS
Positioning accuracy
Vertical:±0.5 m(GPS ); ±0.1 m(RTK ).
Horizontal: ±1.5 m(GPS );±0.1 m(RTK ).
Maximum speed of flight
20m/s
Maximum climbing speed
Stabilize 11m/s、Loiter 7 m/s
Maximum landing speed
3m/s
Maximum flight altitude
3000m
Maximum wind resistance level
12m/s
IP Grade
IP44
Endurance
123min
Working environment
-20°C — 45°C









             RC
Operating frequency
2.4G
Control mode
PPM/S-BUS/PWM
Data interface
UART(GND/TX/RX)
Control distance
5-7KM
Data transmission distance
5-7KM
Channels
2
Charging interface
Micro USB
Data output
USB2.0
Screen bracket
Yes (Support for phones and tablets)
Independent gimbal control rocker
yes




             Others
Battery
li battery 4*25000mAh-12S
Charger power
200W
Charging channels
4
Charging mode
Charge\fast charge\balance charge
Discharge protection function
yes
Packing
Aeronautical aluminum equipment box
Package case size
75*75*50CM

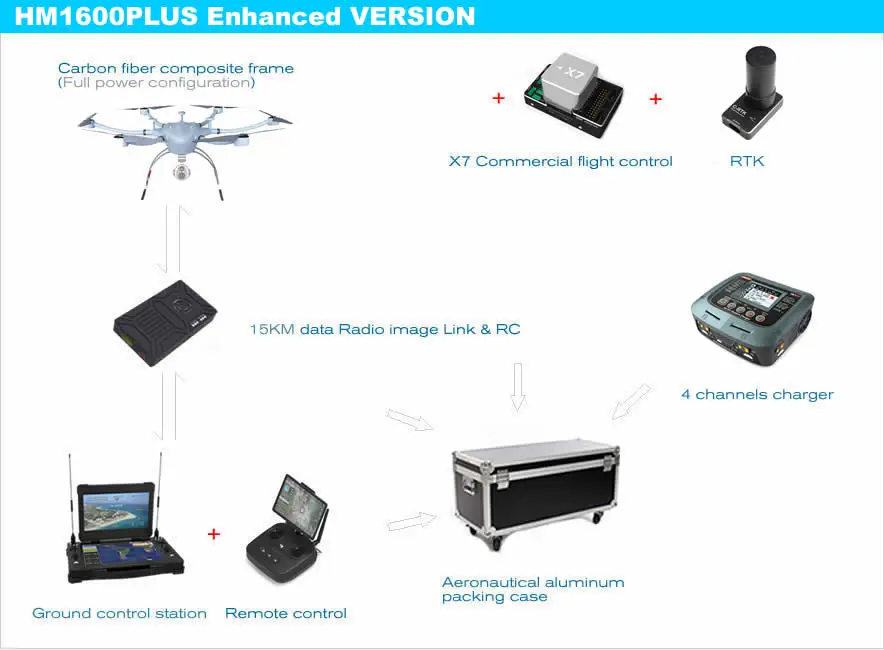

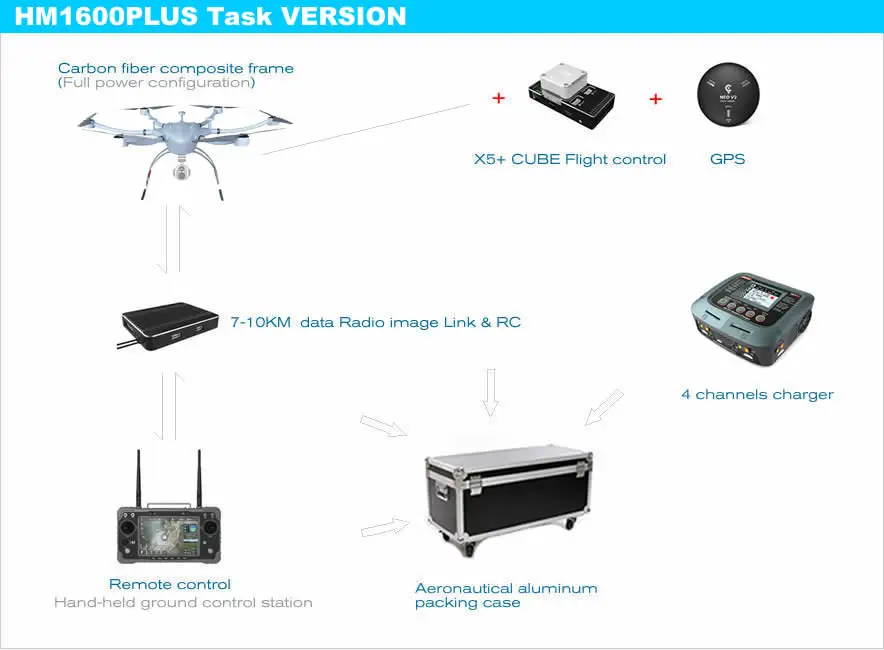

Advanced optional
Packing & Delivery
Selling Units: Single itemSingle package size: 150*70*45cm
Single gross weight: 35.000kg
Lead time: 10 working days for 1-1, >1 to be negotiated
Company Profile
Established in 2005, Shenzhen Viewpro is a Hi-tech manufacturer specialized in R&D and manufacturing of cutting-edge zoom gimbal cameras for industrial and commercial Unmanned Aerial Vehicle (UAV). With the strong R&D team, we focus on research and innovation at image processing, optical zoom algorithm, object tracking, object GPS coordinate resolving, and camera stabilizing solutions based on direct drive brushiless motors. Extensive product rang with comprehensive professional functions enlarge the applications of our gimbal cameras on helicopters, fixed wings and multi-rotors with different autopilots in various domains, such as infrastructure, public safety, construction and energy etc. Meanwhile, OEM&ODM service is one of important advantages for us, which brings us challenge and new progress. The seamless docking with DJI M200 series drones in 2018 has enhanced the leadership and competitiveness of Viewpro in UAV gimbal camera field. In the rapidly developing field of UAV, we devote to constant improvement and enhancing of the main and additional features of our products. To enhance productivity and security for humans with UAV products is our long-term vision. Welcome to join us!
Exhibition
Application
