China R series of marine engine inboard 150hp with Advance marine gear box

Share on (1600138784361):


Price:$2,300.00 - $2,525.00

Quantity:


Product Overview

Description



Product Overview

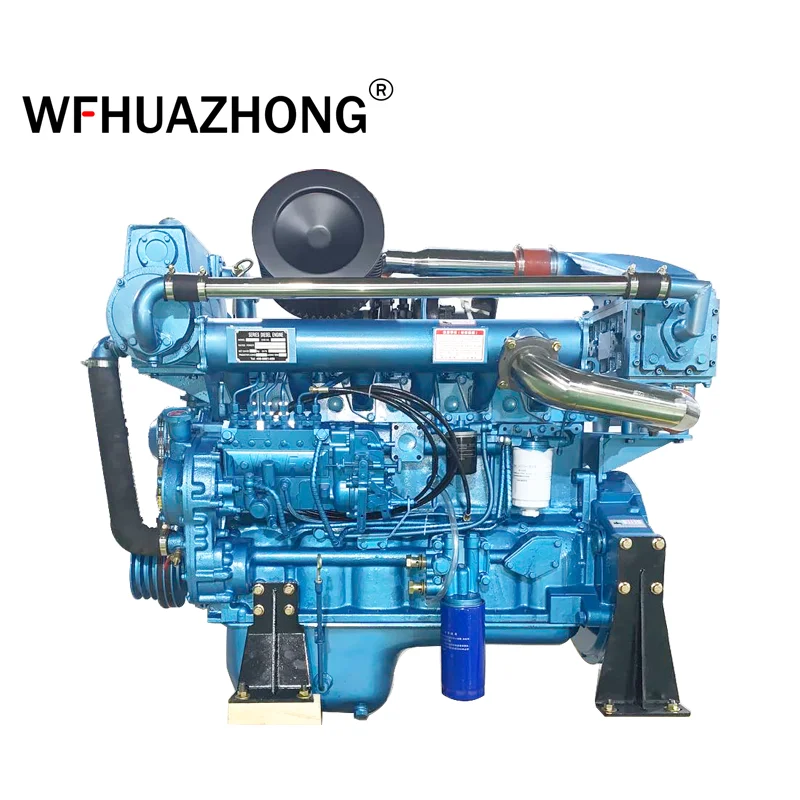

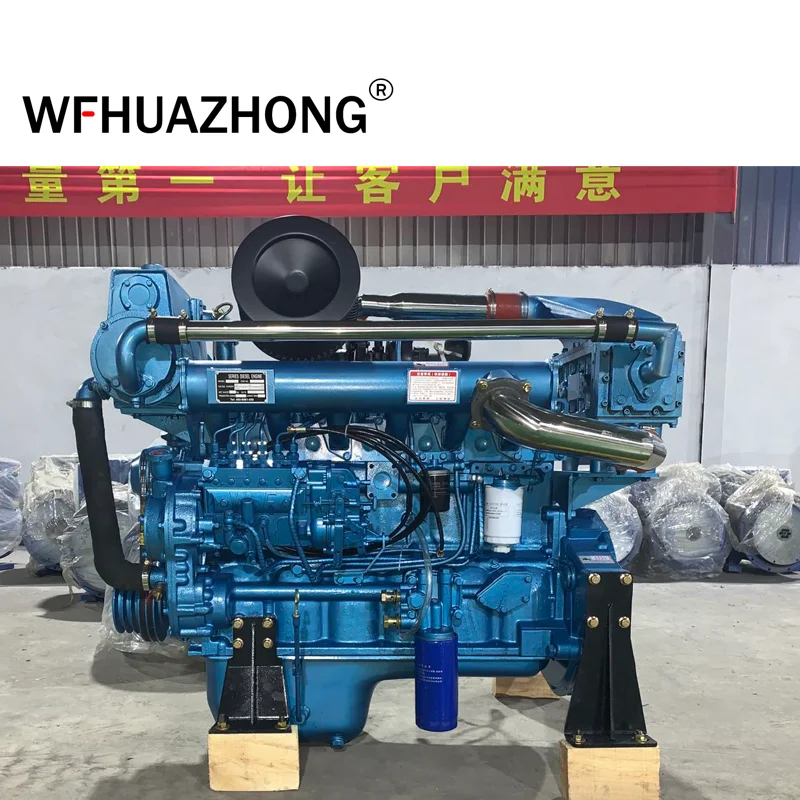

R6105AZLC
This marine engine is R series, we take this engine as the core, through many years of independent development and cooperation, has a lot of supporting experience in
major shipyards.It can carry out the integrated work of ship engine propeller matching calculation, main engine selection, gearbox
matching, shafting design, propeller design, torsional vibration calculation, etc


FEATURES AT A GLANCE


1. High torque in medium and low speed range, continuous output and strong power
2. It adopts direct injection combustion chamber, easy to start, low fuel consumption and economic.
3. Optimization of intake and oil supply system, Mechanical governor and Electronic governor are available.
4. The main parts are all strengthened design, stable and durable.
5. Compact structure, easy to install and arrange. The power interface meets the SAE standard and has good market
interchangeability and versatility



Right elevation
Left elevation
Front elevation


PRODUCT SPECIFICATIONS


No
Item
Data
1
Power
120KW
2
ratespeed
1800rpm
3
Gross weight
580kgs
4
Type
Inject & Inline
5
Bore*strock
105*115
6
Cool system
Heat exchanger
7
Engine displacement
6.75L
8
Color
red,blue,gray,yellow..


PRODUCT CONFIGURATION


connect rod
starter
turbocharge


SALES AND SERVICE NETWORK




Successful Project


Project in Thailand
Project in India
Project in Russia




SIMILAR PRODUCTS






FAQ


Q1:Are you a manufacturer or trade company?
A1:We are a manufacturer in power equipment more than 10years. Welcome to visit our factory.
Q2:What about the delivery time?
A2: It’s about 10-20 days in general type ,special configuration customized need some more days.
Q3: Do you offer OEM service?
A3: Yes. can accept all the OEM and ODM orders.
Q4:What's the payment terms and trade terms for new customers?
A4: Payment terms:T/T,L/C at sight,Western Union etc. are accepted.
Q5:What's the Minimum Order Quantity and warranty?
A5:MOQ:1 set
Warranty:12 Months or 1000 working hours whichever comes first.
Q6: Can you guarantee your quality?
A6: Of course. We are a manufacture factory. More importantly, we put a high value on our reputation. Best quality is our
principle all the time. You can be assured on our production completely.
