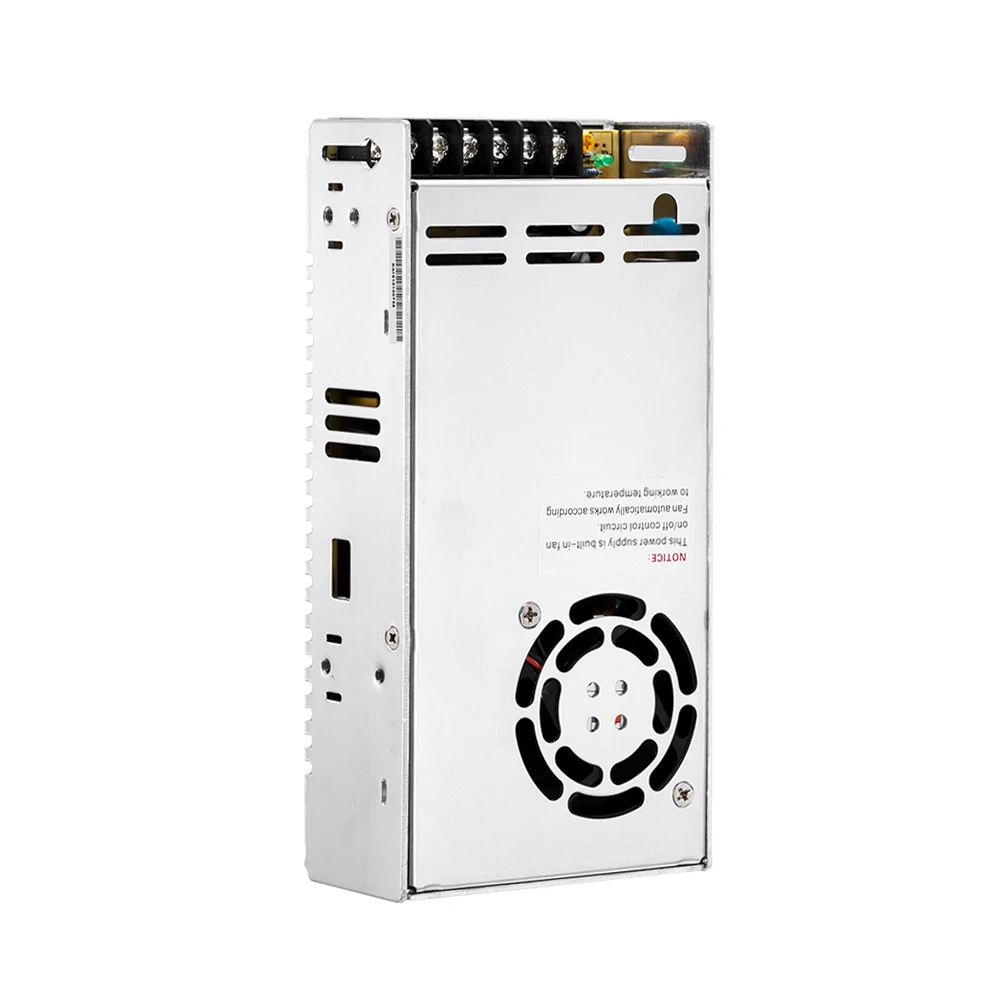

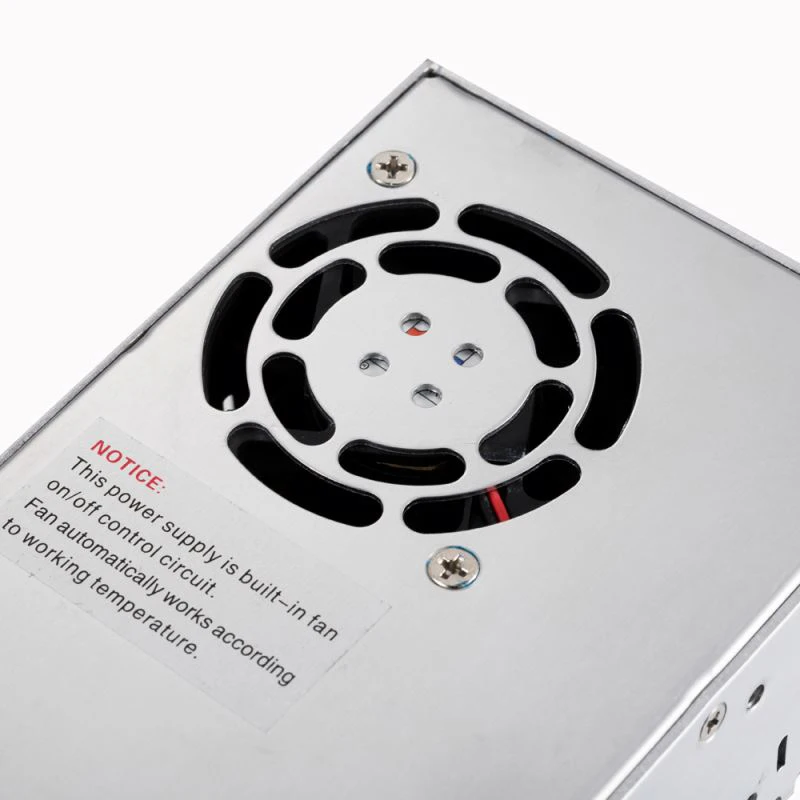

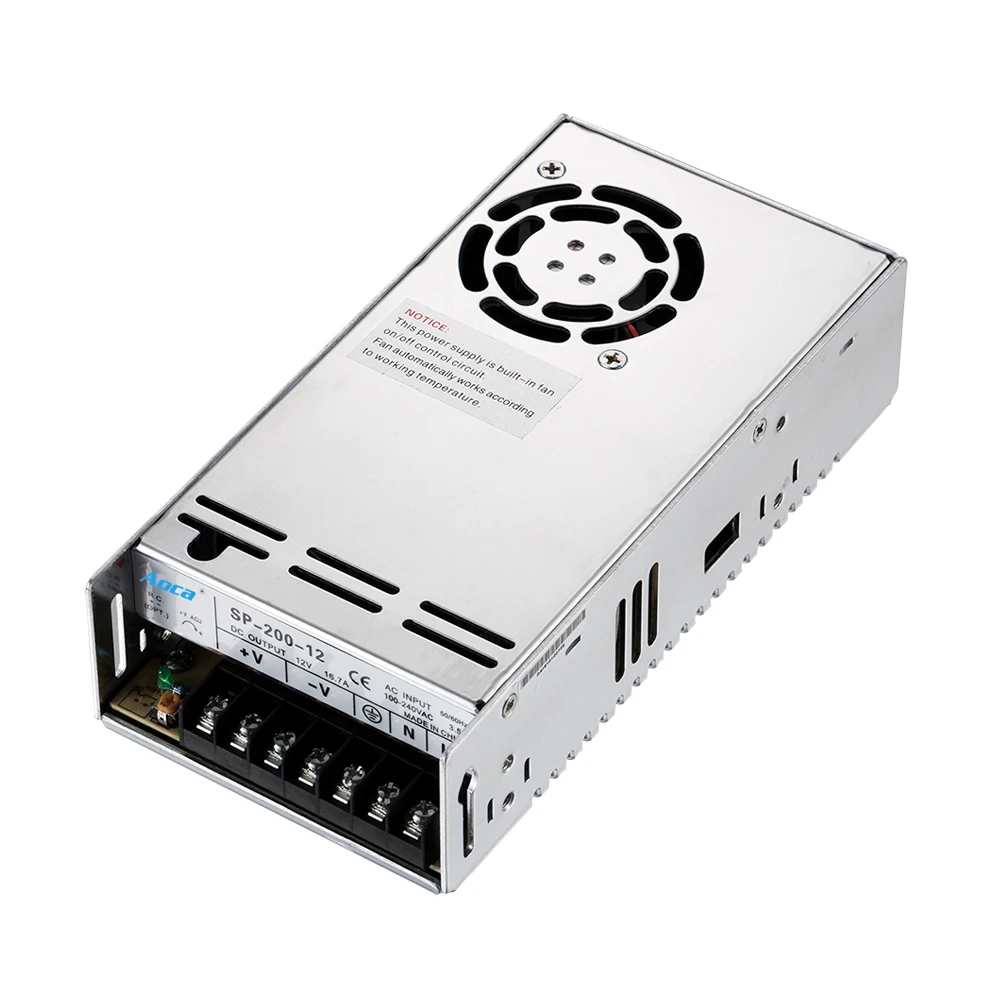

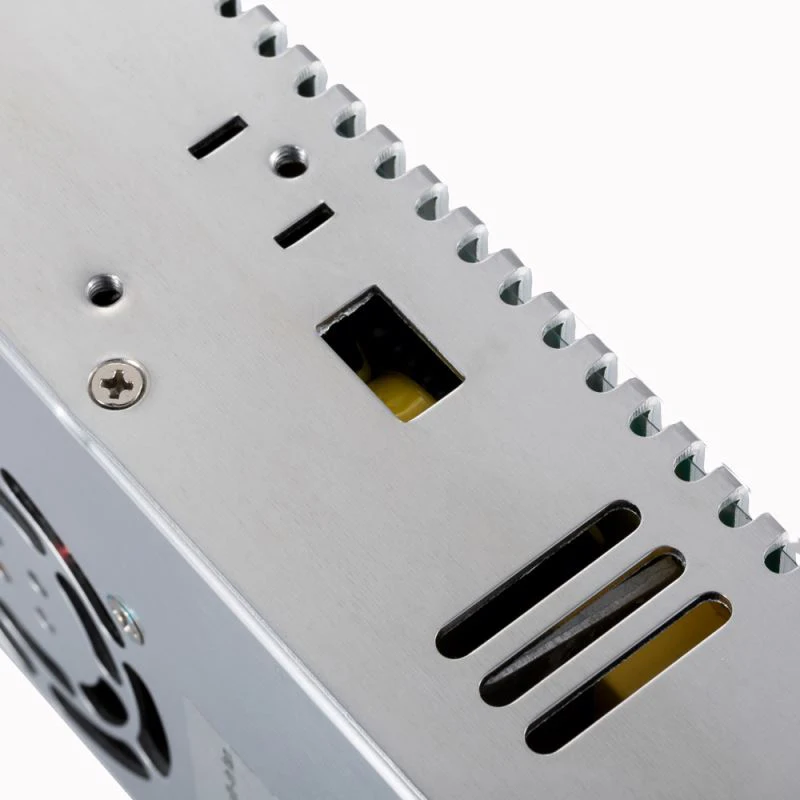

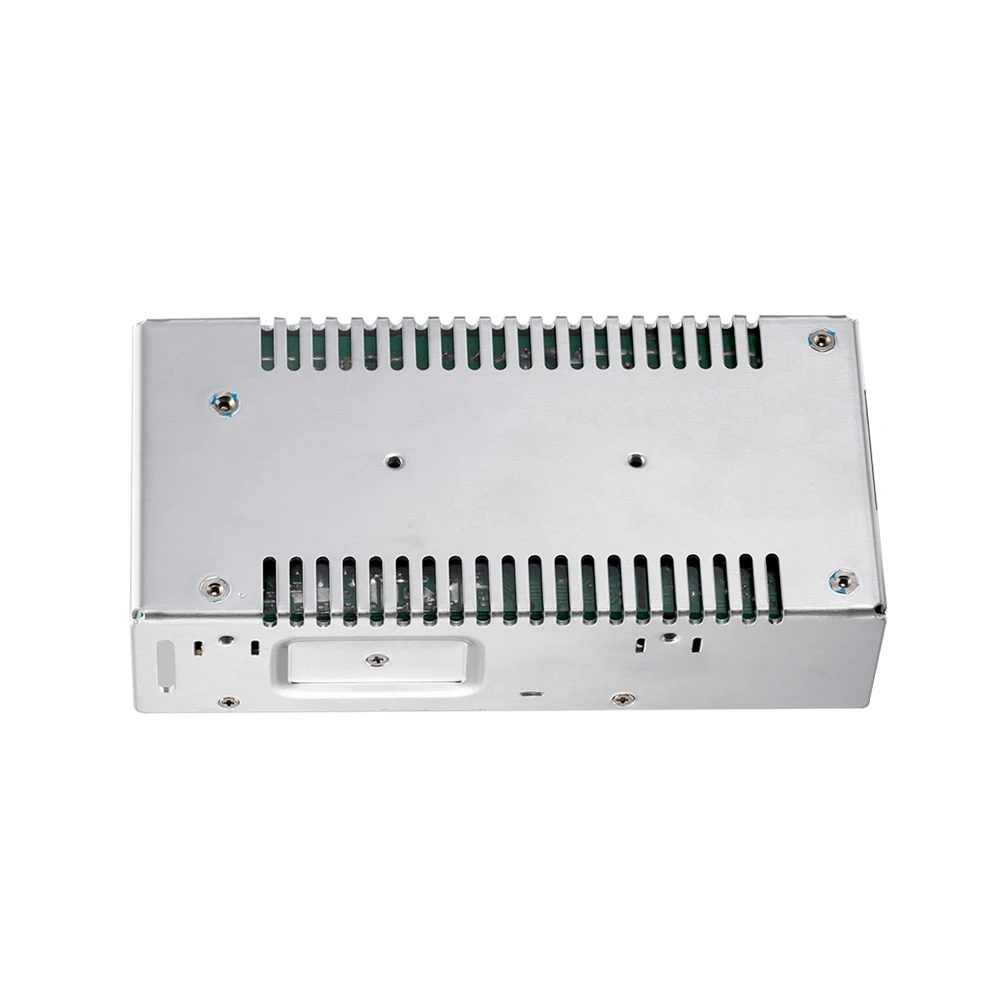

Good Price SP 200 with PFC function 48v switching power supply 4.2a for led strip
- Category: >>>
- Supplier: Wenzhou Aoca Electronic Co. Ltd.
Share on (1600138951722):
Product Overview
Description
Company Information
PARAMETER
| Model | SP-200-5 | SP-200-12 | SP-200-24 | SP-200-48 |
| DC Voltage | 5V | 12V | 24V | 48V |
| Rated Current | 40A | 16.7A | 8.4A | 4.2A |
| Current Range | 0-40A | 0-16.7A | 0-8.4A | 0-4.2A |
| Rated Power | 200W | 200.4W | 201.6W | 201.6W |
| Ripple & Noise | 100mVp-p | 100mVp-p | 150mVp-p | 250mVp-p |
| DC Adjustment Range | -5%,+10% | -5%,+10% | -5%,+10% | -5%,+10% |
| Voltage Tolerance | ±2% | ±2% | ±1% | ±1.0% |
| Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Setup, Rise, Hold Up Time | 600ms,30ms,20ms at full load | |||
| Voltage Range | 85~264 VAC47-63Hz;120~370VDC | |||
| AC Current | 3.5A/115 VAC1.7A/230VAC | |||
| Power Factor | PF>0.93/230VAC,PF>0.98/115VAC at full load | |||
| Efficiency | 71% | 79% | 83% | 84% |
| Inrush Current | Cold start 40A/230VAC | |||
| Leakage Current | <2mA/240VAC | |||
| Over Load | 105%-150% | |||
Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
| Over Voltage | 110%~135% | |||
| Protection type: Shut down o/p voltage, re-power on to recover | ||||
| Over Temp. | TSW1(Power transistor) When temp .in 95±5 °C shutdown o/p voltage temp . <95±5 °CO/I auto-recovery. | |||
| Working Temp. Humidity | -10°C~+50°C; 20%~90%RH | |||
| Storage Temp. Humidity | -20°C~+85°C; 10%~95%RH | |||
| Temp. Coefficient | ±0.03%/°C(0~50°C) | |||
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||
| Withstand Voltage | I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC | |||
| Safety Standard | Design refer to UL1950,TUV EN60950 | |||
| EMC Standard | Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024 | |||
| Dimension | 199*99*50mm (L*W*H) | |||
| Weight | 0.8Kg/pc | |||
