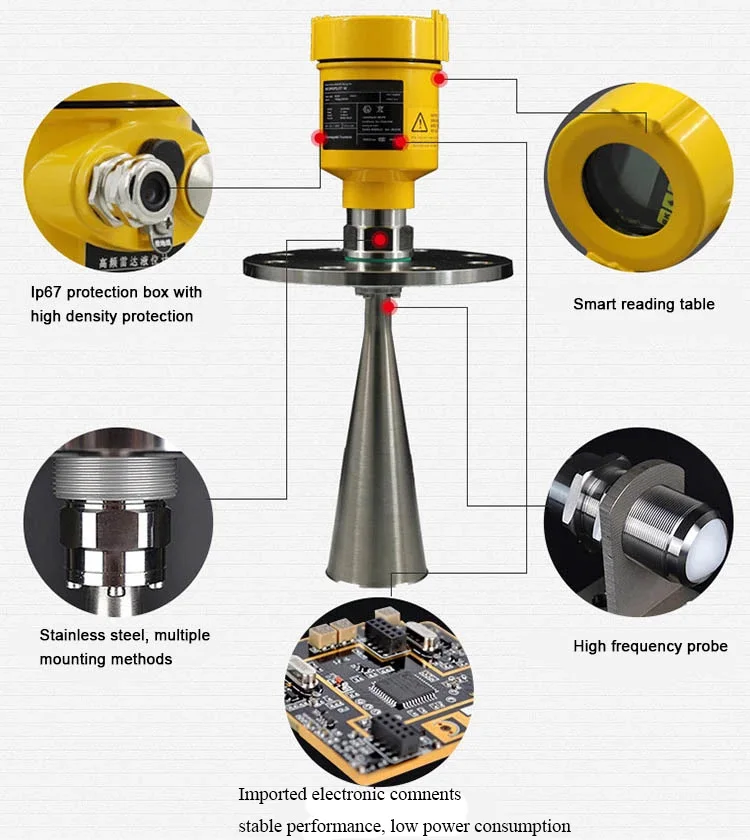

26gh Cement Silo Radar Level Sensor
Radar Level Transmitter is high-frequency level measurement instruments with the maximum measuring distance up to 70 meters. The antenna is further optimized, and the new-type microprocessor can perform higher rate of signal analysis and processing, Therefore, it can be widely used in plastics, coal, grain, sewage treatment, petroleum, chemical, food and beverage, bio-pharmaceutical industries, etc. Non-contact measurement, corrosion resistance, convenient installation, high measurement accuracy, fast response, long service life and good stability. It has a large measuring range and can be used to measure the height of liquid and solid materials. It is widely used in the measurement of material levels such as granaries, oil tanks, chemical raw material tanks, sewage pools, corrosive environments and high hygienic requirements.
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals ( because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost Instantaneous).
Feature：
1. Non-contact radar, wear-resistant and no pollution.
2. Suitable for various corrosive liquids.
3. Small beam angle, concentrated energy, stronger anti-interference ability, greatly improving measurement accuracy and reliability.
4. High signal to noise ratio, even in the case of fluctuations can get better performance.
5. 26GHz high frequency, compared with the low-frequency radar level meter, the measurement blind zone is smaller.
6. A variety of output circuit interfaces and acquisition system.
7. The integrated anti-corrosion cover structure effectively prevents the corrosive medium from coming into contact with the probe and has excellent anti-corrosion performance.
8. Using pulse mode, the radar level gauge has very low transmission power and no harm to human body and environment.
Typical applications of intelligent radar object level meter:
1. Power plant: coal pile, raw coal bunker, fuel bunker, reservoir, waste gas purification tank, bin pump, ash storage, fuel tank, etc.
2. Oil field: crude oil or product oil storage tank, three-phase separator, settling tank, sewage tank and oil-water interface, drilling mud tank, etc.
3. Chemical engineering: crude distillation tower, raw material and intermediate bunker, reaction tank, ammonia tank, solid bunker, separator, etc.
4. Metallurgical: ore bin, ore crusher, raw material warehouse, auxiliary materials warehouse, blast furnace, alumina powder warehouse, electrolytic tank buffer tank, etc.
5. Mud: stone warehouse, raw material warehouse, cement warehouse, pulverized coal warehouse, slag storage warehouse, etc.
6. Water treatment: reservoir, sewage tank, water treatment tank, sedimentation tank, deep well, drinking water network, etc.
7. Paper making: raw material warehouse, storage tower, drying drum, chemical material storage warehouse, etc.
8. Others: quarry, food, pharmaceutical, environmental protection, shipbuilding and other industries.
Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals ( because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost Instantaneous).
Feature：
1. Non-contact radar, wear-resistant and no pollution.
2. Suitable for various corrosive liquids.
3. Small beam angle, concentrated energy, stronger anti-interference ability, greatly improving measurement accuracy and reliability.
4. High signal to noise ratio, even in the case of fluctuations can get better performance.
5. 26GHz high frequency, compared with the low-frequency radar level meter, the measurement blind zone is smaller.
6. A variety of output circuit interfaces and acquisition system.
7. The integrated anti-corrosion cover structure effectively prevents the corrosive medium from coming into contact with the probe and has excellent anti-corrosion performance.
8. Using pulse mode, the radar level gauge has very low transmission power and no harm to human body and environment.
Typical applications of intelligent radar object level meter:
1. Power plant: coal pile, raw coal bunker, fuel bunker, reservoir, waste gas purification tank, bin pump, ash storage, fuel tank, etc.
2. Oil field: crude oil or product oil storage tank, three-phase separator, settling tank, sewage tank and oil-water interface, drilling mud tank, etc.
3. Chemical engineering: crude distillation tower, raw material and intermediate bunker, reaction tank, ammonia tank, solid bunker, separator, etc.
4. Metallurgical: ore bin, ore crusher, raw material warehouse, auxiliary materials warehouse, blast furnace, alumina powder warehouse, electrolytic tank buffer tank, etc.
5. Mud: stone warehouse, raw material warehouse, cement warehouse, pulverized coal warehouse, slag storage warehouse, etc.
6. Water treatment: reservoir, sewage tank, water treatment tank, sedimentation tank, deep well, drinking water network, etc.
7. Paper making: raw material warehouse, storage tower, drying drum, chemical material storage warehouse, etc.
8. Others: quarry, food, pharmaceutical, environmental protection, shipbuilding and other industries.
Product Paramenters
Model | RD901 |
Application | various high corrosive fluid |
Measure range | 10m |
Medium Temperature | -40～120ºC |
Process pressure | -0.1～0.3MPa |
Accuracy | ±5mm |
Frequency | 26GHz |
Explosion-proof class | ExibⅡC T6 Gb |
Protection class | IP67 |
signal output | 4-20mA/HART(2-wire / 4-wire) RS485/Modbus |
Model | RD902 |
Application | high temperature, high pressure medium |
Measure range | 30m |
Medium Temperature | -40～250ºC |
Process pressure | -0.1～4MPa |
Accuracy | ±3mm |
Frequency | 26GHz |
Explosion-proof class | ExibⅡC T6 Gb |
Protection class | IP67 |
signal output | 4-20mA/HART(2-wire / 4-wire) RS485/Modbus |
Model | RD903 |
Application | solid material, strong dust, crystallizing, dew environment |
Measure range | 70m |
Connection | Screw, Flange |
Medium Temperature | -40～250ºC |
Process pressure | -0.1～4MPa |
Accuracy | ±15mm |
Frequency | 26GHz |
Explosion-proof class | ExibⅡC T6 Gb |
Protection class | IP67 |
signal output | 4-20mA/HART(2-wire / 4-wire) RS485/Modbus |
Model | RD904 |
Application | solid material, strong dust, crystallizing, dew environment |
Measure range | 70m |
Connection | Screw, Flange |
Medium Temperature | -40～250ºC |
Process pressure | -0.1～4MPa |
Accuracy | ±15mm |
Frequency | 26GHz |
Explosion-proof class | ExibⅡC T6 Gb |
Protection class | IP67 |
signal output | 4-20mA/HART(2-wire / 4-wire) RS485/Modbus |
Model | RD905 |
Application | solid material, dust |
Measure range | Liquid-30m; solid-8meter |
Connection | Screw, Flange |
Medium Temperature | -40～250ºC |
Process pressure | -0.1～4MPa |
Accuracy | ±10mm |
Frequency | 26GHz |
Explosion-proof class | ExibⅡC T6 Gb |
Protection class | IP67 |
signal output | 4-20mA/HART(2-wire / 4-wire) RS485/Modbus |
Model | RD906 |
Application | sanitary liquid container or strong corrosive container |
Measure range | 20m |
Connection | Flange |
Medium Temperature | -40～150ºC |
Process pressure | Ambient pressure |
Accuracy | ±3mm |
Frequency | 26GHz |
Explosion-proof class | ExibⅡC T6 Gb |
Protection class | IP67 |
signal output | 4-20mA/HART(2-wire / 4-wire) RS485/Modbus |
Model | RD908 |
Application | Various corrosive liquid |
Measure range | 15m |
Connection | Threaded or Flange |
Medium Temperature | -40～200ºC |
Process pressure | -0.1～2MPa |
Accuracy | ±5mm |
Frequency | 26GHz |
Explosion-proof class | ExiaⅡC T6 Gb |
Protection class | IP67 |
signal output | 4-20mA/HART(2-wire / 4-wire) RS485/Modbus |
Power | 24VDC 2-wire, or 220VAC 4-wire |
Beam | 8˚ |
Material | SS304 lining with PFA |
size | OD76 x H 57mm |
Product installation diagram
