Best selling ppr pipe production machine from China plastic hdpe pipe machine price

Share on:

Price in USD:Details


Product Overview


Jiangsu Xinrongplas Machinery Co., Ltd.
Our main products are: plastic pipe extrusion line and plastic recycling machine.
The main products are popular in the domestic market,such as the East China market,Southwest market,Northeast market and Central China market.The products are also exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.

Final Products

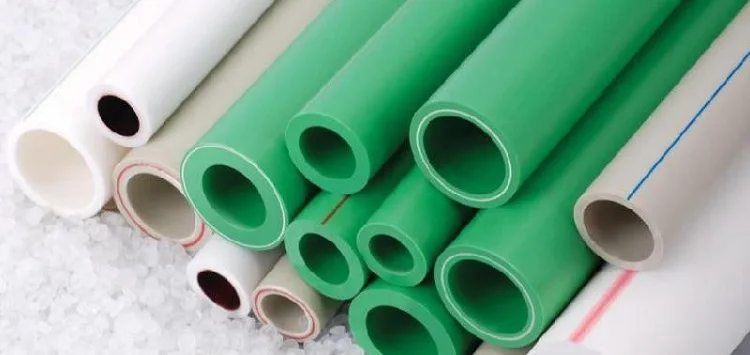

PPR Pipe.
In addition to the characteristics of general plastic pipes such as light weight, corrosion resistance, non-scaling, and long service life, PP-R pipes also have the following main characteristics:
1 Non-toxic and hygienic.
2 Heat preservation and energy saving.
3 Better heat resistance.
5 Easy installation and reliable connection.
6 Materials can be recycled.

PE Pipe
PVC Pipe
PPR Pipe

Corrugated Pipe
PPR Fiberglass Pipe
Hollow Wall Winding Pipe

If you want to know more about Plastic Pipe Extrusion Line, inquiry us now!

Products Description

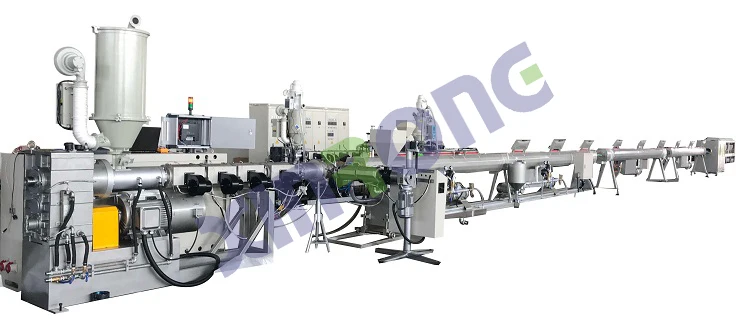

PPR Pipe Extrusion Line.
Production pipe diameter range 16-63mm 75-160mm

Using advanced European technology, based on years of experience in plastic machinery research and development and production, Xinrong has developed a PP-R pipe extrusion line with reasonable structure, high degree of automation for the entire line, and strong reliability.
Production pipe diameter range 16-63mm 75-160mm.Double cavities machine and single cavity machine for choice.
Single layer machine and multi-layers machine for choice.

Machine name
Brief introduction
Can use one or several extruders to produce multi-layer pipes or to increase capacity to produce pipe with very big size. Color
line extruder is to produce color line on pipe surface.
Die head
Can choose single layer die head or multi-layer die head to produce pipe with single layer or multi-layer.
Vacuum tank
Structure has single chamber and double chamber. Different length for different extruder capacity and pipe sizes.
Cooling tank
Can have several coolings tanks for better cooling effect.
Haul off unit
Based on pipe sizes, have two, four, six, eight, ten, twelve or even more claws. Traction speed is designed based on extruder
capacity and pipe sizes. Customer can choose servo motor.
Cutting unit
Have saw cutting, planetary saw cutting and knife cutting for choice.
Length of stacker can be customized.
Note: machine can be customized base on customer requirements. Our company chooses the most suitable machine configuration based on customer requirement.

Single screw extruder.
Advanced overall design of direct combination. Efficient screw and spiral water cooling sleeve in barrel, can realize extruding
material in low melt temperature in high speed.

Relation between capacity and screw rotation speed is nearly linear, stable extrusion, high reliability, easy for operation.

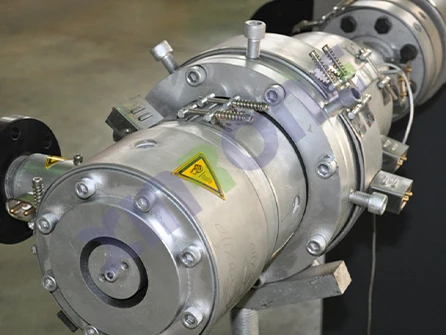

Extrusion die head.
Die head structure
Spiral type
Ensure melt temperature uniformity, thoroughly eliminate confluence seam and reduce flaws such as bubble, black spot, unsmooth inside wall, caused by too high temperature.

Die head material
40Cr, forgings with tempering treatment

Vacuum tank.
Vacuum tank is used to shape and cool pipe, so as to reach standard pipe size. Its shape is advanced foreign multilateral
anti-deformation structure. The cover is made of high quality casting aluminum alloy. Its inside is double-chamber structure. The
pipeline adopts the design of double loop pipeline, realizing non-stop pipeline clean and function of temperature control.

Cooling tank.
Supporter structure are similar with foreign advanced machine and convenient to observe spray effect.

Belt haul-off unit.
Its structure with sliding tempering glass door is beautiful and practical. Traction device with belt and controlled by imported inverter can steadily haul pipe. It also features compact structure and free-maintenance.
Adopt special automobile drive shaft to transmit power, stable and reliable. Length measuring device equipped with a rotary
encoder, can ensure precise cutting, customer can set the cutting length.

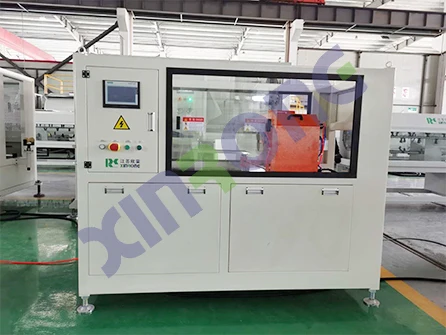

Dust free knife cutter.
Its structure is beautiful and practical with glass window design. Cutting process is controlled by PLC, can realize accurately
arbitrary length cutting.
Cutting type : knife cutting (no dust)
Clamping method: pneumatic
Clamping device: aluminium clamping device (each size has its own clamping device)
no need to adjust the central height of clamping device for different pipe sizes
Workbench moving method: pneumatic
Control method: Siemens PLC

Stainless steel pallet to prevent scratch of pipe surface. Pipe fall into the collection area automatically.

Length : 6000mm

Product Paramenters

Pipe Range
Hauling Speed
Total Length
Output Capacoty
Total Power (kw)
16 - 63
2.0 - 20
70 - 150
20 - 110
1.5 - 15
140 - 220
50 - 160
0.8 - 8
180 - 220
2 x (16 - 63)
2 x (1.2 - 12)
180 - 220

S* Double-strand pipes

Recommend Products

Pipe Extrusion Line
Plastic Recycling Machine

Plastic Pelletizing Machine
PP PE Film&Woven Bag Washing & Recycling Line

Why Choose Us

Jiangsu Xinrongplas Machinery Co., Ltd.
Jiangsu Xinrongplas was established in 1996. The production experience is mature and rich. Among them, it has been exporting for more than 20 years, and more than 100 countries have exported. The annual export turnover is about 15 million US dollars. Our company's production base covers more than 50,000 square meters. , Modern office and production room more than 35,000 square meters, with experienced high-quality staff team, first-class equipment, perfect and effective quality assurance system, advanced and complete testing equipment.

We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.

Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!

Certificates & Patents.
International certification, National Certificate of equipment verification, and more than 30 invention patents.
Verification Certificates of equipments: ISO; CE Certificate , SGS, COC, TUV National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration,etc.


Xinrong Team.


1) Are we manufacture or trade company?
We are manufacture,have 24 years' experiences in this field.

2) What kind machines we produce?
Our factory produce plastic pipes machines, plastic recycling machine.

3) What kind payment we accept?
Payment term like T/T, L/C.

4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.

5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.

6)How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.

7)How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.

8) How long is your machine’s guarantee time?
One year

9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
