Endress Hauser 100% original authentic Hydrostatic level measurement Deltapilot FMB52 Series Pressure measurement high quality
- Category: >>>
- Supplier: Wuhan Dinglixing Automation Engineering Co. Ltd.
Share on (1600139890100):
Product Overview
Description
Products Description
Hydrostatic
Level measurement

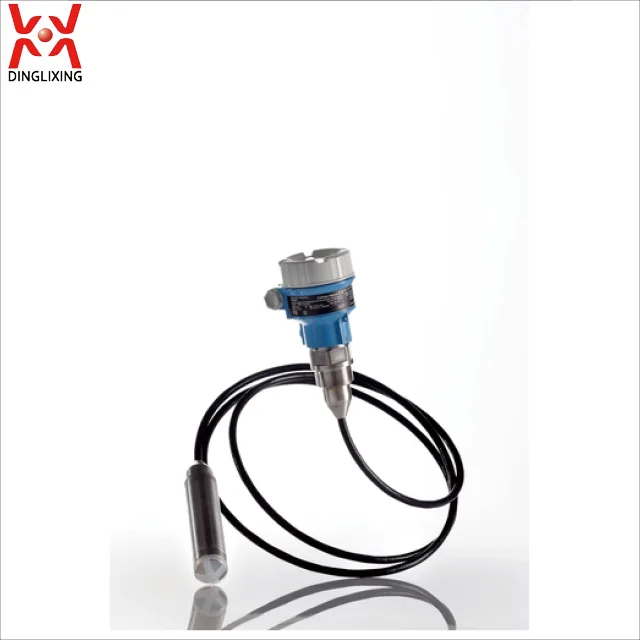

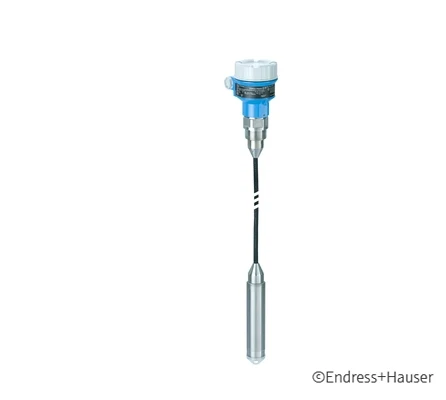

Deltapilot FMB52
Pressure sensor with Contite measuring cell for hydrostatic level measurement
Level measurement
Deltapilot FMB52
Pressure sensor with Contite measuring cell for hydrostatic level measurement
Specs at a glance
* Accuracy
Standard 0.2%
Optional 0.1%
* Process temperature
PE cable: -10°C…70°C / 14°F…158°F
FEP cable: -10°C…80°C / 14°F…176°F
* Pressure measuring range
100 mbar...10 bar
(1.5 psi...150 psi)
* Process pressure / max. overpressure limit
40 bar (600 psi)
* Main wetted parts
Alloy C
316L
Cable (PE/FEP)
optional coating AuPt
optional coating AuRh
* Max. measurement distance
100 m (328 ft) H2O
* Material process membrane
316L, AlloyC,
Gold-Rhodium
PE, FEP
* Measuring cell
100 mbar...10 bar
(1.5 psi...150 psi)
* Accuracy
Standard 0.2%
Optional 0.1%
* Process temperature
PE cable: -10°C…70°C / 14°F…158°F
FEP cable: -10°C…80°C / 14°F…176°F
* Pressure measuring range
100 mbar...10 bar
(1.5 psi...150 psi)
* Process pressure / max. overpressure limit
40 bar (600 psi)
* Main wetted parts
Alloy C
316L
Cable (PE/FEP)
optional coating AuPt
optional coating AuRh
* Max. measurement distance
100 m (328 ft) H2O
* Material process membrane
316L, AlloyC,
Gold-Rhodium
PE, FEP
* Measuring cell
100 mbar...10 bar
(1.5 psi...150 psi)
Field of application
The Deltapilot FMB52 is a cable version including a fixed process connection. This device with the Contite
measuring cell is typically used in the process and environmental industries. It is made for level measurement in liquid and
paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems. For
level measurement. Process connections: Threads and flanges Temperature: With PE cable: -10 to +70°C (+14 to +158°F), with FEP
cable: -10 to +80°C (14 to 176°F) Measuring range: 0.1 to 10bar / 100m H2O (1.5 to 150psi / 300ft H2O) Accuracy: ±0.2%, ±0.1%
(option)
measuring cell is typically used in the process and environmental industries. It is made for level measurement in liquid and
paste-like media in open or closed containers and is unaffected by possible foam formation. For use in SIL2 safety systems. For
level measurement. Process connections: Threads and flanges Temperature: With PE cable: -10 to +70°C (+14 to +158°F), with FEP
cable: -10 to +80°C (14 to 176°F) Measuring range: 0.1 to 10bar / 100m H2O (1.5 to 150psi / 300ft H2O) Accuracy: ±0.2%, ±0.1%
(option)
Benefits
* Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.2%, optionally ±0.1% and
minimum temperature effects
* Modular concept for easy replacement of display or electronics
* Seamless and independent system integration (HART/PA/FF)
* Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION
Fieldbus
* International usage thanks to a wide range of approvals
minimum temperature effects
* Modular concept for easy replacement of display or electronics
* Seamless and independent system integration (HART/PA/FF)
* Easy and safe menu-guided operation: On-site via display module, via 4 to 20mA with HART, via PROFIBUS PA, via FOUNDATION
Fieldbus
* International usage thanks to a wide range of approvals
