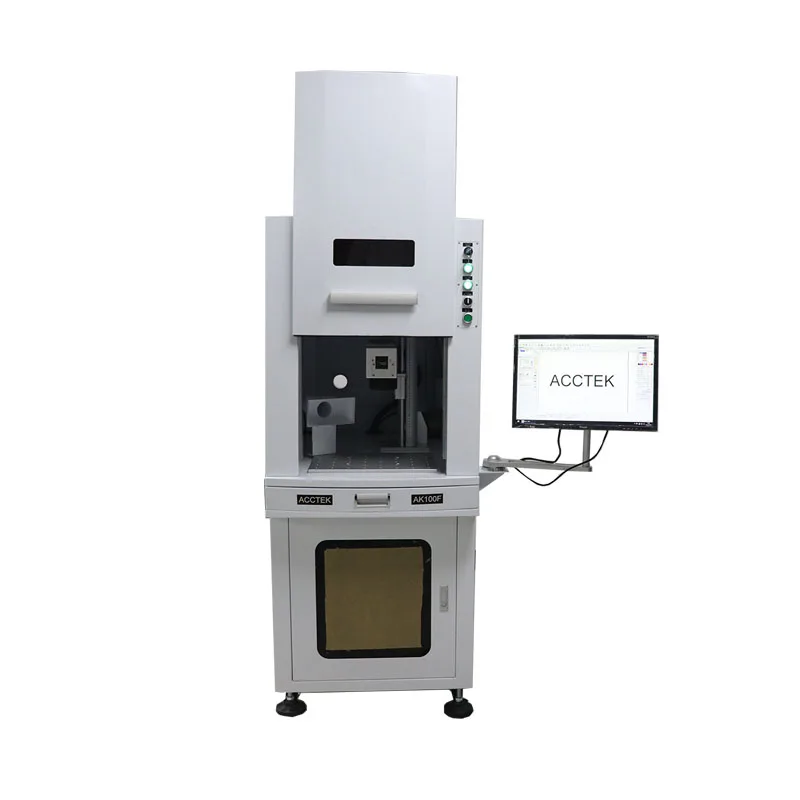

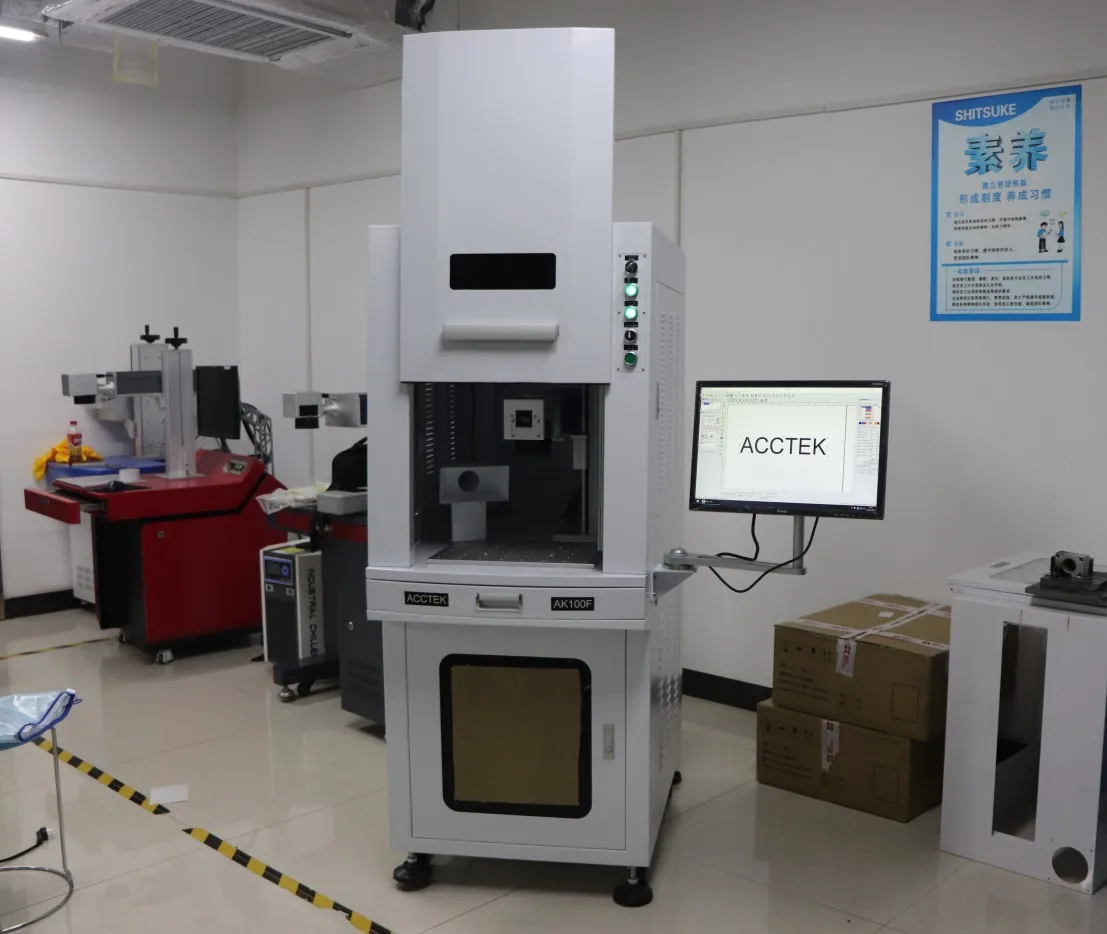

Complete cover structure fiber laser marking machine for hardwarewatch auto parts AK30F/cnc fiber laser machine
- Category: >>>
- Supplier: Acctek Machinery Co. Ltd (shandong)
Share on (1600140191963):
Product Overview
Description
Product Description

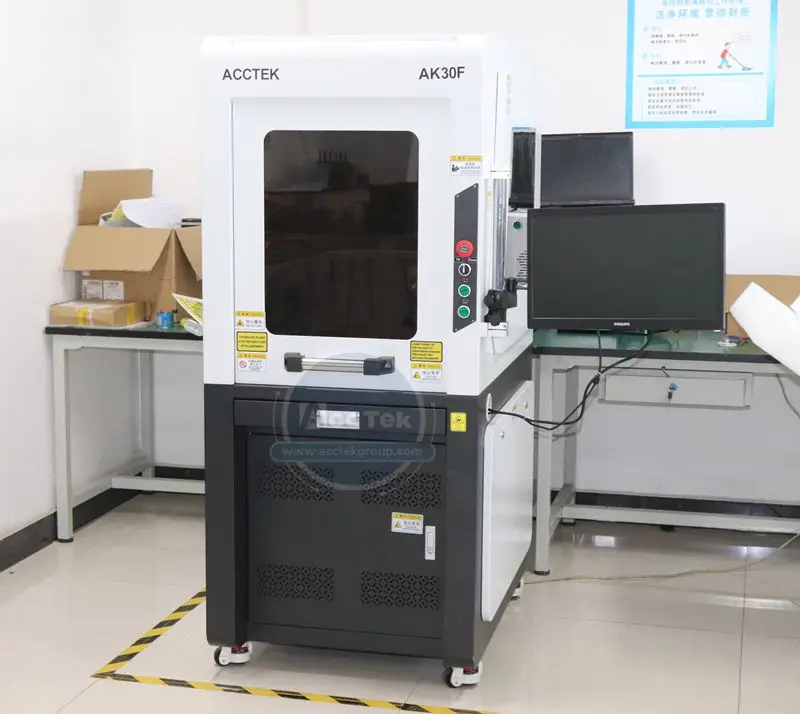

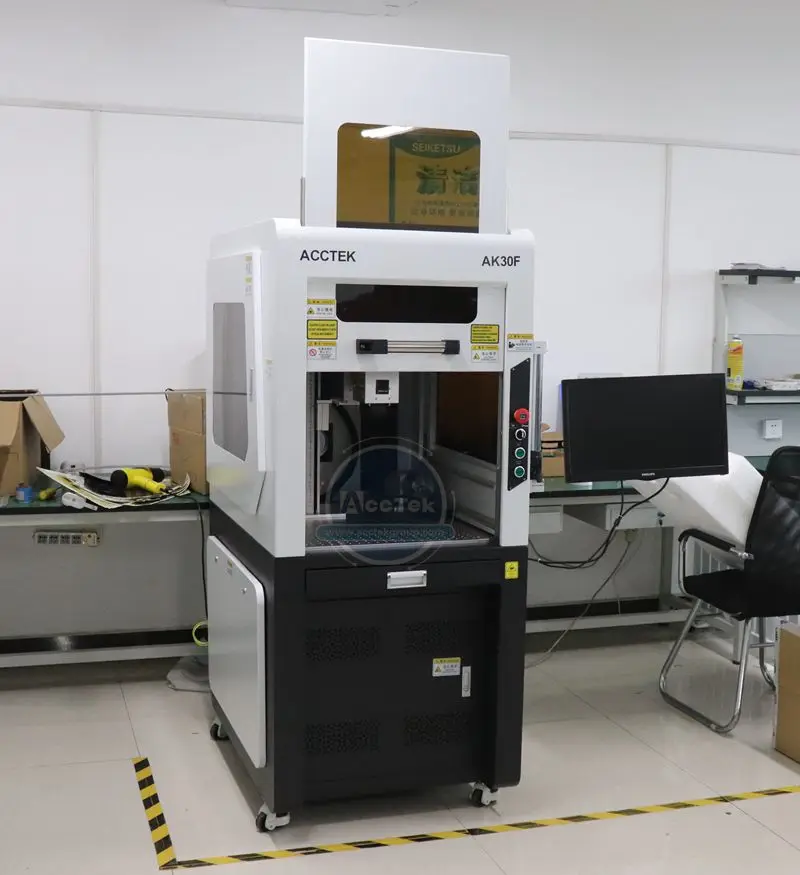

Complete cover structure fiber laser marking machine for hardware/watch auto parts AK30F
Basic configuration
Machine features of laser marking machine
# Marking area: 110*110mm/200*200mm/300*300mm
#Raycus fiber laser generator(lifetime:10000hours)
#Alumnum alloy up-down table,
#Field lens, High speed galvanometer, Marking head
#Cooling system: air cooling PC control system
#Computer included
#Control software:EZCAD
#Support all-english language interface
#Suitable for most metal and non-metal materials marking
#2 years warranty.
#Raycus fiber laser generator(lifetime:10000hours)
#Alumnum alloy up-down table,
#Field lens, High speed galvanometer, Marking head
#Cooling system: air cooling PC control system
#Computer included
#Control software:EZCAD
#Support all-english language interface
#Suitable for most metal and non-metal materials marking
#2 years warranty.
Technical parameters
| PARAMETERS | |
| Model | AK-30F |
| Mechanical components: | |
| Laser power | Wuhan Raycus fiber 20/30/50/100W |
| Cooling system | Air cooling |
| Working area | 110*110mm/200*200mm |
| Control software | Beijing EZCAD |
| Scanner head | Beijing sino-galvo with red point |
| Power-supply | Taiwan MEAN WELL(USA) |
| Field lens | Nanjing Wavelength |
| Working table | 2D Aluminum alloy table |
| Technical parameter: | |
| Laser Wavelength | 1060nm |
| Response time | 0.5ms |
| Frequency of pulse | 20-100KHz |
| Max marking depth | ≤0.8mm |
| Marking speed | ≤7000mm/s |
| Marking lines | 1-10 lines(in the marking area) |
| Minimum line width | 10 micron |
| Minimum character | 0.15mm |
| Repeatability accuracy | ±0.002mm |
| Resolution ratio | 0.1mm |
| Marking content | Text,pattern,date,bar code,etc |
| Operation system | Microsoft Windows XP |
| Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
| Operation temperature | 5℃-40℃ |
| Relative moisture | ≤ 90%,no fog |
| Supply Voltage | 220V/50Hz/10A |
| Package | Standard shipping export plywood case with reinforced type. |
Main parts&Option

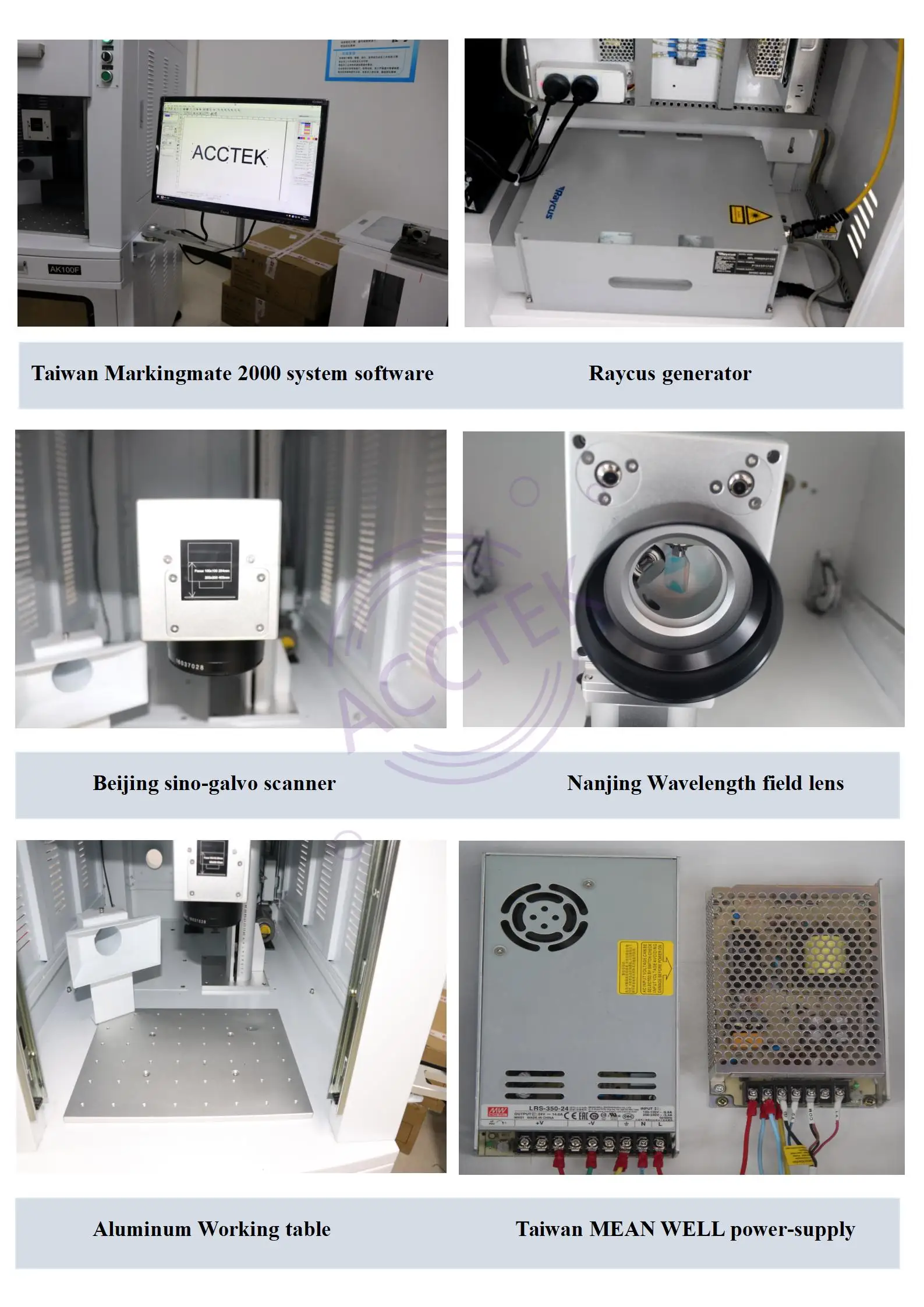

Main parts of the machine
1.BEijing sino galava marking head 2.Beijing EZCAD
3.Raycus laser generator 4.Nanjing Wavelength field lens

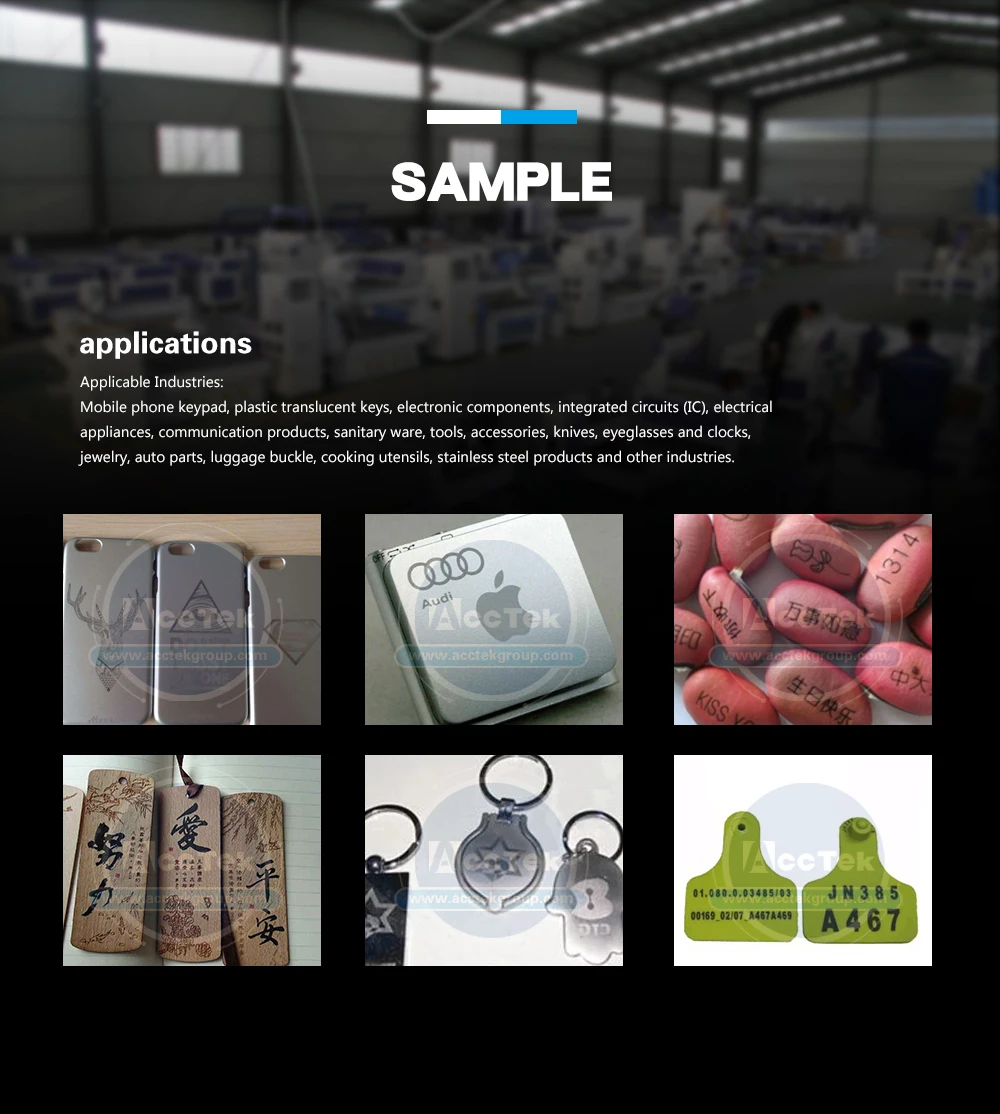

Applications
Applications of laser marking machine
1.Applicable Industries
Mobile phone keypad, plastic translucent materials, electronic components, integrated circuits (IC), electrical appliances,
communication products, sanitary ware, kitchen utensils, glasses and clocks, jewelry, auto parts, luggage buckle, stainless steel
products and other industries.
2.Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, plastics,
rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
Mobile phone keypad, plastic translucent materials, electronic components, integrated circuits (IC), electrical appliances,
communication products, sanitary ware, kitchen utensils, glasses and clocks, jewelry, auto parts, luggage buckle, stainless steel
products and other industries.
2.Applicable Materials
Metals (steel, titanium, copper, gold, silver, including rare metals), engineering plastics, electroplating materials, plastics,
rubber, epoxy resin, ceramic, ABS, PVC, PES and other materials.
Our service
After sale service of AccTek& Buyer's feedback
1. 18 months guarantee of the whole machine. 1.5 years for fiber lase generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.
Payment & Delivery
Payment terms: A. T/T: 30% T/T deposite,70% before shippment.This is the most convinent payment terms for international trade. B. Paypal: only for parts of machine. C. Western Union/ Moneygram. D. Trade Assurance on Alibaba. For more details, pls click the below photo.
| Package (1). The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.then you pay 70% balance payment,we arrange shipping for you. (2). Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool (3). Fumigation wooden box (4). Whole film packaging machine (5). The package is tandard exporrt plywood box,customized for every size machine.
|
