5g 4g 1200mbps dual band 2.4ghz 5.8ghz wg1608 16m Wfi 4g router with sim card slot

Product Overview

Description

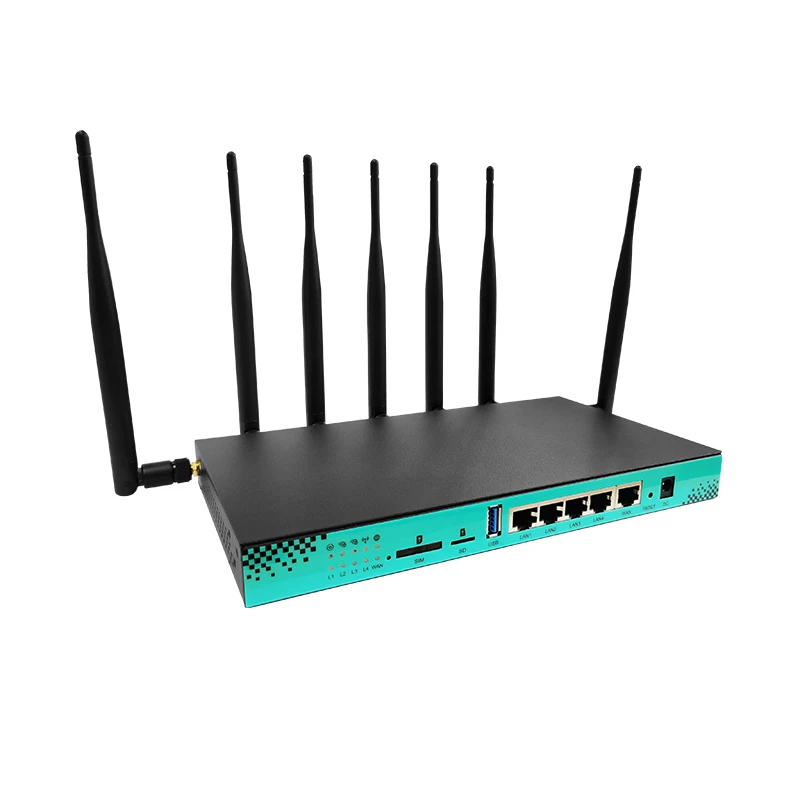

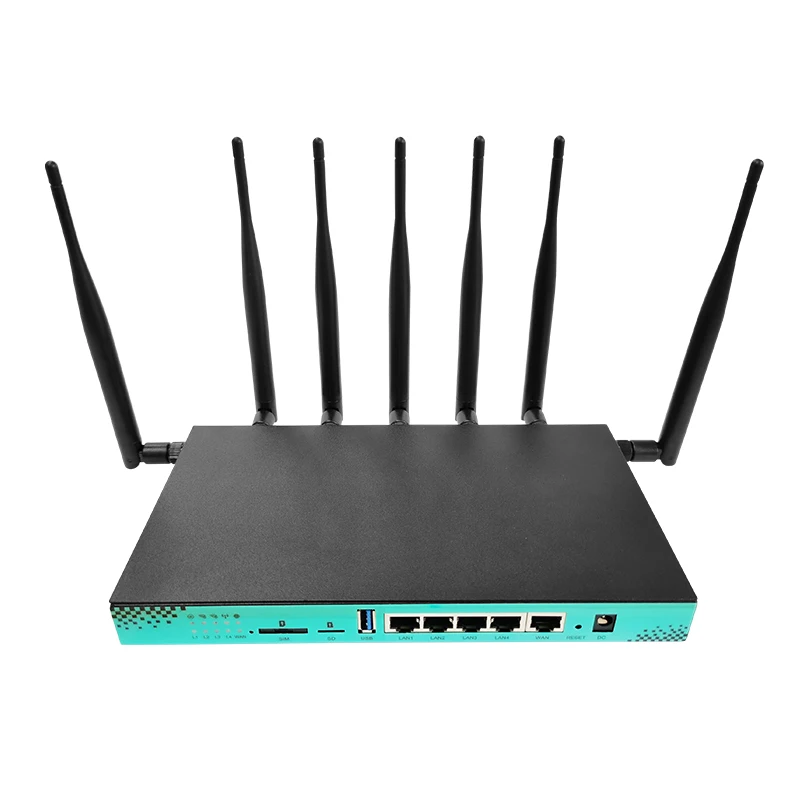

5g 4g 1200mbps dual band 2.4ghz 5.8ghz wg1608 16m Wfi 4g router with sim card slot

Feature:

• Support 802.11ac / 802.11a / 802.11n / 802.11g / 802.11b network protocol, the max transmission rate could be 1200Mbps(2.4G 300Mbps+ 5G 867Mbps)


• 5* 10/100/1000Mbps Auto MDI/MDIX LAN/WAN gigabit ports


• 1 USB 3.0 data interface


• 1 Micro TF Card Slot


• Built-in USB3.0 MINI-PCIE interface to install 4G modules to support 3G & 4G functions. And also built-in USB3.0 M.2 interface to install 5G module to support3G& 4G&5G function. But can only choose one of two to install inside of router.


• Support 11AC,dual-band 2.4&5.8G.

 Description

• WG1608 is an MT7621 dual-core wireless solution, performs better and has more functions. Stable wireless performance, stronger scalability, the Max transmission rate could be 1200Mbps (2.4G 300Mbps, 5G will be867Mbps(Max).wg1608 5G router requires a modem for cellular internet.  See below for different modem options.  While the WG1608 V04 5G is equipped with dual modem slots, only a single M.2 or Mini PCI-E modem may be used at any one time. The SIM card tray on the front of the router uses a Standard sized SIM card, and a SIM Card Adapter Kit may be required when using a Nano or Micro-sized SIM card.


•


  MODEM OPTIONS:




  Sierra Wireless M.2 modems:




  Sierra Wireless CAT12 EM7565




  Sierra Wireless CAT12 EM7511 (support AT&T FirstNet Band 14)




  The most popular Quectel M.2 modems Hot sale in the USA:




  Quectel CAT12 EM12-G (2×2 MIMO)




  Quectel CAT16 EM160R-GL (4×4 MIMO).









  The Most popular Quectel 5g modem:




  Quectel RM500Q-AE




  Quectel RM502Q-AE





•































































  Difference between RM500Q-AE and RM502Q-AE
  	RM500Q-AE	RM502Q-AE
  5G NR	3GPP Release 15 NSA/SA operation, Sub-6 GHz	3GPP Release 15 NSA/SA operation, Sub-6 GHz
  5G NR NSA	n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79	n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79
  5G NR SA	n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79	n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/n66/n71/n77/n78/n79
  MIMO	DL: 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 UpLoad: 2 × 2 MIMO on n41	DL: 4 × 4 MIMO on n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 UpLoad: 2 × 2 MIMO on n41
  LTE Category	DL Cat 16/ UpLoad Cat 18	DL Cat 20/ UpLoad Cat 18
  LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/ B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/ B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
  LTE-TDD	B34/B38/B39/B40/B41/B42/B43/B48	B34/B38/B39/B40/B41/B42/B43/B48
  LAA	B46 (only support 2 × 2 MIMO)	B46 (only support 2 × 2 MIMO)
  MIMO	DL: 4 × 4 MIMO on B1/B2/B3/B4/B7/B25/B30/B32/ B34/B38/39/B40/B41/B42/B43/B48/B66	DL: 4 × 4 MIMO on B1/B2/B3/B4/B7/B25/B30/B32/ B34/B38/39/B40/B41/B42/B43/B48/B66
  WCDMA	B1/B2/B3/B4/B5/B6/B8/B19	B1/B2/B3/B4/B5/B6/B8/B19





•


  SOFTWARE/FIRMWARE OVERVIEW:




  Original SDK, OpenWRT, eCos, LEDE/ROOter Compatible




  Factory Installed version: OpenWRT Chaos Calmer 15.05.1 (mtk-apsoc-demo)




  ROOter firmware version builds: Rooter / Goldenorb Router Firmware




OEM Services

• Printing customer's logo


• Use customer's label


• Flash customer's firmware


• and so on. if you have more requirements, please feel free to contact us.
