Cheapest VGA Mobile Phone Repair Microscope Mobile Phone Repairing Zoom Microscope for Mobile Phone Repair
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (1600140558905):
Product Overview
Description
2MP VGA Output
HD 30FPS
Excellent Strong 3D Effect
Optional Working Distance
Large Working Stage Base
Objectives 0.7X~4.5X(Continuous Zoom)
Product Description
This Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth within a broad field of view through wide field 10X eyepiece & built-in 0.7X~4.5X Objective lens. Once brought in focus, images remains clear and sharp throughout the whole zoom range.
It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation, inspection and measurement.
 |

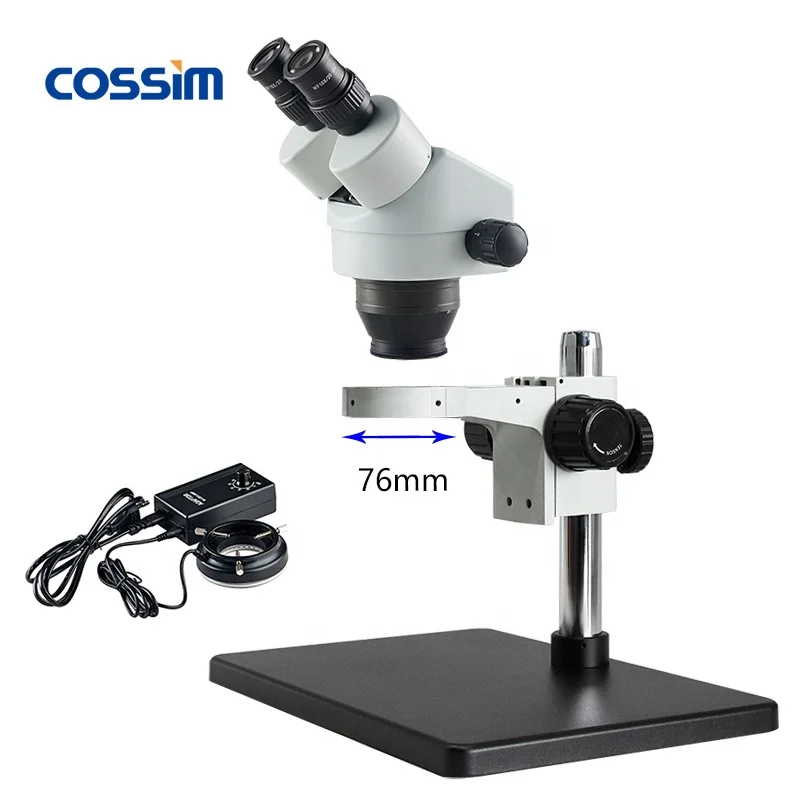

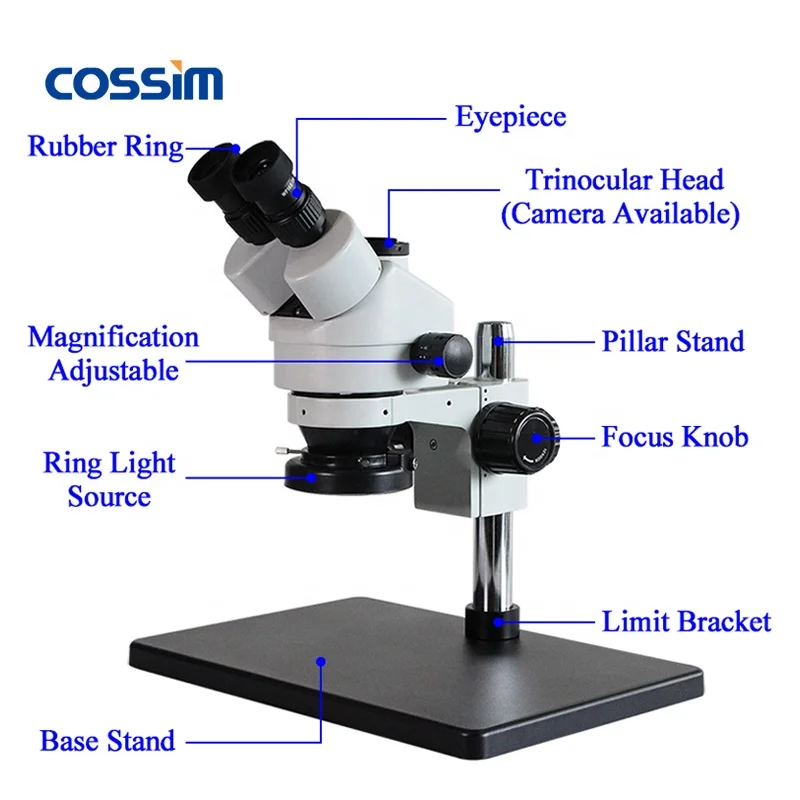

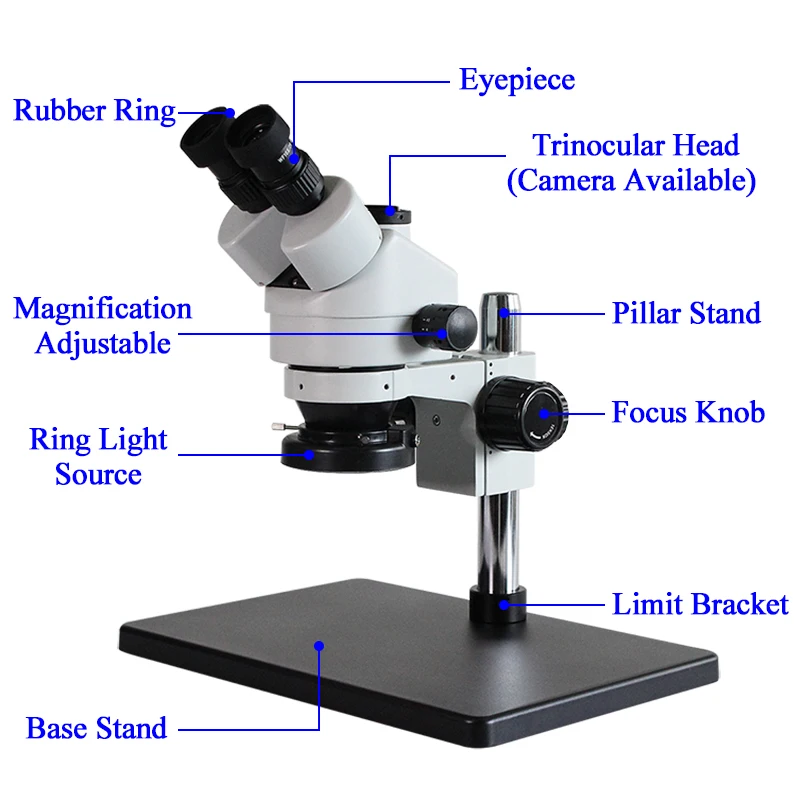

| Structure of TZW7045-PL Stereo Microscope |
 |

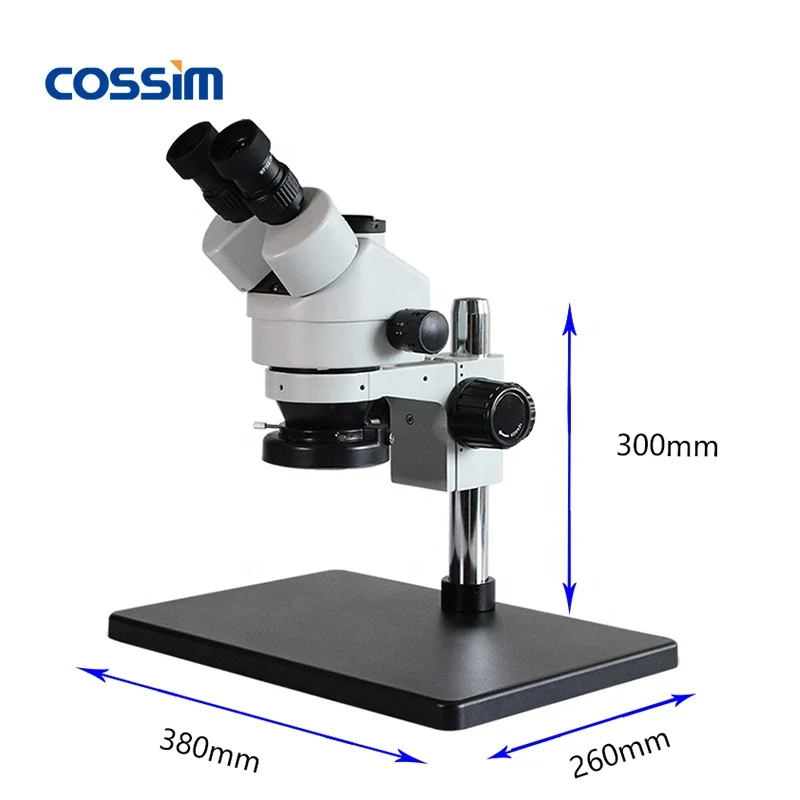

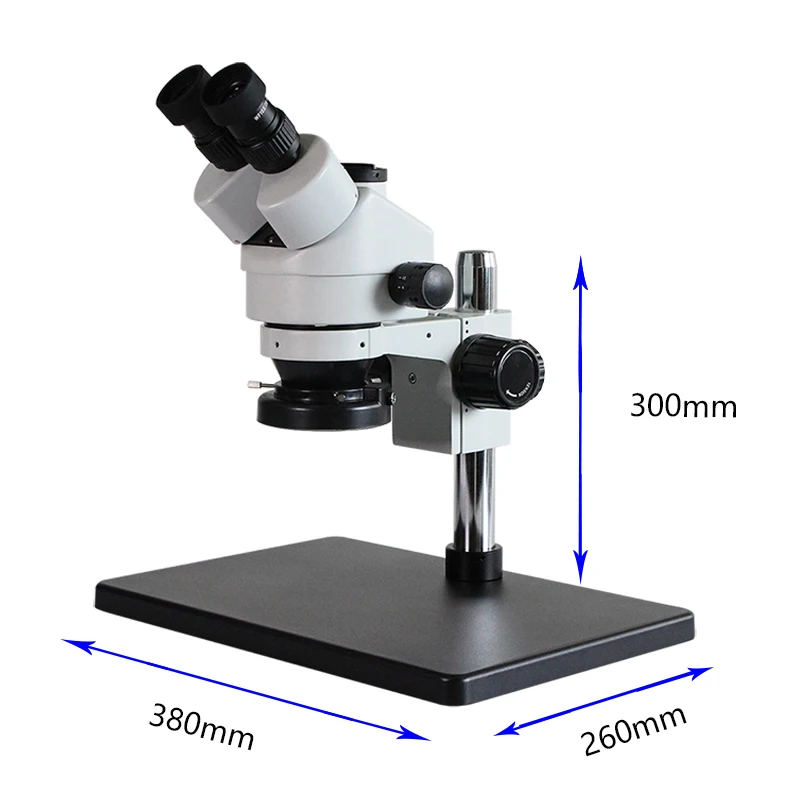

| Dimension of Stereo Microscope |
 |  |
Specification
Specification for TZW7045-PL | ||||||||
|---|---|---|---|---|---|---|---|---|
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | ||||
W.D. 100mm | W.D. 165mm | W.D. 45mm | W.D. 30mm | |||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
10X/20mm | 7.0X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14.0X | 14.3mm |
45.0X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90.0X | 2.2mm | |
15X/15mm | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21.0X | 10.7mm |
67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135.0X | 1.7mm | |
20X/10mm | 14.0X | 14.3mm | 7.0X | 28.6mm | 21.0X | 9.5mm | 28.0X | 7.1mm |
90.0X | 2.2mm | 45.0X | 4.4mm | 135.0X | 1.5mm | 180.0X | 1.1mm | |
25X/9mm | 17.5X | 12.9mm | 8.85X | 25.4mm | 26.2X | 8.6mm | 35.0X | 6.4mm |
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | |
30X/8mm | 21.0X | 11.4mm | 10.5X | 22.9mm | 31.5X | 7.6mm | 42.0X | 5.7mm |
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | |
Magnification | 7X-45X, 3.5X-270X with optional eyepieces and objectives | |||||||
Eyepiece | WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
Optional Eyepiece | WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm | |||||||
Main Body | Binocualr/ Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
Objective | 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | |||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | |||||||
Working Stage | Metal Base: 38*26*30cm (38*26*36CM Optional) | |||||||
Illumination | External LED Ring Light | |||||||
 |

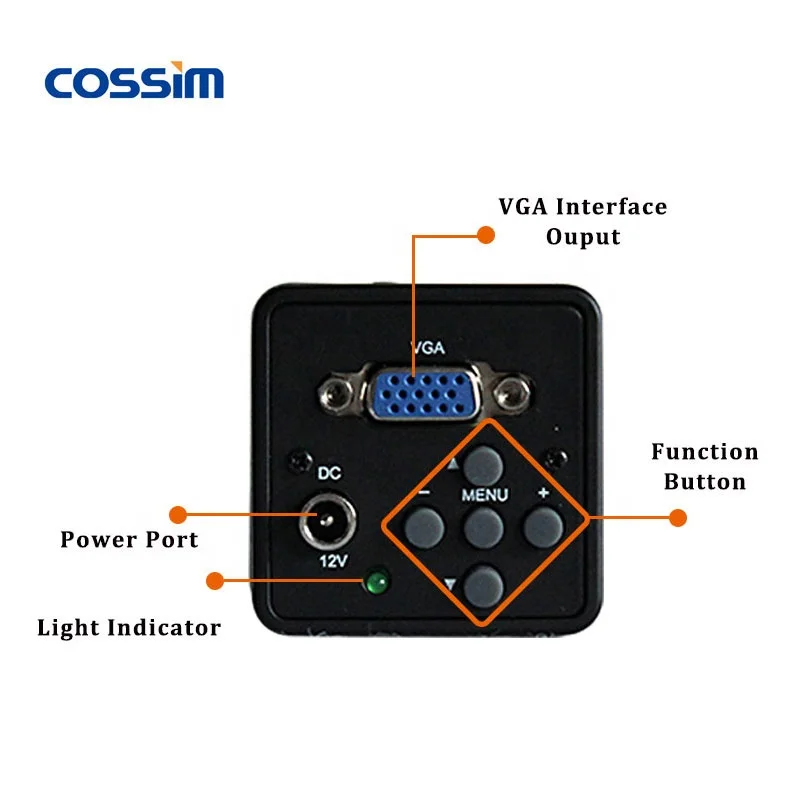

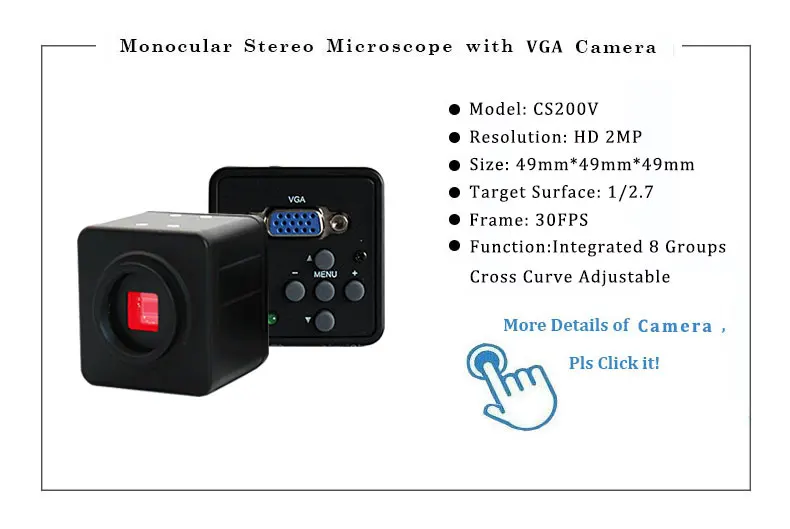

Parameters for VGA Microscope Camera | |
|---|---|
Model | CS200V |
Resolution | HD 2MP |

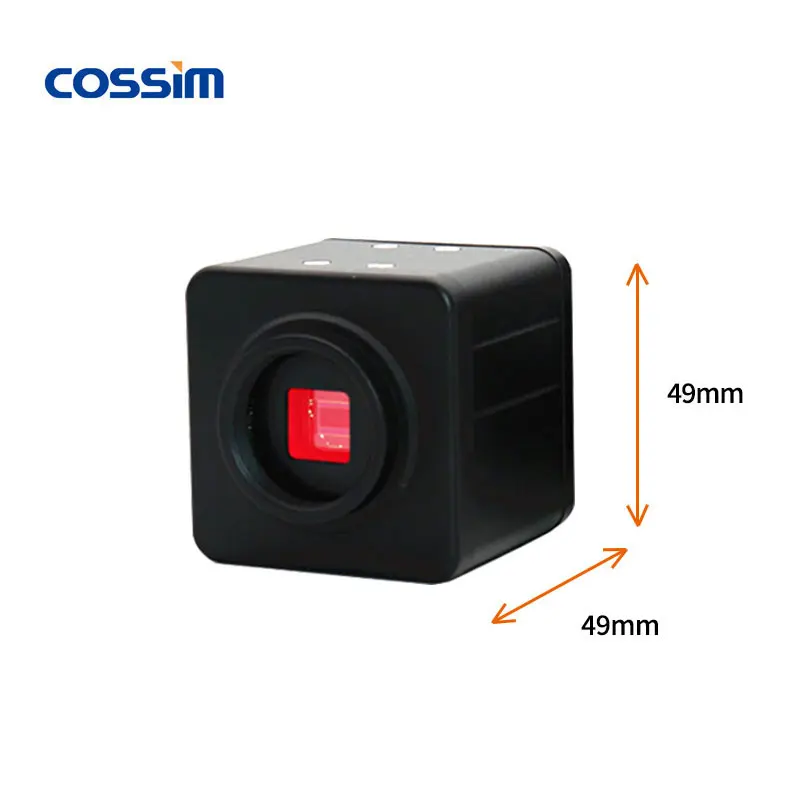

Size | 49mm*49mm*49mm |
Target Size | 1/2.7 |
Frame | 30FPS |
Interface | VGA Output |
Function | Integrated 8 Groups Cross Curve, adjustable |
Product Details

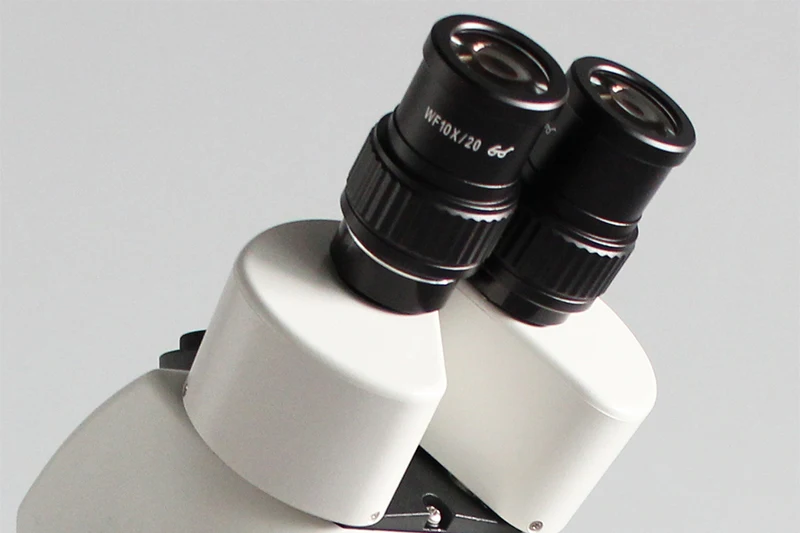

 | Eyepiece Binocular/ Trinocular head, inclined 45°,360° rotatable, WF10X/20mm high-eyepoint, wide-field; Interpupillary Distance adjustment:54-76mm. Convenient for observers wearing glasses |

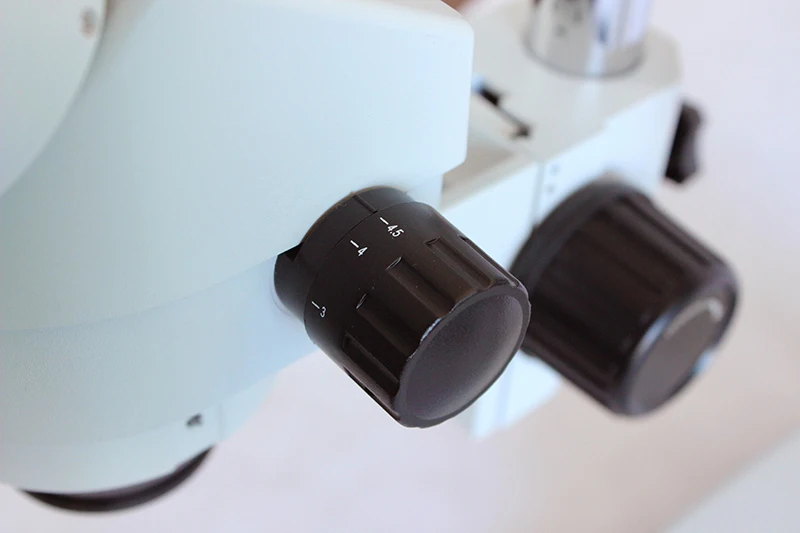

Continuous Zoom Precise 0.7X~4.5X continuous zoom, making the images clear quickly with the focusing knob. |  |

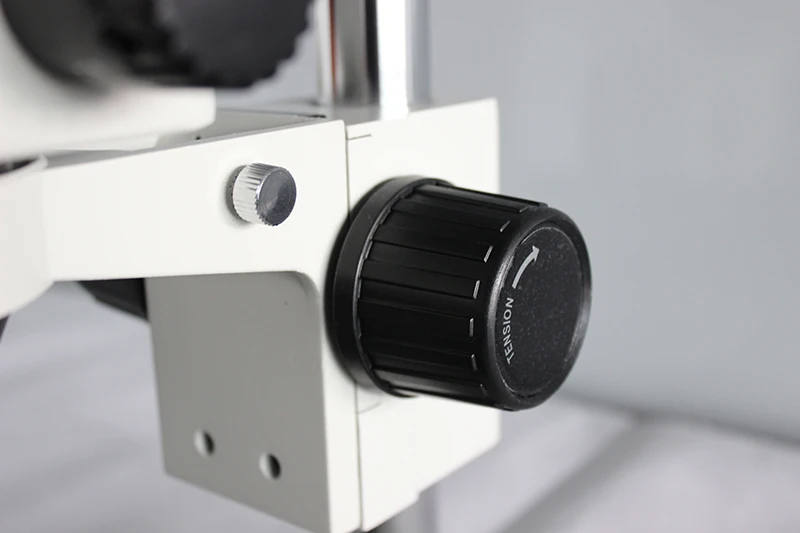

 | Focus Knob Corresponding to different multiples, through focusing to get clear images, easy to operate. |

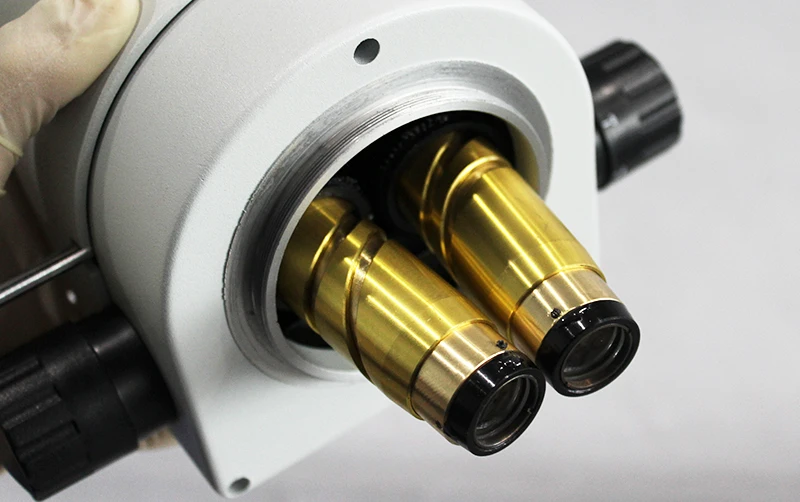

Built-in Objective Lens Built-in high definition 0.7X~4.5X objective lens, made of pure brass with fungus-resistant treatment and dust proof cover. |  |

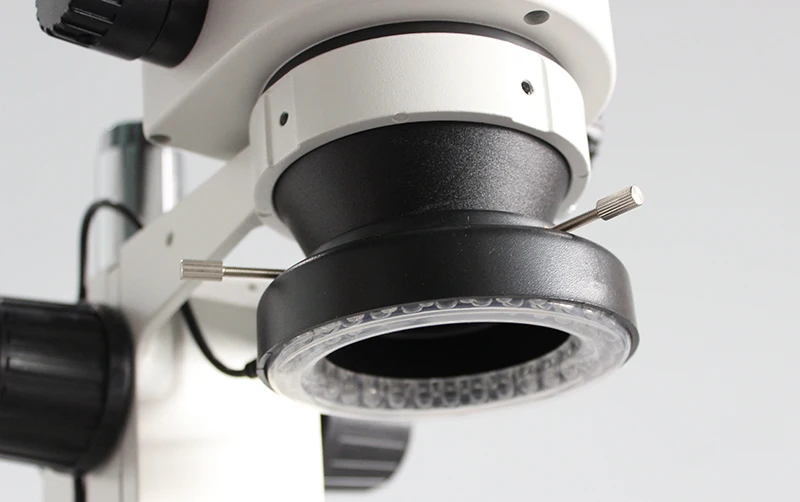

 | External LED Ring Light High bright white LED ring light source for free, brightness adjustable. |

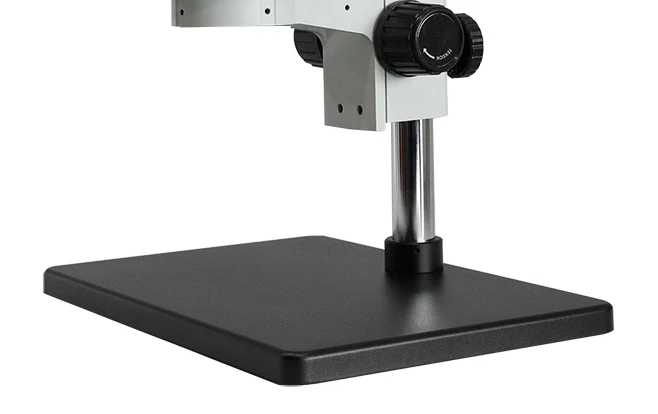

Large Base Stand Metal thickened frosted base: 38*26*30cm (38*26*36CM Optional), reducing the light reflection. |  |

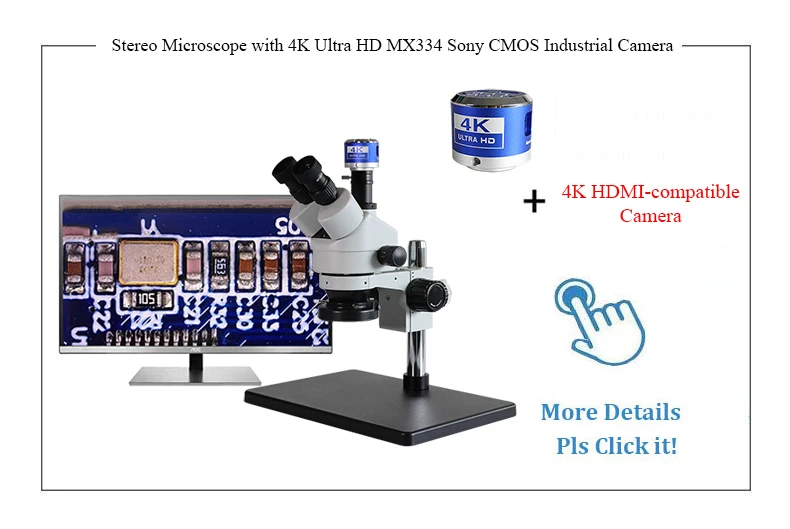

4K Ultra HD MX334 1/1.8 Sony CMOS Industrial Microscope Camera, Providing Measurements, Mirror Settings, Tick Mark Etc. Functions.
|
16MP High Resolution HDMI-compatible & USB2.0 Interface, it's easy to observe, edit and save the images directly.
|
16MP High Resolution HDMI-compatible & USB2.0 Interface, with 10" Display Screen, it's easy to observe, edit and save the images directly. |
3MP~20MP High Resolution USB Interface, can be connected with PC, Laotop. |
