Product Overview
Description
Product Description
The potato dryer machine is a kind of drying equipment that through electrical heating, steam heating and natural gas heating in taking advantage of steel mesh as transmission band to carry materials for continuous drying. Directly deliver the suppressed finished product ball to table conveyor through conveyor, evenly distribute the finished product ball in dryer through scraper blade located in the upper point of table conveyor in order to increase air permeability of ball and achieve drying.

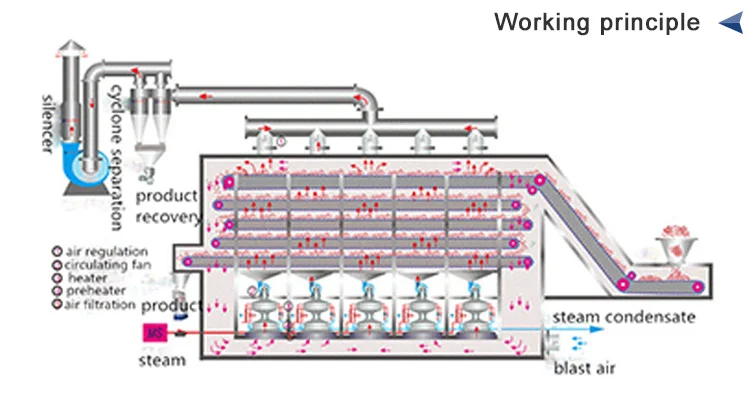

After wet material is evenly fed onto the top layer of drying belt via the belt conveyor feeding system, the moving drying belt transports the wet material to the other end an drop onto the beneath layer of drying belt. The beneath drying belt then transports the wet material and moves in opposite direction until dropping onto the third layer of drying belt. At the same time, hot air is evenly blown into the dryer via the bottom air distributor. With the help of exhaust fan, the hot air penetrates the wet material on each layer of drying belt for heat transfer and take away the evaporated moisture. When wet material reaches the bottom drying belt, it is dried for discharging.
potato Dryer
potato Dryer
Model | NYWD-10 | NYWD-12 | NYWD-15 | NYWD-18 | NYWD-20 |
Unit numbers | 5 | 5 | 5-7 | 5-10 | 5-10 |
Mesh belt width(mm) | 800 | 1000 | 1200 | 1500 | 1800 |
Mesh belt layer | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
Drying length(m) | 10-50 | 10-50 | 10-50 | 10-50 | 10-50 |
Spreading materials thickness(mm) | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
Capacity(kg) | 100-800 | 500-2000 | 800-2500 | 1000-4000 | 2000-8000 |
Drying temperature(℃) | 55-300 | 55-300 | 55-300 | 55-300 | 55-300 |
Drying time(h) | 0.25-1.2 | 0.25-1.2 | 0.25-1.2 | 0.25-1.2 | 0.25-1.2 |
Fan power | 11 | 15 | 22 | 37 | 45 |
Box dimension(m) | 10×1 | 10×1.2 | 10×1.5 | 10×1.8 | 10×2 |
Note | Every unit is 2m. | ||||
FAQ
Q1.Are the engineers available overseas?
A: Yes. We provide comprehensive after-sales services, remote guidance or live teaching, whichever you like.
Q2.MOQ
As we are the manufacturer, the MOQ is one set.
Q3.Transportation
A: We provide many kinds of transportation and multimodal transportation, which under customers' requirments.
Q4.Warranty
A: Normally 12 months.
Q5.Packing
A: Wooden cases or containers directly.
Q6.Payment
A: T/T, L/C, Western Union, etc.
Q7.Discount
A: Factory direct supply, we will provide each customer the products with highest quality and best price. We will offer discounted prices during the promotion period or for the old customers.
Q8.Lead time
A: According to the kinds of the machine, it will be 7-10 working days or 15-30 working days.
