a. Applicable to 17 series 40AH and below lithium manganese oxide/lithium cobaltate/lithium ion/lithium polymer/ternary battery pack;
b. Perfect overcharge protection, over-discharge protection, over-current protection, short-circuit protection and disconnection protection;
c. The external protection adopts aluminum heat sink, which is shockproof, drop-proof, anti-impact and increase heat dissipation and increase the strength;
d. The main control IC adopts a highly integrated dedicated battery protection IC with reliable and stable protection functions, low self-loss and ESD protection.

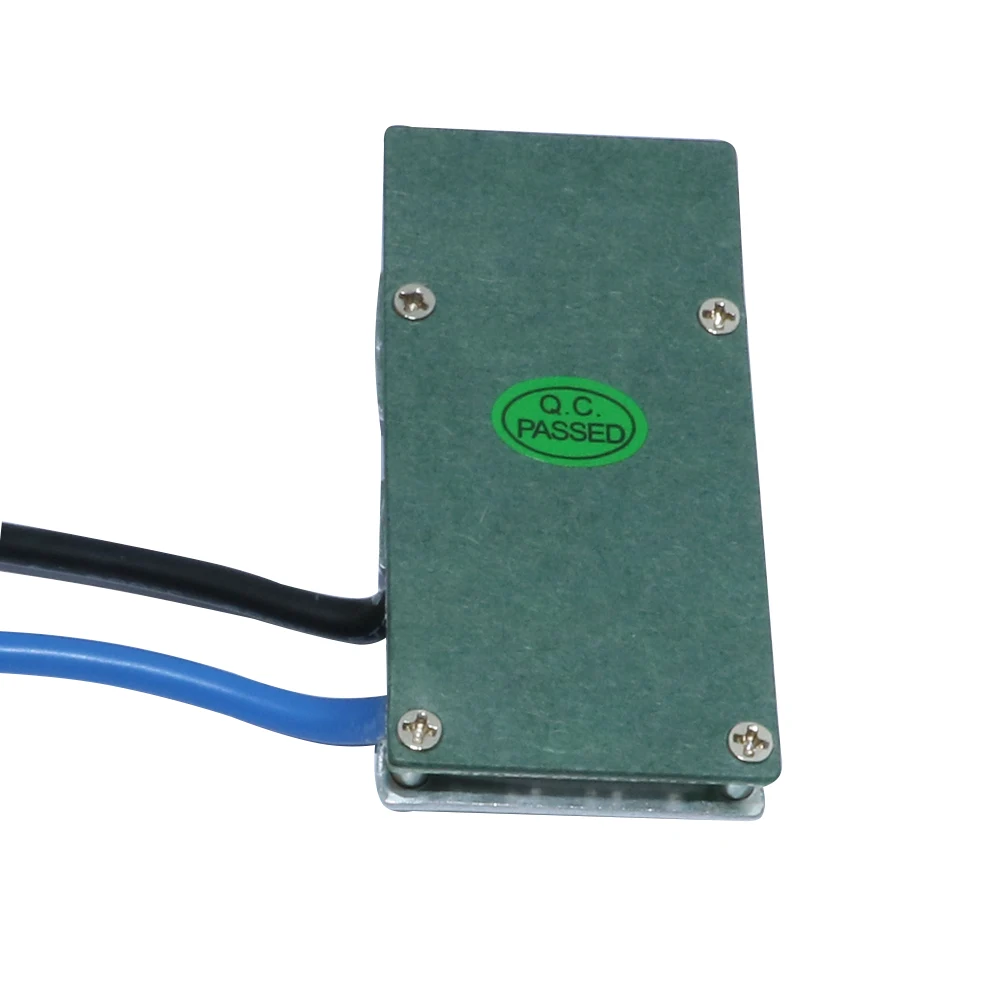

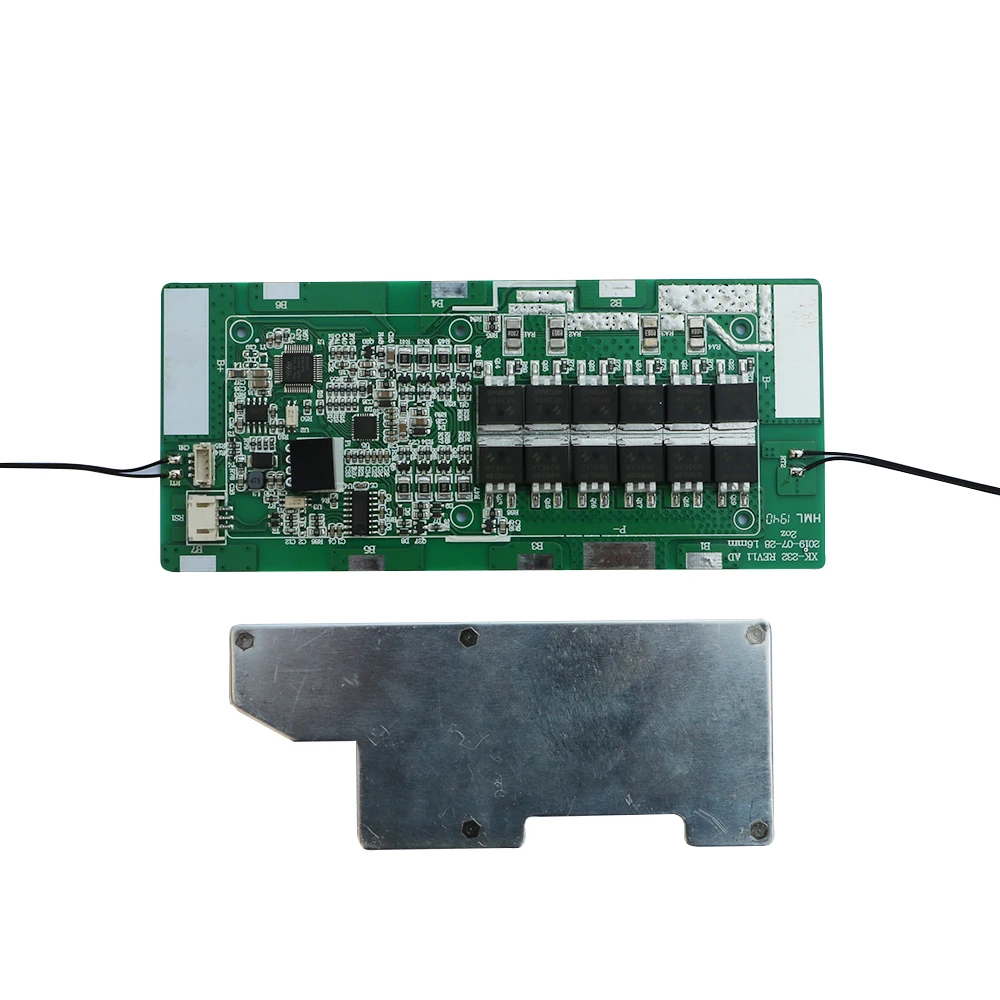

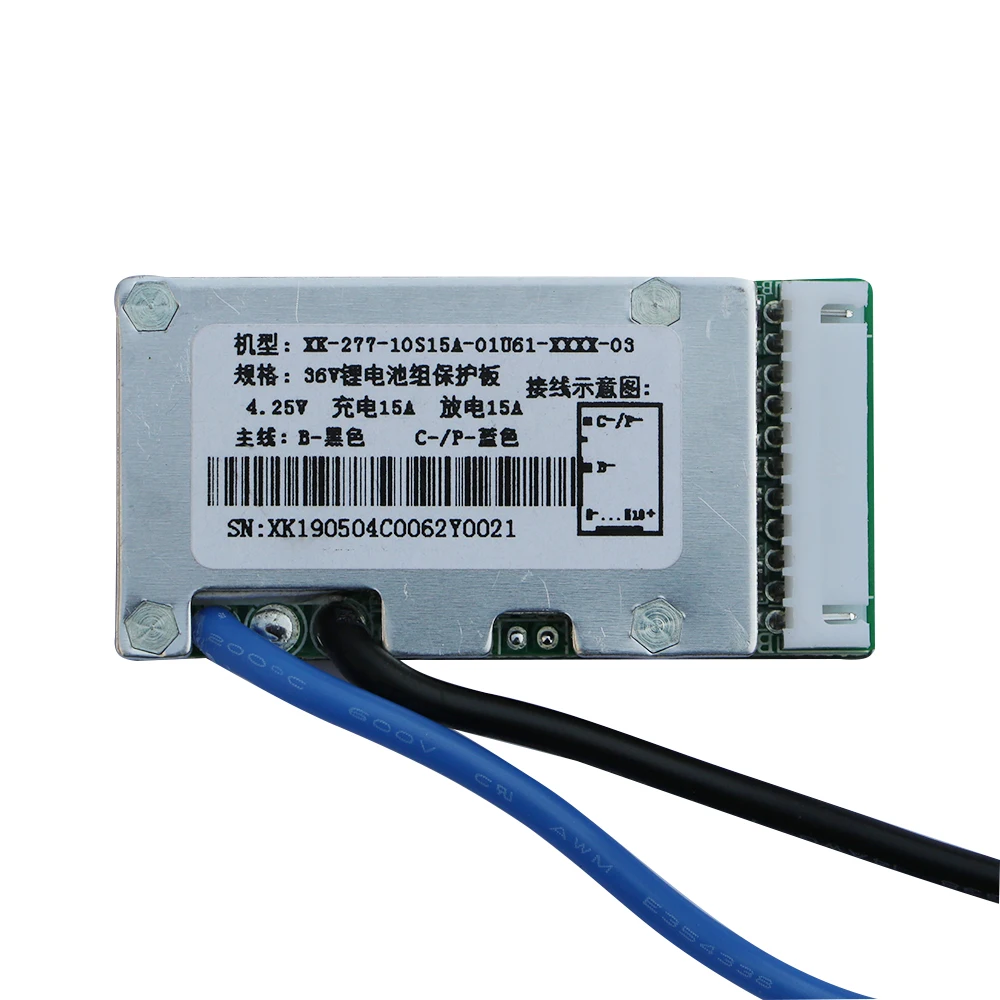

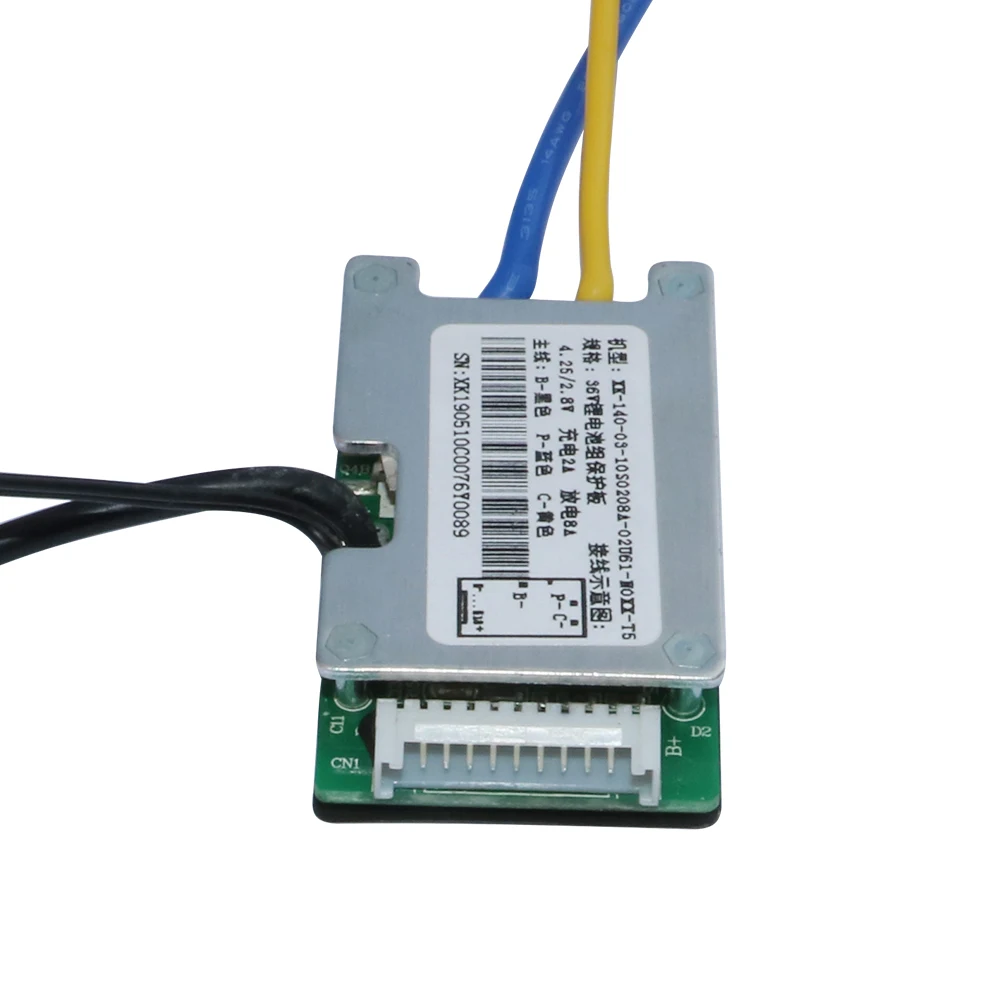

Detailed Images
NO
Test items
Min
typical
Max
unit
1
Charging voltage
71.06
71.4
72
V
2
Charge MOS tube withstand voltage value
100(DC)
V
3
Discharge MOS tube withstand voltage value
100(DC)
V
4
recharging current
40
43
A
5
Continuous discharge current
40
43
A
6
Discharge overcurrent protection current (100A electronic load)
Short-circuit/over current protection recovery conditions
Short-circuit/overcurrent protection removes load automatically after recovery
16
Overcharge(overdischarge)recovery conditions
Discharge short-circuit/discharge over-current protection removes load automatically after recovery
17
Short circuit protection delay
500
1000
1800
uS
18
Protection circuit internal resistance
8
15
mΩ
19
Maximum temperature rise of normal current
45
60
ºC
20
Discharge MOS protection temperature
65
70
75
ºC
21
temperature range of Operating
-20
25
45
ºC
22
temperature range of Save environment
20
25
30
ºC
23
humidity range of Save environment
≤40%
