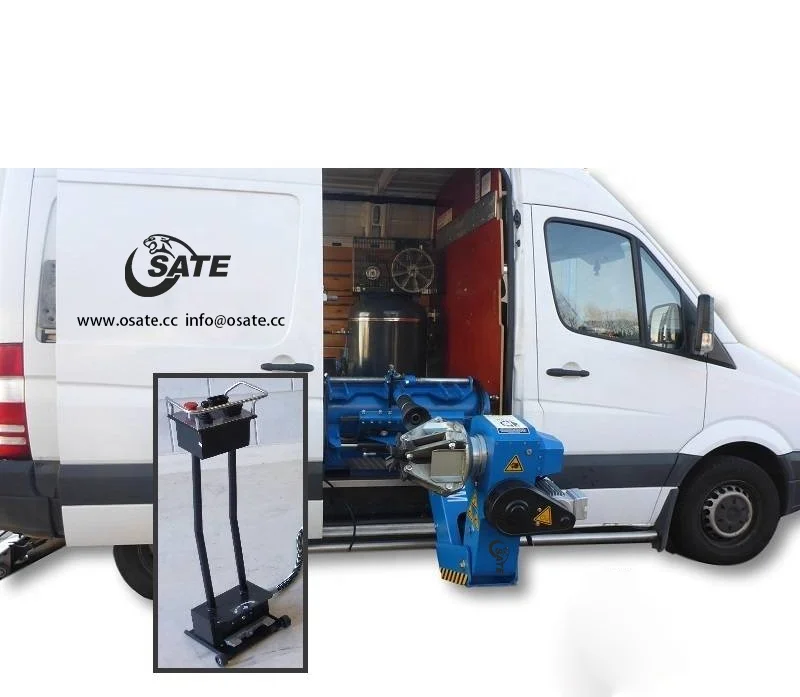

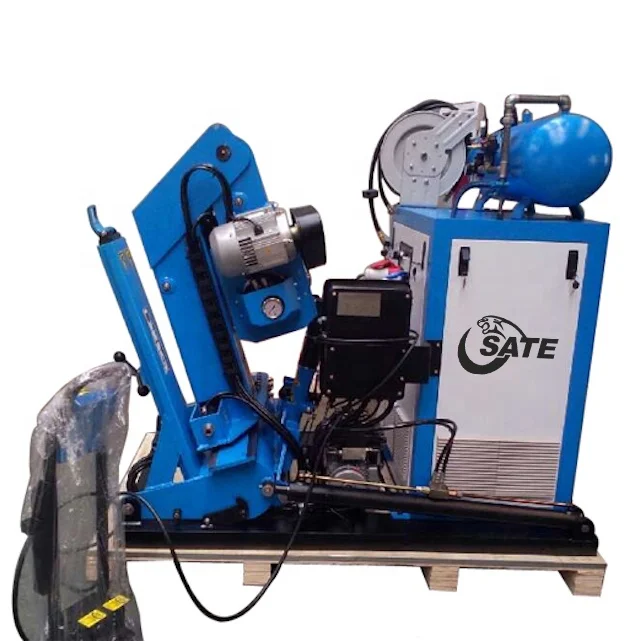

Osate Mobile 13 26' Truck Tyre Changers Machine For Repairing Tire
- Category: Vehicle Equipment >>>
- Supplier: Shanghai Xinruida Industry Co. Ltd.
Share on (1600141259257):
Product Overview
Description
Product Description
Rim Diamter | 13" - 26" |
Max.wheel weight | 700kg |
Max Wheel Width | 600mm |
Max Tyre Diameter | 1300mm |
Hydraulic Pump Motor | 1.1KW |
Gearbox Motor | 1 |
Bead Breaker Force | 2500kg |
Power | 220/400V 50/60HZ 1P/3P Optional |
Min.height of Machines Chassis to the Top of the Door | 1450mm |
Min.Tidth of Inner Van | 1650mm |
Min.Width of Door | 980mm |
Thick of Van | ≤160mm |
Chassis of Van to Floor | ≈700mm |

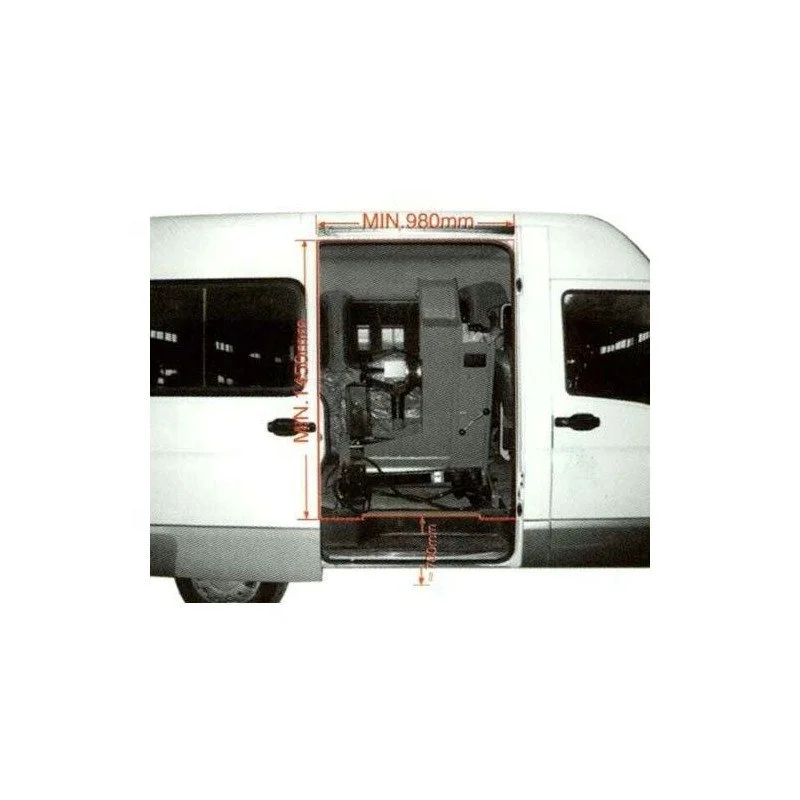

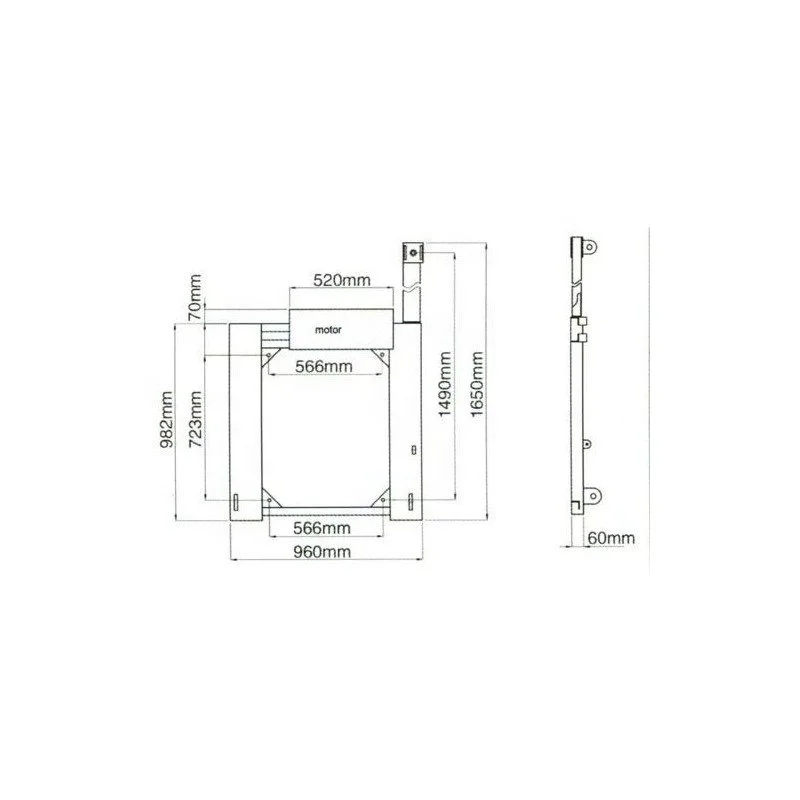

DIMENSIONS OF VAN'S DOOR
Manually adjustable arm
Suitable for truck, van, bus and passenger car wheels
Electro-hydraulic operation
Clockwise and counter-clockwise rotation
Moving mounting head
Recommended for mobile tyre services
Can be installed in a normal-sized minibus
Stable structure
CE certified
Electro-hydraulic operation
Clockwise and counter-clockwise rotation
Moving mounting head
Recommended for mobile tyre services
Can be installed in a normal-sized minibus
Stable structure
CE certified
Standard Accessories Optional Accessories
Order Attention:(Very Important)
1.As the machine heavy and big volume,need to transport by sea not air,it need about one month from China.
2.The price on Alibaba is without any shipping cost.
3.Please send inquiry to us before place order to make sure which is the nearest port can delivery.Thanks!!
1.As the machine heavy and big volume,need to transport by sea not air,it need about one month from China.
2.The price on Alibaba is without any shipping cost.
3.Please send inquiry to us before place order to make sure which is the nearest port can delivery.Thanks!!
Product packaging
1.Gross Weight（kg）：580
2.Powder Generator & Air Compressor & Machines（kg）：880

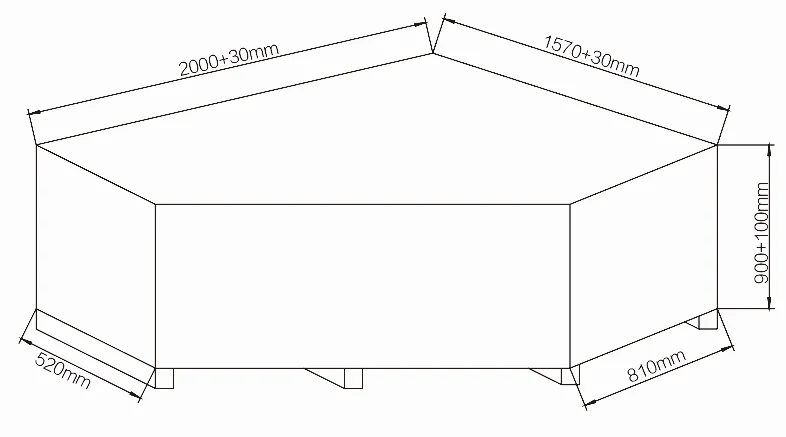

3.Outside Dimension L×W×H（mm） 1160×1000×1550 1700×1100×1650
Other Product

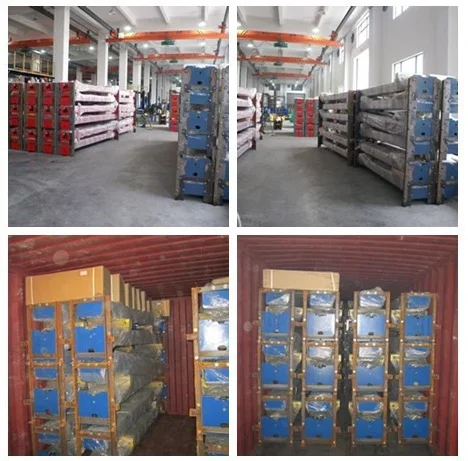

Packing and Delivery
Lead time | 3-4 weeks after receiving deposit for 1x20ft order. |
Packing | Standard export fumigated wooden pallet,carton box,color box,foam rubbers. |
Lead term | EXW,FOB or CFR/CIF,DAF,DDU,etc. |
Warranty period | 12 months. |
Shipping method | By sea or air,by express,etc. |
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
ABOUT US
Shanghai Xinruida Industrial Co., Ltd., Know as "OSATE" brand, as an expert in the field of automotive maintenance tools and workshop equipment production management, has a product history of more than 20 years. In the past two decades, XRD has provided high-reliability products to countless domestic and foreign users more than 50 contries, such as hydraulic jacks, presses, transport jacks, cranes, car lifts, etc. Products with CE/GS certificates verfied to be complied with high quality standard.
Raw material
Producing line
Pressing machine
Exhibition
Certifications
Customers' Feedbacks
FAQ
Q: Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q: How long is your delivery time?
A:Generally, it will take 30 to 45 days after receiving your advance payment.
Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A:Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance paid upon B/L copy.If you have another questions, pls feel free to contact us.
Q: Can we print logo on the products ?
A: Yes,but it has MOQ requirment.
