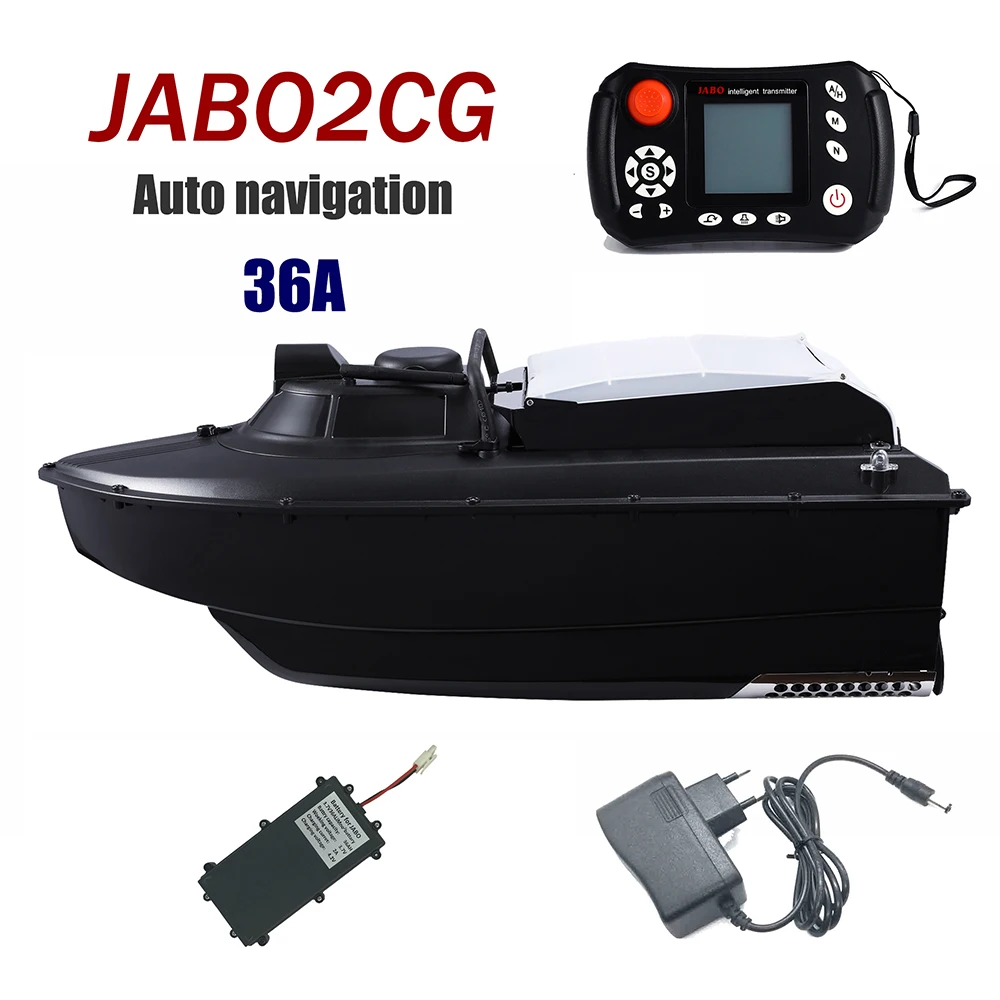

JABO2CG 36A Black GPS Auto Navigation Fish Finder Bait Boat Auto baiting robot
- Category: >>>
- Supplier: Shenzhen Zhenhua Jiabao Electronic Co. Ltd.
Share on (1600141380180):
Product Overview
Description
Product Description
JABO2CG Auto baiting robot
JABO2CG is the third generation product of JABO series intelligent bait boat designed and produced by Shenzhen Zhenhua Jiabao Electronics Co., Ltd.
Using GPS positioning, electronic compass navigation, can store 16 target bait, can automatically (manually) set the starting point, realize the one-key navigation function of starting from the starting point, automatically navigating to the target point, automatic bait feeding, and auto return to home. At the same time, it has the functions of fish detection, water depth measurement, bottom light lure fish, and water temperature measurement.
The main functions of JABO2CG bait boat:
1.JABO2CG features precise positioning and precise navigation. Positioning, navigation error radius is less than 2 meters.it can directional fixed distance automatic navigation, and can preset the navigation distance of 20 meters to 300 meters (adjustment interval of 20 meters) .
2.JABO2CG can store 16 target bait points. After the target bait points are determined for the first time, they can be placed again on the same water surface, in different fishing positions, within a radius of 1000 meters (hooks), and can achieve precise positioning. Big fish, more chances of fishing, also save bait resources, increase the fun of fishing. Especially in night fishing occasions, ordinary bait boats cannot achieve accurate bait delivery (hook release). JABO2CGcan be used to accurately and accurately target bait (hook release) even in the dark night without moonlight.
3.JABO2CG working frequency 2.4g, 250 frequency points can be set.In the same fishing ground, multiple bait boats can be used at the same time without interfering with each other.4.When JABO2CG is used, the starting point can be set manually (automatically). After the starting point is successfully set, the bait boat can return safely after each departure.
5.The unique design of the JABO2CG bait boat automatically lifts the bait bin. Its advantage is that the feeding point can be seen visually, and the bait bin is automatically reset and travels more smoothly. These characteristics are more obvious after the realization of automatic navigation.
6.The design of the built-in propeller overcomes the defect that the external propeller is easily entangled by foreign objects. It is suitable for use in occasions with water plants and floating objects on the water surface, and also extends the service life of the propeller.
7.JABO2CG has the functions of detecting fish, measuring the depth of the water, lure fish with the fish trap under the boat, and measuring the water temperature.
Boat main specifications: | ||||||

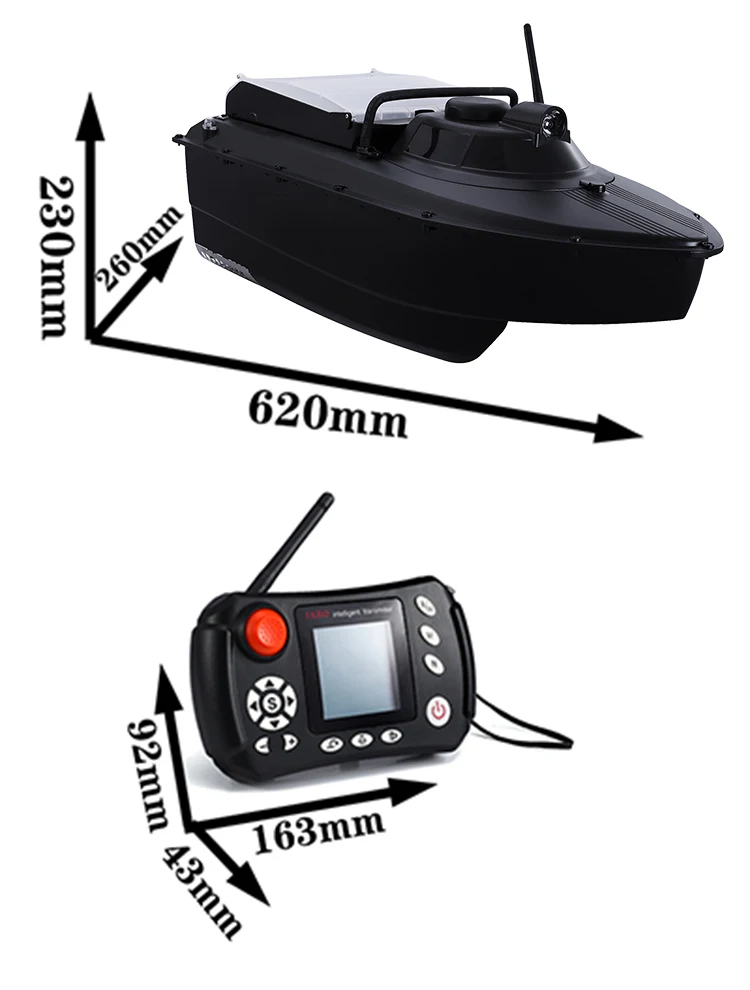

Dimensions | 620*280*230m m | Speed: | 60 meters/minute | |||
Control distance | 300 meters | Load of bait silo | 1.5kg | |||
frequency | 2.4g | Sonar frequency | 200k | |||
Sonar angle | 200 | Store target | 16 | |||
GPS satellite capture time: | 1-3 minutes | GPS accuracy: | 2m | |||
Boat weight: | 4.5kg(3.7V36A) | |||||
forward, backward, turn right, turn left, release hook (feeding material), measure water temperature, bottom lamp lure fish,measure depth, fish (fish can be distinguished), automatic positioning, automatic nesting, automatic return Features. | ||||||
Remote control button functions
Remote control main function | ||||||||
Dimensions | 165×43 ×96mm | Power supply: | 3.7v li battery. | |||||
LCD | FSTN 128×128 | Screen size: | 45mm × 45mm | |||||
detection range: | 2-30 meters. | Detection resolution: | 0.1 meters | |||||
Underwater outline display: | Yes | Water temperature detection range: | 0-50 C0 | |||||
frequency: | 2.4G | Display unit conversion: | m/in | C0/F0 | ||||
remote control channel: | 250 | Low voltage alarm: | Yes | |||||
Remote control distance: | 300 meters | latitude and longitude display: | Yes | |||||

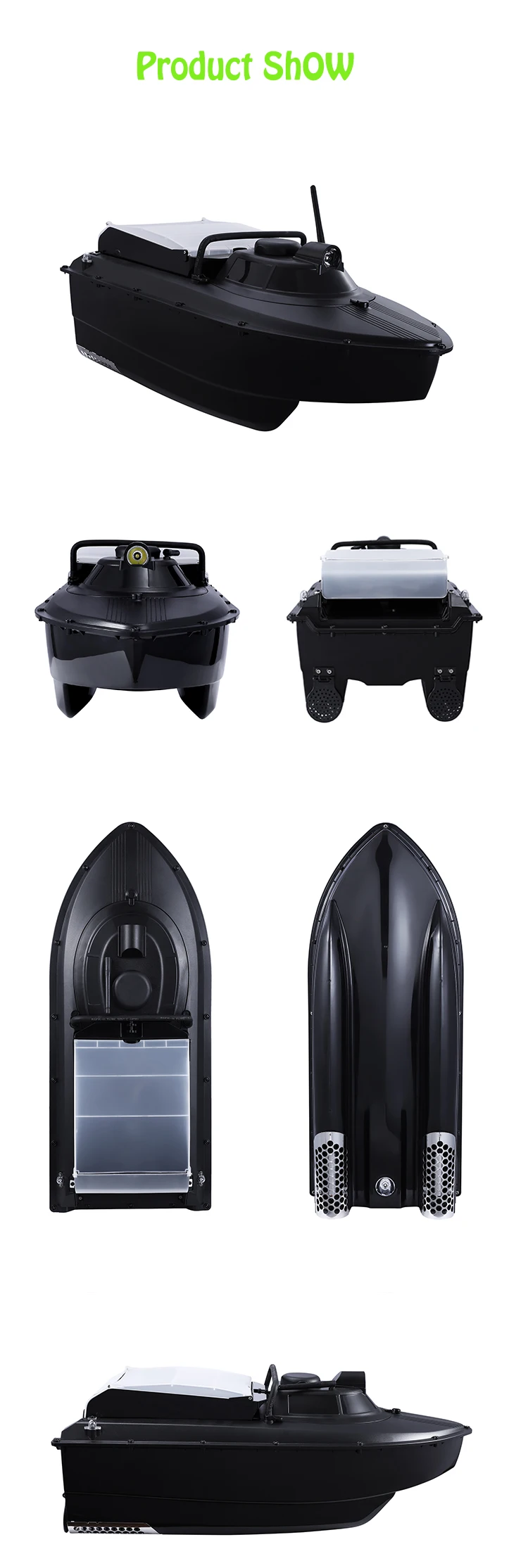

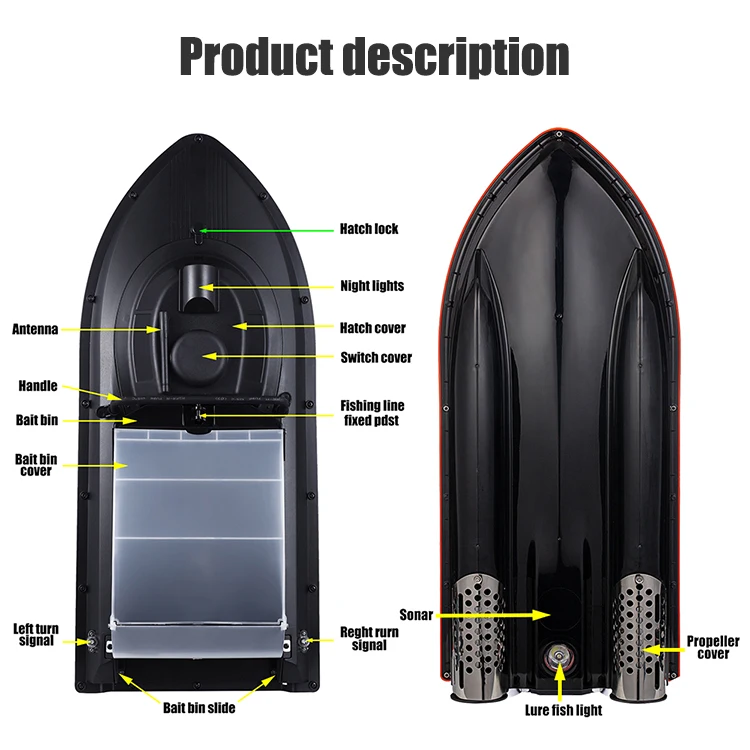

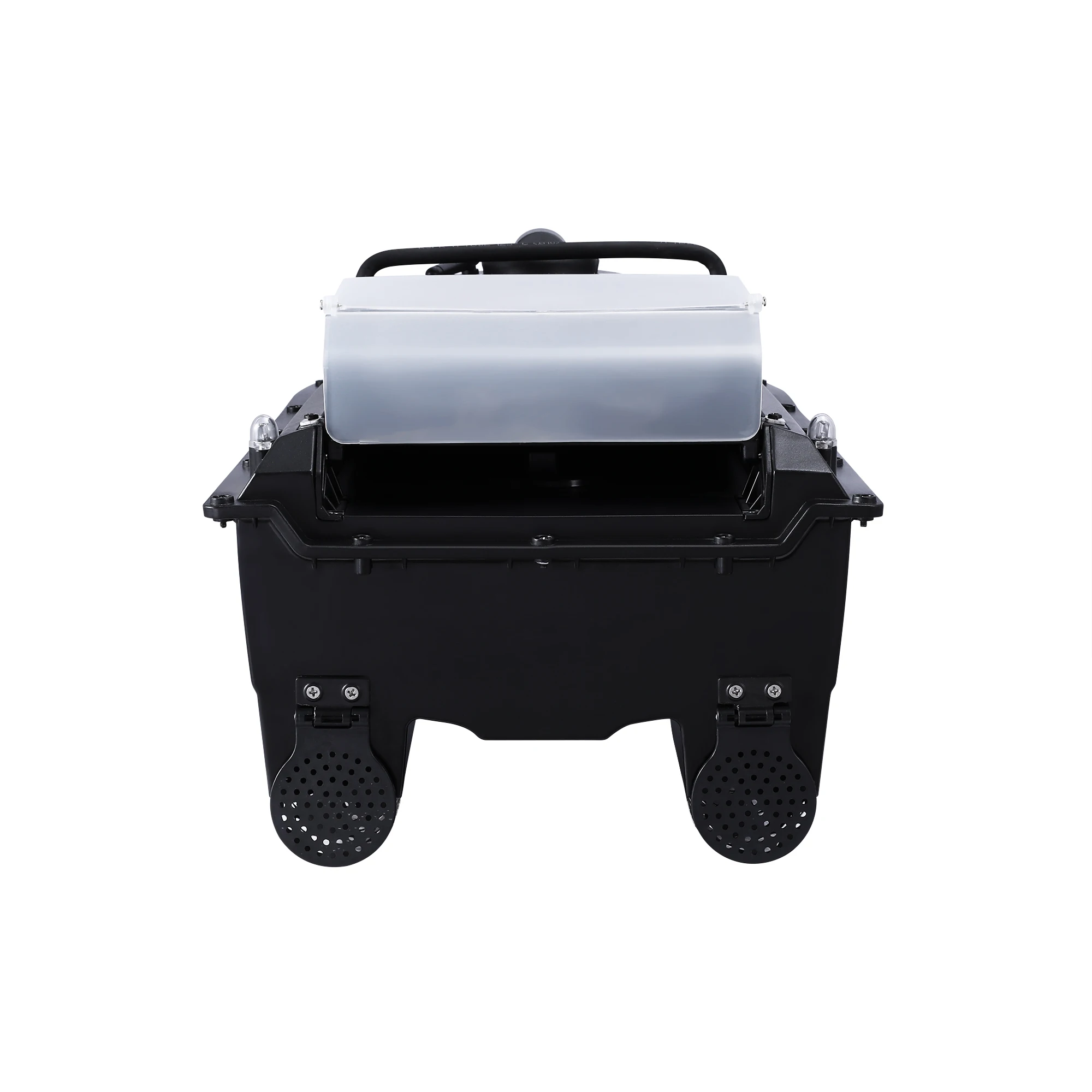

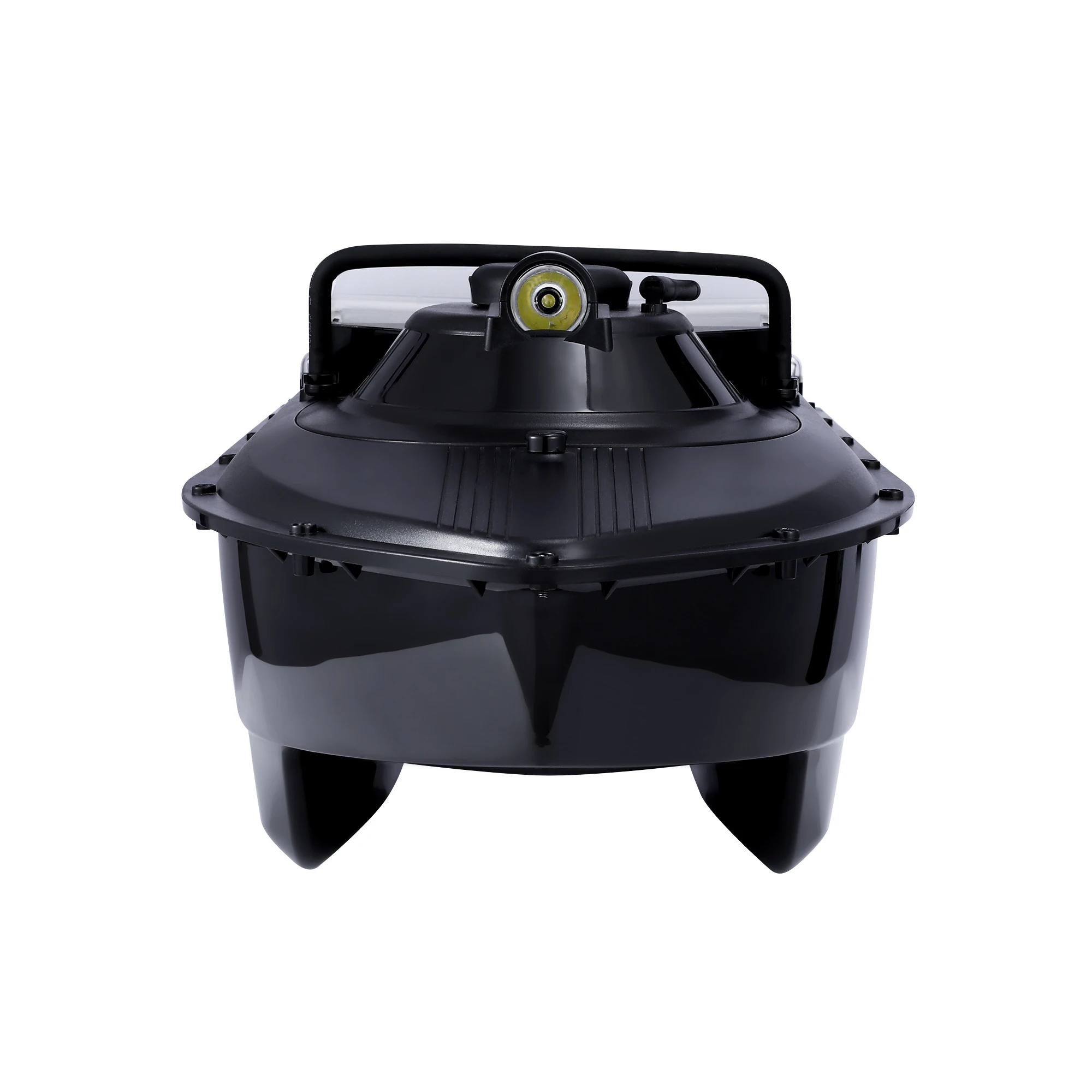

Boat detail display
Package instruction
CE certification
