Acid and alkali resistant copper cables underwater cable wire neutrally buoyant underwater cable for sea
- Category: Wires, Cables & Cable Assemblies >>>
- Supplier: Shanghai,Lansheng,Special,Cable,Limited,Company
Share on:
Product Overview
Description
Product Description

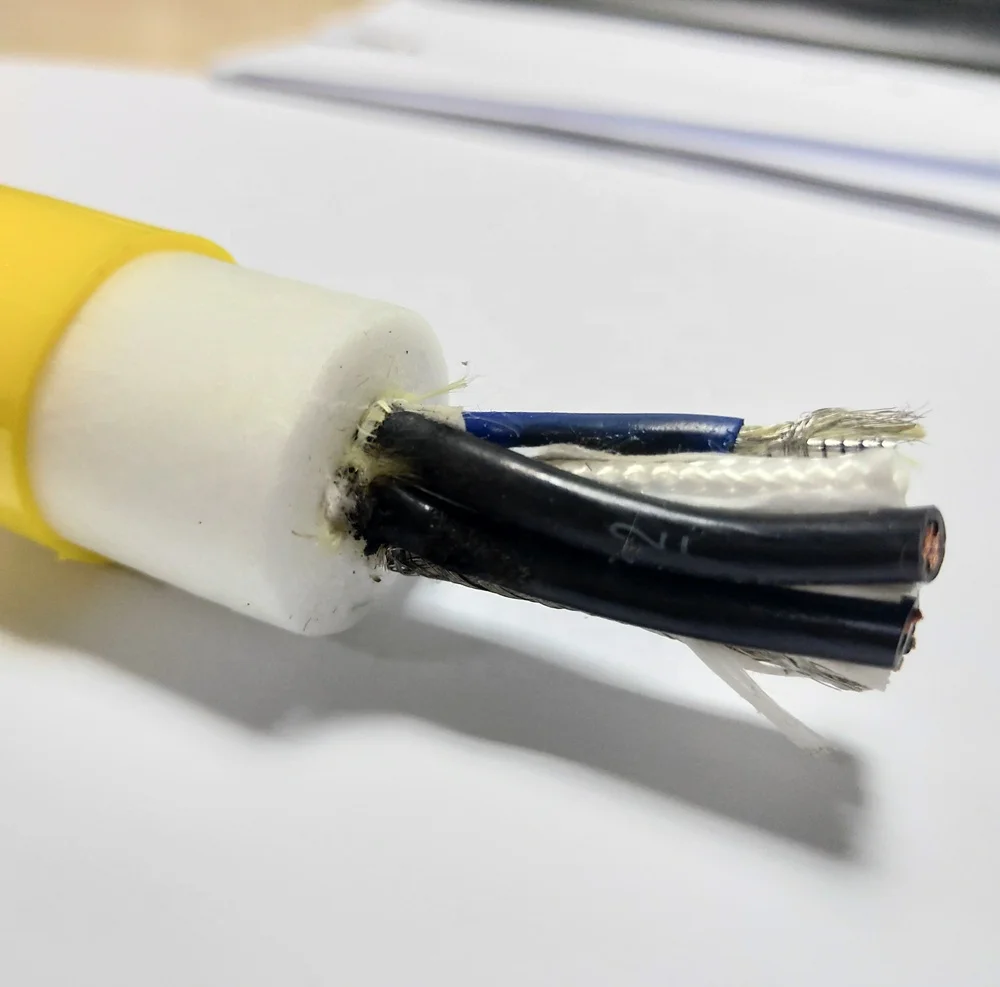

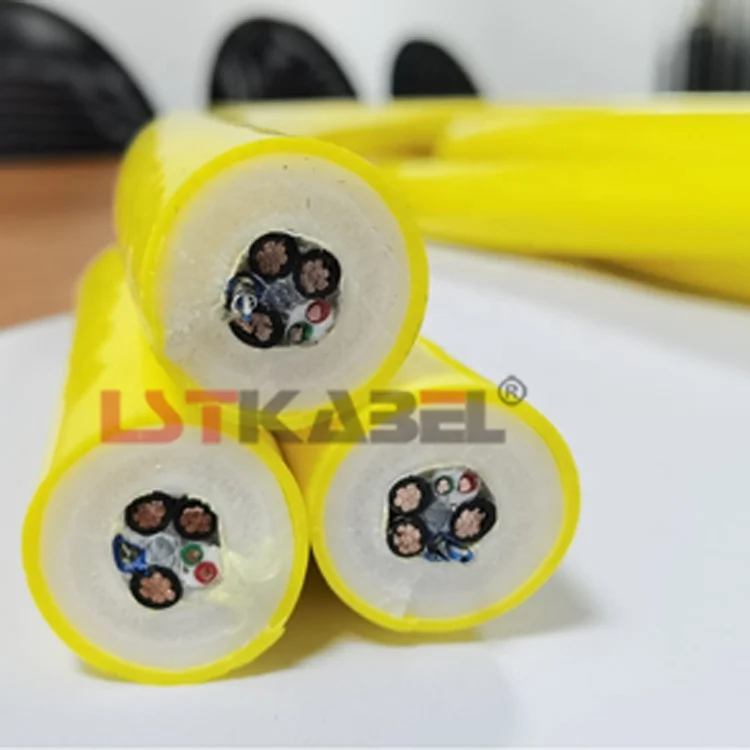

Acid and alkali resistant copper cables underwater cable wire neutrally buoyant underwater cable for sea
| Specification mm2 | Overall diameter mm | Approx weight kg/m | Tensile Load N | Current at 30℃ A | Max. resistance of the Current at 30℃ Ω/KW | Voltagedrop per 100m V |
| 3*35+2*16/2+6FO | 29-34 | 1.806 | 3300 | 168 | 0.576/1.258 | 19.35 |
| 3*50+2*25/2+6FO | 35-40 | 2.565 | 4800 | 206 | 0.401/0.811 | 16.52 |
| 3*70+2*35/2+6FO | 40-45 | 3.433 | 6700 | 255 | 0.283/0.576 | 14.43 |
| 3*95+2*50/2+6FO | 46-51 | 4.617 | 9200 | 318 | 0.214/0.401 | 13.61 |
| 3*120+2*70/2+6FO | 52-58 | 5.849 | 11000 | 385 | 0.167/0.283 | 12.86 |
| 3*150+2*70/2+6FO | 56-62 | 7.006 | 14000 | 452 | 0.134/0.283 | 12.11 |
| 3*185+2*95/2+6FO | 62-68 | 8.621 | 18000 | 510 | 0.11/0.214 | 11.22 |
| 3*240+2*120/2+6FO | 69-75 | 10.894 | 23000 | 606 | 0.083/0.167 | 10.10 |
| 3*35+2*16/2+12FO | 29-34 | 1.806 | 3300 | 168 | 0.576/1.258 | 19.35 |
| 3*50+2*25/2+12FO | 35-40 | 2.565 | 4800 | 206 | 0.401/0.811 | 16.52 |
| 3*70+2*35/2+12FO | 40-45 | 3.433 | 6700 | 255 | 0.283/0.576 | 14.433 |
| 3*95+2*50/2+12FO | 46-51 | 4.617 | 9200 | 318 | 0.214/0.401 | 13.61 |
| 3*120+2*70/2+12FO | 52-58 | 5.849 | 11000 | 385 | 0.167/0.283 | 12.86 |
| 3*150+2*70/2+12FO | 56-62 | 7.006 | 14000 | 452 | 0.134/0.283 | 12.11 |
| 3*185+2*95/2+12FO | 62-68 | 8.621 | 18000 | 510 | 0.11/0.214 | 11.22 |
| 3*240+2*120/2+12FO | 69-75 | 10.894 | 23000 | 606 | 0.083/0.167 | 10.10 |
Features:
• Single mode and multi-mode faber optic optional
• Neutral floating and 0 weight in the seawater
• Acid and alkali resistance
• Waterprooing PRU and Waterproofing PVC jacket optional
OEM Cable Manufacturer with the most competitive price, pls contact us now!
Product Application
Waterproofing umbilical cable mainly for underwater robots, camera etc very stable signal trasmission.
Company Information
Shanghai Lansheng Special Cable Limited Company is a well-known manufacturer of special cable R & D in China, we're located in Pudong Shanghai China, we have over 388 staffs, including our 30 research and development groups, 8 top engineers and 32 sales.
Our products include all kinds flexible mobile special cable, covering stationary and flexing installation of data Communication, power transmission and used in extremely environments.
Exhibition
Our products sale all over the world, the main market in Asia, Europe, North America, South America and other regions, we visit 6-8 exhibitions every year, hope find high strongth agants to open more markets, and we can do OEM and ODM service to give our agants and customers to give the biggest support to find the best cooperation, welcome to join us!

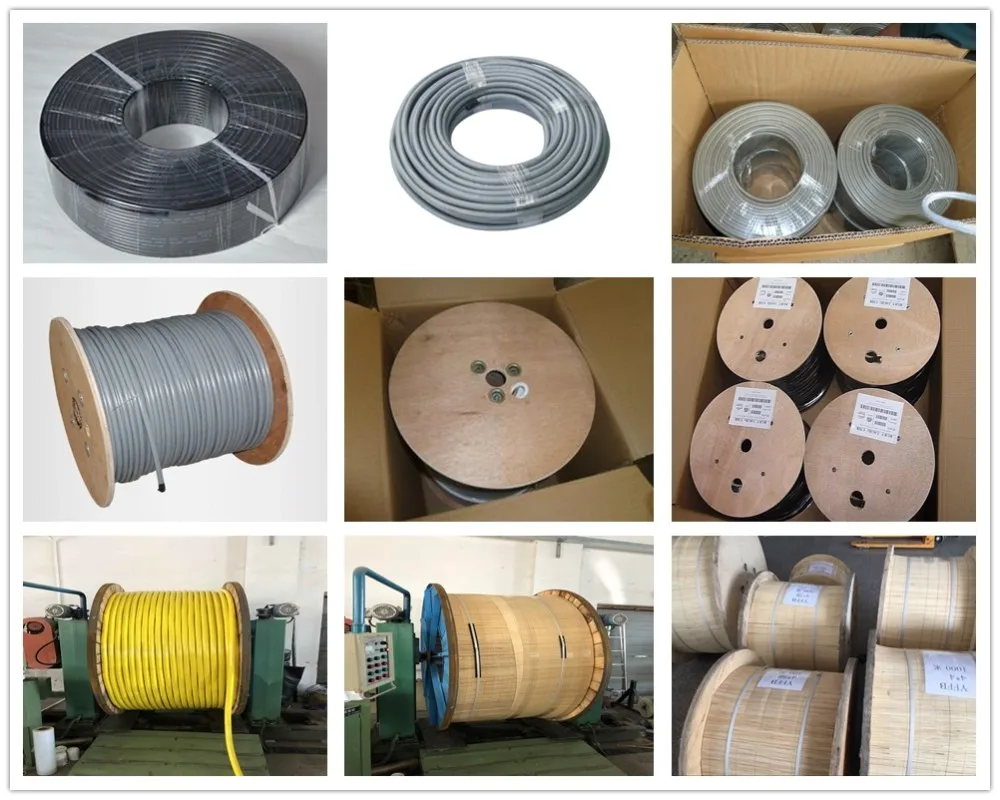

Packaging & Shipping
FAQ
Q1: Can you do OEM and ODM service?
A1: Yes, we have our own factory, OEM and ODM is available.
Q2: What’s your mainly products?
A2: Our products range including Robot Cable, Reeling Cable, Flat Cable, Data Transmission Cable, Elevator Cable, Waterproofing Cable, Control Cable, Drag Chain Cable...etc, we can customized as your need.
Q3: What’s your warranty?
A3: Generally, we can provide at lease 1 year warranty (except human damage), at lease 5 years warranty.
Q4: What is your Minimum Order Quantity?
A4:Normally, 100 meters can be accepted.For special cable the minimum order quantity will be negotiated.
Q5: What is your delivery time?
A5: Usually, we can arrange the shipment within 3-5 days if in stock. For others, the delivery time according to your quantity.
Q6: What’s your payment term?
A6: We accept Alibaba insurance order, TT bank transfer, L/C and so on.
Any Other Questions, welcome give us massage now!
