Automatic Plastic Cup Lid Thermoforming Machine Disposable Plastic Paper Lid Making Machine for Coffee Cup

Share on (1600141760680):


Price:

Quantity:


Product Overview

Description



Product Description

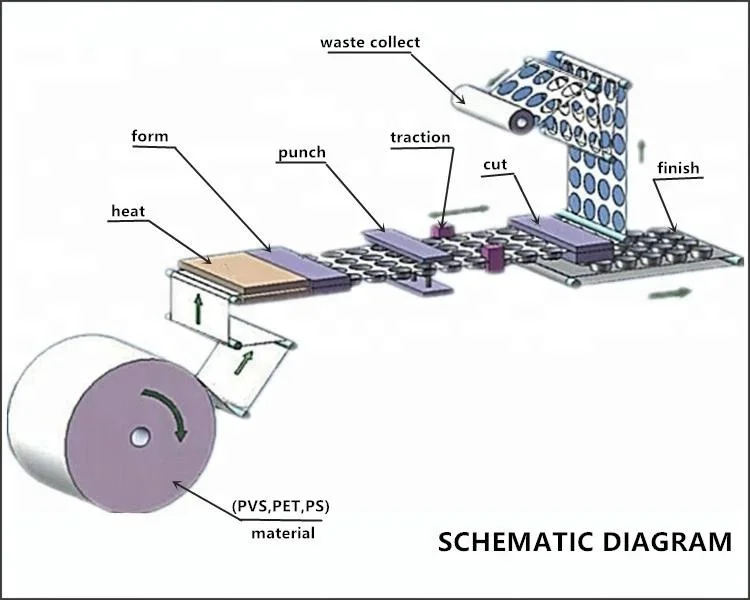

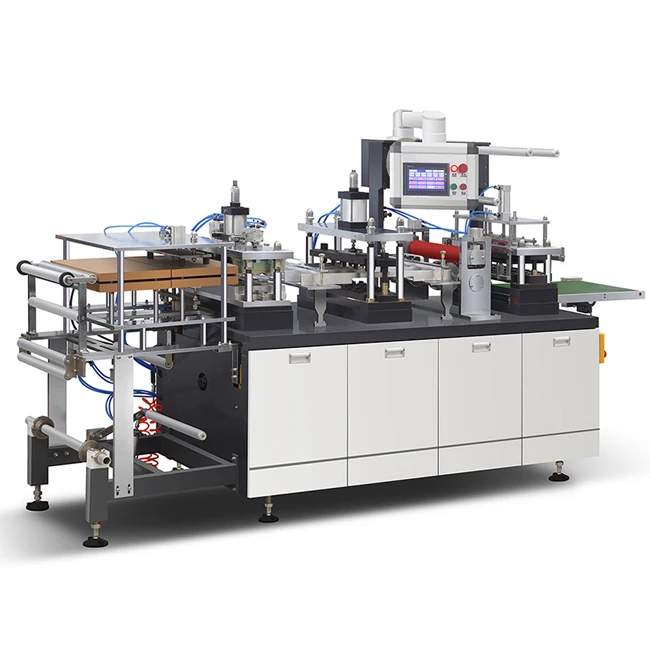

OR-450W automatic plastic lid forming machine can make kinds of plastic lids in different plastic material and shape.This machine is automatic plastic lid forming machine,finish thermoforming,hole punching,die cutting on one machine.Widely use in PET/PVE/HIPS/PLA plastic lids.


Parameters of Automatic Plastic Cup Lid Thermoforming Machine























































ModelZM-420WZM-450W
Max.forming size420*160mm450*300mm
Max.forming depth45mm45mm
Stroke adjustable range160mm300mm
Speed15-45 times/min15-45 times/min
Air pressure0.4-0.7mpa0.4-0.7mpa
Air consumptionmore than 0.3 cubic meter/metermore than 0.3 cubic meter/meter
Power supply220V/380V 21KW220V/380V 21KW
Weight1200kg1500kg
Dimension2500*1000*1600mm3500*1000*1600mm


Features of Automatic Plastic Cup Lid Thermoforming Machine


1. The machine is designed and manufactured by the standard of “GMP” in medical industry and “QS” in food industry.
2. This machine can do forming, punching and blanking at the same time with servo motor to avoid the cross-contamination of product.
3. The forming heating plate can open and close automatically, also can delay to start, so as to control and lower the waste
of the material during the production.

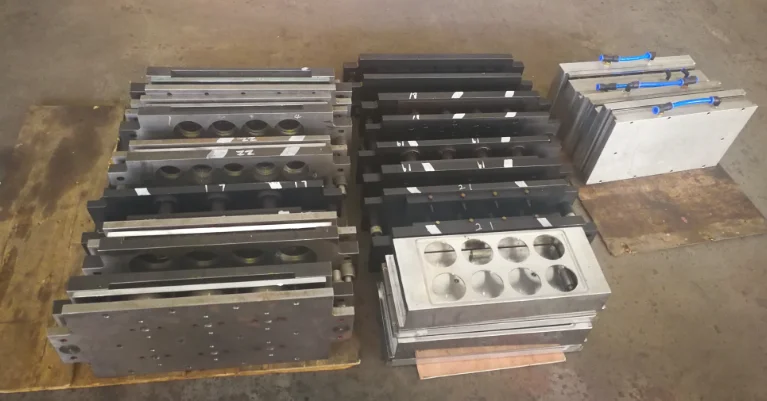

4. Easy to replace the mold, application to different specifications of products.
5. Design the mold according to customer’s requirements.
6. Applicable projects: the material of HIPS, PVC, PET, PS.






.png





Packaging & Shipping













PackagingNormal standard/as your requirement
Shipping10-15 days after your payment




.jpg





Our Services


24 hours on-line services for you.


Professional person reply your questions.


One year warranty for you.


Perfect and careful after-sale service.





Company Information


Zhengzhou Allraise Machinery Company Ltd have designing,developing ,manufacturing and marketing machinery for more than 10 years.Firstly, we mainly sever China mainland customers.In order to adapt to world market development,now we do the exporting business directly.After these years of development, we have high quality peofessional teams, skillful talents, strong technical force,strong and independment research and development capabillties, advanced production equipment and a perfect after-sale service system.So choose us,equaling to choose the competitive price and stable quality both.


-1( )








About Us


.jpg





Contact us


If you have any questions,please contact me when you feel freely.


We will give you our best service.Hope we can have a chance to do business!
