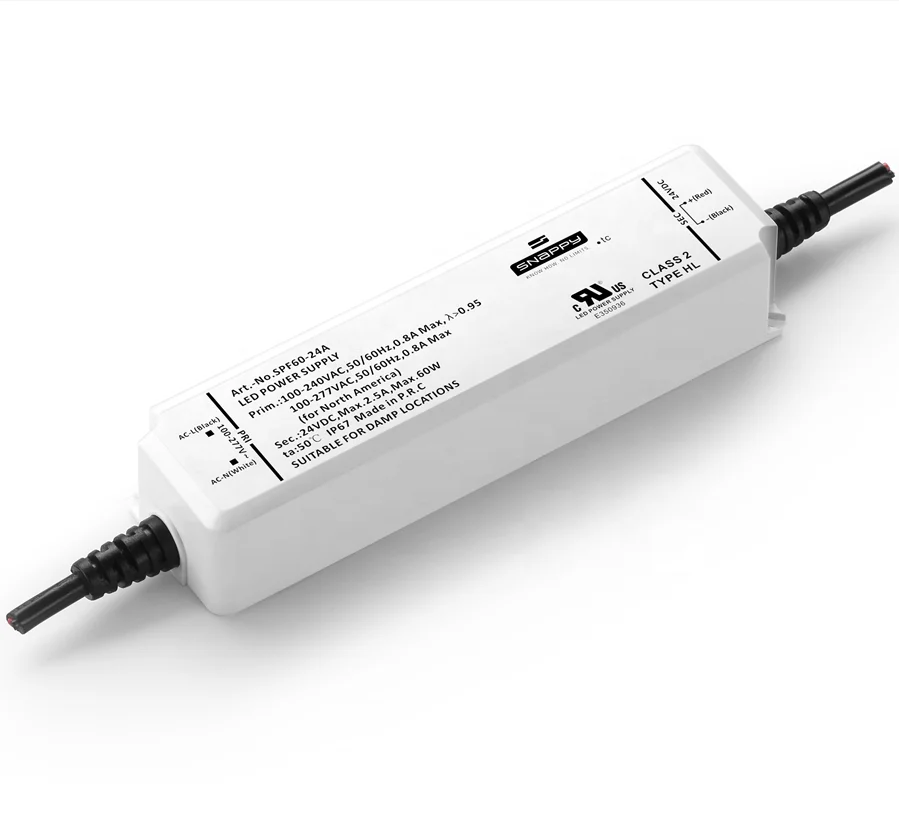

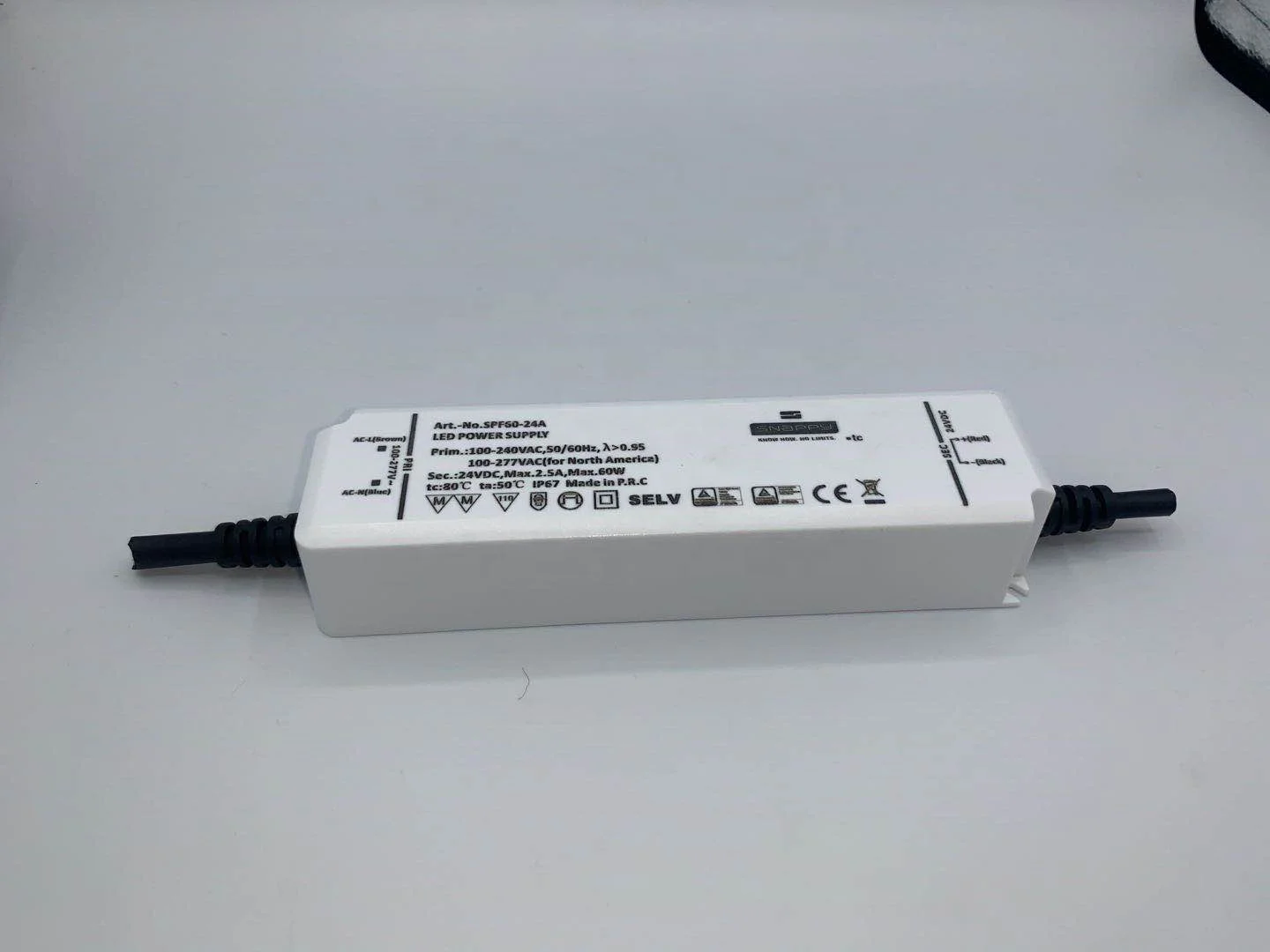

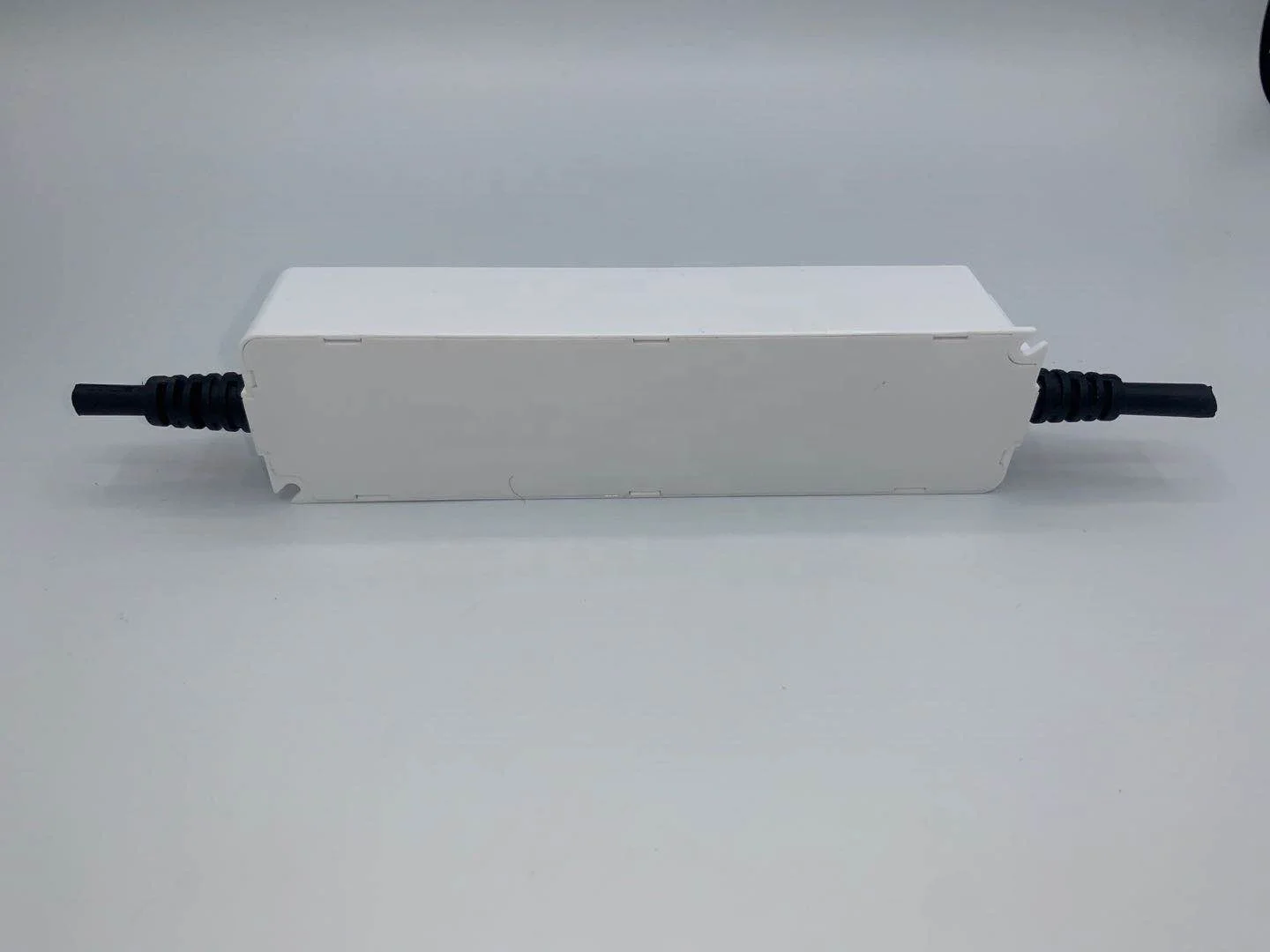

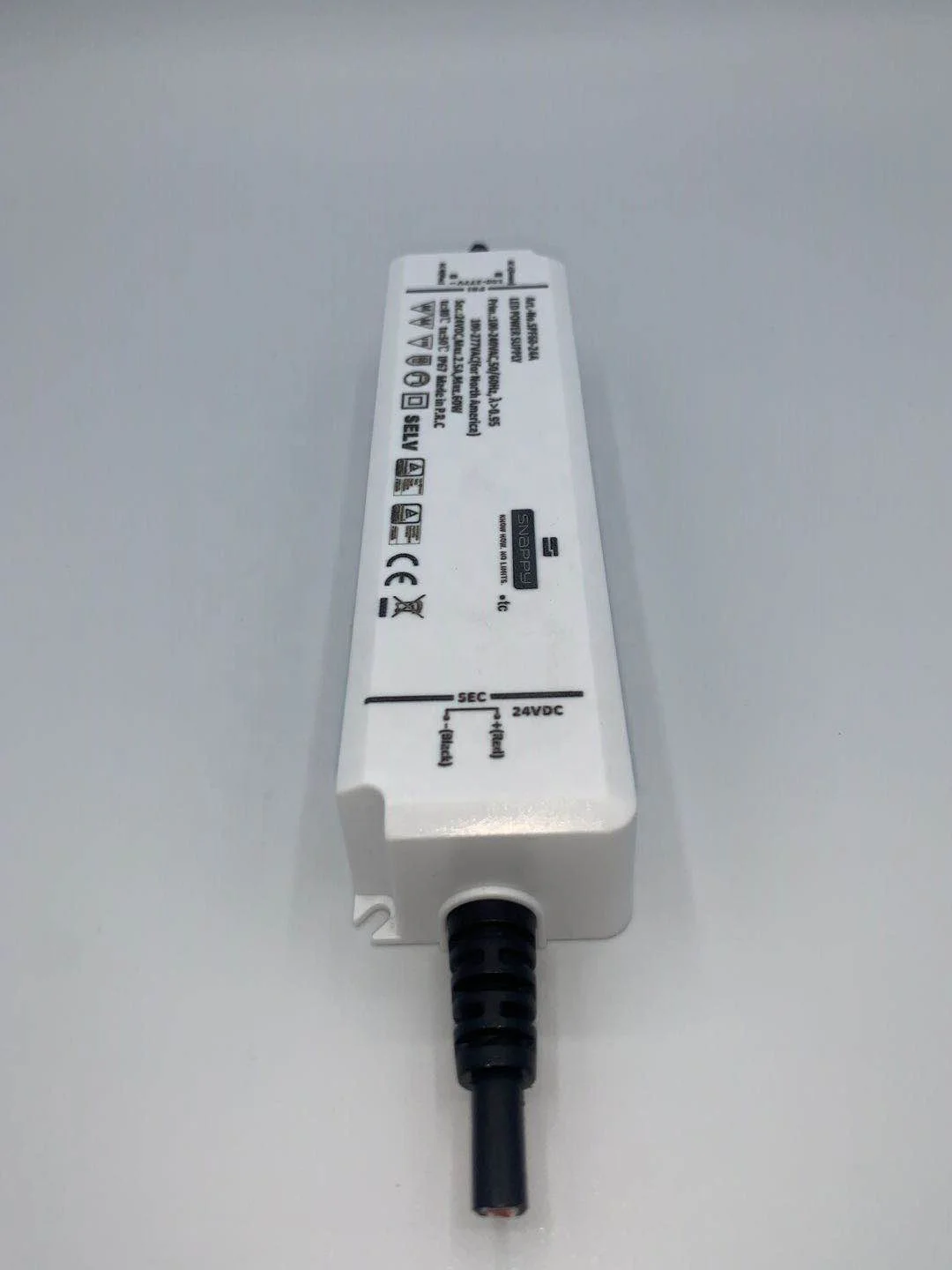

SPF60 12/15/24/36/48A Input 90~305VAC 60W 12~48V 1.25A~5A IP67 constant voltage constant current LED Driver

Share on (1600141869596):


Price:$11.91 - $12.50

Quantity:


Product Overview

Description



Product Description




Specification


item
SPF60-12A  SPF60-15A SPF60-24A SPF60-36A SPF60-48A
Warranty(Year)
5-Year
Lighting solutions service
Lighting and circuitry design, Project Installation
Place of Origin
China
Brand Name
SNAPPY
Model Number
SPF60-12/15/24/36/48A
Output Power
30W~60W
Output Type
constant voltage and constant current
Input Voltage
90~305Vac
Output Frequency
47~63Hz
Output Current
1.25A~5A
Application
LED Lighting
Certification
CE RoHS TUV (LVD,EMC)
Power Factor
PF>0.9(230v 50HZ) full load
Efficiency
≥86%
Operation Temperature
-40℃~70℃
TC
80℃
Insulation type
Class I
IP grade
IP67

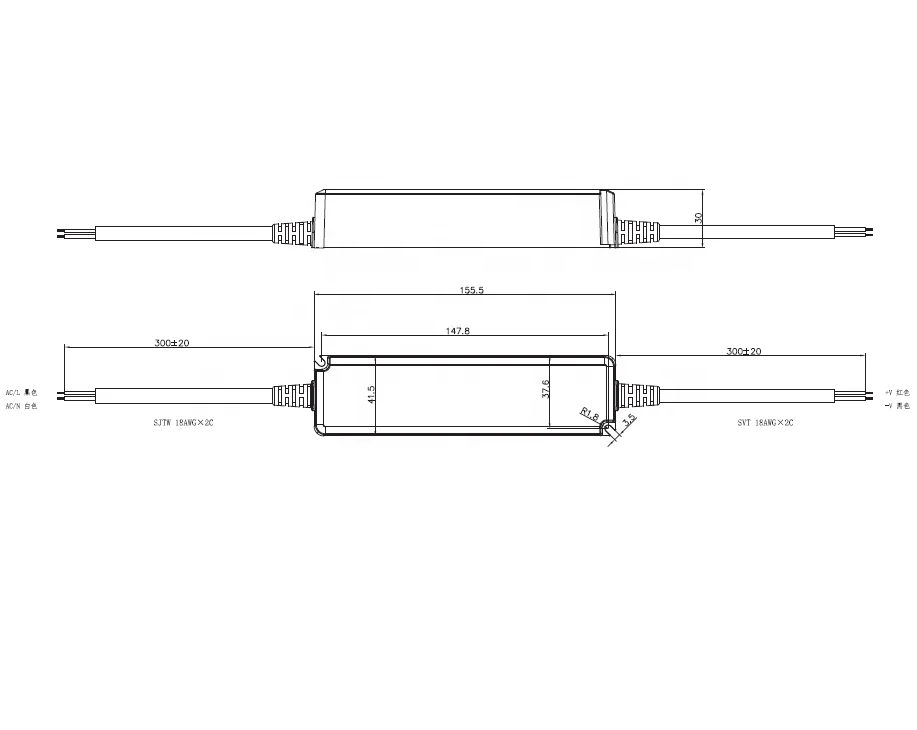

Dimension
155.5*41.5*30


Packing & Delivery




Protection: Safety Standard:
Open circuit Over load Short circuit Over temperature
Safety: IEC61347-1, IEC61347-2-13; Harmonic: IEC61000-3-2 EMI: IEC55015; EMS: IEC61547


Company Profile








Snappy is a small-and-refined environment-friendly enterprise with high growth and innovation. To meet the personalized customization of the world's top customers, we have made intensive efforts in the industry segmentation market.

Founded in 2003, Snappy primordially developed and produced high frequency transformers and coils. At the end of 2010, we started transition and entered into LED lighting field to become a personalized customization and innovative company that provides solutions for the global lighting industry. Driving force behind the LED lighting solutions has been Snappy's primary goal over the years. We have developed a series of ultra-thin, conventional and waterproof power supplies which can be used in indoor and outdoor side. As an independent and respected innovators in LED lighting, our products are in the leading position in the world and warmly welcomed by global customers. In 2015, Snappy was successfully listed in Beijing Stock market. Stock code: 834662. In 2016, our holding company Jiangxi Yongning Electronic was established and in 2017, we applied for IPO listing guidance. In 2018, our subsidiary corporation Yongning Electronics purchased 10 acres of land in Jiangxi as the main production base and in 2019, Snappy purchased 5 acres in National Hi-tech Park of Ningbo, Zhejiang, with a total planned investment of 200 million RMB for the construction of the company headquarters and R&D base, which is undoubtedly provide infinite possibilities for the company's future development.

Snappy implements ERP system management control and production automation control throughout the entire process, maintaining the highest standard of quality and service. Deeply cultivated in subdivision fields such as cabinet furniture, bathroom, outdoor commercial lighting, etc., Snappy has grown into a customized, high-end, innovative and high-growth enterprise. We aim to provide the perfect lighting solutions to our customers and bring the professional lighting into your world.


FAQ


1. who are we?
We are based in Zhejiang, China, start from 2003,sell to Western Europe(46.00%),Southern Europe(25.00%),Domestic Market(15.00%),Northern Europe(6.00%),North America(3.00%),Eastern Europe(2.00%),Oceania(2.00%),South America(1.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
LED Driver,High Frequency Transformer,Junction Box,LED Driver,Lighting Fixture

4. why should you buy from us not from other suppliers?
Good quality products,competitive price,guaranteed after-sales service,

5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
