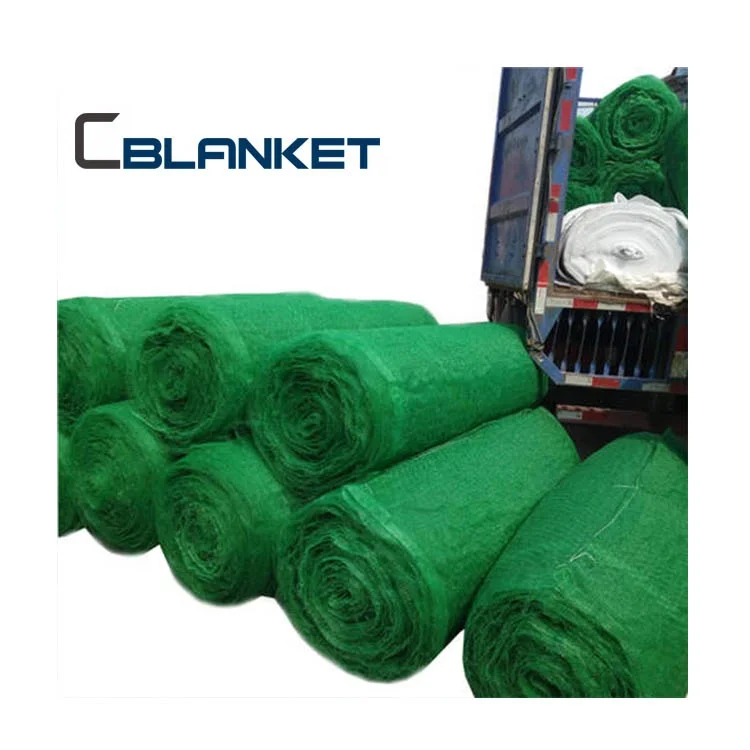

Order Erosion control mat 3D Geomat slope soil erosion control Eco friendly grass protection
- Category: Earthwork Products >>>
- Supplier: Cement Blanket Co. Ltd.
Share on (1600141936631):
Product Overview
Description
Products Description
Product Name | 3D Green Grass Geomat | EM3 | EM4 | EM5 | |||
Material | HDPE | HDPE | HDPE | HDPE | |||
MOQ | 1000 Square Meter | 260 | 350 | 430 | |||
Color | Green & Black | 12 | 14 | 16 | |||
Application | Roads/Railways/Rivers/Dams | 1.4 | 2.0 | 3.2 | |||
Function | The embankment can be protected from wind and rain before the turf grows. It can keep the grass seeds evenly distributed on the slope and avoid the wind and rain. The net mat can absorb a lot of heat energy, enhance the ground temperature, promote the germination of grass seeds and prolong the growth period of plants. | 50*2 | 50*2 | 50*2 | |||
1. Thickness: 10-16mm
2. Weight: 220-430g/m2
3. Tensile strength: 0.8-3.2kN/m

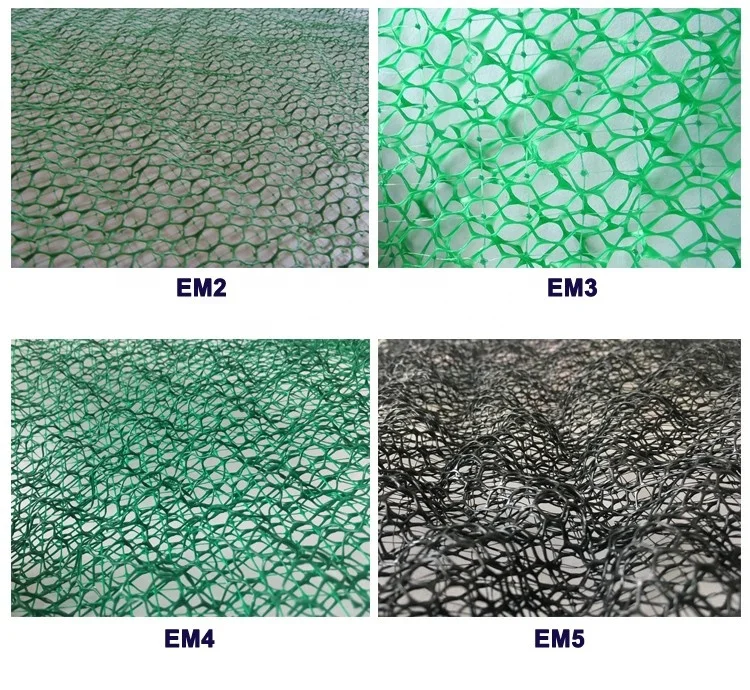

4. Layers: EM2/3/4/5

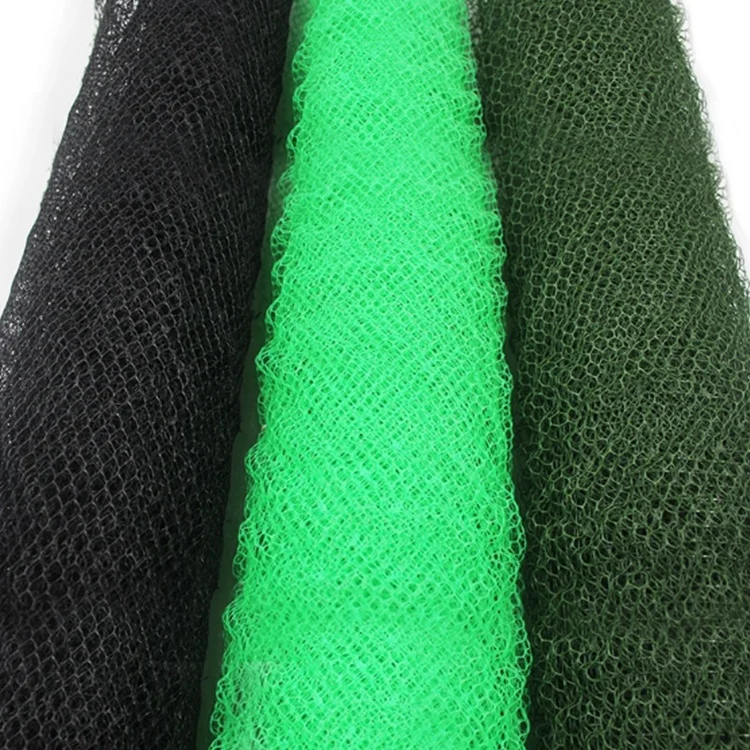

5. Color: Dark Green, Light Green and Black
2. Weight: 220-430g/m2
3. Tensile strength: 0.8-3.2kN/m
4. Layers: EM2/3/4/5
5. Color: Dark Green, Light Green and Black
Geomat Introduction:
Three dimension vegetation net is a new-typed seed planting material with tridimensional structure, which can protect the ground surface being corroded before the turf is growing up, and fix the seeds.The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, riverway, embankment, hillside etc
Geomat Features:
1, To prevent the ground surface out of erosion of wind and rain before the growth of greensward.
2, It can fix grass seed at the beginning of seeding, and bear high water level, high speed scouring of rainwater after the compound layer formed.
3, It can replace slope materials such as concrete, bitumen, and jackstone.
Three dimension vegetation net is a new-typed seed planting material with tridimensional structure, which can protect the ground surface being corroded before the turf is growing up, and fix the seeds.The compound protection layer formed after the grass grows up can endure washing by high level and high speed water. It can be a substitute of the concrete, bitumen, stone etc to be the slope protection material. It has mainly been used in highway, railway, riverway, embankment, hillside etc
Geomat Features:
1, To prevent the ground surface out of erosion of wind and rain before the growth of greensward.
2, It can fix grass seed at the beginning of seeding, and bear high water level, high speed scouring of rainwater after the compound layer formed.
3, It can replace slope materials such as concrete, bitumen, and jackstone.

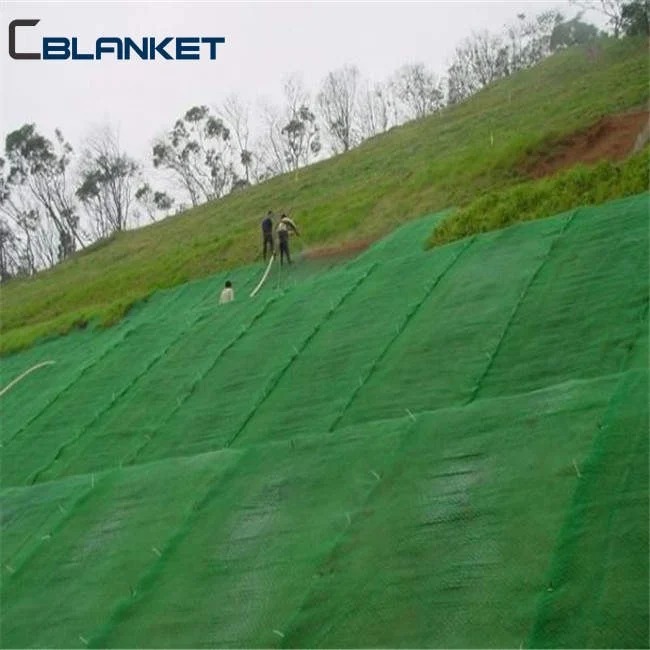

Geomat Application:
It mainly used in the slope protection of highway, railway, dyke, hillside and so on.
1) It can prevent the embankment from the wind and rain erosion before the turf formed.
2 )It can firmly maintain grass seeds to be evenly distributed on the slope and keep them from rain and lossing.
3 )Black geomat can absorb a lot of heat, increase the surface humidity, promote seed germination, and extend the plant's growth period.
4 )Used in kinds of slopes' protection, such as roads, railways, rivers, dams.
5 )After laying on the sand land surface, the geomat can prevent the movement of sand dunes, greatly improve the surface's roughness, increase the surface sediments, change physiochemical properties of the surface, and improve the local ecological environment
It mainly used in the slope protection of highway, railway, dyke, hillside and so on.
1) It can prevent the embankment from the wind and rain erosion before the turf formed.
2 )It can firmly maintain grass seeds to be evenly distributed on the slope and keep them from rain and lossing.
3 )Black geomat can absorb a lot of heat, increase the surface humidity, promote seed germination, and extend the plant's growth period.
4 )Used in kinds of slopes' protection, such as roads, railways, rivers, dams.
5 )After laying on the sand land surface, the geomat can prevent the movement of sand dunes, greatly improve the surface's roughness, increase the surface sediments, change physiochemical properties of the surface, and improve the local ecological environment

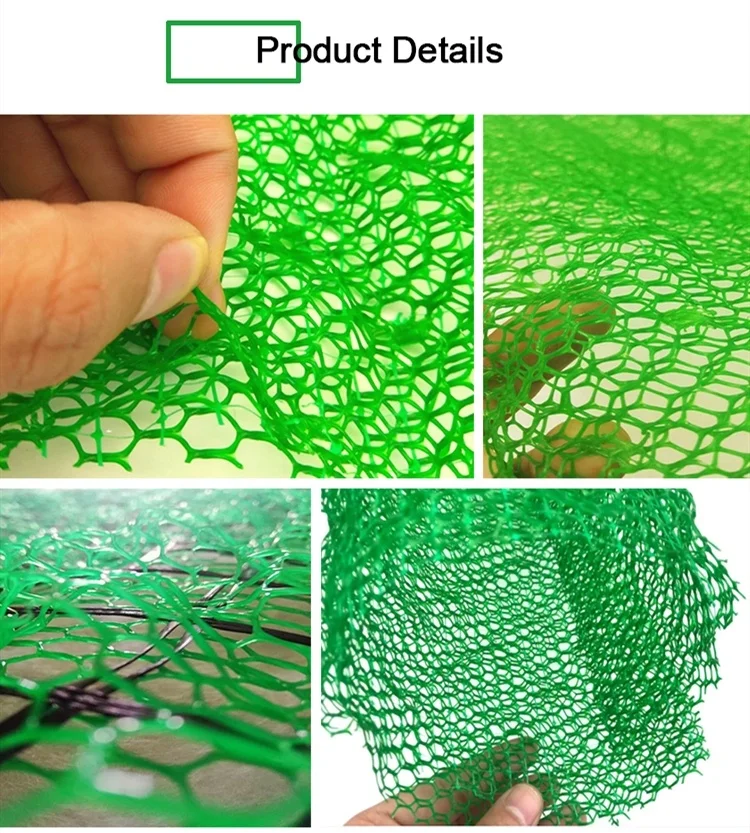

Details Images

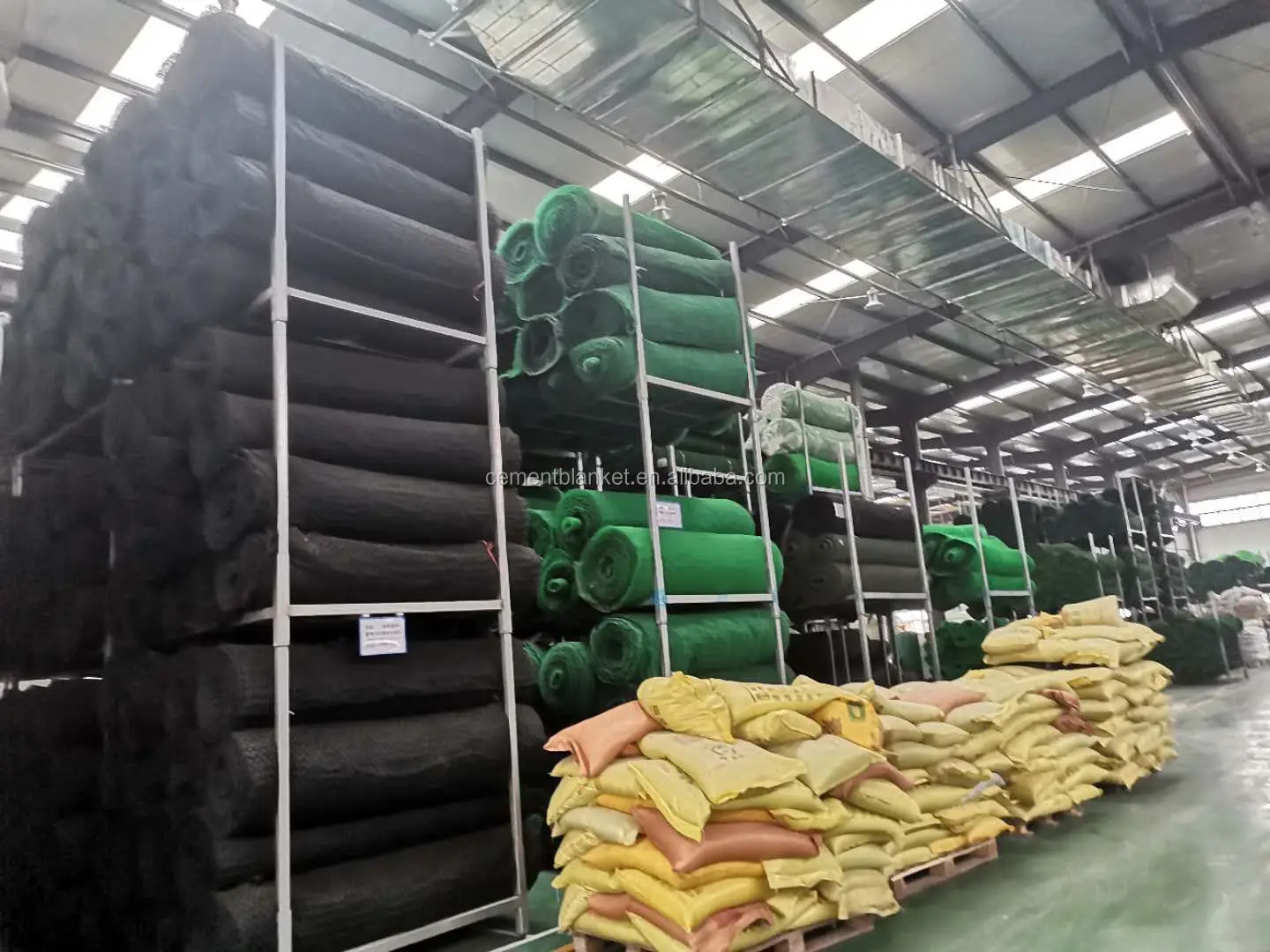

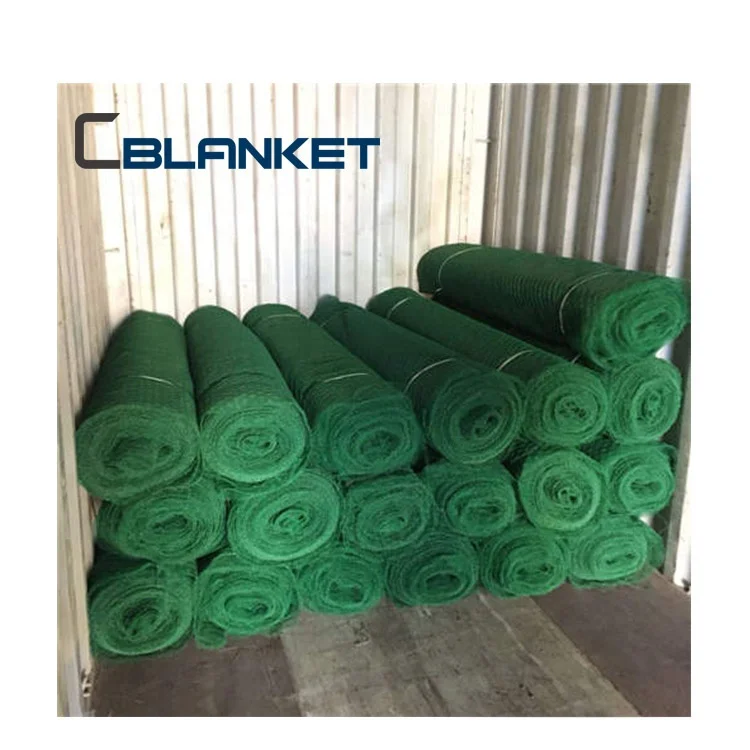

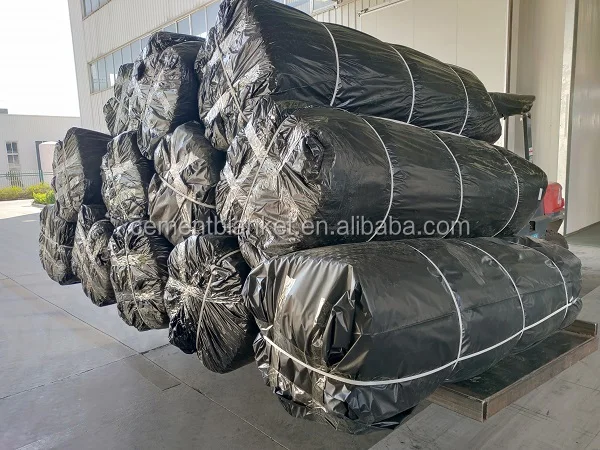

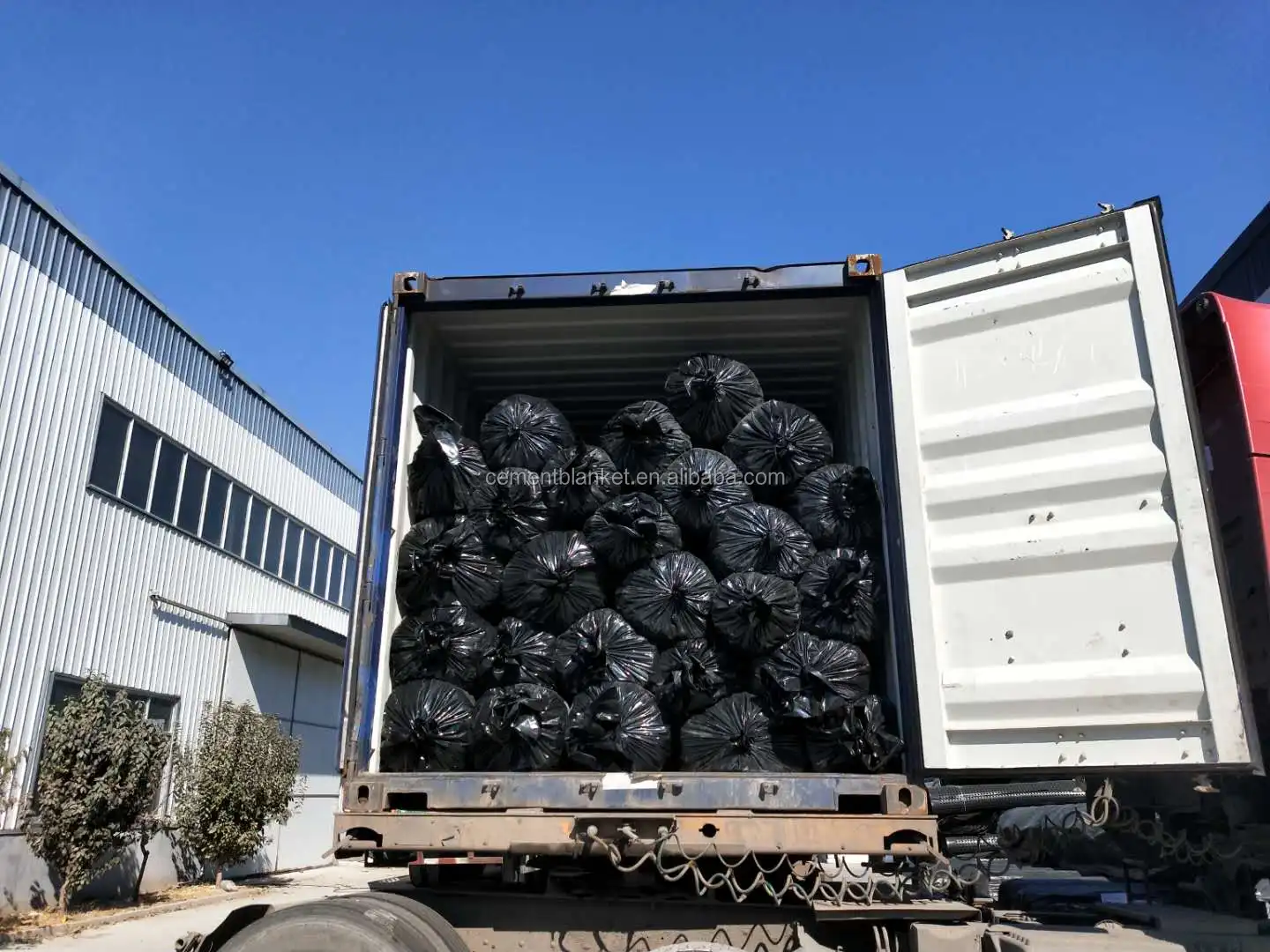

Packing & Delivery
Installation Instructions
1. Prepare the surface by removing large objects, filling any voids to obtain a smooth surface.
2. Fix the geomat at the crest of the slope by means of “U” shaped pins (supplied separately).
3. In some cases an anchor trench may be required for extra stability. Anchor trench dimensions are typically 400mm wide by 300mm deep.
4. Unroll the geomat downward and cut to desired length. Adjacent strips may be butt joined or overlapped by approximately 100mm.
5. Fix the geomat with “U” shaped pins at approximately 1.0m centres and at the joints.
6. Place the bottom end of each strip in a similar anchor trench (if required) and bury with soil.
7. Brush with topsoil until geomat if filled.
8. Spread with grass seed at a rate of 50gm/sqm.
2. Fix the geomat at the crest of the slope by means of “U” shaped pins (supplied separately).
3. In some cases an anchor trench may be required for extra stability. Anchor trench dimensions are typically 400mm wide by 300mm deep.
4. Unroll the geomat downward and cut to desired length. Adjacent strips may be butt joined or overlapped by approximately 100mm.
5. Fix the geomat with “U” shaped pins at approximately 1.0m centres and at the joints.
6. Place the bottom end of each strip in a similar anchor trench (if required) and bury with soil.
7. Brush with topsoil until geomat if filled.
8. Spread with grass seed at a rate of 50gm/sqm.
