Product Overview
Description

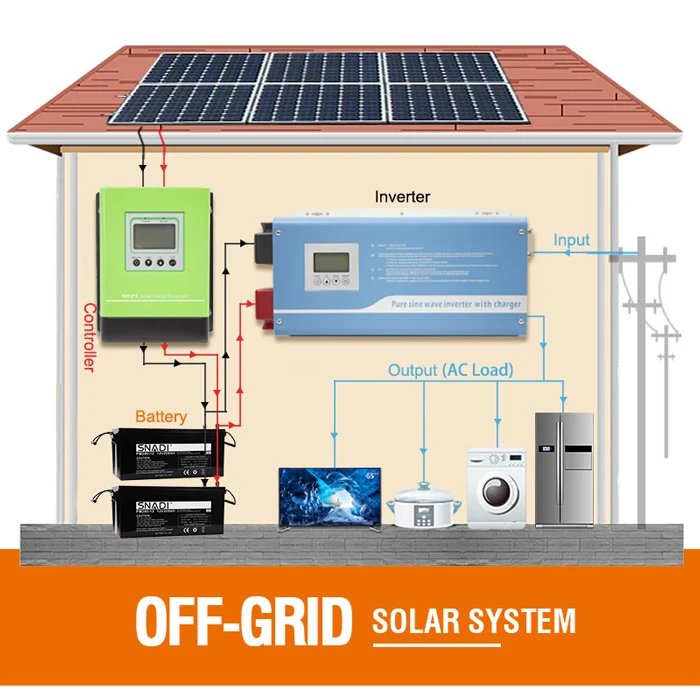

3KW Off Grid Home Energy System
Product Information

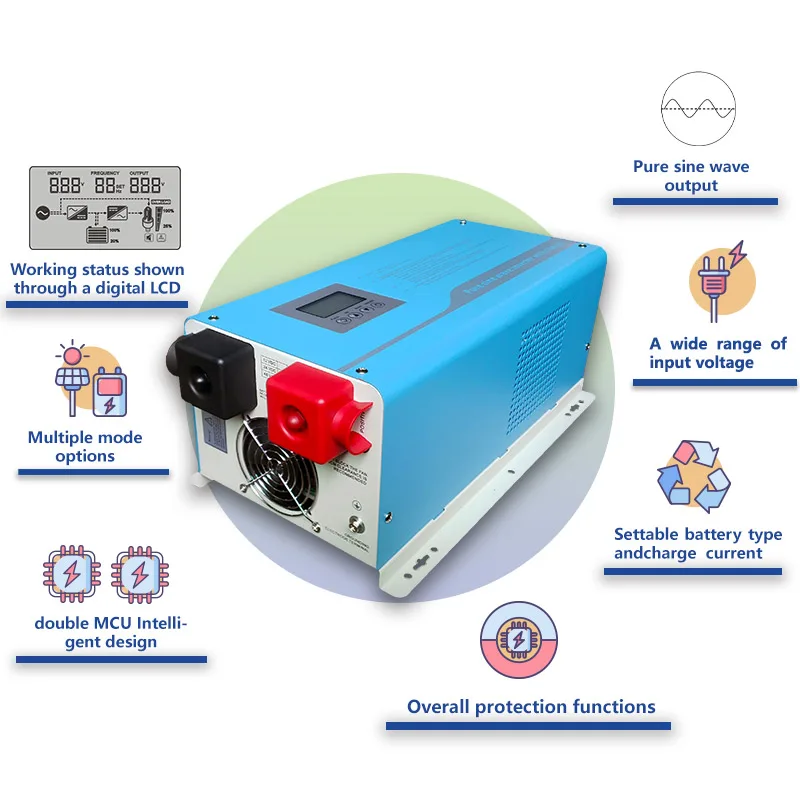

With the double MCUs, the product provides different charge voltage and charge current to realize chage management for batteries of diffent types.
Its mains supply preferred mode, energy-saving mode and battery preferred mode are all settable, thus making it easy to meet the different application needs of users.
It's widely applied for families, schools, streets, frontier defense, pasturing areas, industrial equipment, satellite communication equipment, military vehicle-borne equipment, ambulances, police cars, ships, etc..
Manufacturing Technique
3KW off grid solar system Equipment list | ||||||
Item | Module | Description | Quantity | |||
1 | Poly/Mono Solar Panel | Poly/Mono 300w solar panel | 6pcs | |||
2 | Solar Charge Controller | MPPT 12/24/48V 60A | 1set | |||
3 | Gel Solar Battery with Battery cable | 12V 200Ah | 4pcs | |||
4 | Off Grid Inverter | Output Power: 3kW Battery voltage:48VOutput voltage: Single Phase 110V/220V 50/60Hz | 1pc | |||
5 | PV Combiner Box (Switches,Breaker,SPD) | 4 inputs 1 output | 1pc | |||
6 | PV Cables | PV 4mm² | 100m | |||
7 | Mounting System (including all parts) | Roof/Ground whole set for 6pcs solar module | 1set | |||
8 | MC4 connector | Rate Current:30A Rate Voltage: 1000DVC | 4pairs | |||
System Details

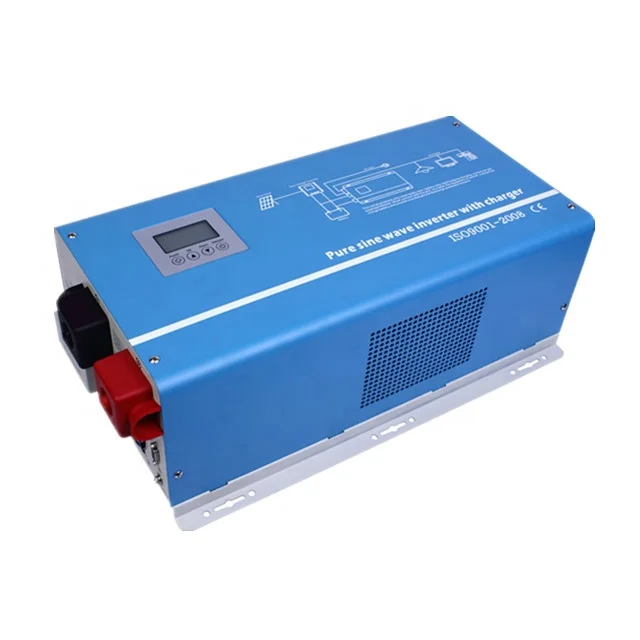

3KW OFF GRID INVERTER
3KW single phase solar inverter, DC input:48VDC AC Output :220VAC 50HZ, Single Phase
AC input :220VAC 50HZ ,AC charge current 30A
Size:556*308*179MM Net weight:30kg Protections: against short-circuit, overload, battery reverseoutput short-circuit , low-voltage, and over-voltage protection, etc.
Bypass function:system will use solar power priority, and then battery ,when battery run out , inverter will automatic switch to grid power for home use
Bypass function:system will use solar power priority, and then battery ,when battery run out , inverter will automatic switch to grid power for home use

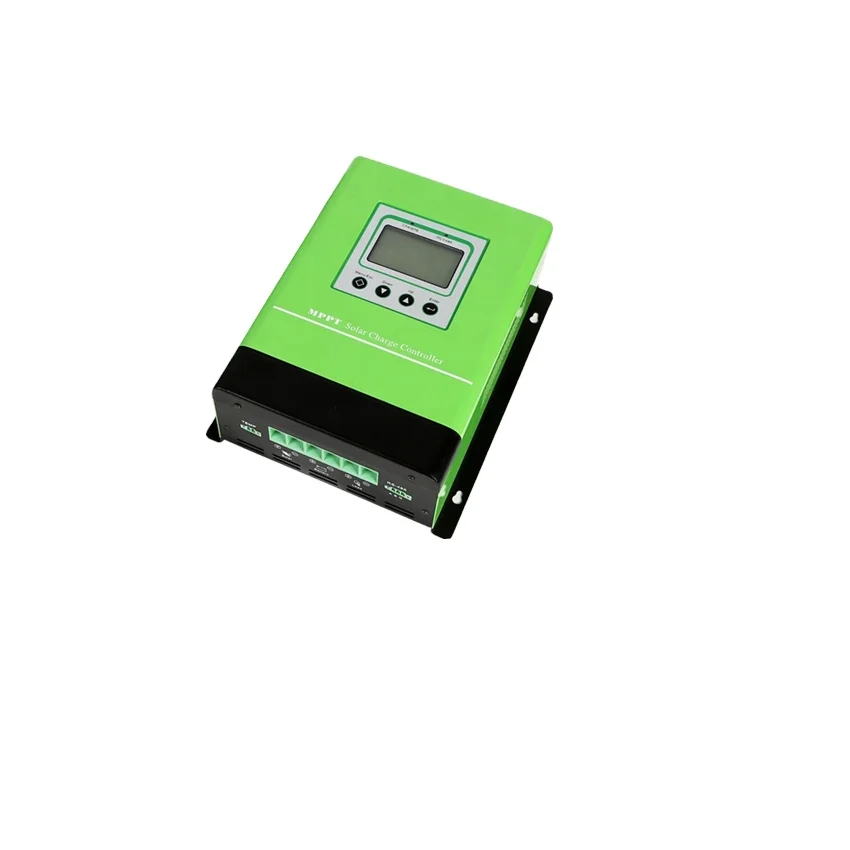

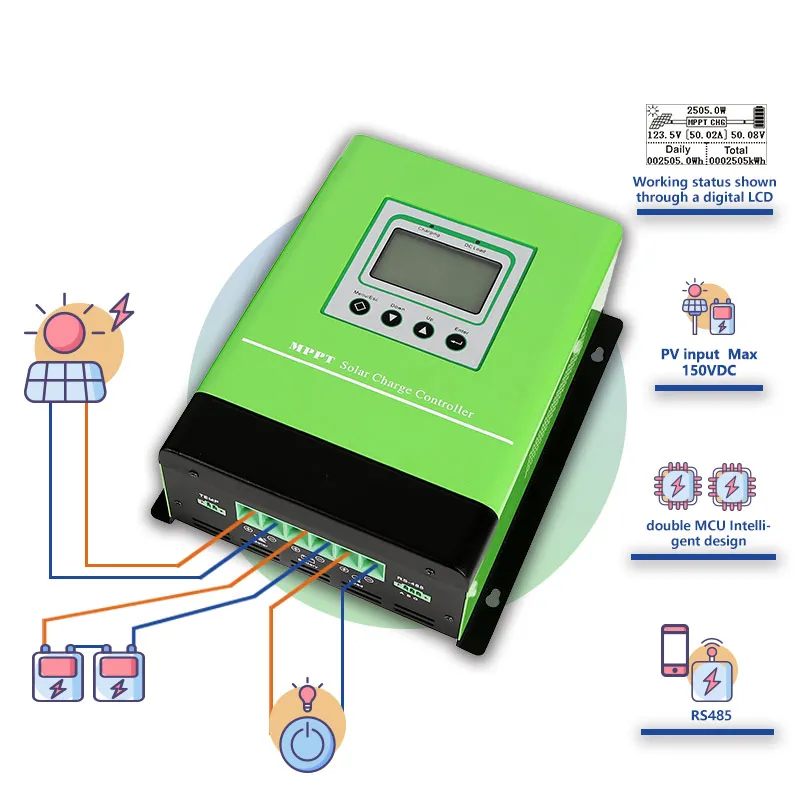

Rated Voltage :12/24/48VDC
Rated Charge Current : 60A
MAX PV Power 3200wp
PWM DC Voltage Rang : 65-150VDC
System Type : Automatiic Identification
Static Power : <2W
PV Module Efficiency : >96.5%
PV Module Efficiency : >96.5%

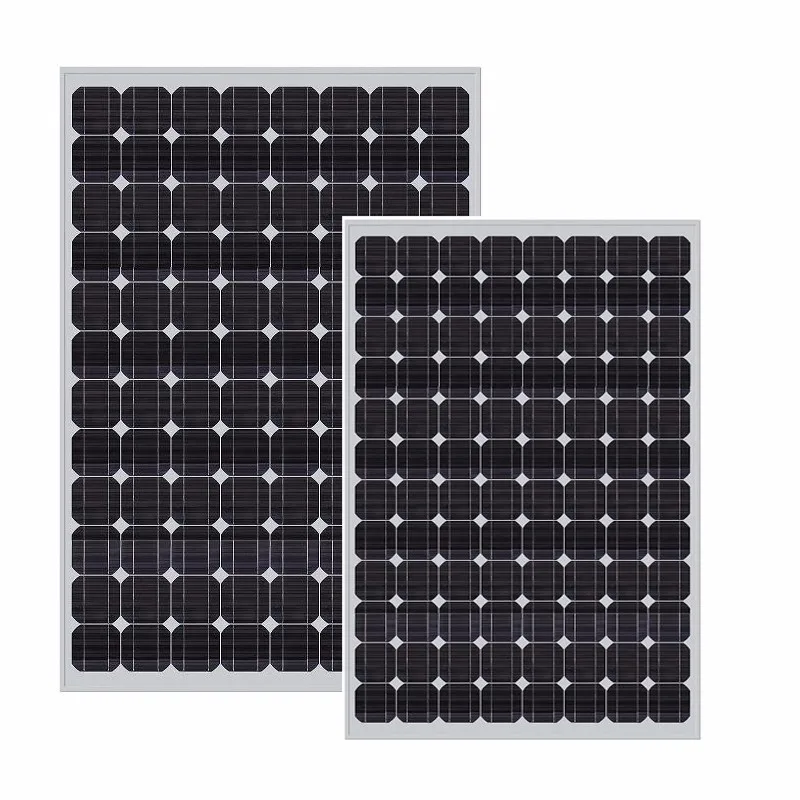

*STC Irradiance 1000W/m2,AM1.5 spectrum,modeul temperature 25℃ Model tpye:GP-300M-72 Peak power (Pmax):300W
Cell Effficiency:21.97% Maximum power voltage(Vmp):38.3V Maximum power current (Imp):9.00A Open circuit voltage(Voc):45.9V Short circuit current(Isc):9.39A Power Tolerance:±3% Maximum system voltage:1000V Series fuse rating (A):12A Dimensions:1956*990*40MM Weight:20.3kg Solar cells:72 cells in series (6*12)

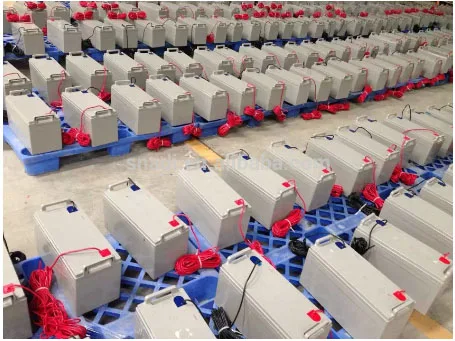

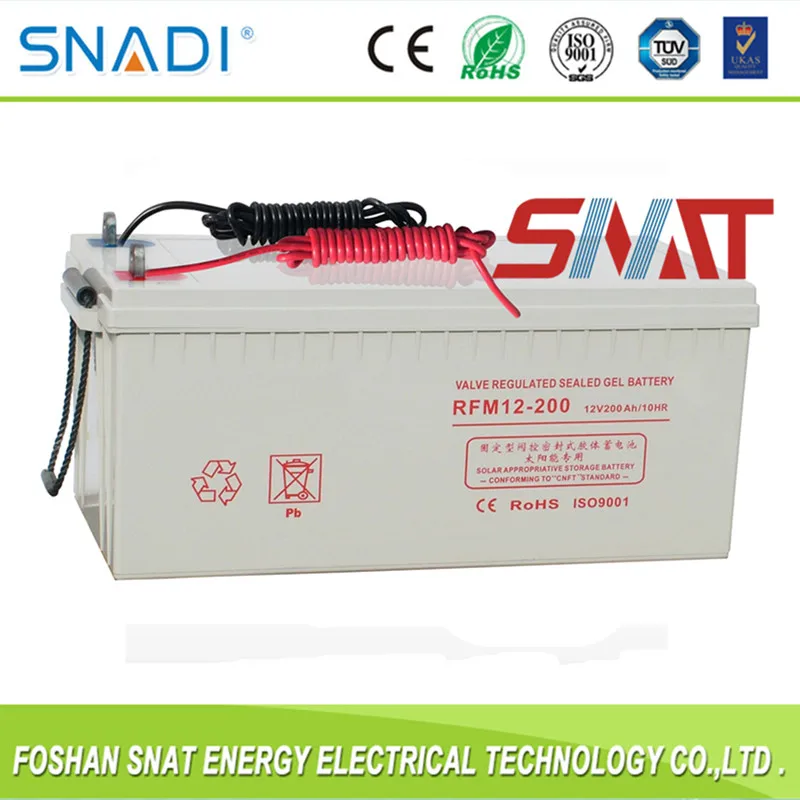

Nominal Voltage (V) 12
Designed Floating Life (20oC) 10+ YearsNominal Capacity :200AH
Demensions:522*239*218mm
Approx. Weight :58KG
Maintenance Type:Free

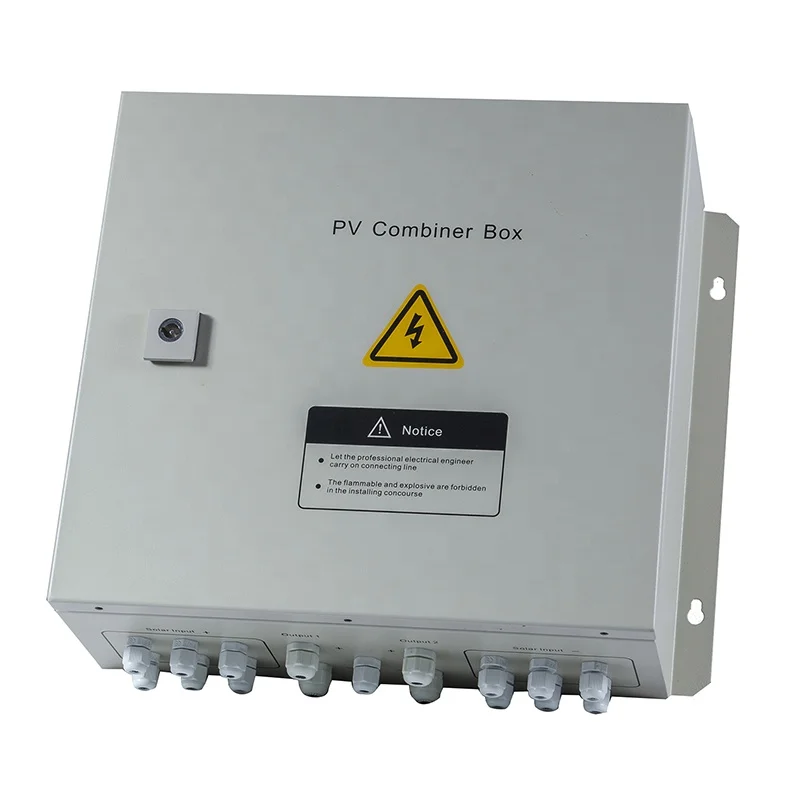

Combiner Box
Input : 4 arrays Output :1 Arrays
Size :365*409*150mm
IP65
Reduce wiring connected and Lightning Protect
PV CABLES
4 mm2: PVC insulated, single core, Red Meters 50
4 mm2: PVC insulated, single core, Black Meters 50
10 mm2: PVC insulated, single core, Red Meters 10
10 mm2: PVC insulated, single core, Red Meters 10
4 mm2: PVC insulated, single core, Black Meters 50
10 mm2: PVC insulated, single core, Red Meters 10
10 mm2: PVC insulated, single core, Red Meters 10
PV SUPPORT BRACKET
Installation site : tile roor ( optional)
Material:Al6005-T5
Extruded Aluminum Section
High Class Anodized Aluminum
one set brackets can mount 4pcs solar panels
Wind Load :up to 130mph (60m/s)
Snow Load : up to 30psf (1.4kN/m2)
Material:Al6005-T5
Extruded Aluminum Section
High Class Anodized Aluminum
one set brackets can mount 4pcs solar panels
Wind Load :up to 130mph (60m/s)
Snow Load : up to 30psf (1.4kN/m2)

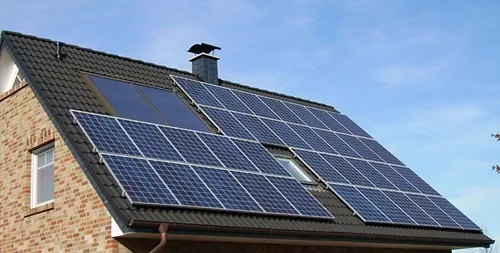

Case Show
Certifications
Hot Products
Exhibition
FAQ
Q1: MOQ
A: MOQ from our company is required 1 unit
Q2: Are you manufacturer or trading company?
A: We are professional manufacturer since 2004
Q3:I need this product and wanna a system for family/industrial/commerical using, can you help me?
A: Yes, we have a professional technology team average 10 years' experience, they can design solar power system in accordance with
customers' special requirements.
Q4: How long is your delivery time
A: Within 15 days
Q5:How about your after-sales service?
A:Our quality warranty for 1-2 years; any parts will be shipped for free during warranty period.
A: MOQ from our company is required 1 unit
Q2: Are you manufacturer or trading company?
A: We are professional manufacturer since 2004
Q3:I need this product and wanna a system for family/industrial/commerical using, can you help me?
A: Yes, we have a professional technology team average 10 years' experience, they can design solar power system in accordance with
customers' special requirements.
Q4: How long is your delivery time
A: Within 15 days
Q5:How about your after-sales service?
A:Our quality warranty for 1-2 years; any parts will be shipped for free during warranty period.
