600 кг/ч Высококачественная дробилка ПЭТ, ПП, ПЭНД, ПЭНД, ПЭВД, ПЭВД, дробилка для хлопьев
- Category: Plastic Crushing Machines >>>
- Supplier: Baoding,Haorui,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
PET PP PE HDPE LDPE recycling machine crusher or shredder
Our plastic crusher can crush more than 10 kinds of plastic material: such as : PET bottle, PE PP film, plastic bag,
blue drum, argriculture film, hard PP barrels, HDPE ,LDPE , and ABS plastic material

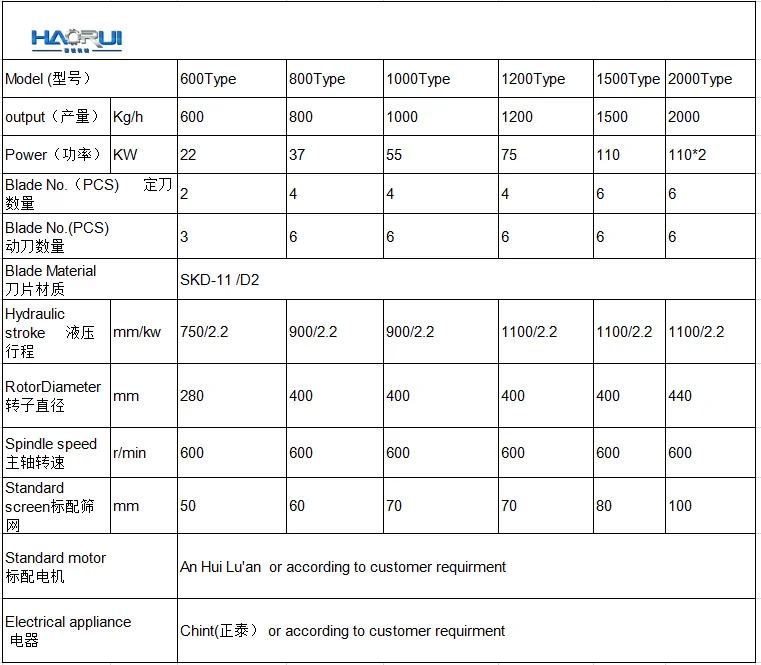

Specification
item | value |
Place of Origin | China |
Hebei | |
Condition | New |
Plastic Type | PVC, PET, ABS, PP/PE, PP, PC |
Machine Type | Plastic Crusher |
Max.Production Capacity (kg/h) | 5000 |
Production Capacity (kg/h) | 500kg/h - 5000kg/h |
Brand Name | HAORUI |
Use | Bottle Crusher |
Voltage | 380V |
Dimension(L*W*H) | 700*500*1220mm/ 950*750*1500mm |
Power (kW) | 75 |
Weight (T) | 2 |
Certification | CE ISO |
Warranty | 1 Year |
Applicable Industries | Manufacturing Plant |
Key Selling Points | Automatic |
After Warranty Service | Video technical support, Field maintenance and repair service |
Local Service Location | Viet Nam, Kazakhstan, Nigeria, Uzbekistan |
Showroom Location | Viet Nam, Kenya, Nigeria, Uzbekistan, Tajikistan |
Marketing Type | New Product 2020 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor |
product name | plastic crusher |
capacity | 500kg/h~5000kg/h |
type | 600 800 1000 1200 1500 |
plastic type | PET bottle |
solution | PET flakes |
automatic | yes |
Motor brand | customeried |
bearing | HRB,TR,ZWZ,NSK,SKF |
Motor power | 37kw~110kw |
Blades material | SKD-11/ D2 |

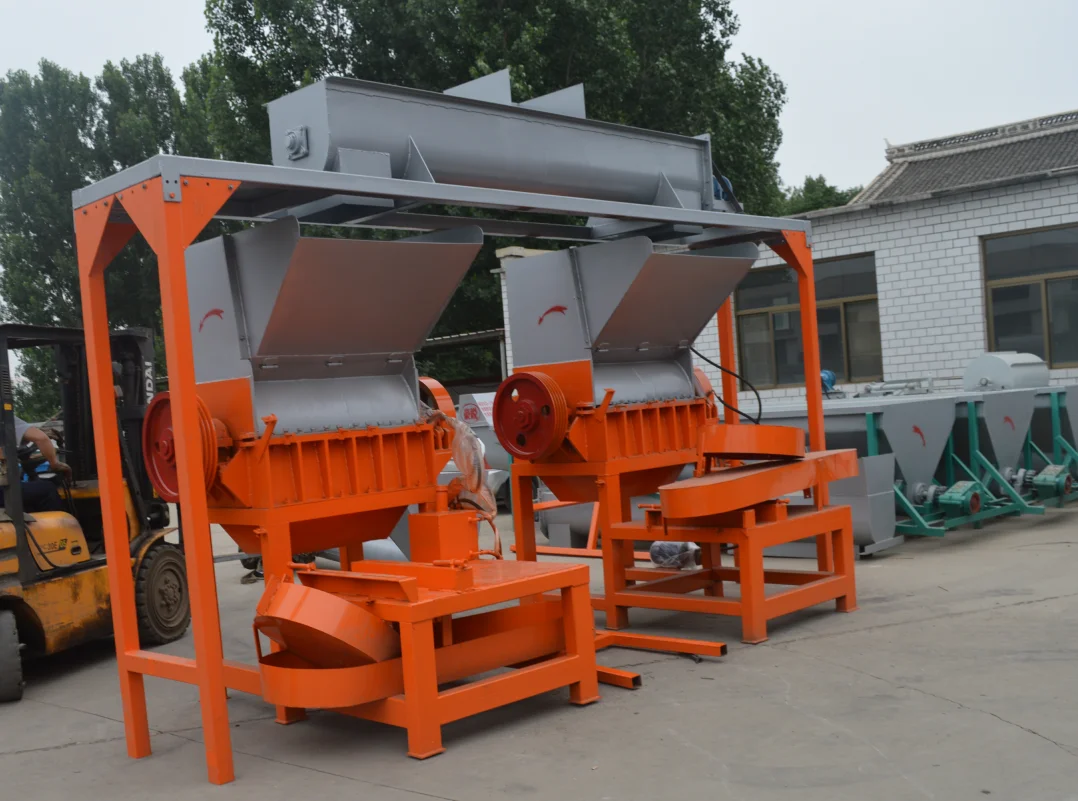

Inner Components crusher
800Type plastic crusher
Usage：Usage：crush plastic materials into flakes
1.Crush the plastic materials with water feeding to reduce wear
2.Motor power：55KW
3.The cover opening method：Driven by motor
4.The number of rotating blades：6 pcs
5.The number of fixed blades： 4pcs
6.The rotation speed of rotating blades：630RPM
7.The cover opening motor：1.5KW
8. Screw strength：12.9
9. Bearing：HRB bearing
1.Crush the plastic materials with water feeding to reduce wear
2.Motor power：55KW
3.The cover opening method：Driven by motor
4.The number of rotating blades：6 pcs
5.The number of fixed blades： 4pcs
6.The rotation speed of rotating blades：630RPM
7.The cover opening motor：1.5KW
8. Screw strength：12.9
9. Bearing：HRB bearing

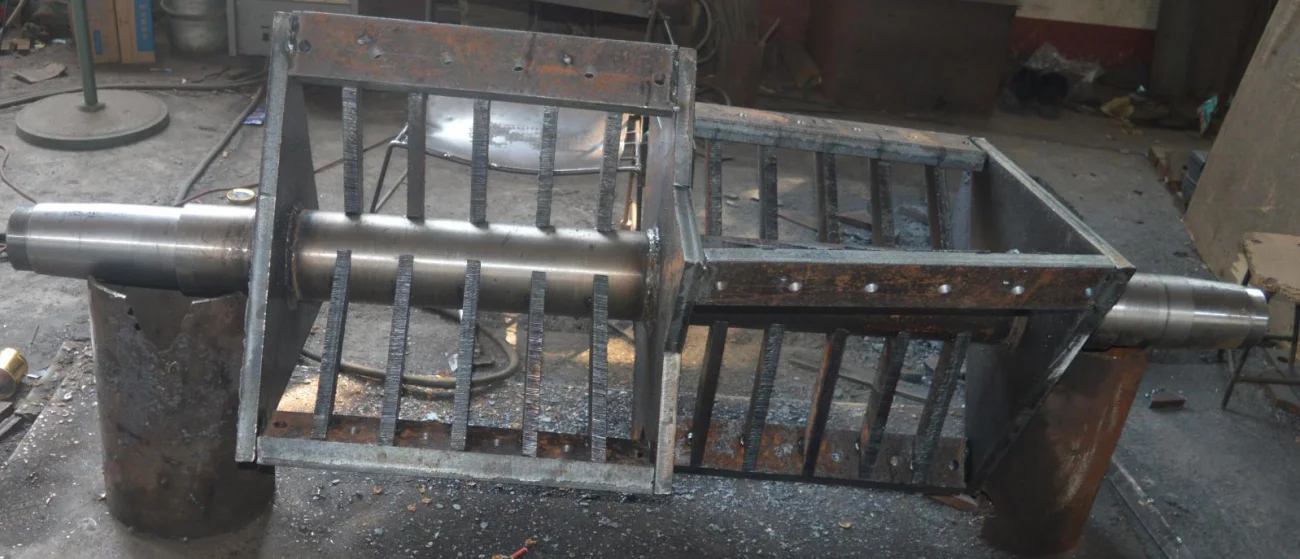

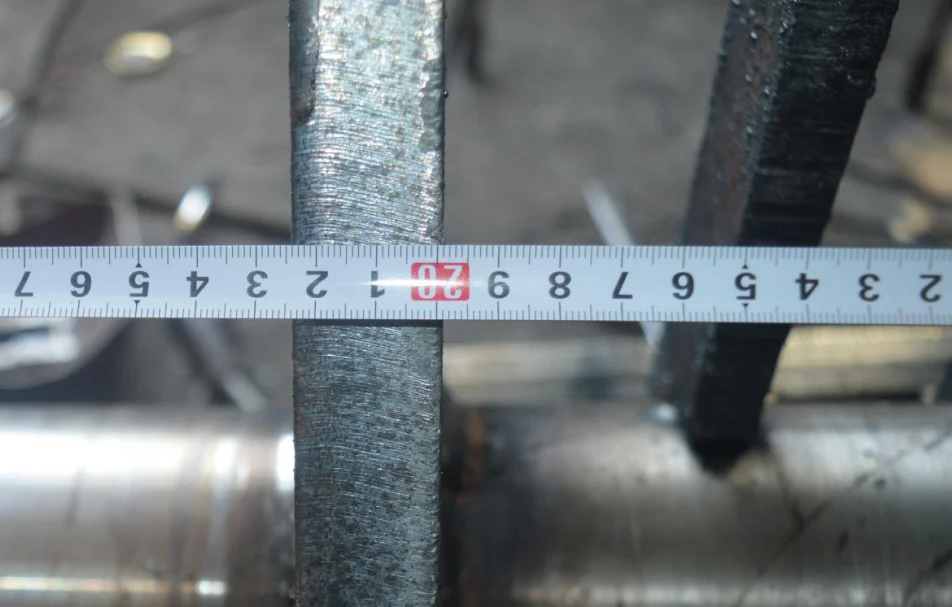

Shaft
thickness:2.5cm

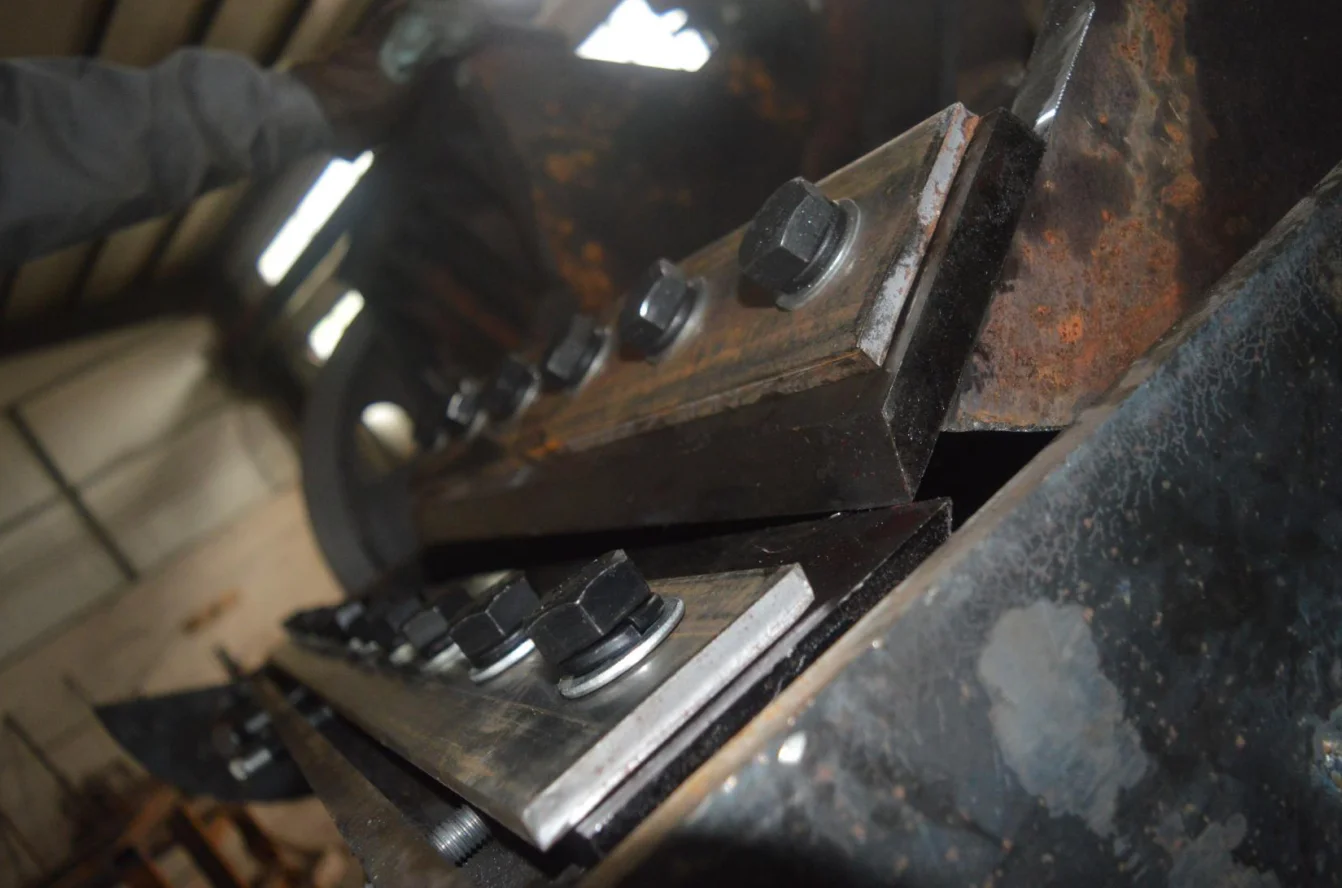

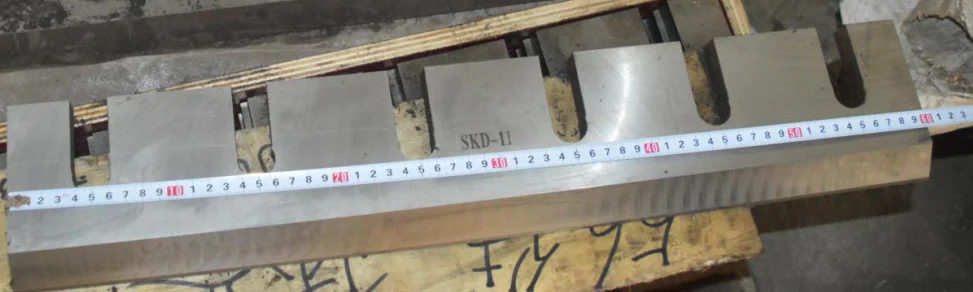

Crusher Knife
material:SKD-11 or D2
it can work 8 hours continually
the technician adjusting the knife after install it.
Related products

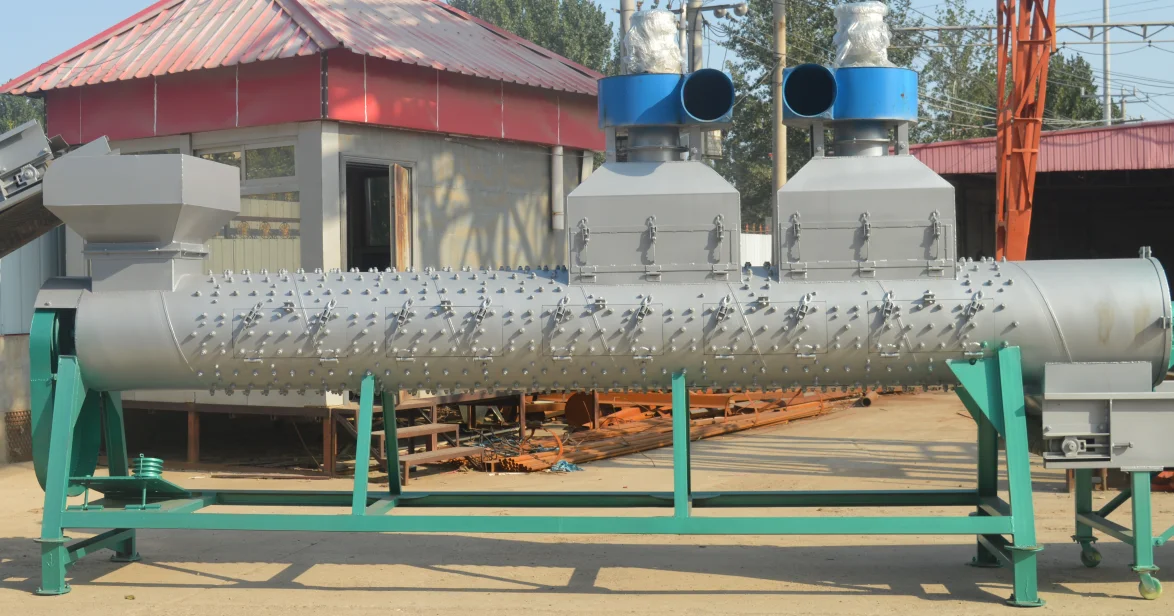

PET bottle label remover
Usage:Seperate the label of the PET bottles
1.Moto Power:18.5kw/6 grade
2.Knife material:alloy and cemented carbide
3.Suction label machine power:.4kw×2sets
4.Shaft length:5500mm
5.Tube Dia:630mm
6.Inner thickness:10mm
7.Label remover power:1.5kw
1.Moto Power:18.5kw/6 grade
2.Knife material:alloy and cemented carbide
3.Suction label machine power:.4kw×2sets
4.Shaft length:5500mm
5.Tube Dia:630mm
6.Inner thickness:10mm
7.Label remover power:1.5kw

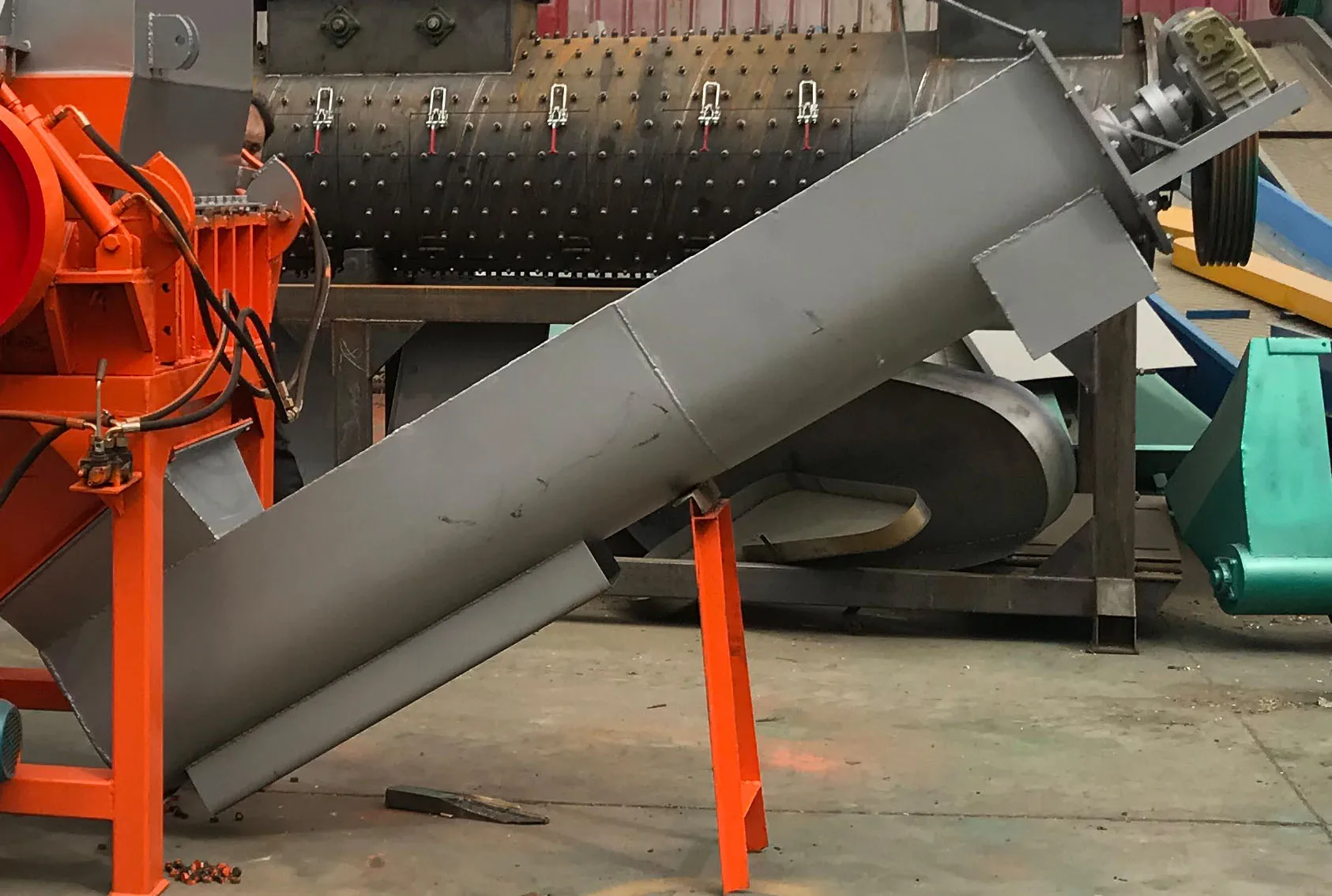

Screw
Usage:Screw type feeding
1.Dia of worm shaft:400mm
2.The effective length:4000mm
3.Motor power:3kw
4.Steel plate thickness:3mm
5.Thickness of screw:6mm
1.Dia of worm shaft:400mm
2.The effective length:4000mm
3.Motor power:3kw
4.Steel plate thickness:3mm
5.Thickness of screw:6mm

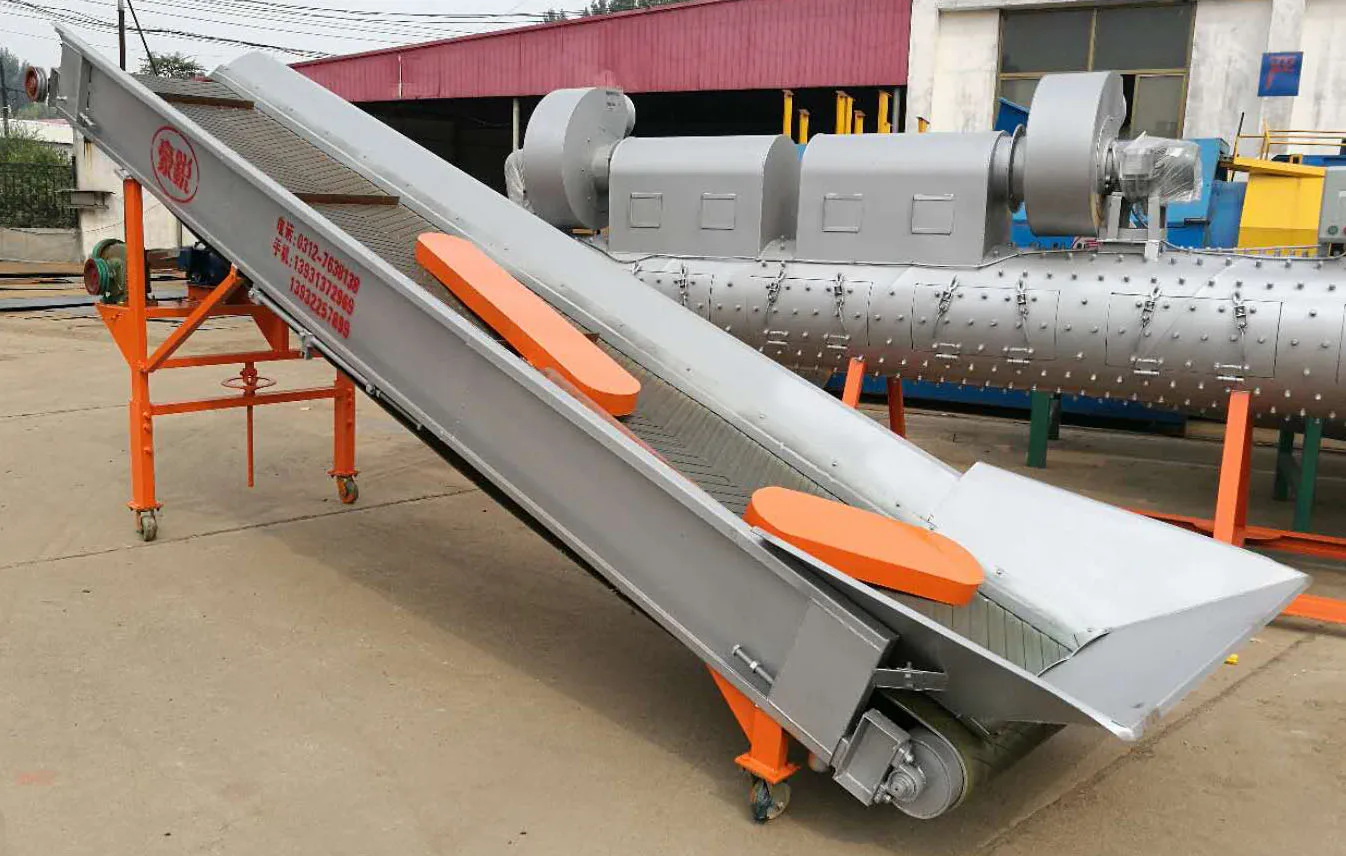

Conveyor belt
Usage:carry and transport plastic materials 1. all frames and supporters are made of carbon steel
2.Width of belt:800mm
3.Length of belt:7000mm
4.The material of belt:rubber
5.Motor power:3kw
6.The thickness of two side plate:3mm
7.Bearing:TR bearing
2.Width of belt:800mm
3.Length of belt:7000mm
4.The material of belt:rubber
5.Motor power:3kw
6.The thickness of two side plate:3mm
7.Bearing:TR bearing

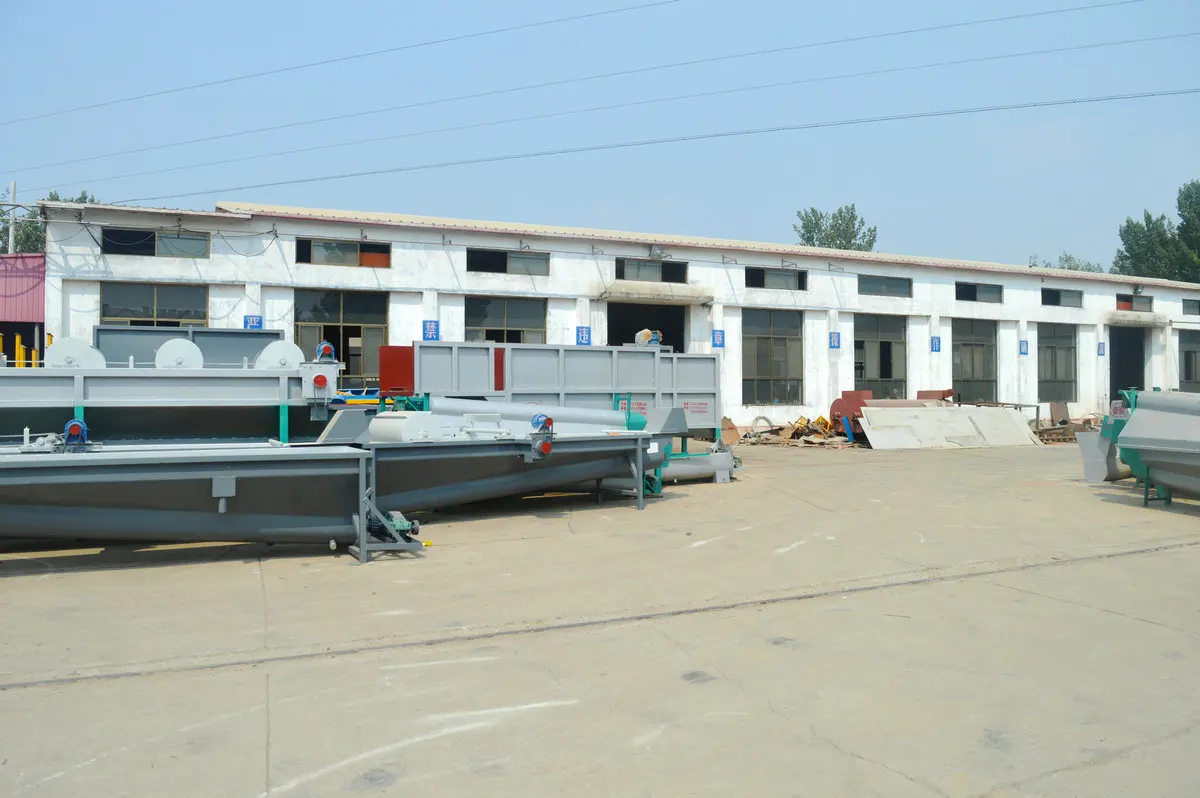

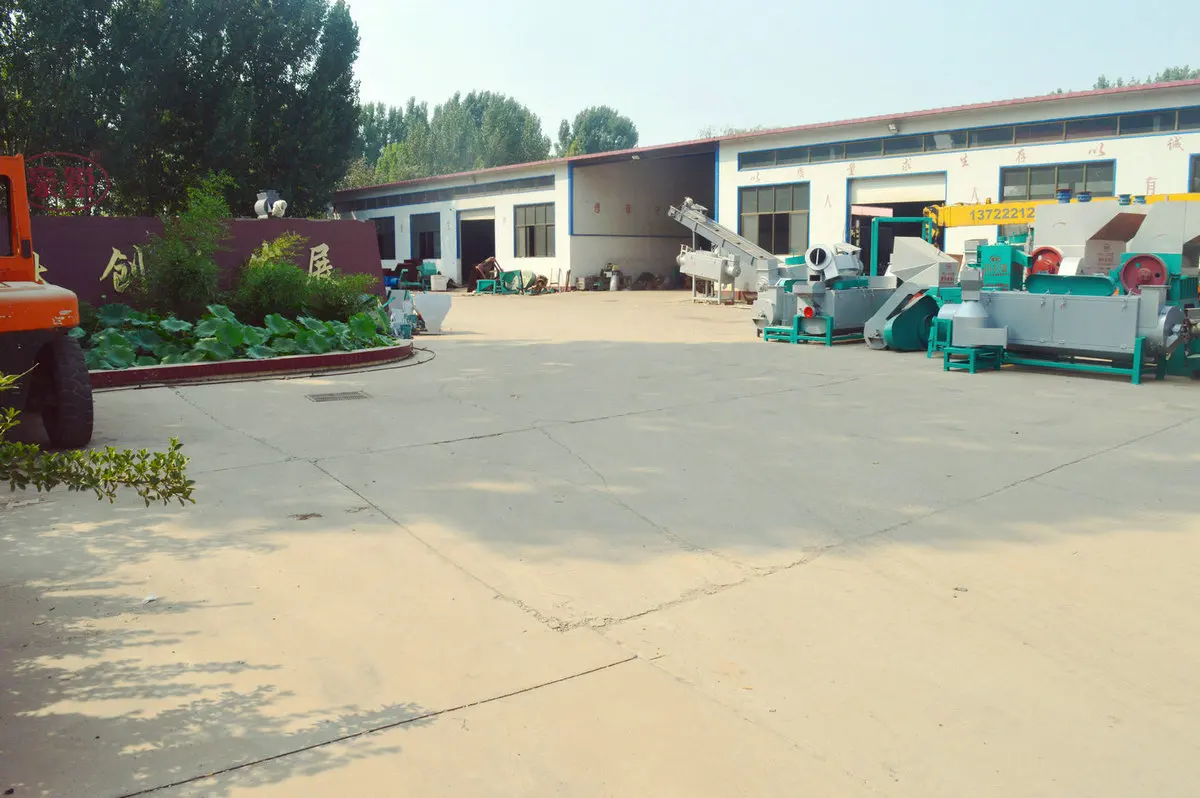

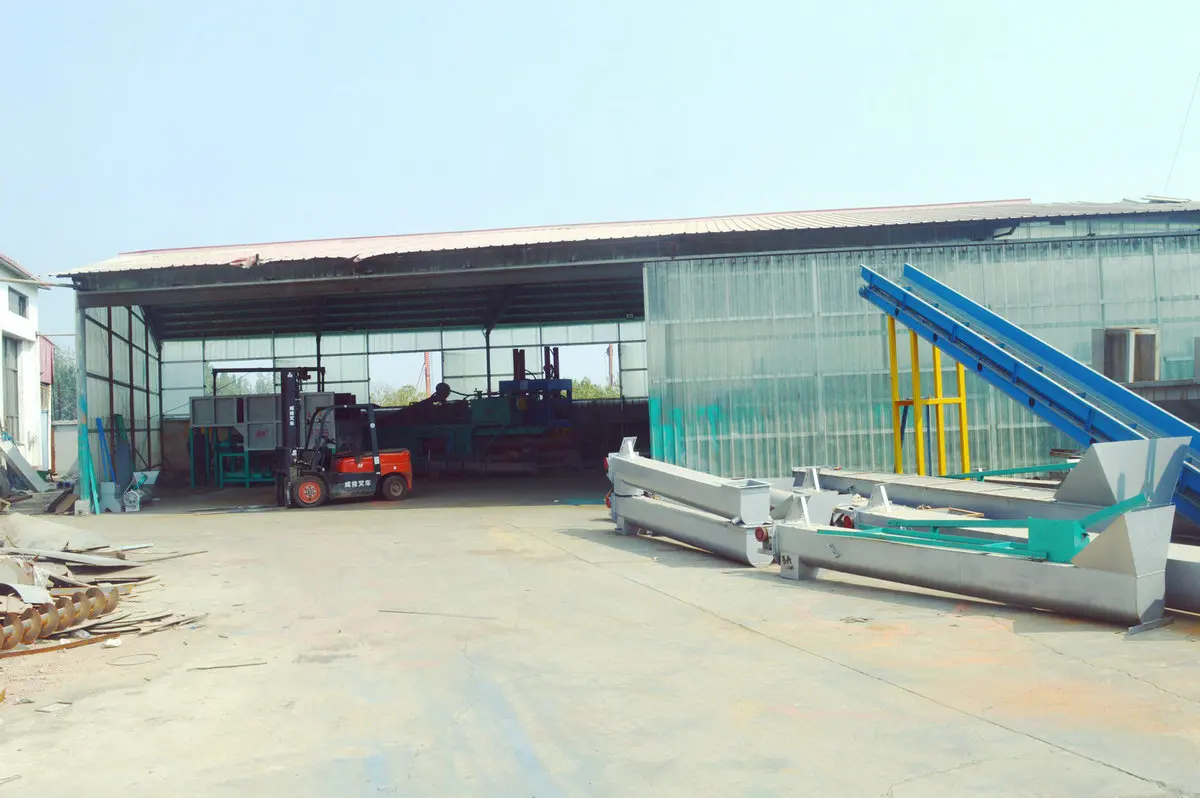

Company Profile
Baoding Haorui Machinery Manufacturing Co.,ltd was established in 1992,is a professional manufacturer and exporter that is concerned with the design,development and production of PET bottle crushing and washing machine, PP PE plastic bag / film crushing and washing machine, granulator.We are located in baimiao industry zone,baoding city,China. The convenient transportation which is near to Beijing airport and Tianjin port can guarantee the delivery time.
We have over 300 employees, an annual sales figure that exceeds USD10million dollars and are currently exporting30% of our production .

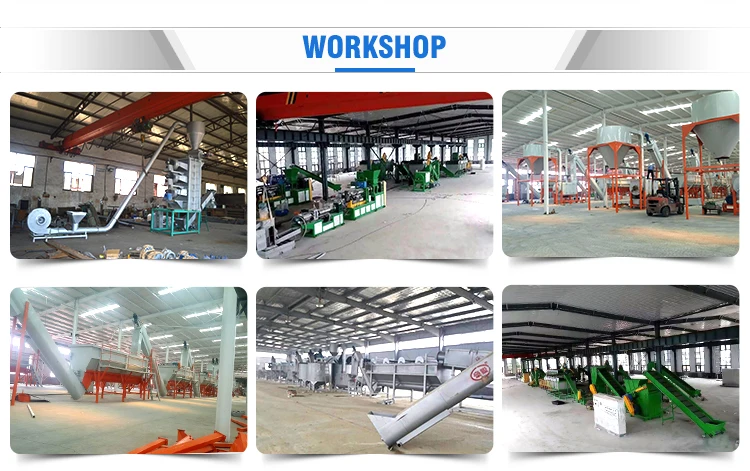

There are over 100 technicians in our workshops which covers 20000 square meters. Over 28 years of plastic recycling machines production experience ,enable us to be TOP3 plastic recycling machine factory in China. Our own R&D team make our machine design unique, OEM and ODM service are also welcome. Our main products include bale opener, label remover, plastic crusher, floating tank, screw feeder, high-speed friction washer , hot / cold washer, dewatering machine, pipe dryer and so on.
We insist on the principle of “quality is first” and inspect the machine after producing “ which make our market more popular in Domestic and we have gained a global sales network reaching Middle East,Africa,South America,South East, South Asia and so on
We have over 300 employees, an annual sales figure that exceeds USD10million dollars and are currently exporting30% of our production .
There are over 100 technicians in our workshops which covers 20000 square meters. Over 28 years of plastic recycling machines production experience ,enable us to be TOP3 plastic recycling machine factory in China. Our own R&D team make our machine design unique, OEM and ODM service are also welcome. Our main products include bale opener, label remover, plastic crusher, floating tank, screw feeder, high-speed friction washer , hot / cold washer, dewatering machine, pipe dryer and so on.
We insist on the principle of “quality is first” and inspect the machine after producing “ which make our market more popular in Domestic and we have gained a global sales network reaching Middle East,Africa,South America,South East, South Asia and so on
