Aluminium Handwheel for CNC machine
US $4.00-$5.00
all new OKK CNC Machine HP L01 2Z9 PL0 300 40 original NEMICON MPG Handwheel Manual Pulse Generator for FANUC system
- Category: Handwheel >>>
- Supplier: Zhongshan Bengao Refrigeration Equipment Technology Co. Ltd.
Share on (1600144036745):
Product Overview
Description
Product Description

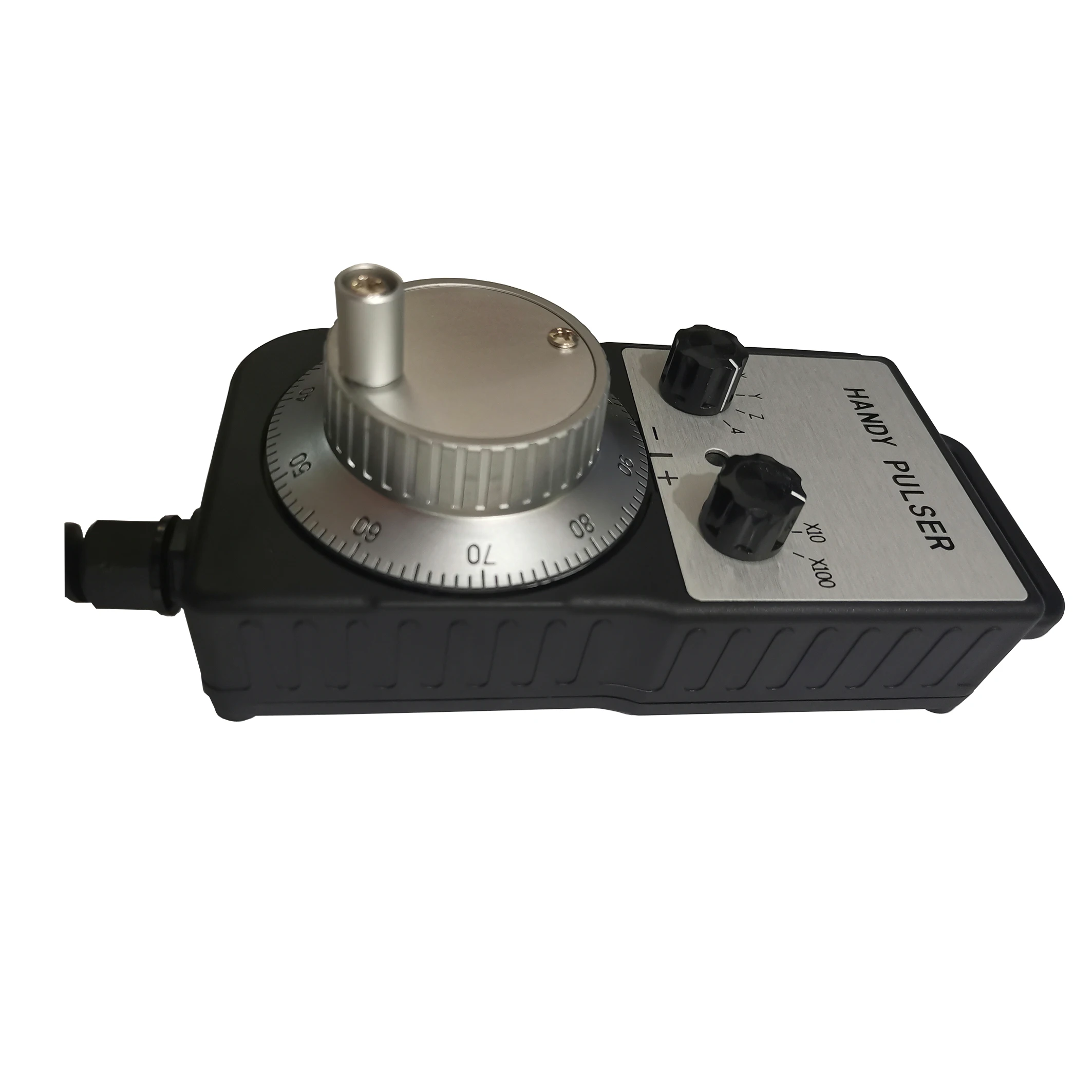

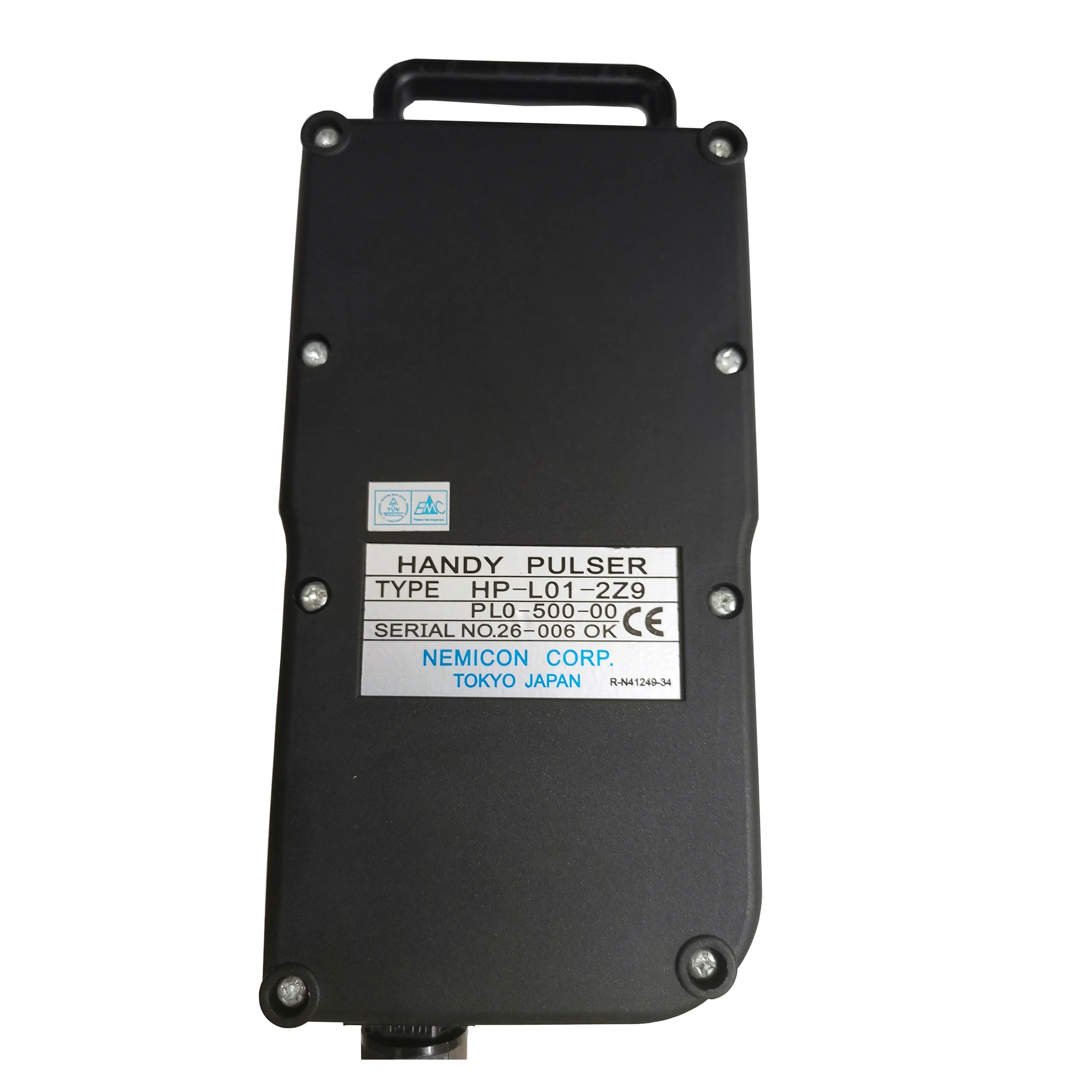

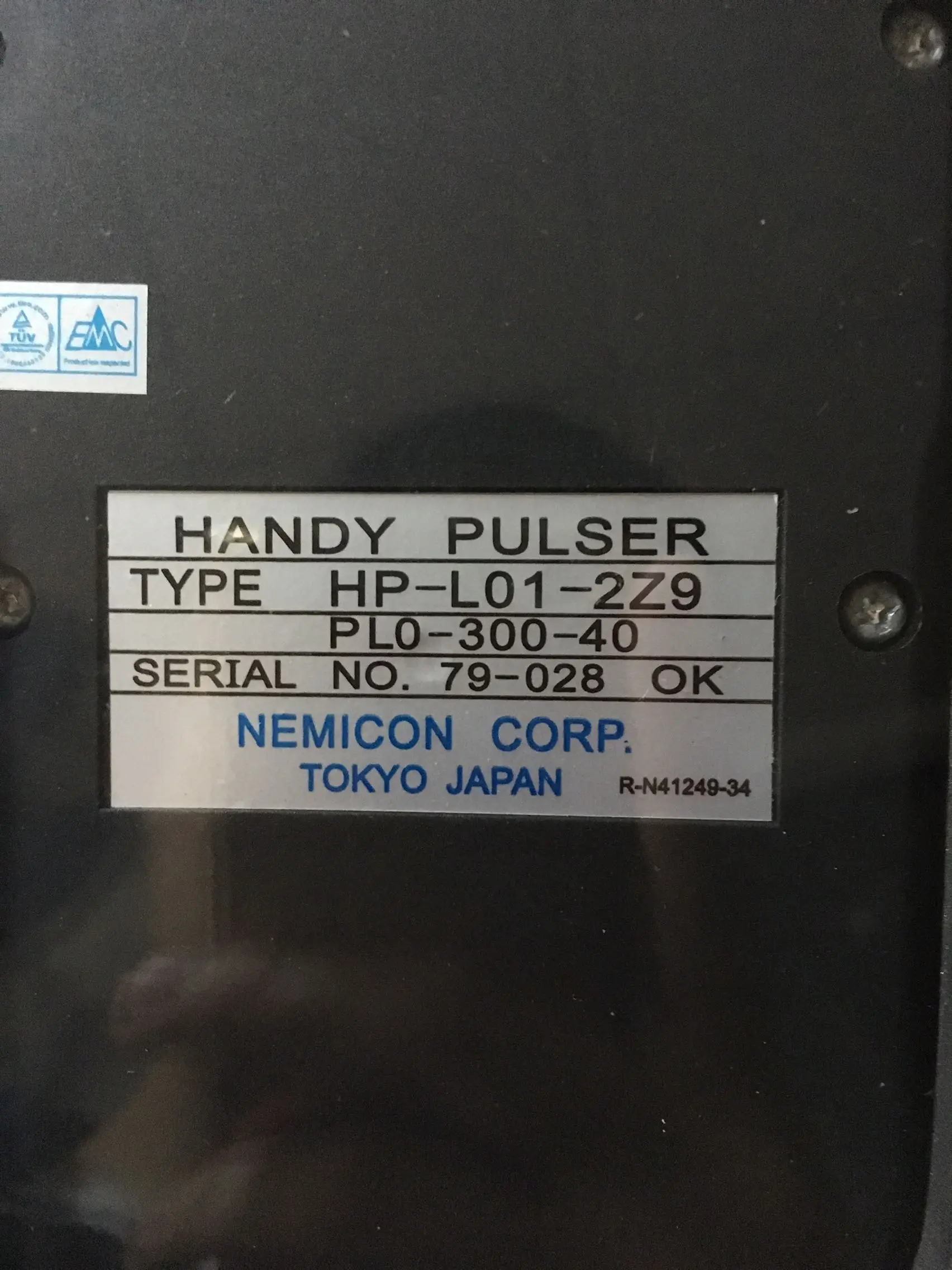

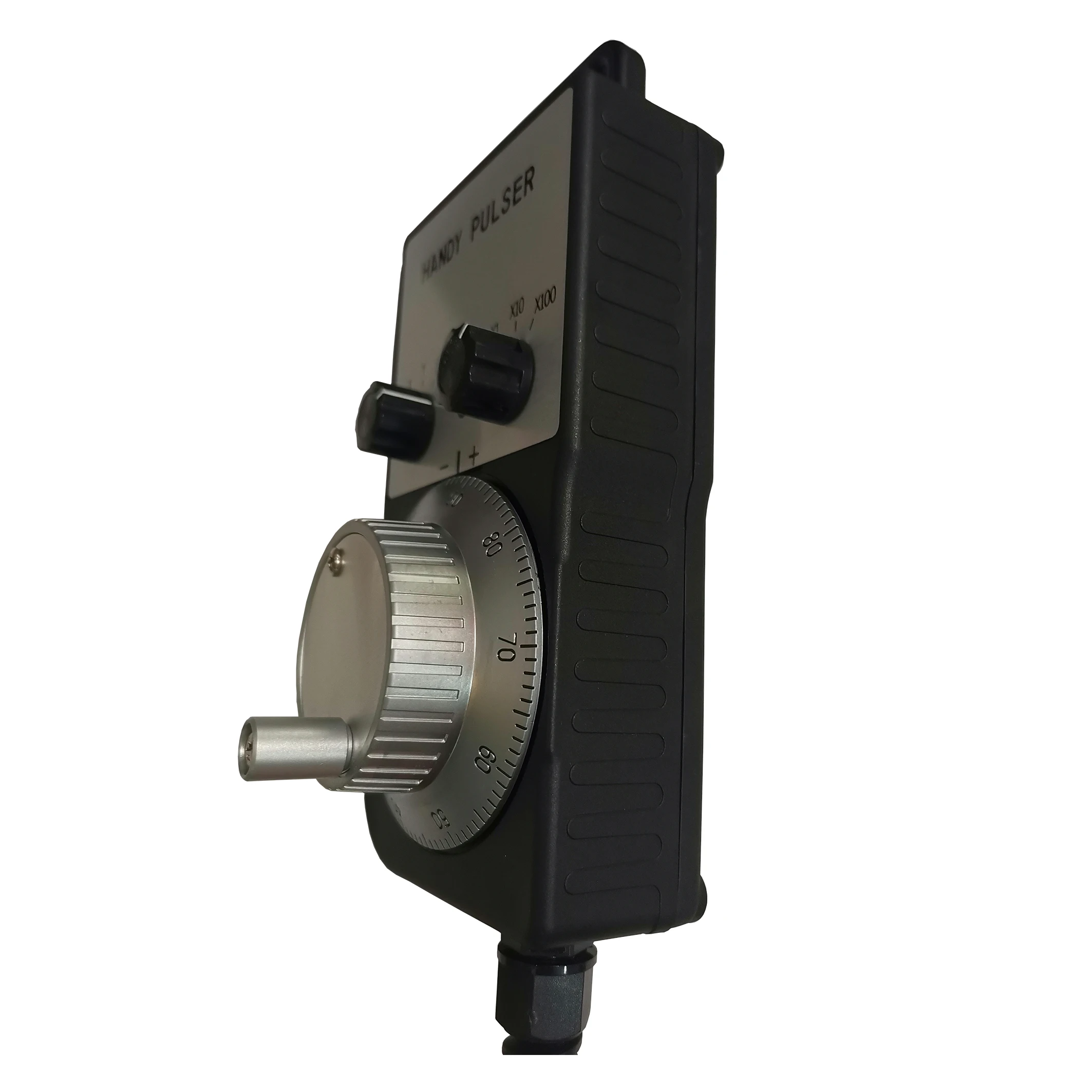

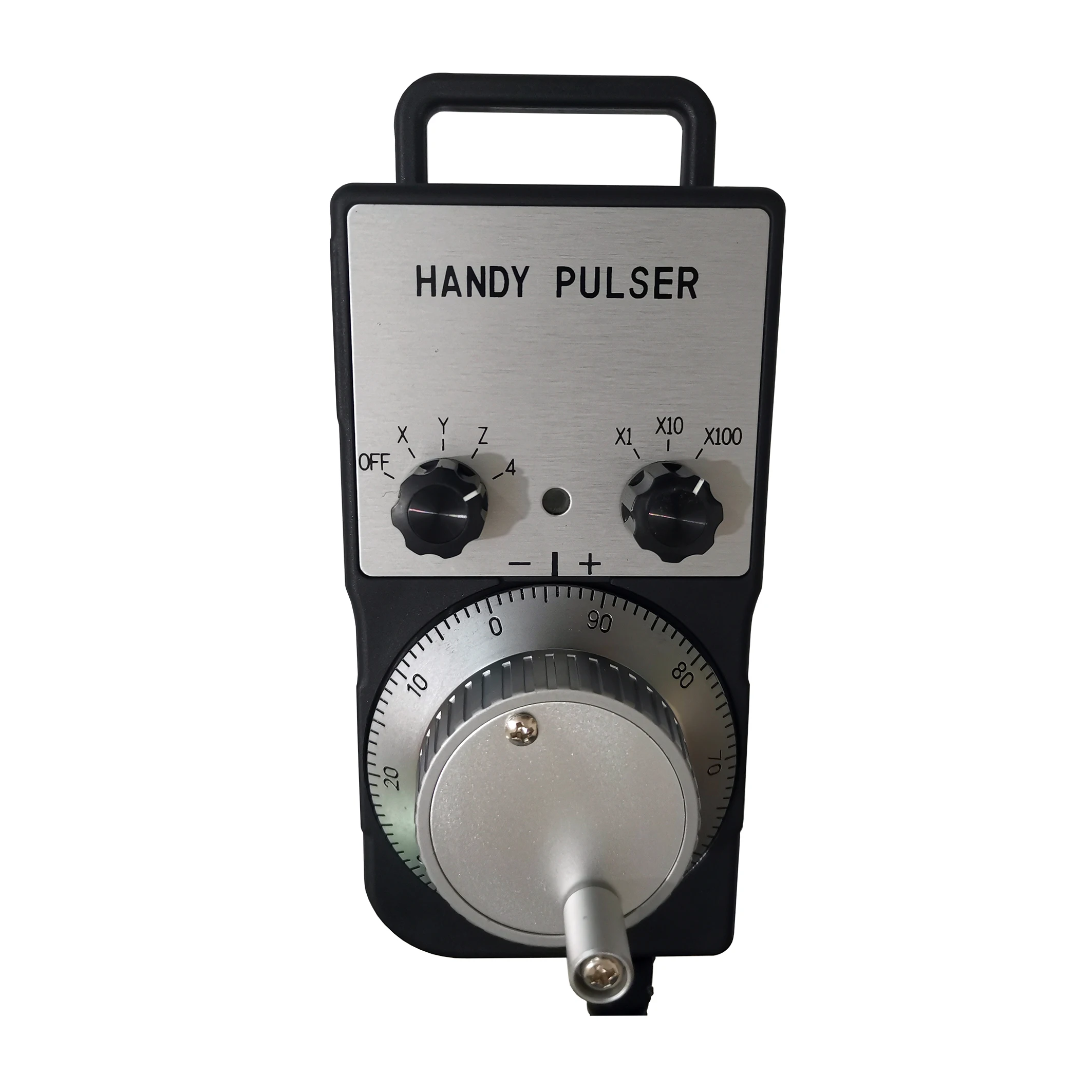

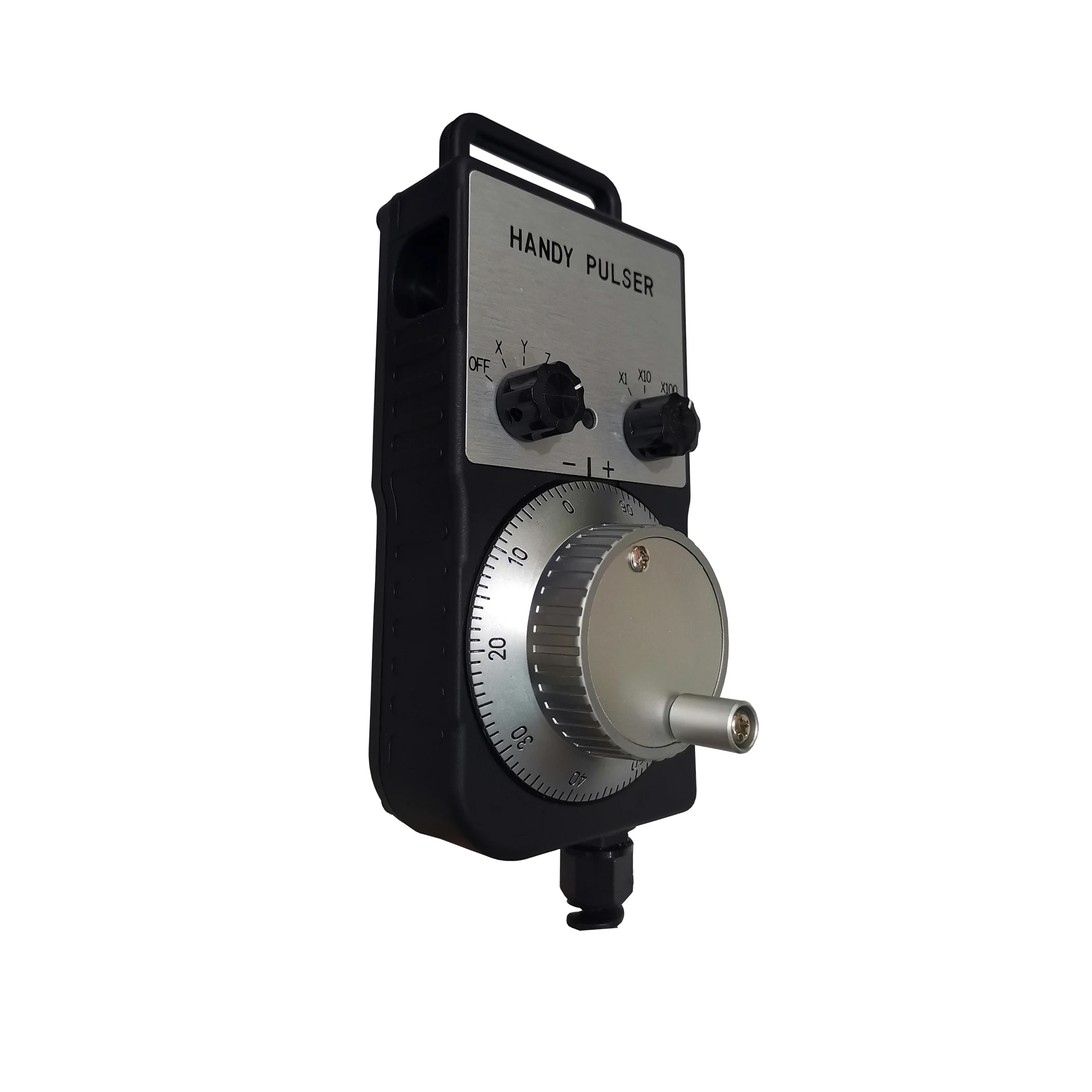

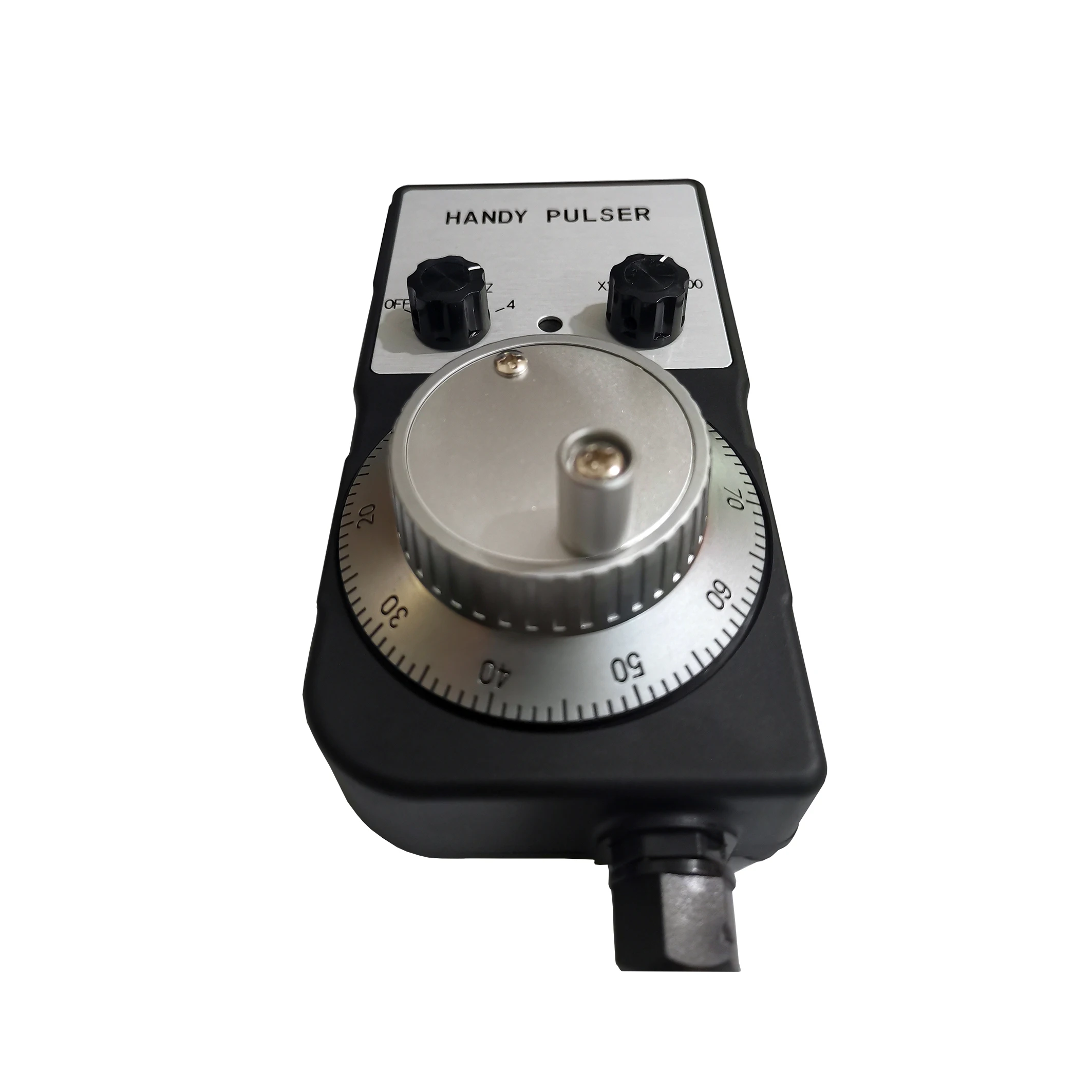

all new OKK CNC Machine HP-L01-2Z9-PL0-300-40 original NEMICON MPG Handwheel Manual Pulse Generator for FANUC system
| TPYE | Z1 | Z9 | H | D |
| Power voltage | HP-L:DC+5V±10% HP-V:DC4.5V to 13.2V | DC5V±10% | DC12V±10% | DC5V±10% |
| Current consumption | ≤50mA | ≤70mA | ≤50mA | ≤150mA |
| Revolution | 100PPR•25PPR | 25PPR | 100PPR•25PPR | |
| output voltage | within -1power voltage | +5V±10% | ≥2.5V | |
| Max.Response Frequency | 5kHz | |||
| sign rising&falling time | ≤1us | ≤1.5us | ≤200ns | |
| Max.sinking Current | 200mA MAX | |||
| rotary switch Contact rating | 0.4VA | |||
| rotary switch Max switch volatge | 25v | |||
| rotary switch switch current | 0.1~50mA | |||
| Enable switch AC | AC220V 0.5A AC110V 1.0A | |||
| Enale switch DC | DC24V 1.0A | |||
| Emergency stop switch AC | AC220V 0.5A AC110 1.0A | |||
| Emergency stop switch DC | DC30V 1.0A | |||
FEATURE
Suitable for Siemens system, Mitsubishi system, Taiwan's new generation system, Taiwan Baoyuan system, etc.
1.Wireless encrypted data transmission, stable and reliable, distance up to 20 meters,
2.Using frequency hopping transmission technology, under the same environment, 64 sets of handwheels can be used at the same time without interfering with each other.
3.With 100PPR or 25PPR encoder output, suitable for different systems
4.Metal encoder, stable and reliable performance, good hand feeling
5.Long life band switch, long service life
6.Waterproof button design, dustproof
7.11-axis output, support any machine tool
8.Rechargeable lithium battery, standby for more than 10 days, energy saving and environmental protection
9.Standard encoder output, A and B phase differential output
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4. OEM/ODM accept . But the MOQ of OEM/ODM is at least 100 sets.
