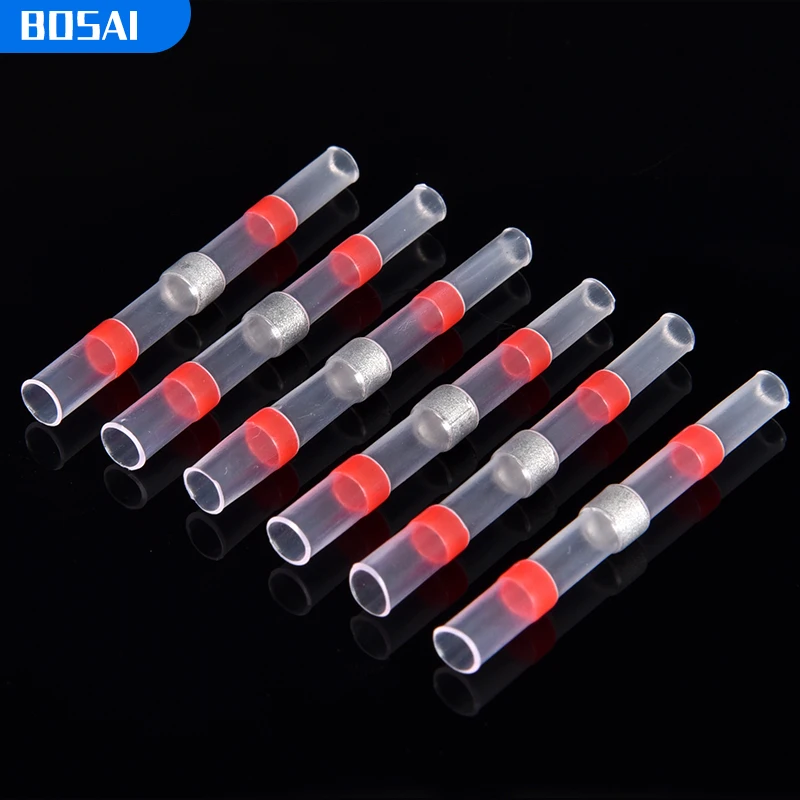

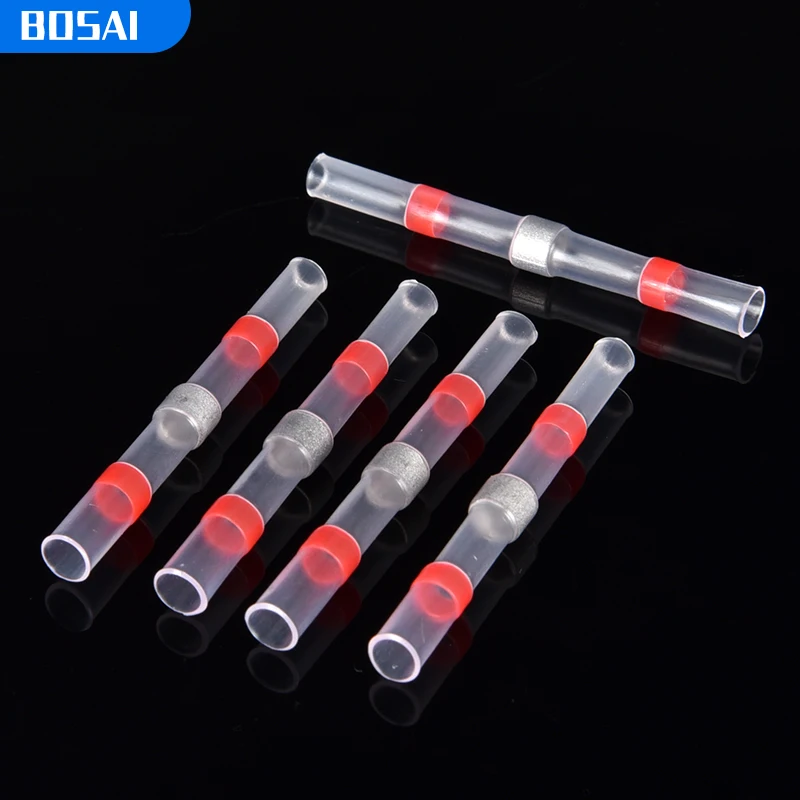

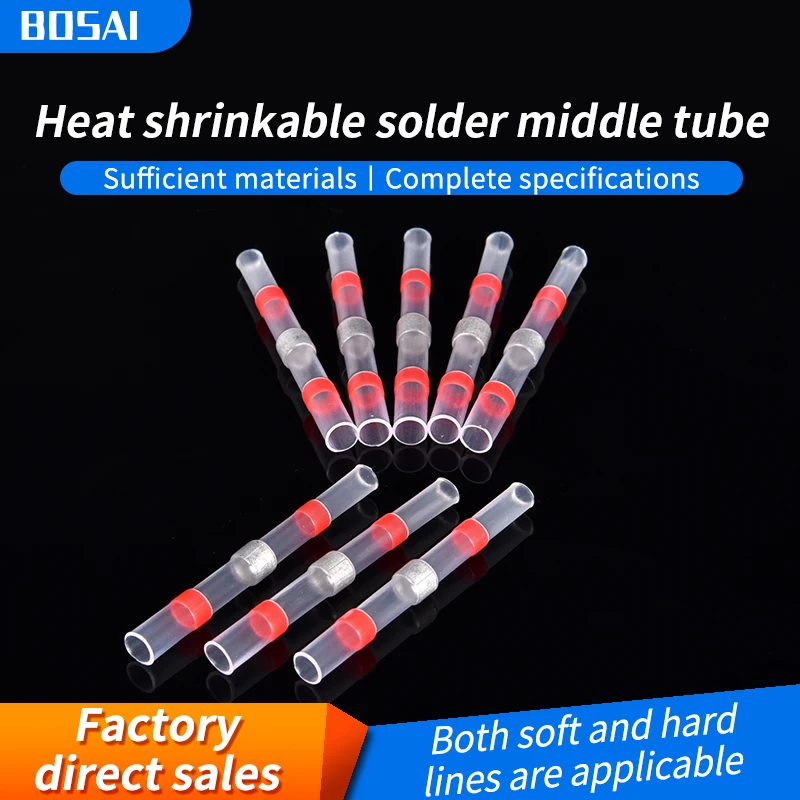

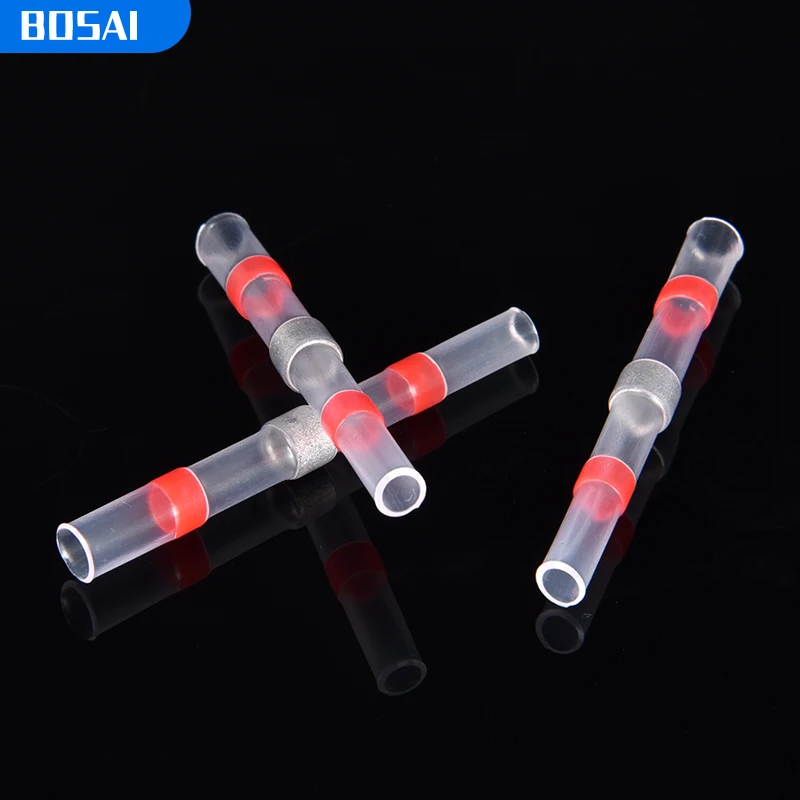

SST S21 heat shrink Red solder connector waterproof solder ring manufacturer direct sale
- Category: Other Connectors & Terminals >>>
- Supplier: Wenzhou Bosai New Material Co. Ltd.
Share on (1600144409183):
Product Overview
Description

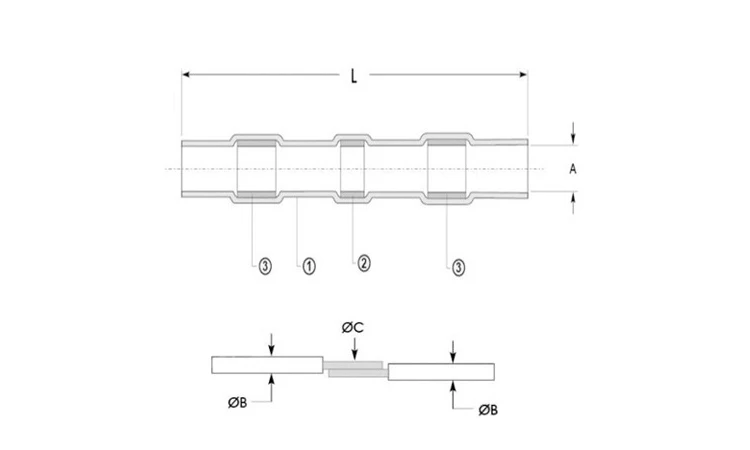

| Part.No | Product Size(mm) | Wire size(mm) | Applicable wire gauge | Color | Approval | |||
| A(min.) | L(min.) | B(min.) | B&C(max.) | C(min.) | A.W.G(mm2) | |||
| SST-S11 | 1.7 | 26 | 1 | 1.7 | 0.76 | 26-24(0.25-0.34) | White | RoHS /REACH/ CE |
| SST-S21 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18(0.5-1.0) | Red | |
| SST-S31 | 4.7 | 40 | 2.3 | 4.7 | 2 | 16-14(1.5-2.5) | Blue | |
| SST-S41 | 6 | 40 | 3.7 | 6 | 3.4 | 12-10(4.0-6.0) | Yellow | |
