Wholesale and mill supply energy-saving tubular heat exchanger oil cooler hydraulic water cooling tubular heat exchanger

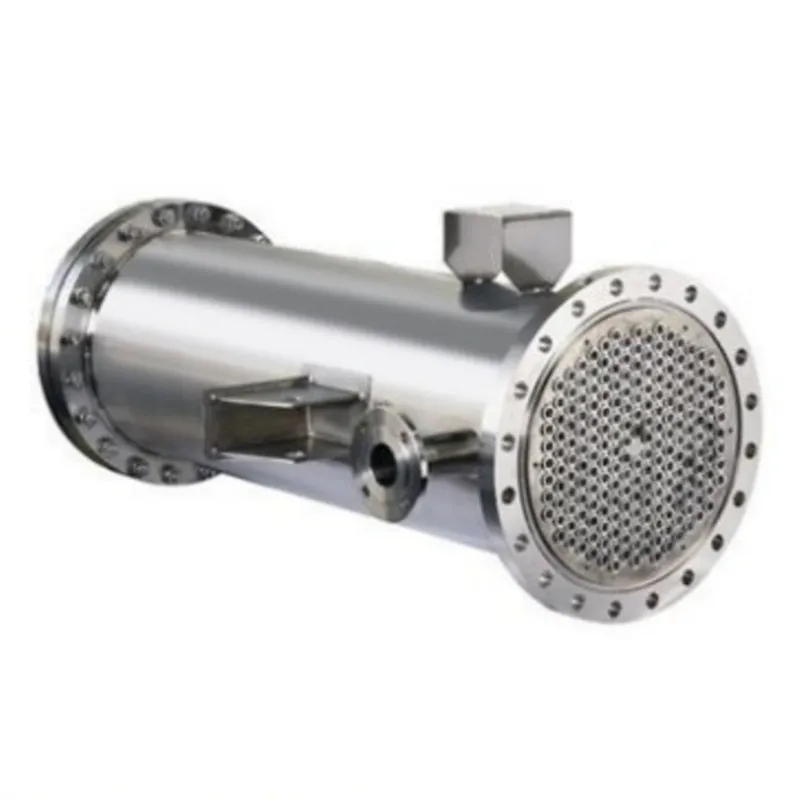

Tubular heat exchanger The tubular heat exchanger is closed heat exchanger that consists of pipes of different quantities and models in the tube to form different heat exchanging areas .The parts contacting materials are made of high quality stainless steel sus 304 or SUS 316L .The heat exchanger has such without dead corner ,which is in accordance with GMP requirements .it is widely for steam condensation,material heating and cooling in pharmacy and chemical industry .
Technical parameters Heat exchanging area of single plate : 0.05M2 0.1M2 0.2M2 0.5M2 Total heat exchanging area : 0.5M2 ~100M2
Maximum permitted operating temperature : 120 ℃ ~160 ℃

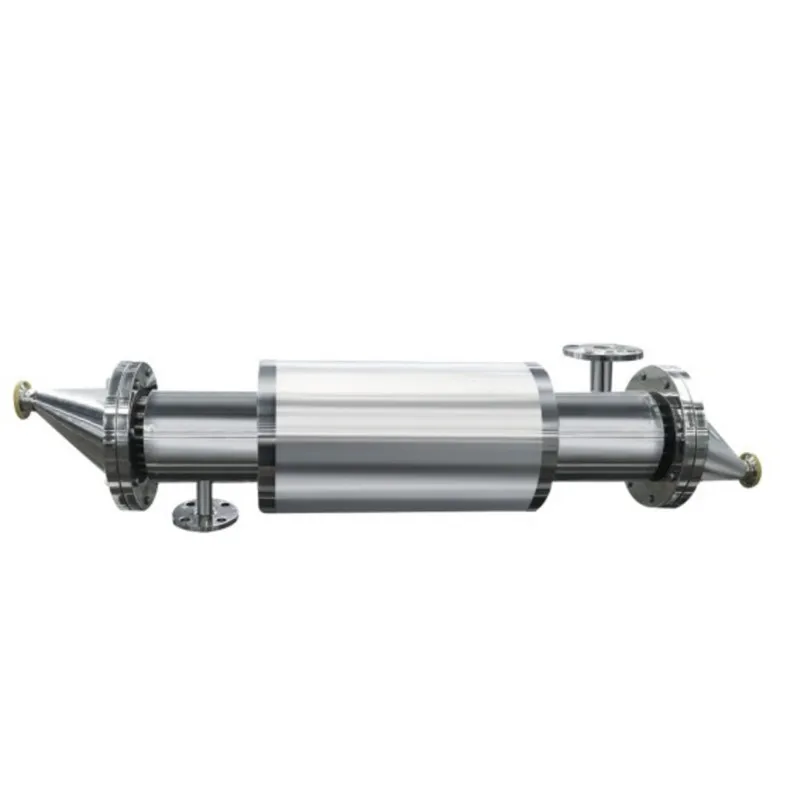

Double tube sheet heat exchanger Double tube sheet heat exchanger has a simple structure and reliable .adaptable ,cleaning more convenient .large capacity ,able to withstand high temperature and high pressure etc .no dead ends in the heat exchanger .pollution ~ free .easy to clean .small footprint ,easy to install .is the mature technology .heat transfer equipment standardization .comply with pharmaceutical industry is an ideal heat transfer equipment .Imported 316L production heat exchanger inside the tube speciations ∅9.53*1.0mm The inner surface of the electro-chemical polishing ,roughness Ra0.2um EPE insulation ,the outer surface 304 matte board of drawing processing . 4.the heat transfer area : 1. 1.5 ,2,2.5,3 m2 Maximum operating pressure : 1.0 MPa Maximu operating temperature 150℃ Heat transfer coefficient : water -water : 1100~1400W/（m2 ℃) Water -steam : 2300~5700/ （m2 ℃)

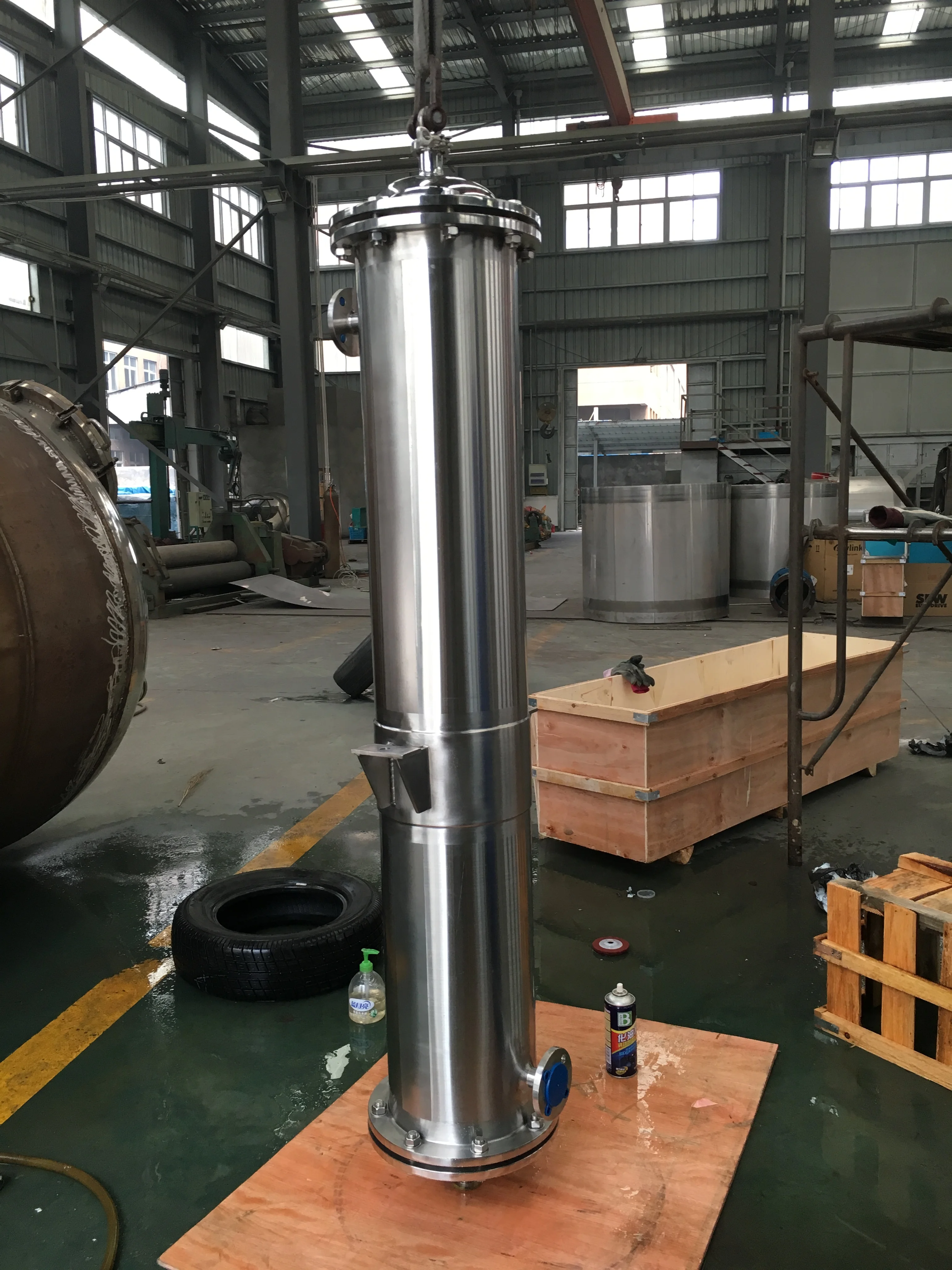

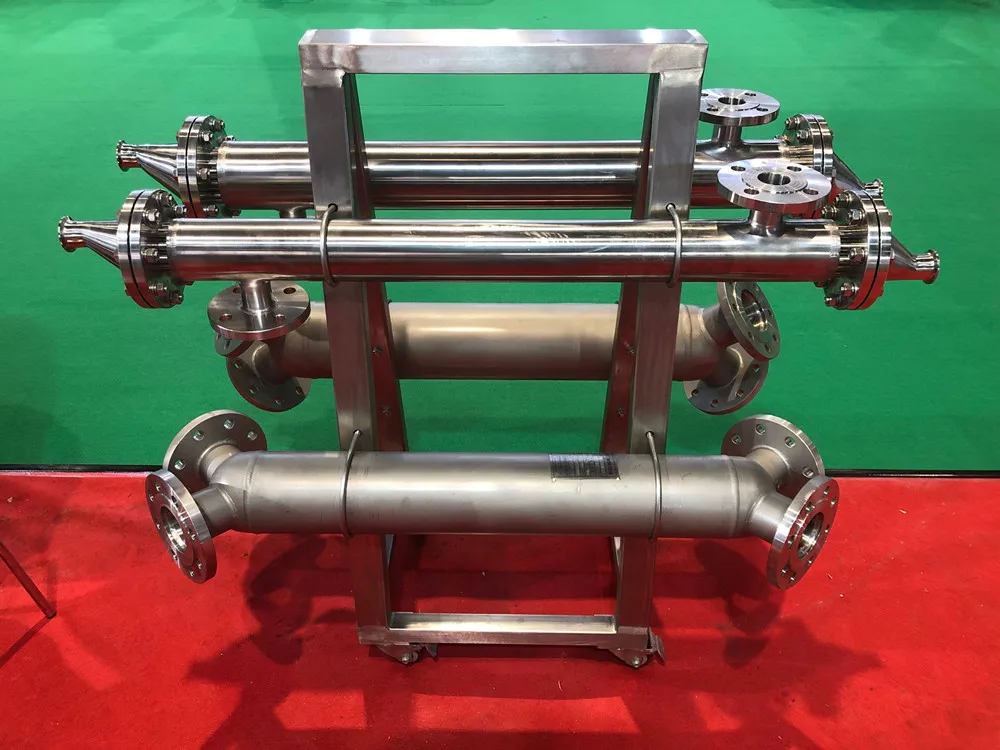

Details Images

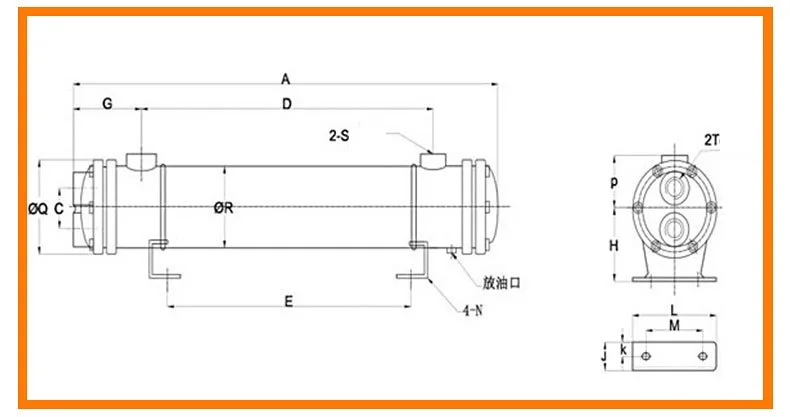

Size Information
Volume （L）
Core Dia.
(mm)
Jacket Cover
dia (mm)
Motorpower
(KW)
Working pressure (MPa)
Speed RPM
Vacuum (MPa)
Working temperature (℃)
30
400
500
0.6-1.1
homoeothermy
51-35
< - 0.09
0~100
50
500
600
0.6-1.1
homoeothermy
51-35
< - 0.09
0~100
100
550
650
1.1-1.5
homoeothermy
51-35
< - 0.09
0~100
150
600
700
2.2
homoeothermy
51-35
< - 0.09
0~100
200
650
750
2.2
homoeothermy
51-35
< - 0.09
0~100
300
2050
110
3
homoeothermy
51-35
< - 0.09
0~100
500
900
1000
4
homoeothermy
51-35
< - 0.09
0~100
800
1100
1200
5
homoeothermy
51-35
< - 0.09
0~100
1000
1200
1300
6
homoeothermy
51-35
< - 0.09
0~100
1500
1300
61400
4
homoeothermy
51-35
< - 0.09
0~100
2000
1400
1500
4
homoeothermy
51-35
< - 0.09
0~100
2500
1400
1500
7.5
homoeothermy
51-35
< - 0.09
0~100
4000
1500
1600
7.5
homoeothermy
51-35
< - 0.09
0~100
8000
2000
2100
15
homoeothermy
51-35
< - 0.09
0~100
32000
3000
2100
37
homoeothermy
51-35
< - 0.09
0~100
