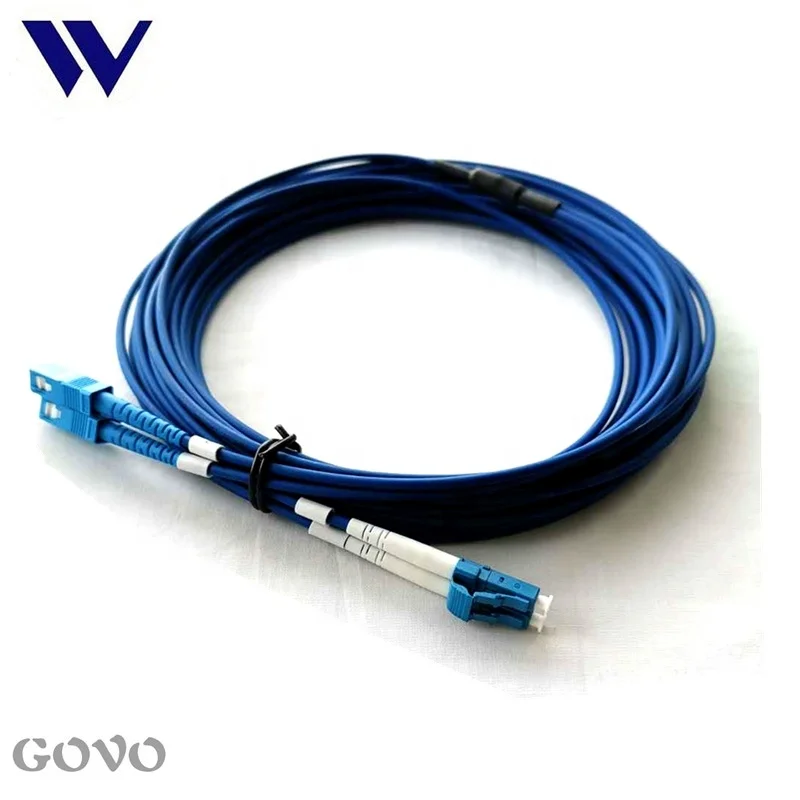

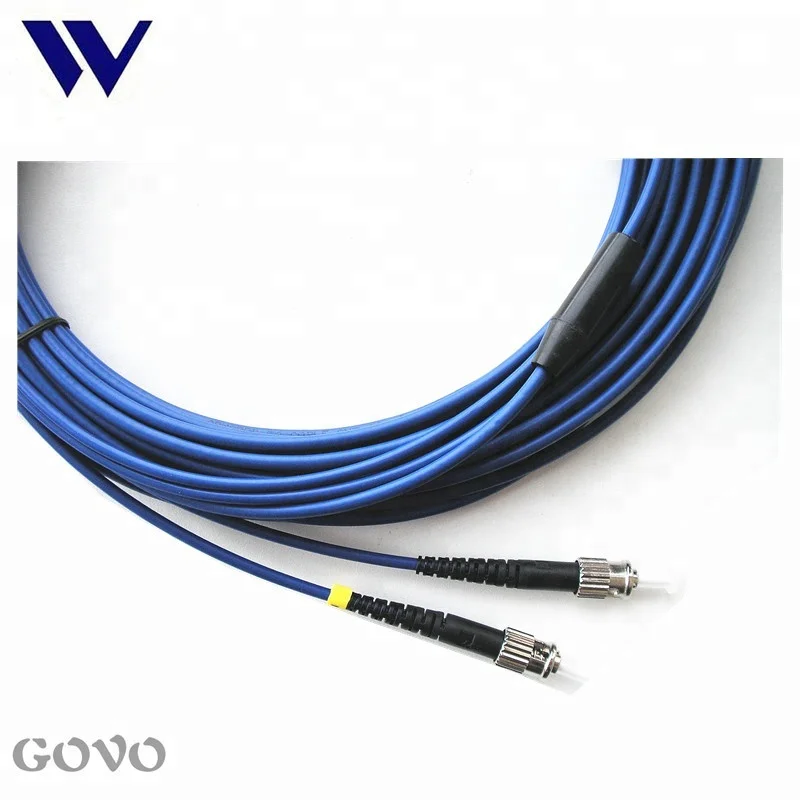

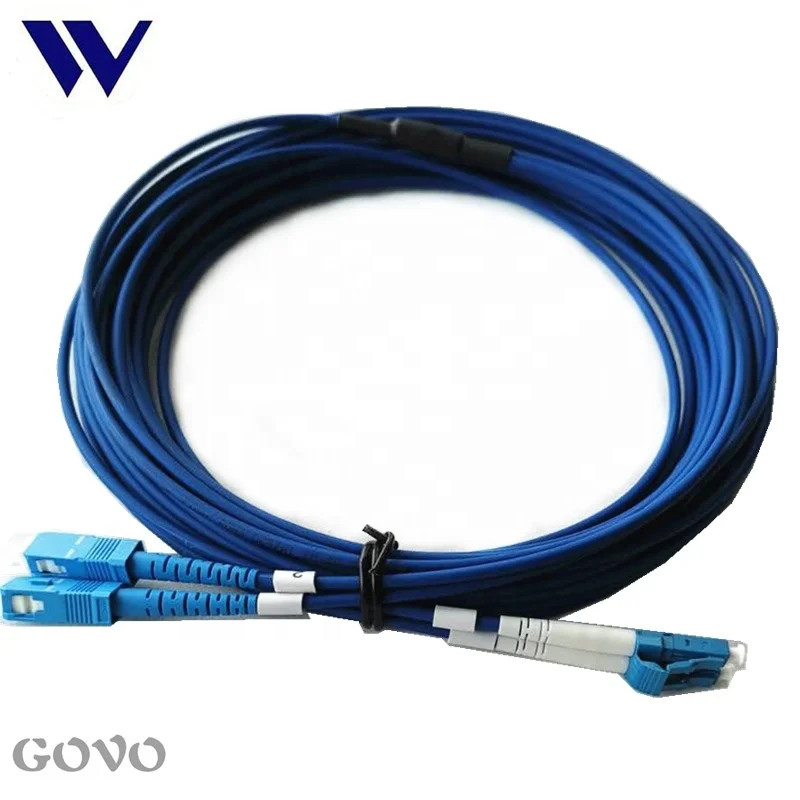

GOVO Armored Patch cord Duplex Mini Armored Fiber Optic Patchcord 10M
- Category: >>>
- Supplier: Shanghai Govo Telecom Co. Ltd.
Share on (1600144889181):
Product Overview
Description
GOVO Armored Patch cord Duplex Mini Armored Fiber Optic Patchcord 10M
Product Description
• 600μm tight buffer fiber, steel tube protection, aramid yarn and reinforcing
steel-wire braiding flame-retardant jacket
• High indentation strength, high tensile strength and gopher protected
• Small diameter, flexibility and easy bending
• Excellent stripping performance of tight buffer fiber
• Suited to SM fiber and MM fiber (50μm and 62.5μm)
• Ideal for fiber optic temperature transmission project
Geometrical Characteristics
Cable Type | φ3.0 | φ3.3 |
Cable Diameter (mm) | 3.0 | 3.3 |
Cable Weight (kg/km) | 26 | 28 |
TBF Diameter (μm) | 600±50 | 600±50 |
Mechanical Characteristics
Max. Load (N) | Long Term | 100 |
Short Term | 200 | |
Bending Radius (CM) | Dynamic | 20×D (D: Simplex Cable Diameter) |
Static | 10×D (D: Simplex Cable Diameter) |
Fiber Type (Core/Cladding Dimension) | 8.3/125, 50/125, 62.5/125 |
Fiber Mode | SMF (9/125) | 50/125 | 62.5/125 |
Wavelength | 1310/1550(nm) | 850/1300(nm) | 850/1300(nm) |
Max. Attenuation (dB/km) | 0.45/0.30 | 3.5/1.5 | 3.5/1.5 |
AVG. Attenuation (dB/km) | 0.40/0.25 | 3.0/1.0 | 3.0/1.0 |
Min. Bandwidth (MHz/km) | —— | 400/400 | 160/500 |

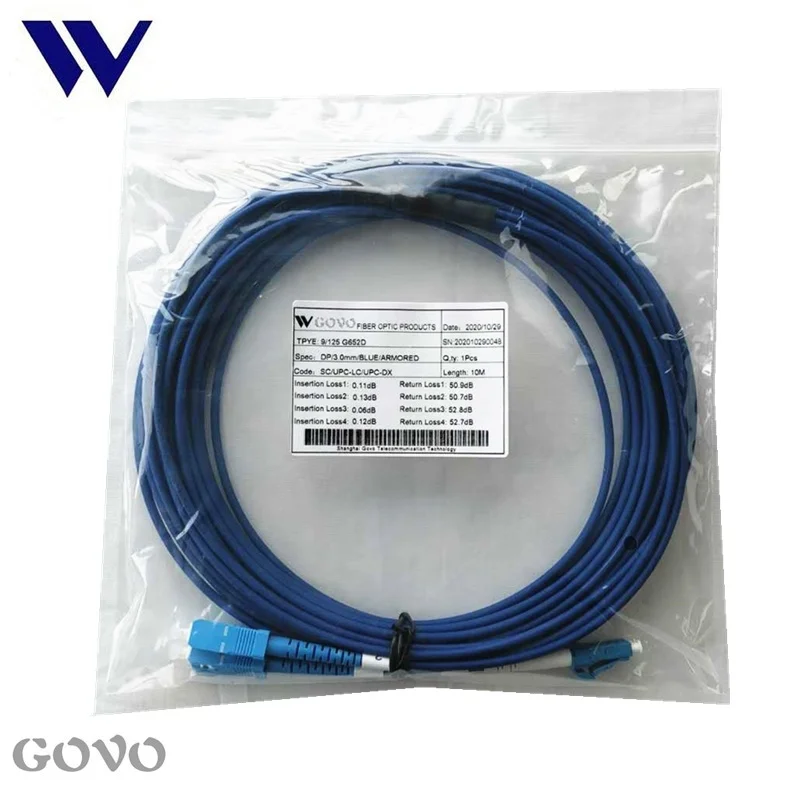

Packaging & Shipping
About Us
Our company is professionally engaged in supplying of fiber optical products
Our products mainly fall into six categories, namely
Optic Power Meters, Light Source,Optic Multimeter,VFL
OTDR, Fiber Optic Identifier...
Fusion Splicers; Fiber Cleavers; Mechanical Splice;Splice-on Connectors;
Protective Sleeves;Blades,Electrodes, Batteries etc
Patch Cords, Pigtails,Attenuators,Couplers,Adapters, Fast Connectors,
Our products are extensively used in CATV, telecom/data transmission and other industries.
Shanghai Govo Telecom Co.,Ltd.
Your reliable supplier and partner!
Feel free to send us inquiry , we will offer the quality products with best prices and services.
