We produce and offer you quality lipo batteries at reasonable price, and we also produce mini, none-magnetic, retangular or shape-free, capacity ranges from 8mAh to 2000mAh. contact us for more informatoin,
Product Description
Scope
This Specification describes the requirements for the lithium ion prismatic rechargeable cell supplied by GMB.
Basic Characteristics
Model
GMB103450AR
Housing Material
Aluminum foil
Nominal Voltage
3.7 V
Nominal Capacity(@ 0.2C (360mA))
2000mAh
Internal Impedance
40mΩ typ. 60mΩ max.
Discharge Cut-off Voltage
2.75V/cell
Charge Cut-off Voltage
4.20±0.05V
Max Charge Current
2000mA
Max Discharge Current
2C
Charge method
CC/CV (constant current/constant voltage)
Dimension(half charged)
Thickness: 10.5+0.0 –0.5 mm Width: 34.0+0.0 –0.8 mm Height:49.0+0.0 –0.5 mm
Weight
About :37±2.0 g
Operating Temperature
Charging Temperature: 0~45℃
Discharging Temperature: -20~60℃
Storage Temperature
-5℃~35℃(suggest 25±2℃)
Relative Humidity
65±20%
Visual Requirements
Defects, such as scratches, flaws, dirty spots, rust, deformation, discoloration, leakage, etc., whichimpact commercial values shall not be allowed.
Shipping Voltage
3.70-3.90V(about 50% capacity)
Storage Voltage
3.70-3.90V
If the cell has been storage over half years, charge the cell with 0.5CmA or
1CmA of constant current and 3.9V constant voltage until the Charge cut-off current of 0.01 C5mA is achieved.
Environmental Request
The materials of the product and packaging are
RoHS compliant.
Dimension for dare cell

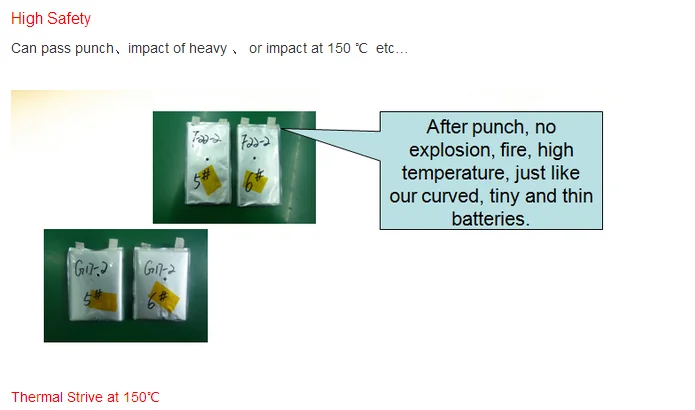

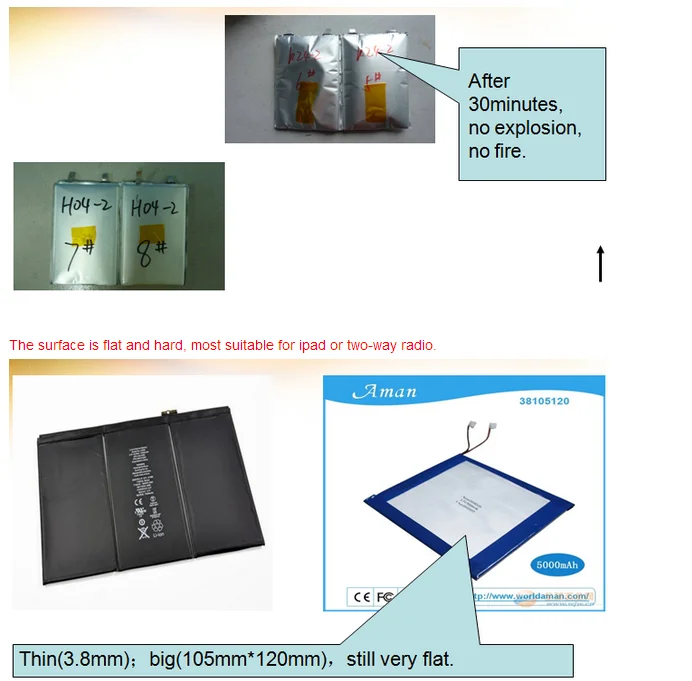

The above technology can be adopted for all the sizes of our lithium polymer batteries; our small cells, curved and thin cells can pass all the safety test with special materials.

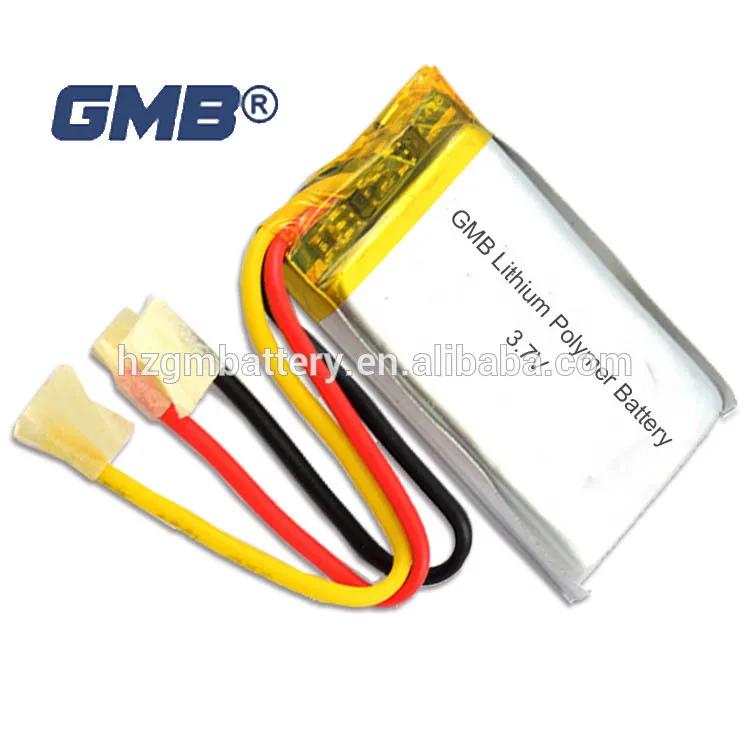

Gmb 1500Mah 100C Lipo Battery Cell
Our Services
Solution
Company Information
Huizhou Markyn New Energy Co., Ltd. is the biggest manufacturer of specialized lithium polymer batteries and primary lipo batteries ( soft-package non-rechargeable Li/MnO2 batteries), and other demanding lithium polymer batteries. Our preliminary investment capital is 30 million RMB. Our main products are MarkynCurved lithium polymer batteries, curved lipo batteries, flexible batteries and Markyn-thin lithium Polymer batteries, ultra-thin primary soft-packaged batteries, thin lithium polymer batteries, tiny lipo batteries, etc.
Since 1999, Huizhou Markyn New Energy Co., Ltd.has committed itself to production of high quality, unique and differentiated lithium batteries and battery packs. Our clients include Flextronics, Midea group, and Texas instruments.
Our main production base, Huizhou Markyn New Energy Co., Ltd. is located at Yuanzhou Town, to the west of Dongguan City, Guangdong Province.
manufacturer of specialized lithium polymer batteries
Our main battery products: 1. Curved batteries, MarkynCurved, flexible lithium polymer batteries, ---both primary & rechargeable Designed for products such as i-watches, sports bracelets and wrist straps. Note: Primary one is ultra-thin CP soft batteries, tiny 3.0V soft CP lithium batteries, Soft 3.0V batteries; 2. Markyn-thin ultra-thin or tiny lithium polymer batteries and Markyn-thin primary lithium batteries(Li/MnO2) Used in products such as RFID cards, medical devices, and E-tags. 3. ER, WR and CR batteries. High energy density primary batteries with 3.6V, 3V, and 2.85V. 4. Battery packs: high C-Rage packs, extreme high or low temperature packs, smart battery packs with precision fuel gauges, memory function, and monitoring electronics. Shared Expectation for every staff makes our products the world-class brand in differentiation or specialized batteries,Give employees a home. Company Tenet:Staff oriented, Faith is root;
Production equipment
Enterprise Mission For customers and supplier: implement win-win cooperation policy; For shareholder: Highly responsible for the long-term return for Shareholder; For Staff: training and promoting them by the given job; For the society: pay back.
The spirit of Cooperate culture: i.e. The study of communication: everyone in the team committed to reduce misunderstandings and misunderstood. The self transcendence: Beyond the self: every day progress, make the job more perfect than last day.
Theory of business: Change impossible to possible; Change may be a reality!
In past 10 years,our batteries have greatly recognized as reliable products and high appraised by customers like Flextronics,Midea Group,Samsung,TI(Texas Instrument),etc. Now our customers has covered many countries,like Germany,Switzerland,Portugal,Brazil,England,Japan,Canada,Australia,Korea,etc.
Customer Letters Thank you very much for taking the time to meet with Antonio and me yesterday,it was great to see the GM Battery facility and talk with you,And thank you so much for a wonderful dinner!
Antonio and I are very interested in the samll batteries you produce to incorporate them into our jewelry. You suggested we contact you about available sizes of batteries,and that maybe an engineer could send us a document that outlines the size and capacity tradeoffs.
Again,thank you very much,and have a great week,I look forward to further discussion with you!
Certificate:
UL Certificate(File Number:MH45782) Thin battery(CP battery) have 60 kinds of models through UL certification Lithium battereis(including polymer li-ion, li/MnO2, Li/SOCl2 batteries) have been UL certified. In the battery industry.GMB is the most UL certifaction manufacturer
