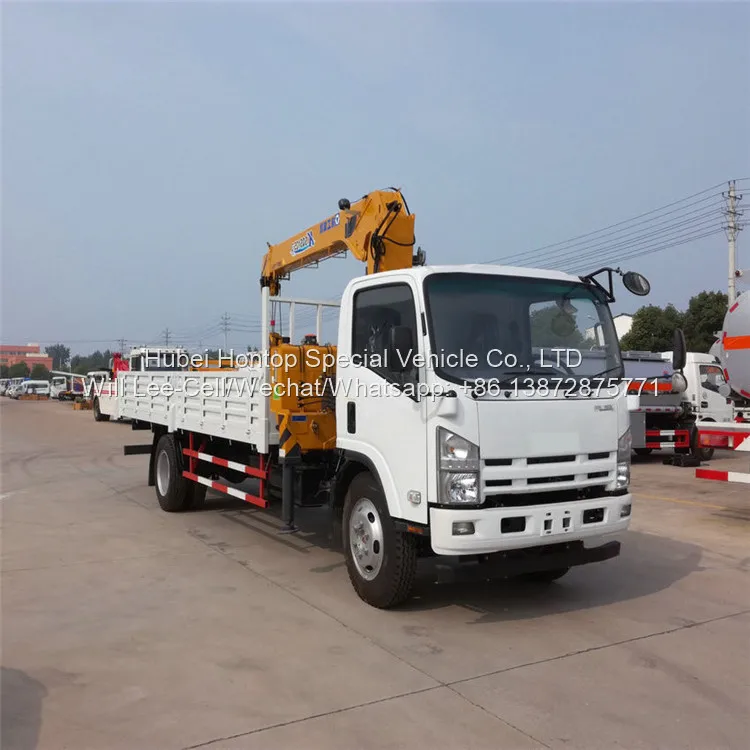

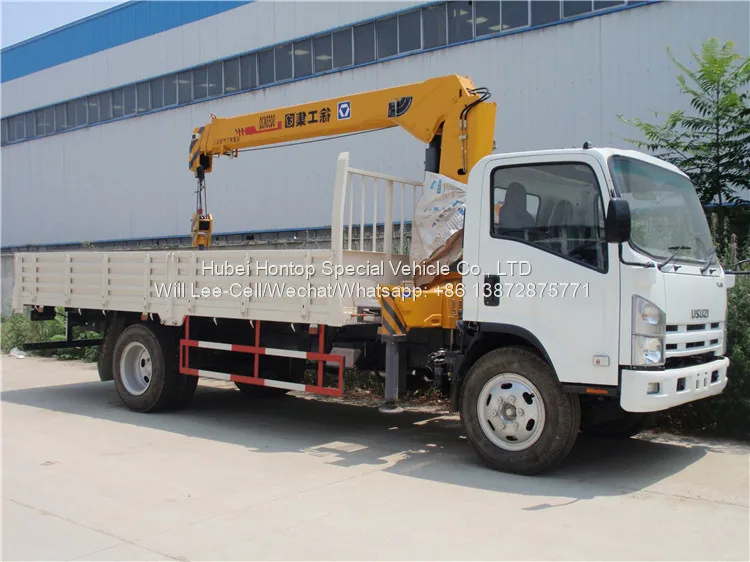

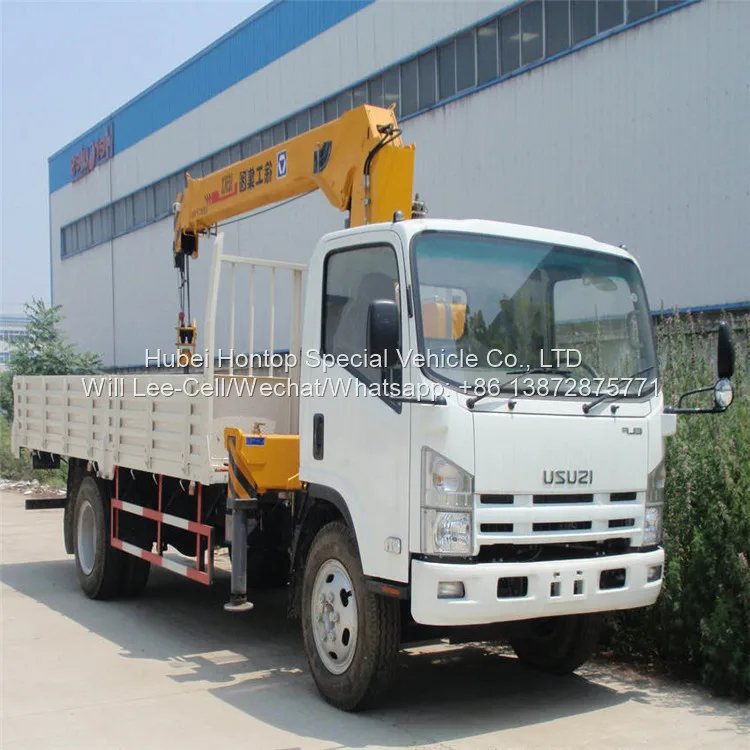

2021 New Japanese ELF NPR NMR 700P Cargo Truck with Crane with ISUZU Chassis 5T Straight Telescopic Stiff Boom

Share on (1600145209798):


Price:$33,890.00 - $37,990.00

Quantity:


Product Overview

Description



Product Description


2021 New Japanese ELF NPR NMR 700P Cargo Truck with Crane with ISUZU Chassis 5T Straight Telescopic Stiff Boom
ISUZU 700P truck mounted crane also calls boom truck,crane truck,is a kind of equipment that realizes the lifting, turning, and lifting of goods through a hydraulic lifting and telescopic system. It is usually assembled on a truck. It is generally composed of truck chassis, cargo compartment,power take-off and crane.It is designed for multiple work applications, such as electric line maintenance and construction,transmission and distribution, tree trimming and other related uses . General materials lifting of various size and load with standard hook arrangement for construction sites, mines, projects, logistics requirements.
Our company also offer Dongfeng,Foton,Howo,FAW,Shacman for your choice.

The truck mounted crane also calls boom truck,crane truck,unic crane, crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane,boom crane, boom crane truck, articulated crane truck,is a kind of equipment that realizes the lifting, turning, and lifting of goods through a hydraulic lifting and telescopic system. It is usually assembled on a truck. It is generally composed of truck chassis, cargo compartment, power take-off and crane.It is designed for multiple work applications, such as electric line maintenance and construction, transmission and distribution, tree trimming and other related uses . General materials lifting of various size and load with standard hook arrangement for construction sites, mines, projects, logistics requirements.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton,25Ton.
Knuckle Boom Crane:2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 18Ton,20Ton,25Ton,27Ton,30Ton,32Ton,35Ton.
The cranes can be of famous brands as Palfinger, Unic, Tadano, X-CMG, Zoom-lion,ChangXing, etc.

Our company also offer DONGFENG,ISUZU,Foton,Sinotruk Howo,FAW,Shacman for your choice.

Our truck with crane also install Remote Control,Brick clamping apparatus,different kinds of grab bucket,work basket,etc.





Specification


item
value
Vehicle Name
ISUZU ELF 700P Boom truck mounted 5T crane
Chassis brand
ISUZU
GVW
12000KG
Curb weight
5910kg
Cab seat
2 person
Air Conditoner
Yes
Fuel type
Diesel
Engine Model
4HK1-TCG40
Engine brand
ISUZU
Power
190HP
Emission Standard
Euro 4,Euro 5,Euro 6
Drive Type
4*2
Transmission
6 forward gear,1 reverse gear, Manual
Wheelbase(mm)
4475
Tyre Specification
8.25R16
Tyre No.(pcs)
6+1
Max Speed(km/h)
98
Paint
as your required
ABS
Yes
Upper parameter
Boom structure
3 section straight arm, oil cylinder drive
Model No.
SQ5SK2Q
Max lifting capacity
5000kg
Max lifting height
10.5m
Max lifting moment
12.5T.m
Maximum working radius
8.7m
Working height at maximum working radius
10.4m
Rotation
All rotation, 360°

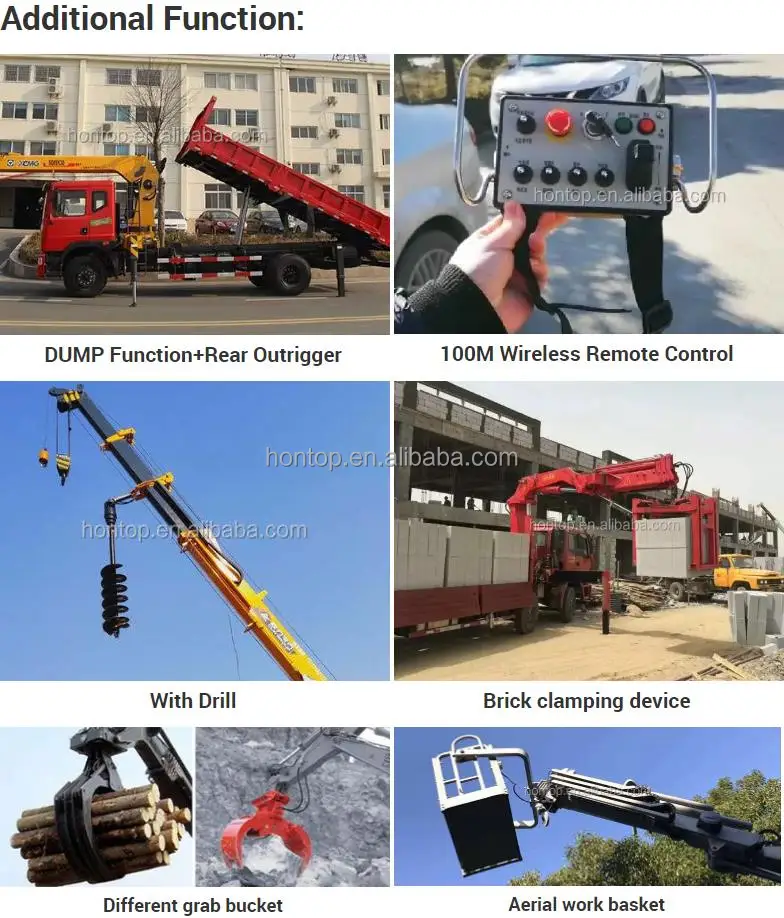

Other function
1. Knuckle boom crane.
2. Hydraulic tipper box.
3. Box thickness according to requirement.4. Box height could be nominated
5. Brick clamping apparatus
6. Remote control operation
7. Grab bucket
8. Aerial work basket
9. Drill
10.Double row cab


Details Images
