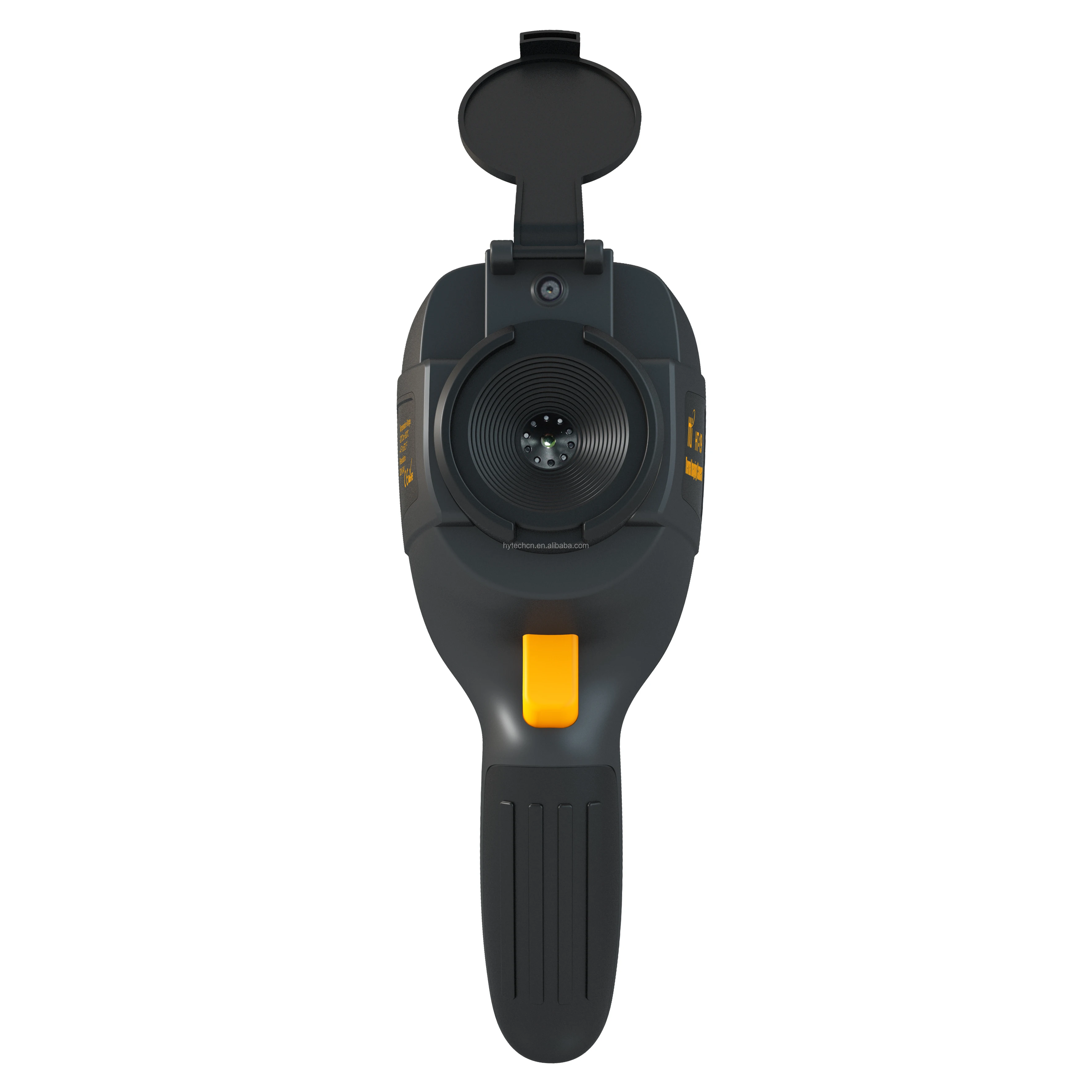

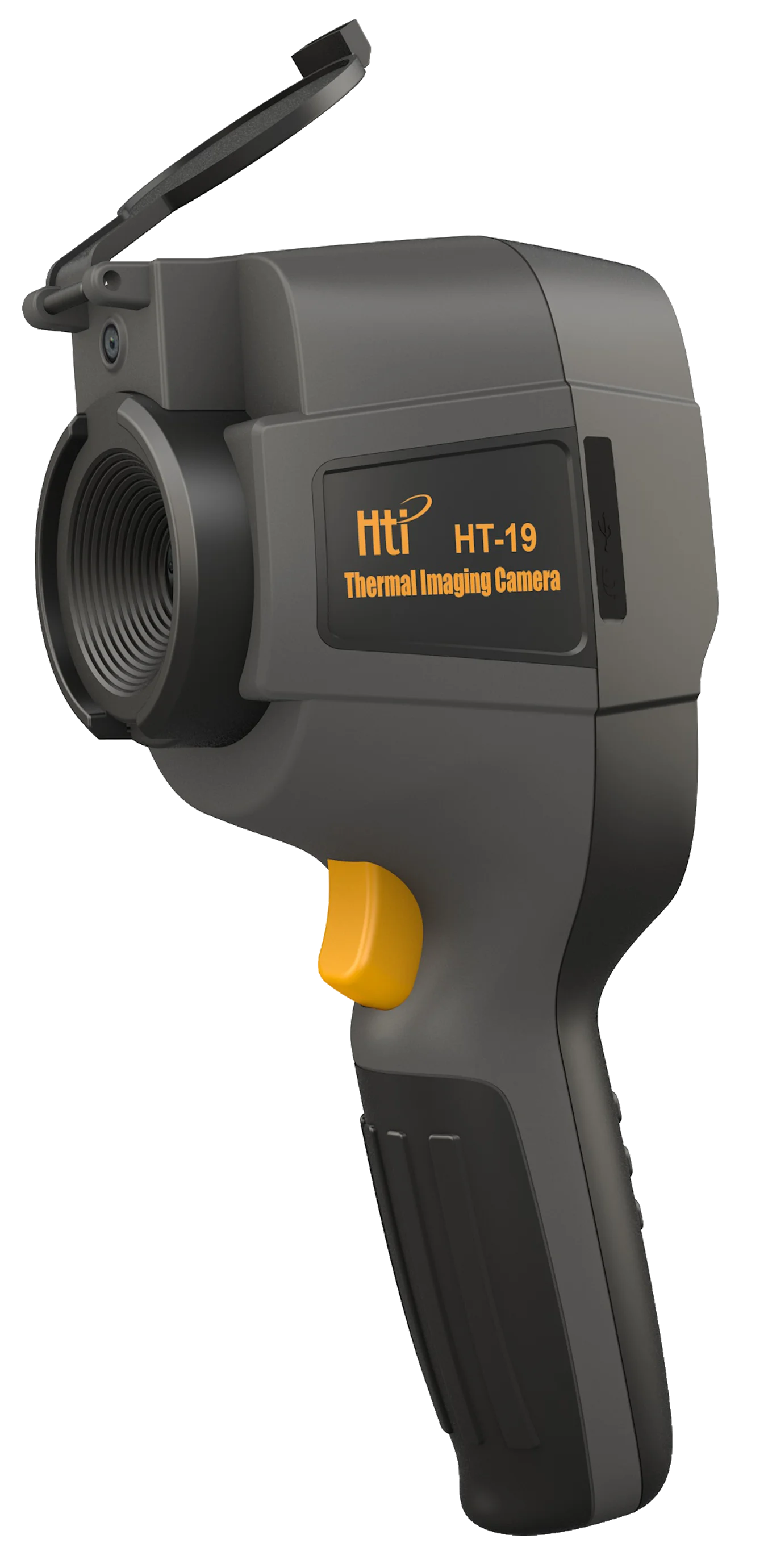

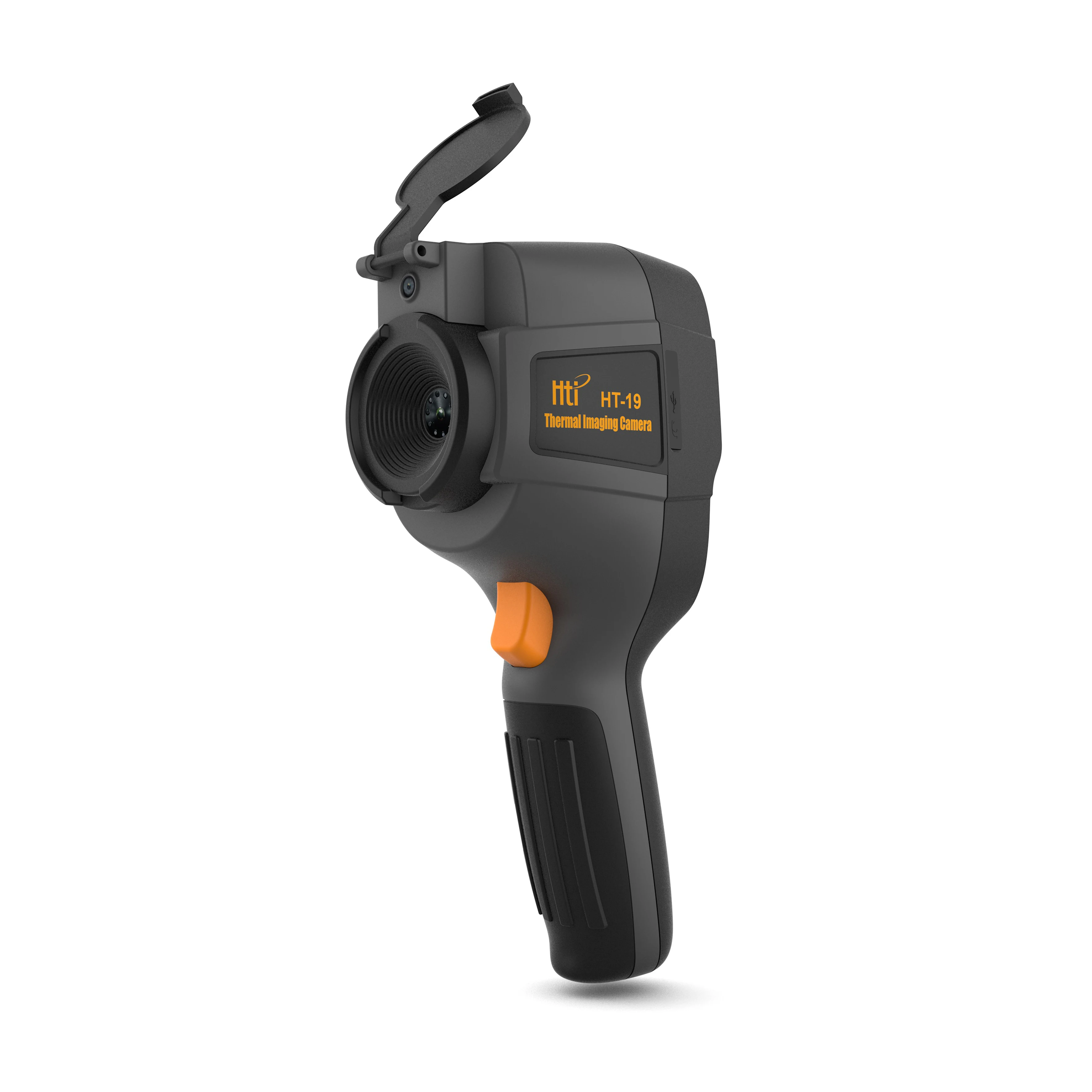

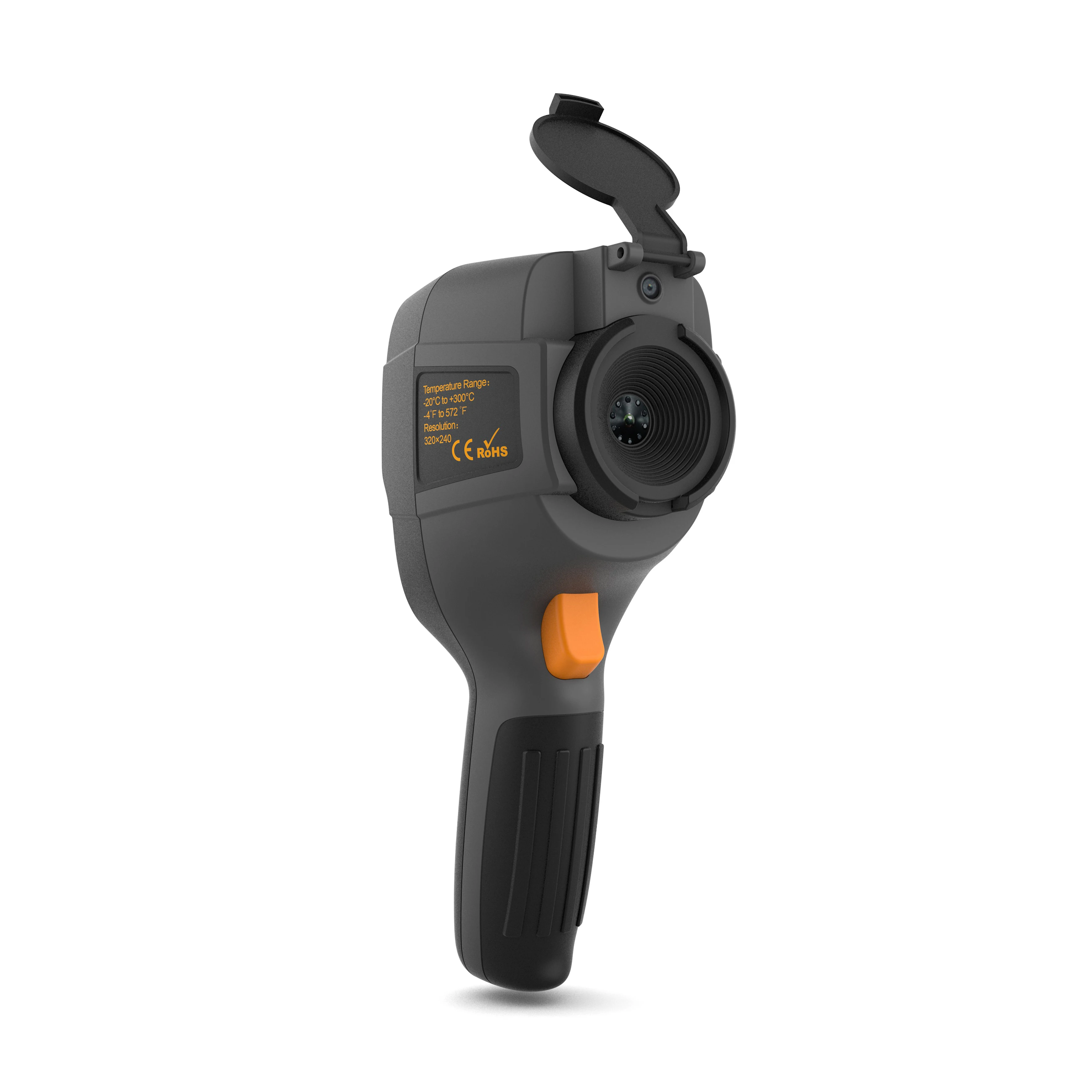

China handheld professional thermal night vision car camera HTI HT 19 for car camera oem odm
- Category: Car Black Box >>>
- Supplier: Dongguan Xintai Instrument Co. Ltd.
Share on (1600145258404):
Product Overview
Description
Product Description
Shining Points:

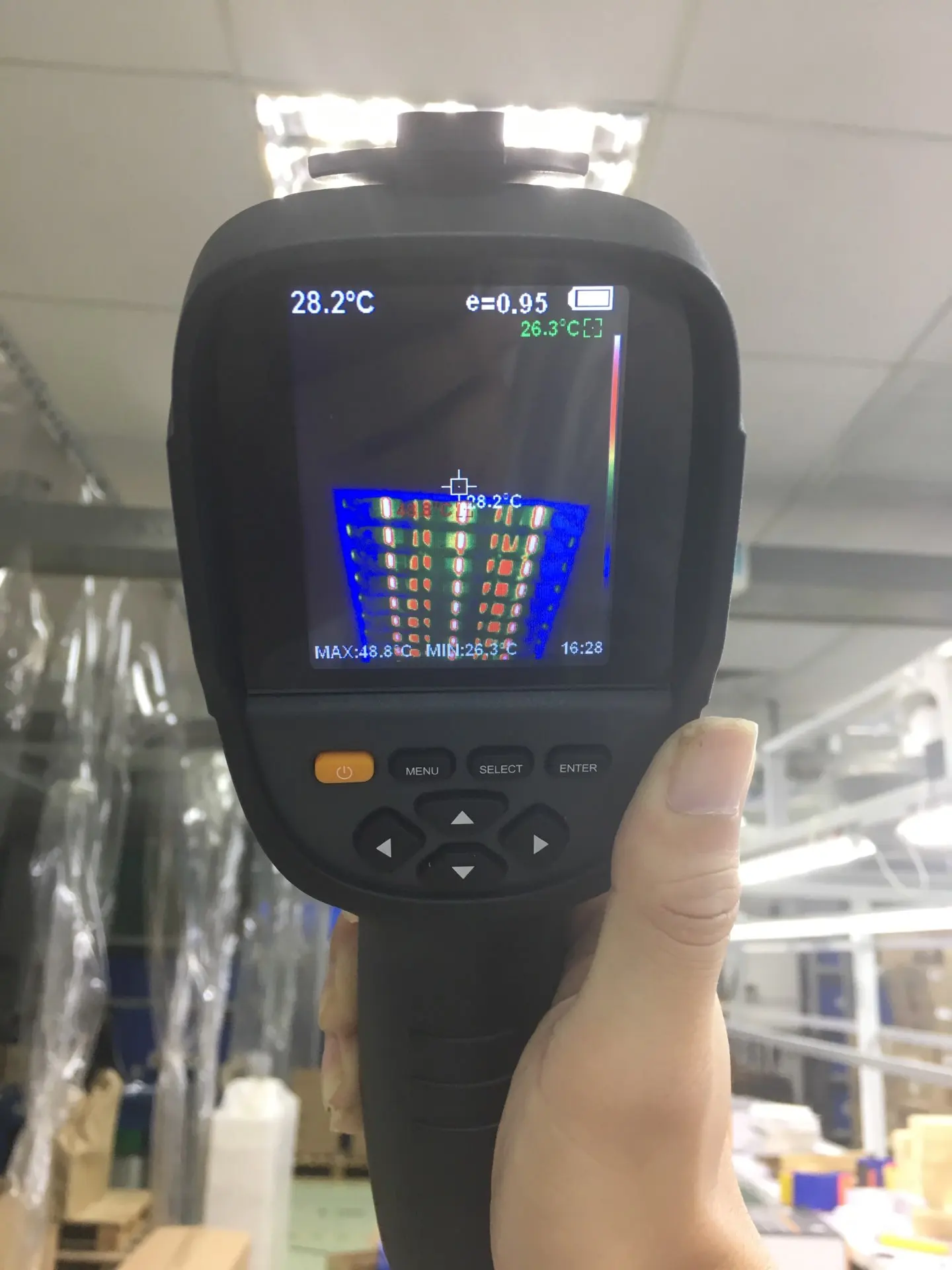

—3.2'' full color screen, allows for detailed showing of infrared generated images;
—320x240 resolution and 0.3 million pixel visible image resolution, high definition of images;
—-20~300°/-4°~572° temperature measurement range, 2.5° accuracy for better operation;
—5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
—automatic setting: 5 mintues/20 minutes/ not power off automatically;
—built-in 4GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;
—wide application at medical, fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;

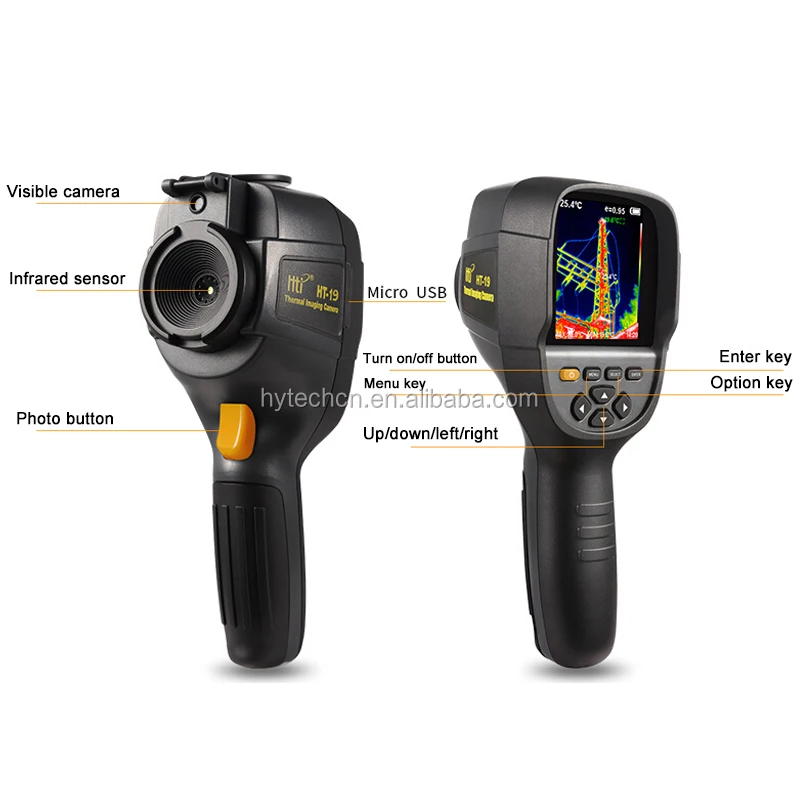

—seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
—mini and portable for 90×105×223mm size and 289g weight, attached pouch allows for more convenient carrying;
—ergonomic handle, which can be used and held comfortably;
Specification:
| Display | 3.2 inch full angle TFT screen |
| Infrared imager resolution | 320*240 |
| Field angle/shortest focus length | 27*35°/0.15m |
| Thermal sensitivity | 0.07°C |
| Temperature measurement range | -20 to 300°C (-4°F to 572°F) |
| Measurement Accuracy | ±2% or 2°C |
| Emissivity | 0.1-0.99 adjustable |
| Frame rate of thermal image | 9Hz |
| Walvelength coverage | 8~14um |
| Focus mode | Fixed |
| Color palette | Rainbow,Iron oxide red,cold color,black&white,white &black |
| view option | The integration of thermal image with 25% step length and visible image |
| Storage medium | built-in 3G |
| File formate | JPG |
| USB | Micro USB 2.0 |
| Power supply | Built-in chargeable 18650 battery |
| Automatic power-off time | Selectable:5 minutes/20 minutes/not pwoer off automaticallly |
| Product size(length*width*height) | 90mm*105mm*223mm |
| Product Weight | 389g |
| Work temperature | 0°C to 45°C |
| Storage temperature | -40°C to 60°C |
| Relative Humidity | <85%RH |
Package Includes:
1 x infrared temperature detector
1 x cable
1 x user manual
1 x carry pouch
1 x carry pouch strap
1 x cardboard package box
Why choose us
| 1.Instrument factory with 10 years experience |
| 2.China National Hi-tech Enterpise with outstanding R&D Ability |
| 3.ISO9001 approved high-standard quality control stystem |
| 4.All ROHS and CE certified Instruments |
| 5.Professional OEM service |
6.Good after-sale service and one year warrenty |
7.Portable,small size,light weight and reasonable structure design |
Company Information
Dongguan Xintai Instrument (//hytechcn.en.alibaba.com) is located in Dongguan ,GuangDong , company was established in June 2009. And professional manufacturer of instruments, such as IR thermometers, Anemometers, Sound Level Meters, Humidity and Temperature Meters, Carbon monoxide meter,Microwave leakage detector etc.
We provide one-stop services, from conceptual design to prototyping to mass production. Our rich experience in design and manufacturing technologies enable us to meet our customers' ODM and OEM requirements.and have a good reputation in this field.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of products are passed CE and ROHS, and strictly inspected before shipment. Perfect after-sales service win the customer's satisfaction.
Pyament Terms
Payment terms: T/T, Western Union 30% deposit, balance before shipment, L/C is available.
Trade term: FOB, CIF & EXW are available
Packaging & Shipping
packed 1 piece/tool case, 1 tool case/gift box , 10 box/carton . can be customized as customers’ special requirements.
