Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Jinan 1000W 2kw 3kw 1500W Metal Fiber Laser Cutting Machine Raycus For Steel Plate
- Category: >>>
- Supplier: Shandong Raytu Laser Technology Co. Ltd.
Share on (1600145259447):
Product Overview
Description

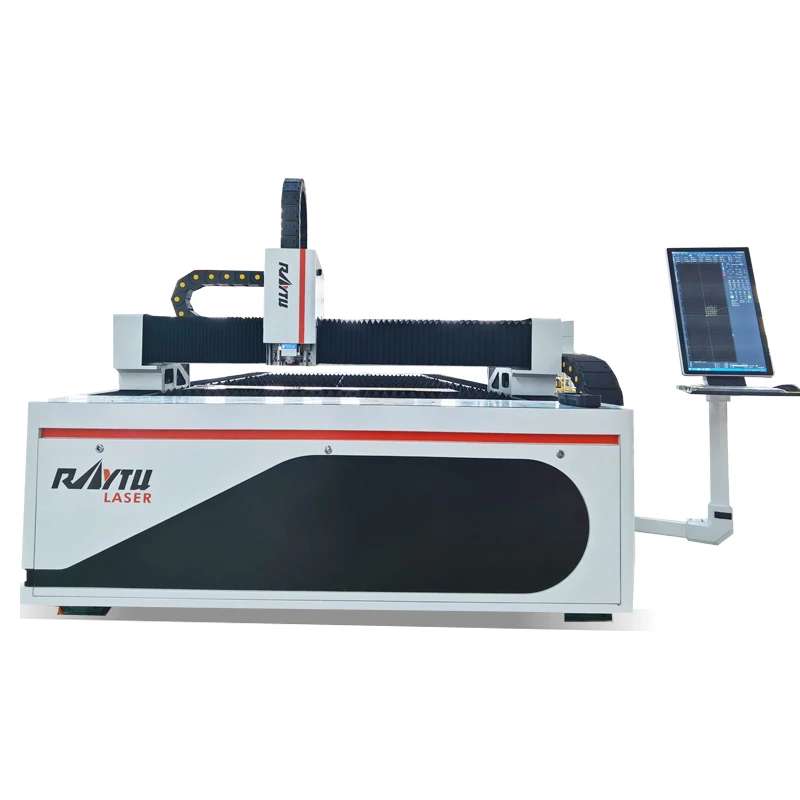

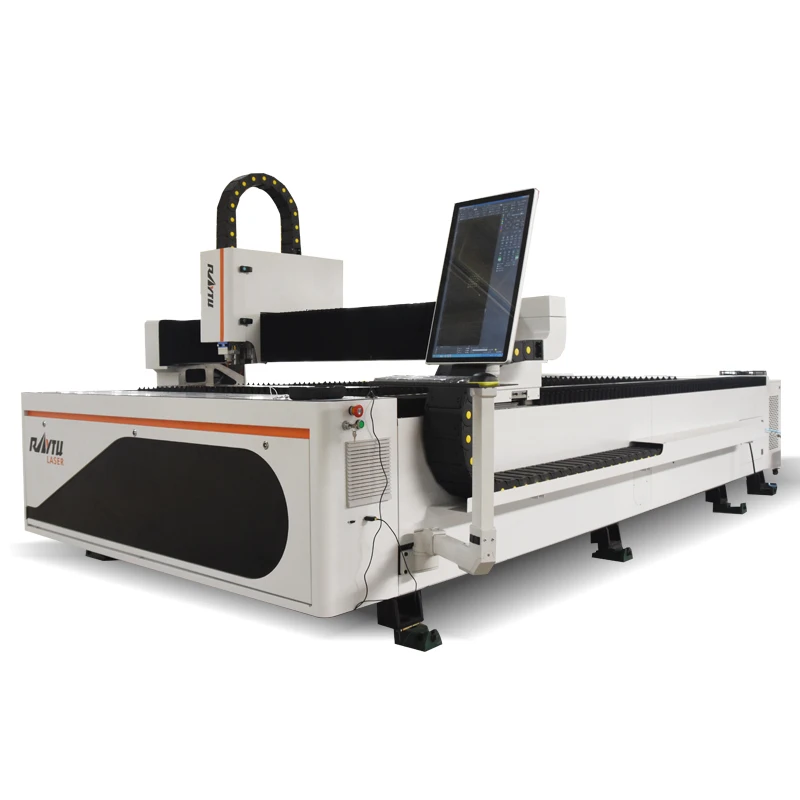

Jinan 1000W 2kw 3kw 1500W Metal Fiber Laser Cutting Machine Raycus For Steel Plate
Product Description
Specification
Equipment Specification | ||||||||||
Model | RTC3015H | RTC4015H | RTC6015H | RTC4020H | RTC6020H | |||||
Cutting Area | 3000*1500mm | 4000*1500mm | 6000*1500mm | 4000*2000mm | 6000*2000mm | |||||
Laser source | MAX | MAX | MAX | MAX | MAX | |||||
Max Moving Speed | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | 100m/min,Acc=1.0G | |||||
Position Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | |||||
Reposition Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | |||||
Power | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A | 380V 50/60Hz 50A | |||||
Max Loading(KG) | ≤4000 | ≤5000 | ≤5500 | ≤6000 | ≤6000 | |||||
Machine Parts
Laser Source
High Power and High Quality Laser Output.
IPG Raycus MAX nLight Fiber Source For Choose.
IPG Raycus MAX nLight Fiber Source For Choose.
Laser Head
High stability and good cutting quality,fast piercing and cutting.
WSX/Raytools/Precitec for choose.
WSX/Raytools/Precitec for choose.
Water Chiller
Quickly and effectively reduce the temperature of the laser and cutting head to ensure the normal operation of the machine.Frame
Raytu's self-made bed frame, after welding-stress relief-sandblasting-primer spraying-machining-spraying and other
professional processes, the weight can reach 1.3T.
professional processes, the weight can reach 1.3T.

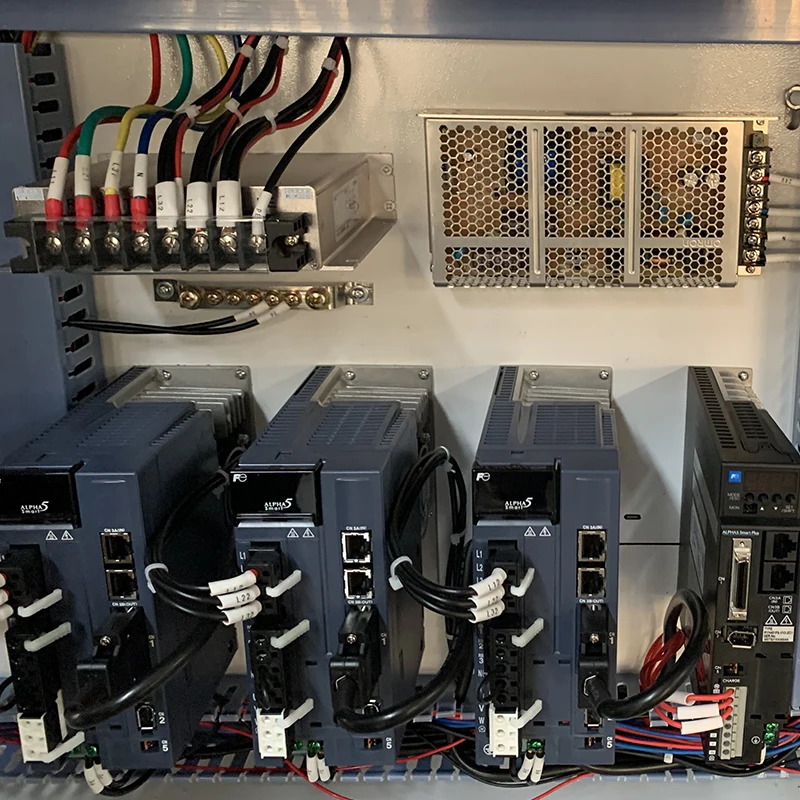

Servo motor
FUJI/Yaskawa for choose.
Control System
With professional cutting software, fine cutting can be achieved by simple manipulation.
BOCHU/WEIHONG for choose.
BOCHU/WEIHONG for choose.
Guide Rail
The installation accuracy of the guide rail and the rack is controlled at 0.03mm to ensure the smooth operation of the gantry, thereby ensuring the cutting accuracy.
APEX/YYC/J&T for choose.
APEX/YYC/J&T for choose.

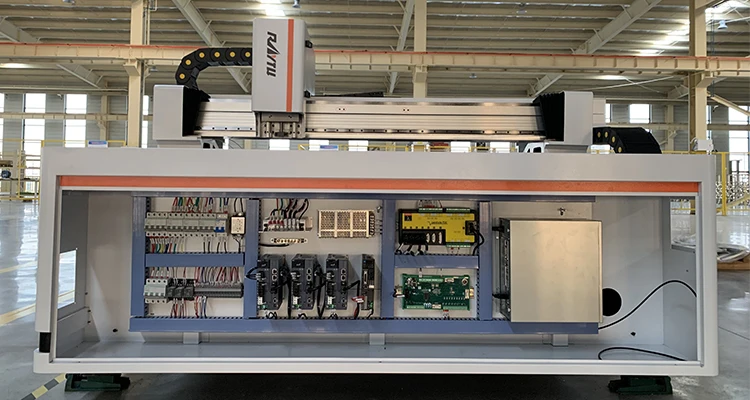

Electronic component
All electronic originals are from Schneider.
Cutting Parameter
Application
What is fiber laser cutting machine Application?
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising , metal processing, kitchen processing and other manufacturing and processing industries.
What materials can laser cutting machines be applied to?
Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.
Company Profile
Shandong Raytu Laser Technology Co., Ltd. is a professional R&D, production and sales of laser equipment high-tech enterprises.The company has a group of top laser technology talents, established a covering China, radiation of the global sales system.The company has a standardized intelligent equipment base, committed to fiber cutting machine, intelligent robot research and development, manufacturing and sales.The equipment is widely used in advertising industry, arts and crafts gifts, precision instruments, auto parts, jewelry and other industries.To meet the needs of customers in different industries, and rely on excellent design, excellent and stable performance, won the unanimous recognition of customers at home and abroad. The company regards the quality as the life, takes the technology as the foothold this, we will always adhere to "the quality, the customer is supreme, strictly observes the prestige, serves the society" the purpose, the warm welcome from all walks of life friend comes to the company to visit, the investigation, the guidance. Corporate mission: To be a one-stop procurement platform for laser engraving machine industry.Corporate vision: Made in China, leading the world. Corporate values: integrity, innovation, gratitude, cooperation, efficiency.
FAQ
What is the cutting size of this machine?
1500*3000mm For plate,it also can be customized as needed.
How long is your delivery time?
Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according
to quantity.
What is your after-sale service?
Complete machine operation instruction manuals and videos,providing on-site training services.
And If you need door to door after sale service, we also support it.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
1500*3000mm For plate,it also can be customized as needed.
How long is your delivery time?
Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according
to quantity.
What is your after-sale service?
Complete machine operation instruction manuals and videos,providing on-site training services.
And If you need door to door after sale service, we also support it.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
