Одноразовый автоматический контейнер GF430 KC для пищевых продуктов на заказ, контейнер для фруктов, 430 тонн, литьевая машина, цена
- Category: Injection Molding Machines >>>
- Supplier: Tianjin,Yihezhongwei,Precision,Machine,Co.,Ltd
Share on:
Product Overview
Description
Installation Instructions
ZOWEI GF 430CK high speed thin wall container injection molding machine is a specially designed machine model which is mainly for disposable lunch or fast food box, containers. It is with short cycle time to 5.6 seconds. GF430KC with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Technical Parameter | GF258KC | GF280KC | GF350KC | GF430KC | ||
Screw Diameter | mm | 55 | 55 | 55 | 60 | |
Max. Shot Weight(PS) | g | 400 | 400 | 420 | 500 | |
Injection Pressure | Mpa | 170 | 170.0 | 170.0 | 143.0 | |
Clamping Force | KN | 2600 | 2800 | 3500 | 4300 | |
Opening Stroke | mm | 480 | 420 | 650 | 510 | |
Space Between Tie Bars（W*H） | mm | 529X529 | 575X575 | 635X635 | 660X660 | |
Max. Mold Height | mm | 500 | 550 | 650 | 800 | |
Min. Mold Height | mm | 200 | 280 | 300 | 320 | |
Hydaulic System Pressure | Mpa | 17.5 | 17.5 | 17.5 | 17.5 | |
Machine Dimensions(L*W*H) | m | 5.8X1.7X1.8 | 6.5X2.0X1.85 | 6.6X2.0X2.0 | 7.2X2.1X2.1 | |
Digital control system uses a dedicated controller, multiple CPU processing units, a multi-function automatic fault detection, alarm system, can verify 99 processing program molds, and has a remote control interface.
Infrared heating, fast temperature rise and good thermal insulation effect.Stable machine performance and high energy saving rate.
The tie rods are made of high quality structural alloy steel plated with hard chromium, with high mechanical strength and fatigue strength.
With double guide posts and dual-cylinder balance injection device, guarantees that balanced and uniform forces are applied on the screw during injection and moving forward.
High-precision electronic detection device, multi-level control of travel, speed and position, positioning accuracy.The safety door is equipped with a triple safety device of hydraulic, mechanical and electrical interlock.
Multi stages controlling of mold clamp pressure, speed and position.Mold thickness can be adjusted through ring gear which is driven by hydraulic oil motor.

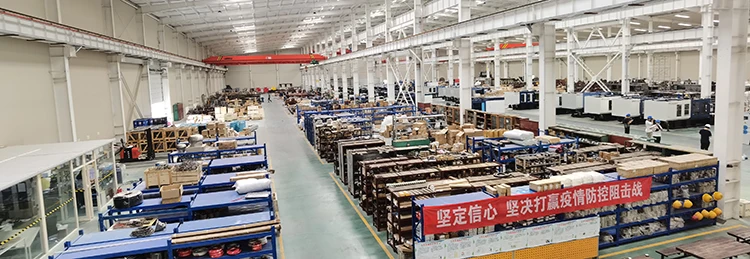

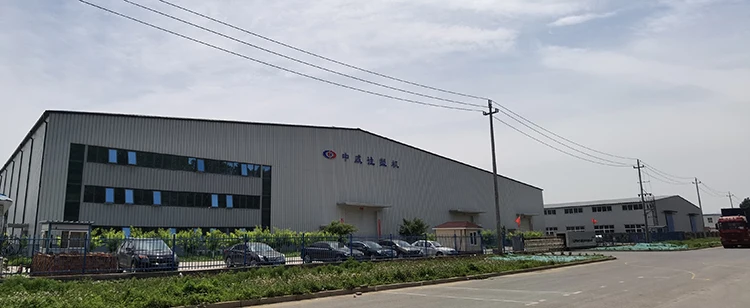

Tianjin Zowei Precision Machinery Co., Ltd is a high-tech enterprise specialized in designing, manufacturing and selling various types of high-precision, energy saving, stable performance injection molding machines in China and overseas.
Mission, meeting the needs of customers and promoting customer growth. Helping customers to obtain strong competitiveness and sustained profitability.
Vision, to develop injection molding machines for helping our society and our planet.
Over the past 30 years in injection molding machines industry, Zowei won the trust from our professional customers. With its strong R&D, design and innovation capabilities, Zowei continues to provide customers with personalized machines that adapt to different products requirements.
Over the past 30 years in injection molding machines industry, Zowei won the trust from our professional customers. With its strong R&D, design and innovation capabilities, Zowei continues to provide customers with personalized machines that adapt to different products requirements.
333
Automatic feeding machine
Grinder
Blender
Drying hopper
Mechanical arm
