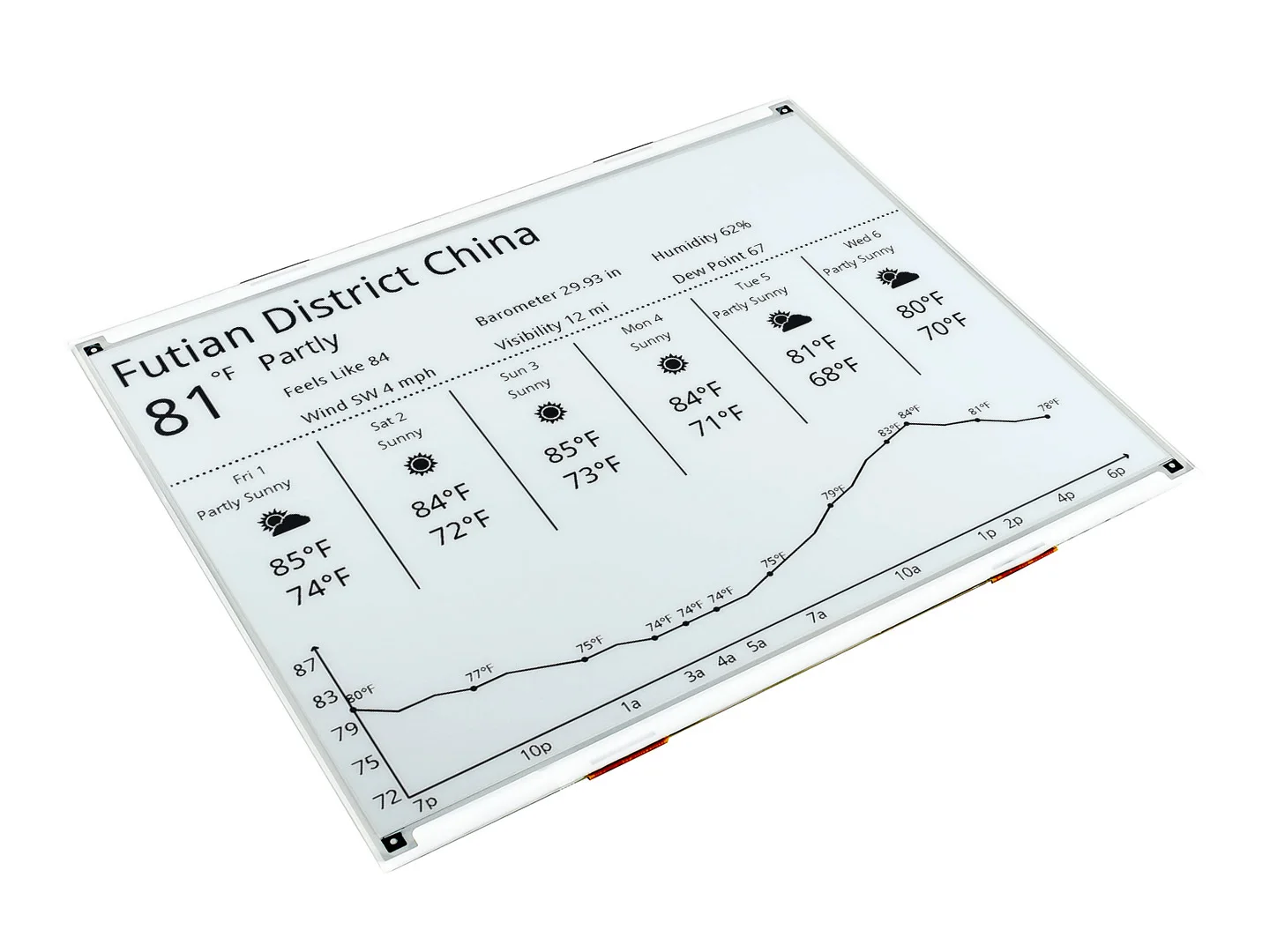

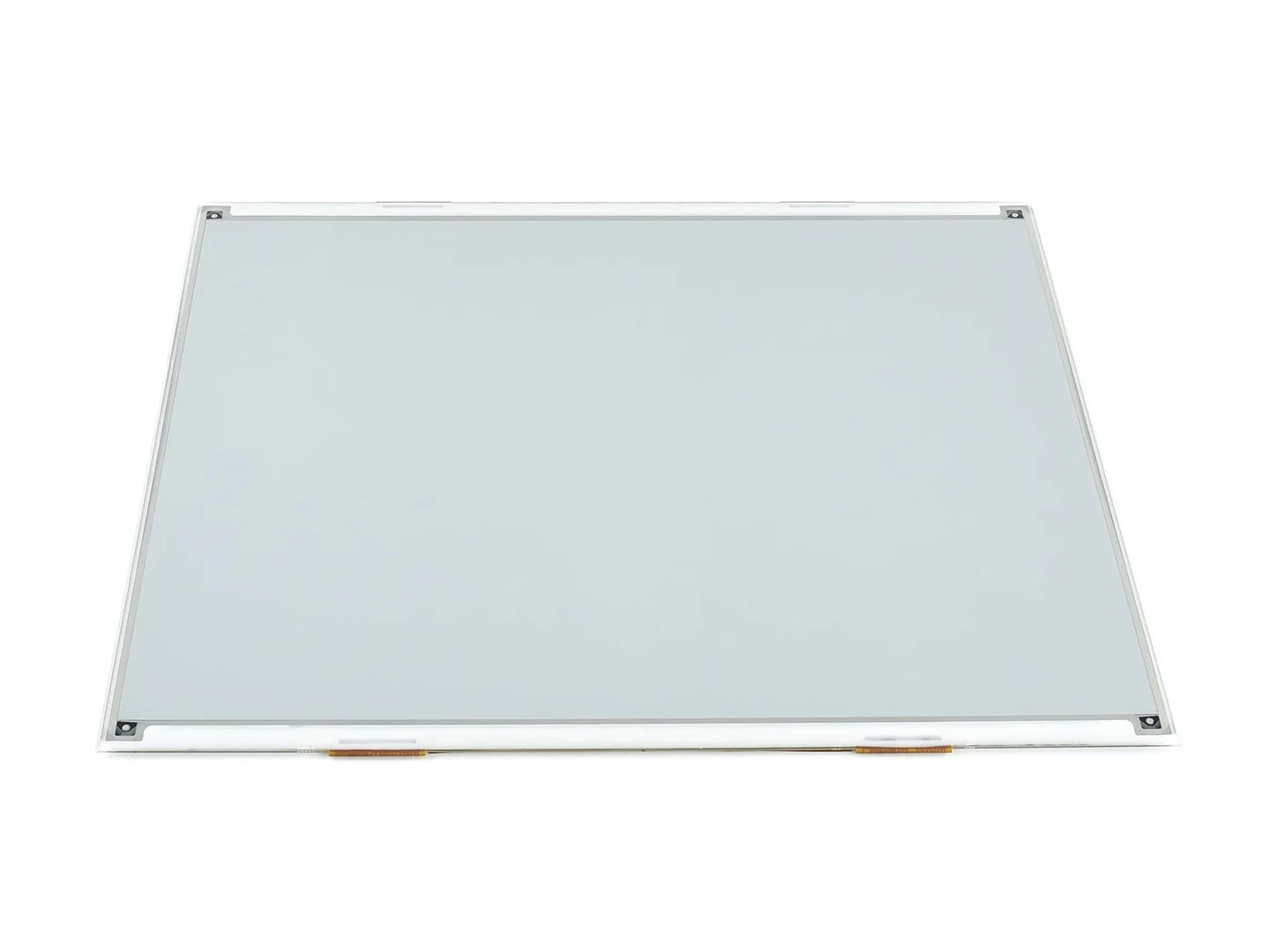

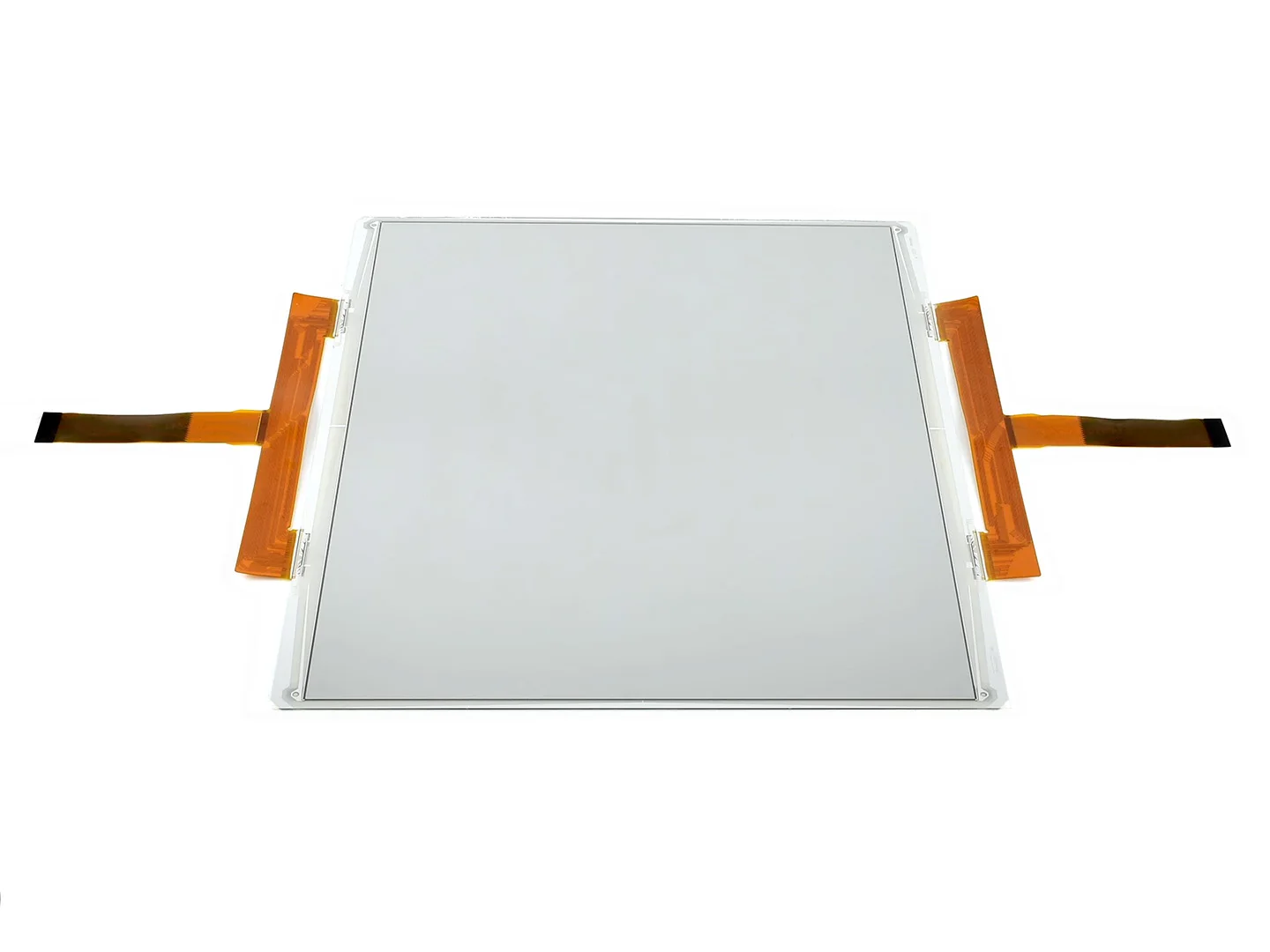

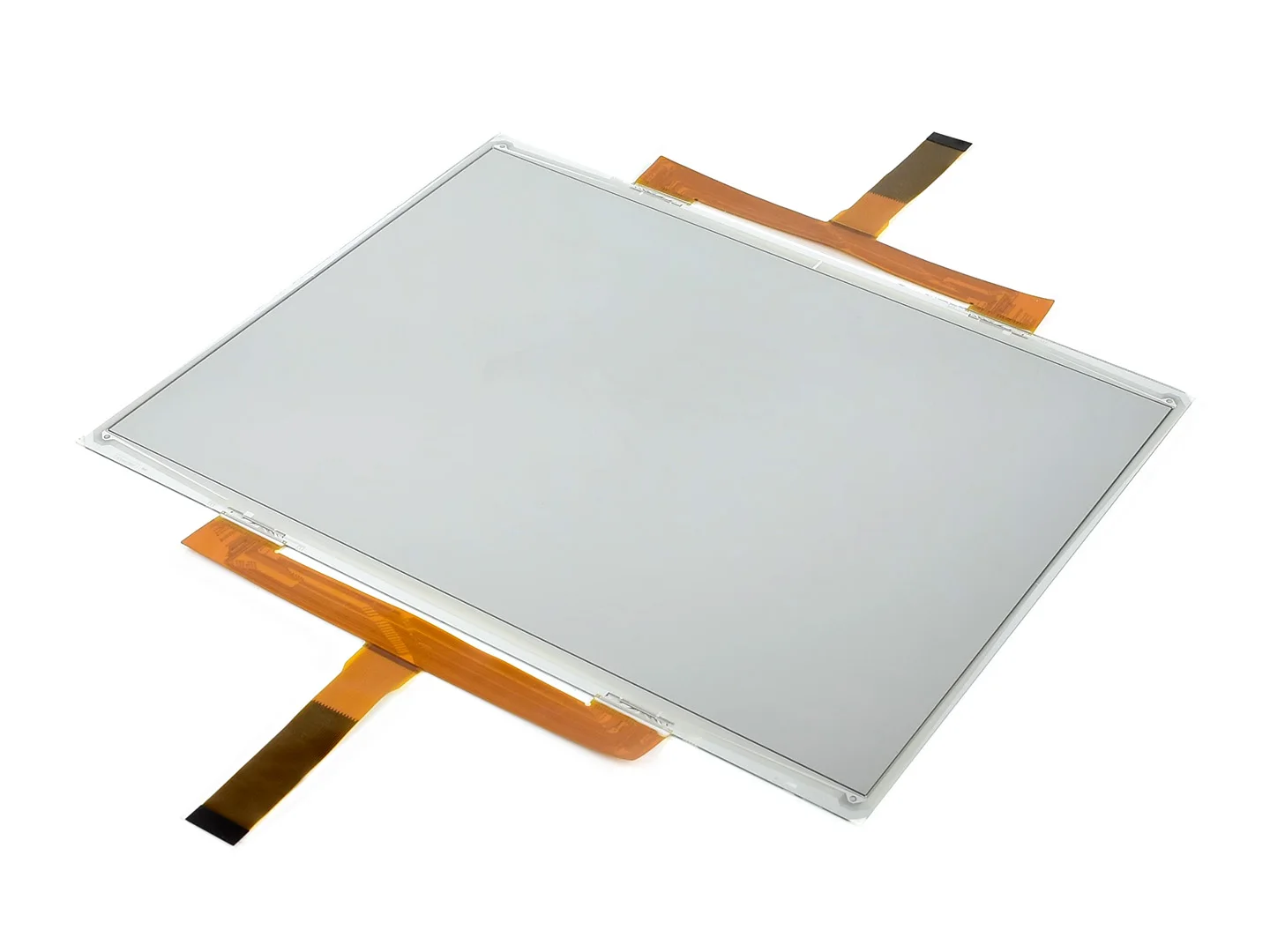

Waveshare 12.48 inch Epaper E Ink Raw Display Black White Dual Color 1304*984 Resolution SPI Interface Without PCB

1304×984, 12.48inch E-Ink Raw Display, Black/White Dual-Color, SPI Interface, Without PCB

Overview

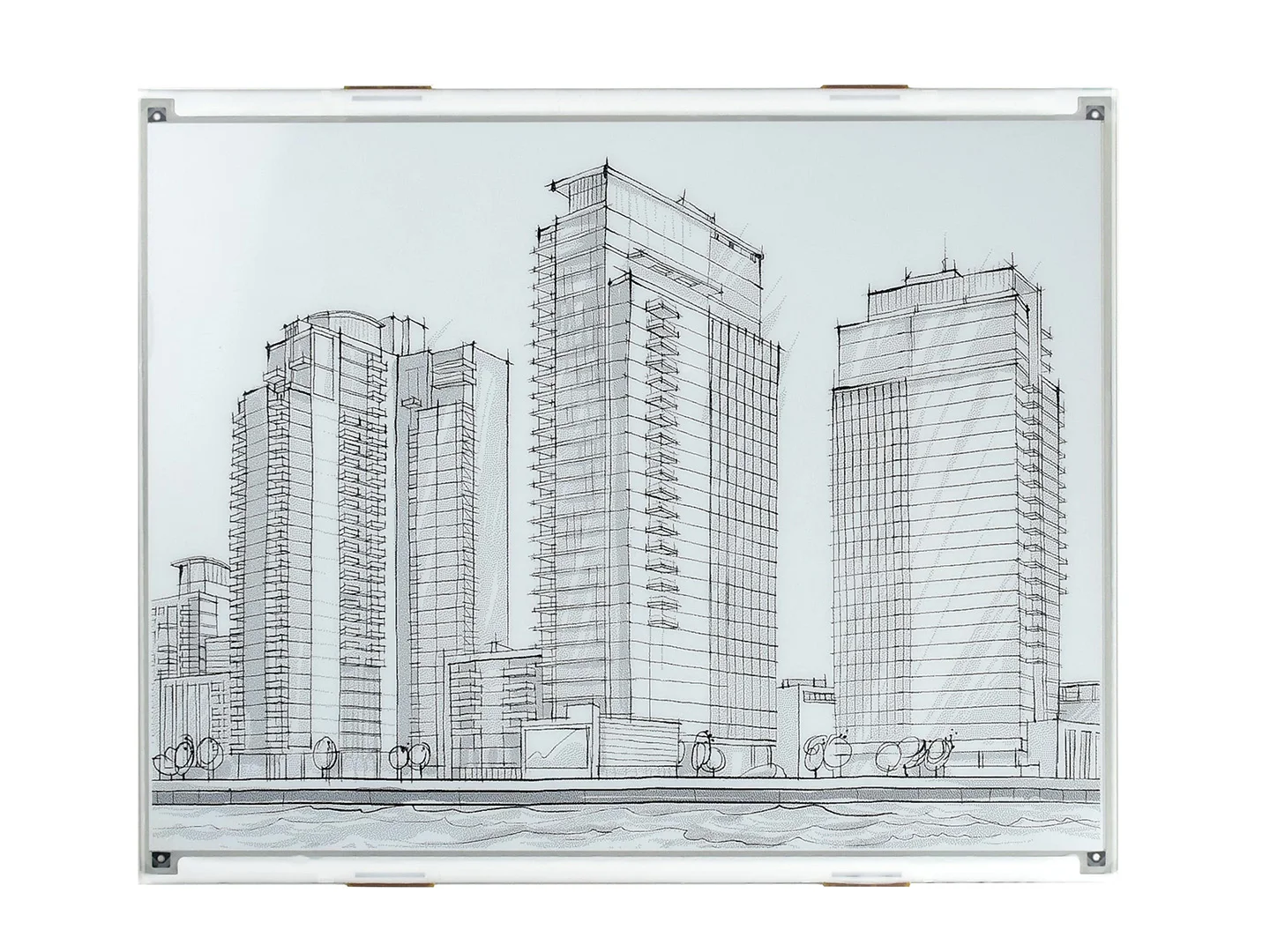

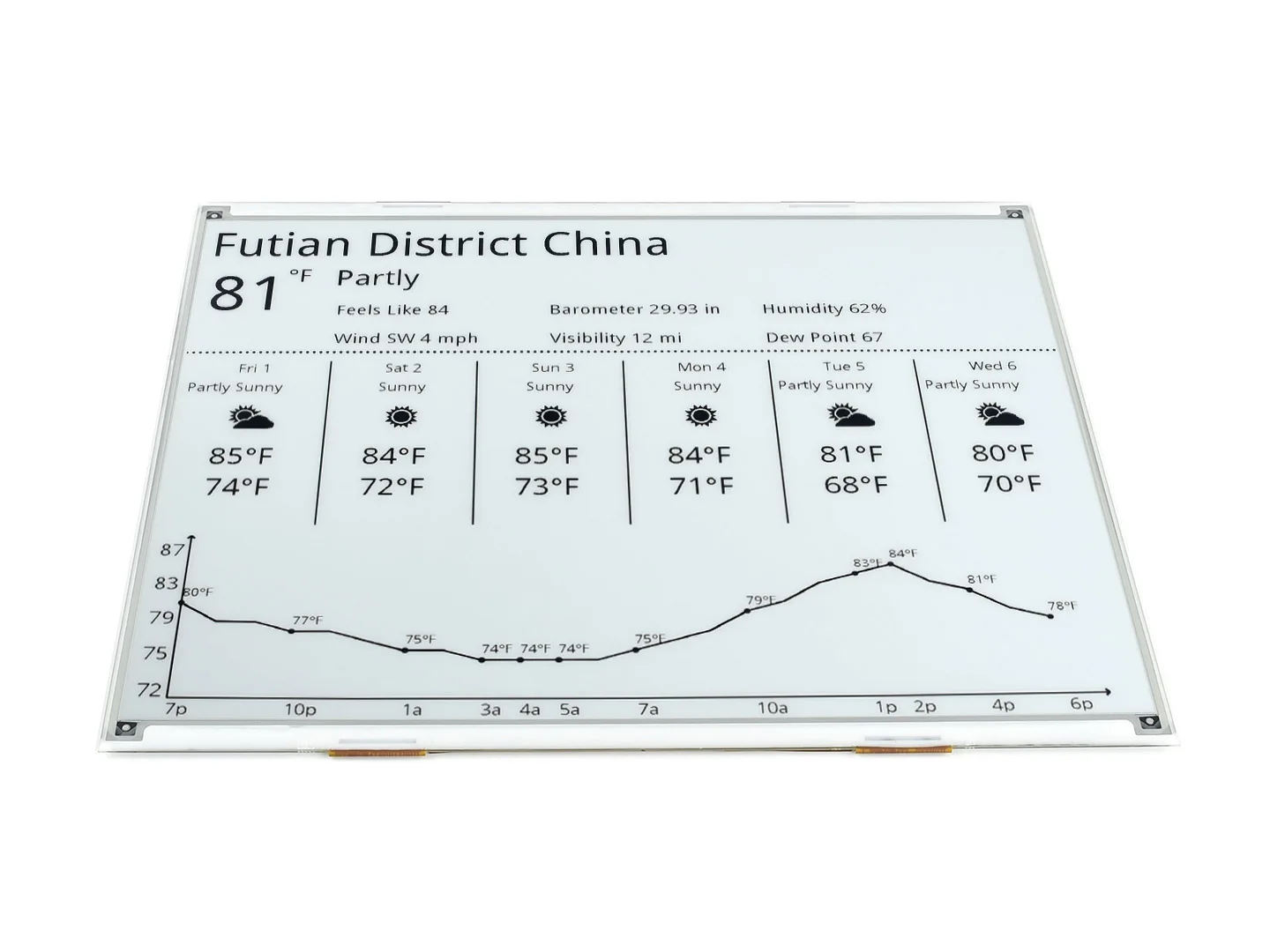

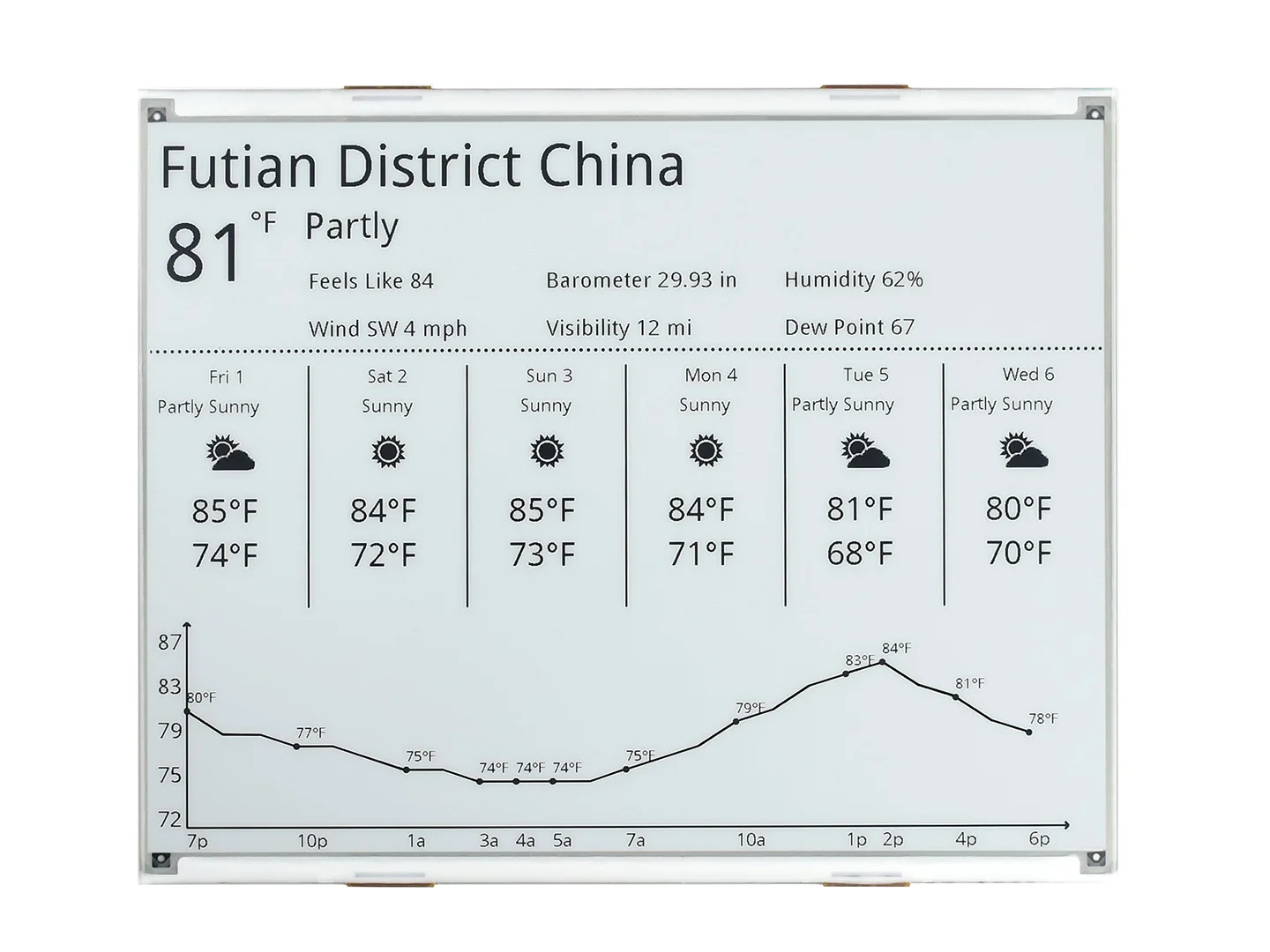

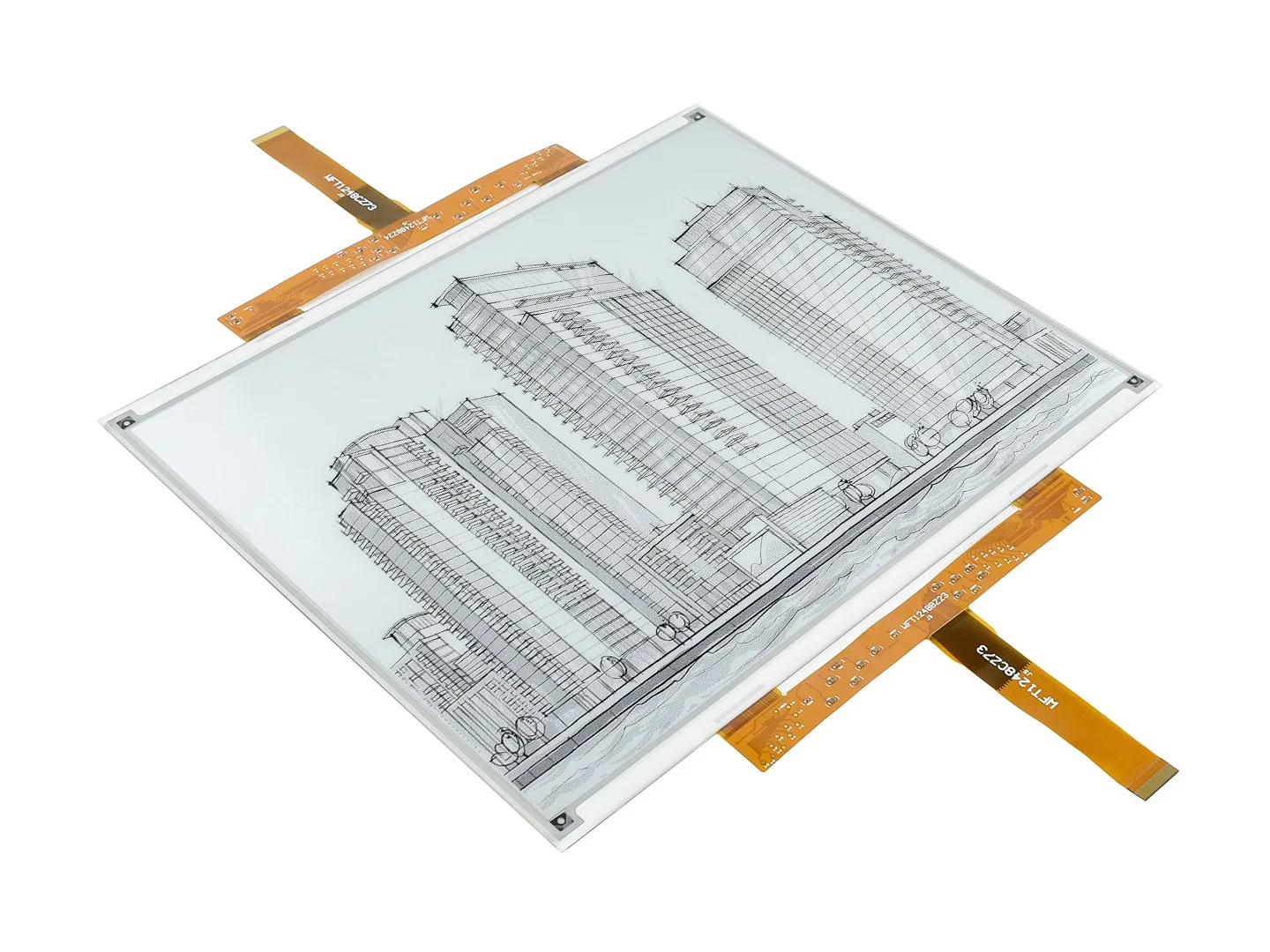

This is an E-Ink raw display, 12.48inch, 1304×984 resolution, with embedded controller, communicating via SPI interface, supports black and white dual-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down


• Ultra low power consumption, basically power is only required for refreshing


• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32/ESP32)

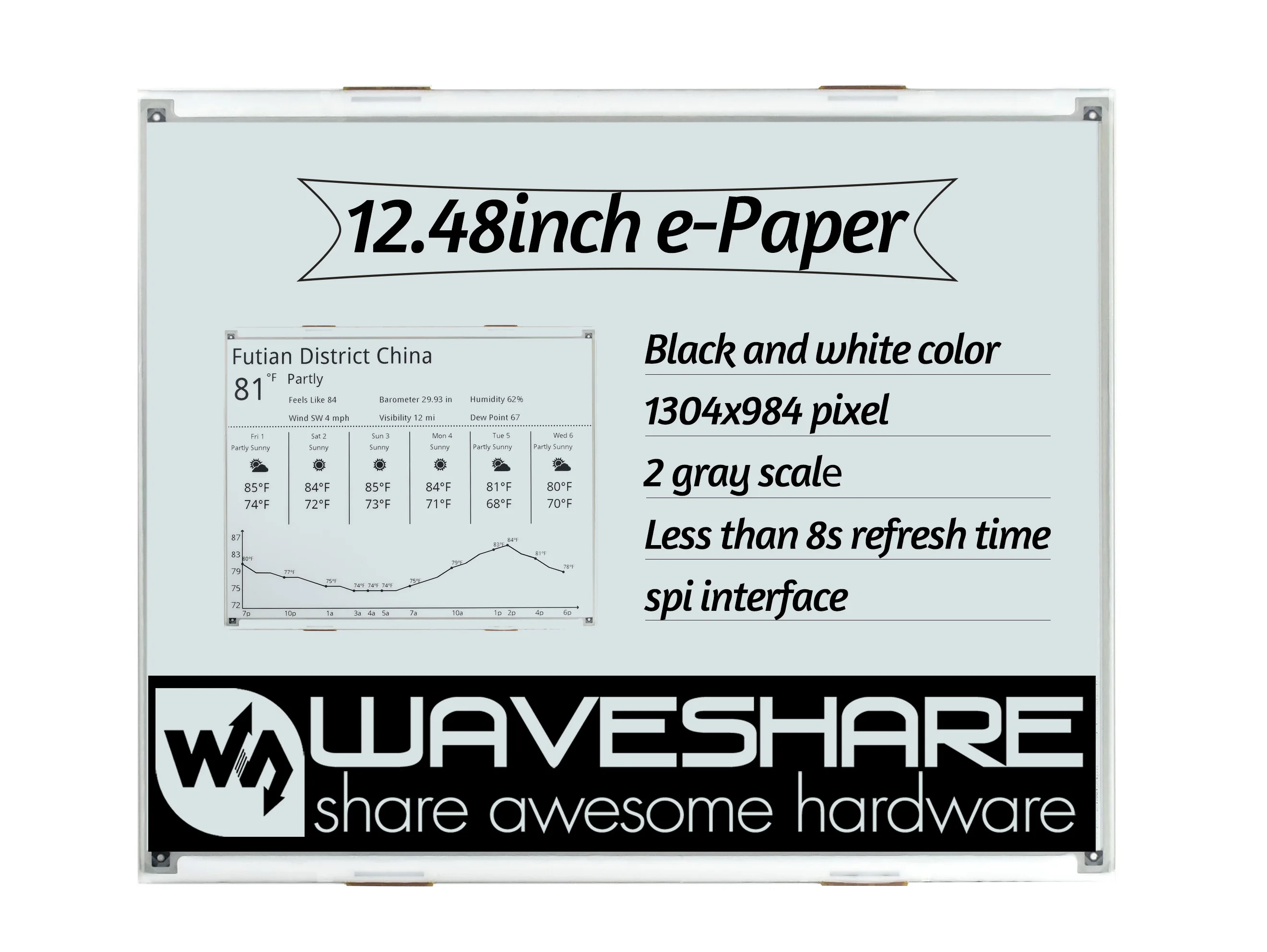

Specifications

• Operating voltage: 3.3V


• Interface: 3-wire SPI, 4-wire SPI


• Outline dimension: 261.5mm × 211mm × 0.3mm


• Display size: 252.98mm × 190.90mm


• Dot pitch: 0.194 × 0.194


• Resolution: 1304 × 984


• Display color: black, white


• Grey scale: 2


• Full refresh time: 8s


• Refresh power: 26.4mW(typ.)


• Standby power: <0.017mW


• Viewing angle: >170°

1. 12.48inch e-Paper x1

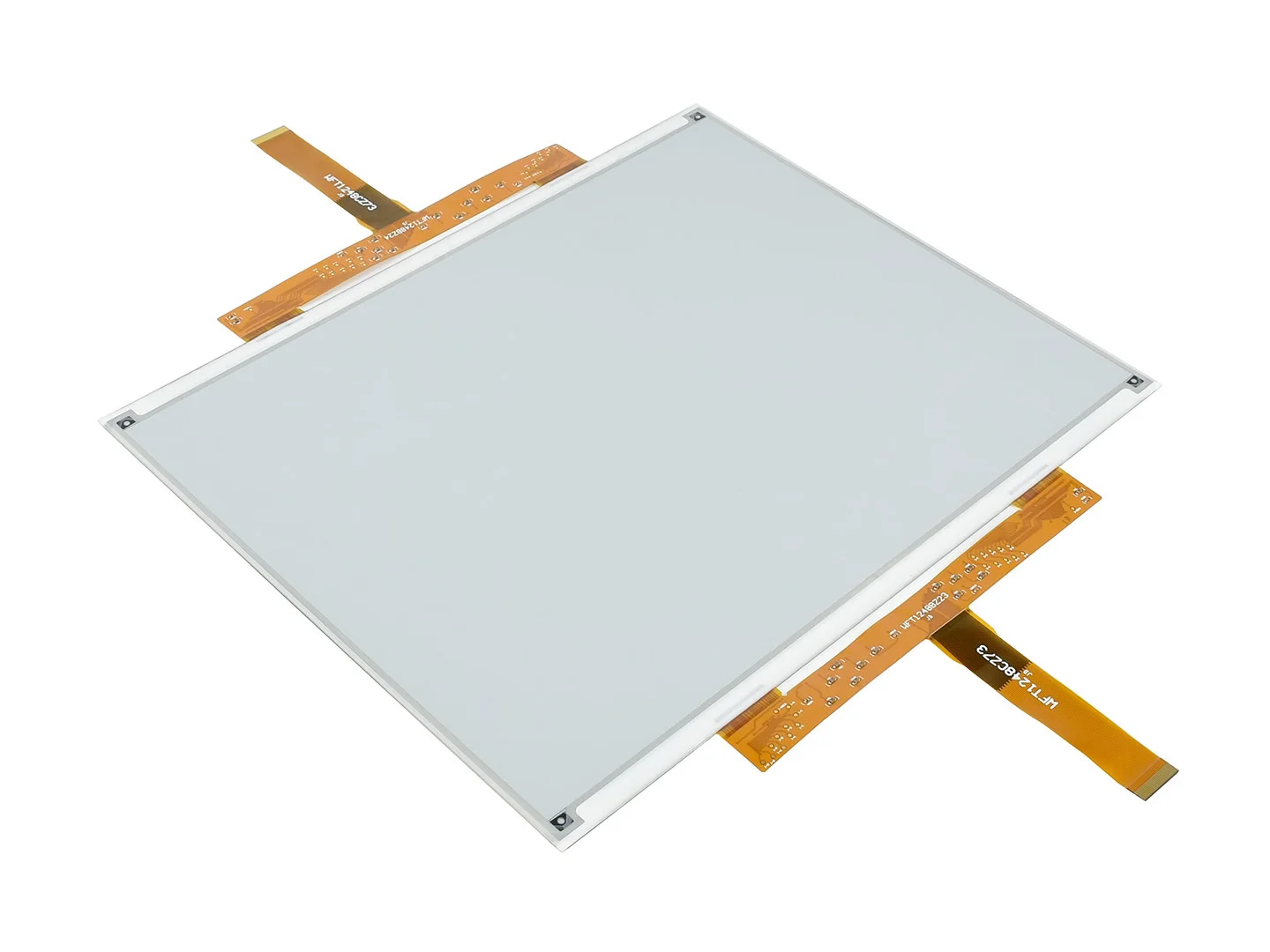

Note: This is a raw display, for easy testing and comparing, please consider the one with driver board: 12.48inch e-Paper Module
