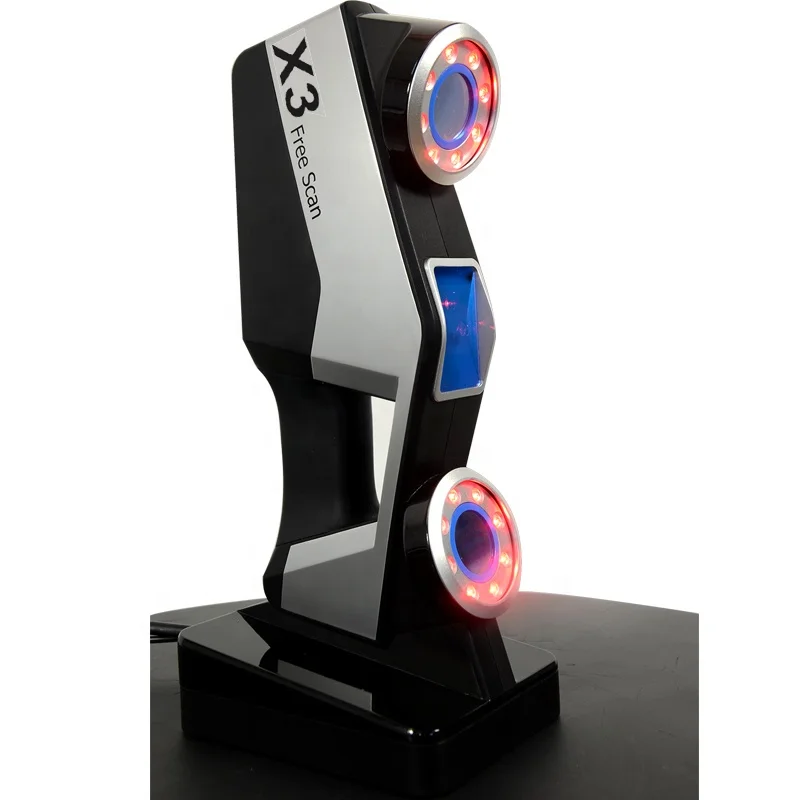

Reverse engineering 3d camera scan FreeScan X3 Laser Measurement 3d Scanner Price
- Category: Scanners >>>
- Supplier: Shandong,Guandiao,CNC,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
FreeScan X3/X5/X7 has the characteristics of high efficiency, high compatibility and high portability.
The equipment uses a non-contact measurement method, and the data acquisition process will not cause deformation measurement errors due to friction and contact pressure.
Efficient data processing rate, data can be scanned out immediately, which can accurately reflect the surface information of complex shapes.
●Ultra-portable laser handheld 3D scanner
●The accuracy is as high as 0.03mm, in accordance with the German VDI/VDE 2634 standard. ●Adapt to indoor and outdoor measurement tasks in various complex environments
●Small, light, weight 0.95kg, can be operated in a narrow space ·Fast scanning speed, simple operation
●Large measuring space and good stability
●Almost unlimited 3D scanning, independent of object size, material, and color
The equipment uses a non-contact measurement method, and the data acquisition process will not cause deformation measurement errors due to friction and contact pressure.
Efficient data processing rate, data can be scanned out immediately, which can accurately reflect the surface information of complex shapes.
●Ultra-portable laser handheld 3D scanner
●The accuracy is as high as 0.03mm, in accordance with the German VDI/VDE 2634 standard. ●Adapt to indoor and outdoor measurement tasks in various complex environments
●Small, light, weight 0.95kg, can be operated in a narrow space ·Fast scanning speed, simple operation
●Large measuring space and good stability
●Almost unlimited 3D scanning, independent of object size, material, and color
Specification

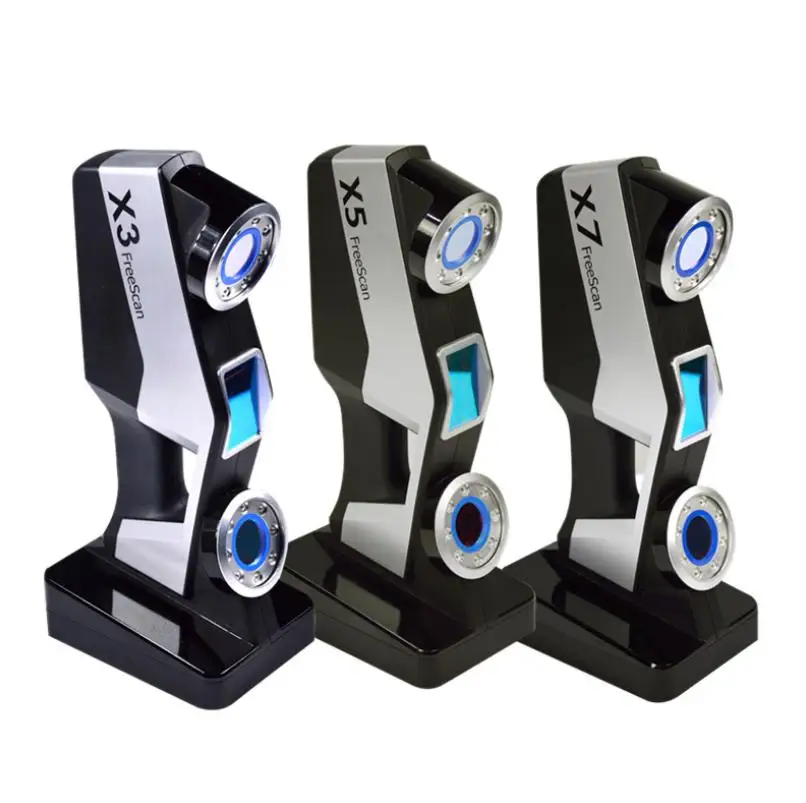

Mode | Freescan x3 | Freescan x5 | Freescan x7 | ||
Weight | 0.95kg | ||||
Dimension | 130*90*310mm | ||||
Scan rate | 240,000 points/s | 350,000 points/s | 480,000 points/s | ||
Scanning area | 280*250mm | 300*250mm | 300*275mm | ||
Light source | laser cross lines X3+1 class 2 (eye-safe) | laser cross lines X5+1 class 2 (eye-safe) | laser cross lines X7+1 class 2 (eye-safe) | ||
Resolution | 0.10mm | 0.1mm | 0.05mm | ||
Accuracy | 0.03mm | 0.03mm | 0.03mm | ||
Volumetric accuracy | 0.02+0.10 mm/m | 0.02+0.08 mm/m | 0.02+0.06 mm/m | ||
Extended scanning configuration | Digimetric | ||||
Volumetric accuracy with Digimetric | 0.020+0.025 mm/m | ||||
Standard-off distance | 300mm | ||||
Depth of filed | 250mm | ||||
Scanning parts size | 0.1-6mm | 0.1-8mm | 0.1-8mm | ||
Samples Display
Packing & Delivery
1.Package:one wooden case,inside and outside package.
2.Transportation way: The express(DHL/UPS/FEDEX), by air ,by sea ,by train.
3.Lead time: 10-12 workdays.
3.Lead time: 10-12 workdays.
4. Warranty: Two years period.
5. Instruction Book, Training Video.
6.24 hours Online Service.
7.TT/Ali Trade Assurance Payment.
Company Profile

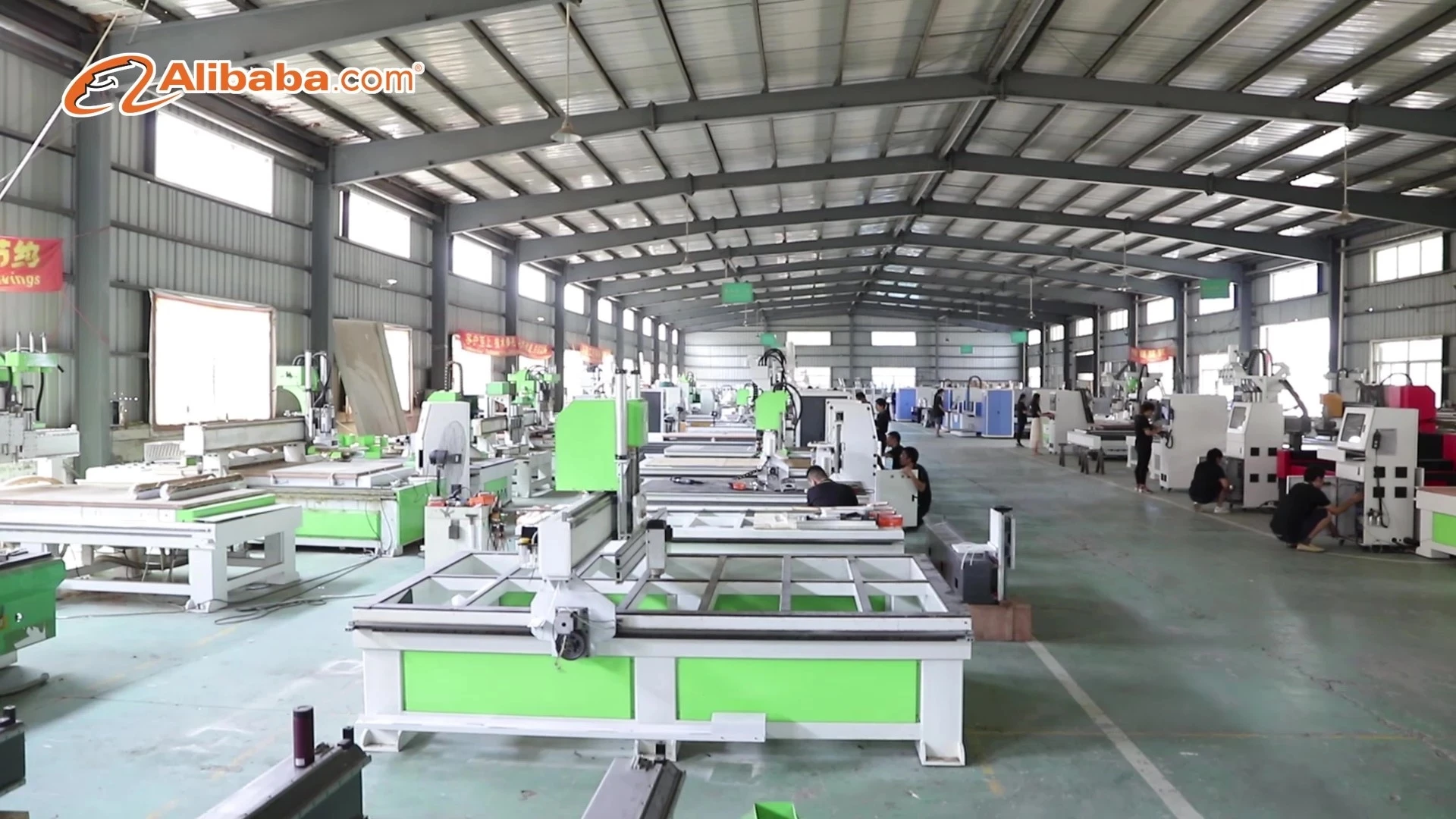

Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company’s main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine,Vacuum forming machine, Laser engraving and cutting machine, etc.
Our Advantages
1. Delivery and Lead time:
Machine will be proper packed and loaded in container, as multiple loaded to save space or wooden carton sealed for better transportation.
2.Warranty:
Machine warranty is 12 months. Machine as normal using and maintenance condition, if get any problem, will provide spare parts for free. Out of warranty, will collect the accessories cost. Technical support for maintenance or fix on time and all the time.
3. Technical support:
Manual and video illustration of the machine will be provided 24 hours online by Ali Trademanager, Skype, Email, QQ, or telephone Technical support by email, whatsapp, wechat,imo and skype available on time.
4.After sale service:
Normally the machine will sent on whole except the machine is over size to load container. so the machine arrange in production immediately after get electricity (air and water some model needed).
5.We accept the ODM,OEMIf you have other needs, please let me know.
