China The Assemblers Crane Electric Hoist For Pcb Assembly
US $1200-$9500
800kg load vacuum lifter granite marble lifting equipment
- Category: Vacuum Lifter >>>
- Supplier: Qingdao Sinofirst Machinery Co. ltd
Share on (1600145290366):
Product Overview
Description

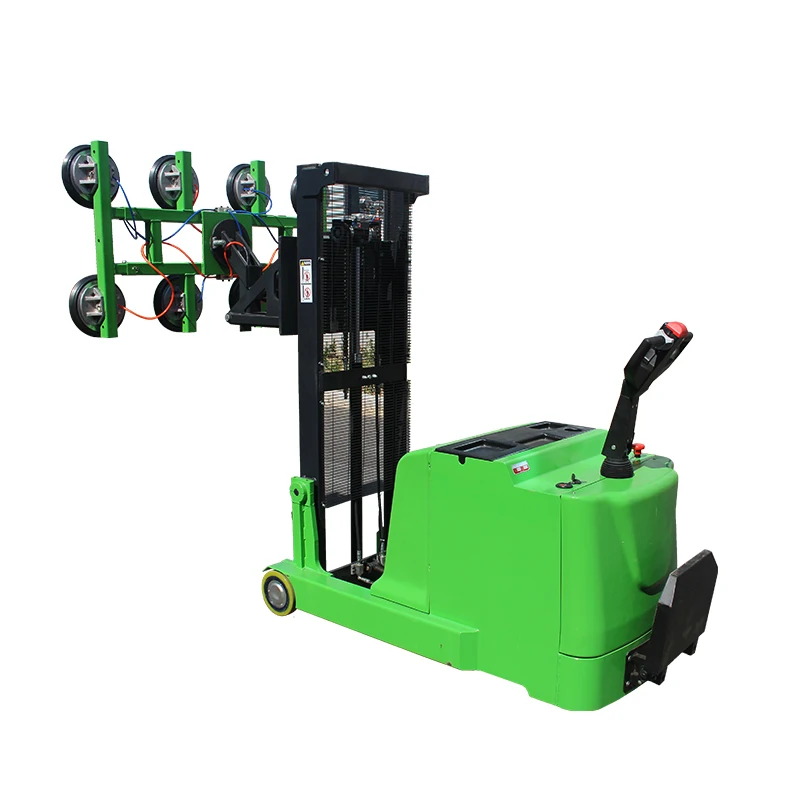

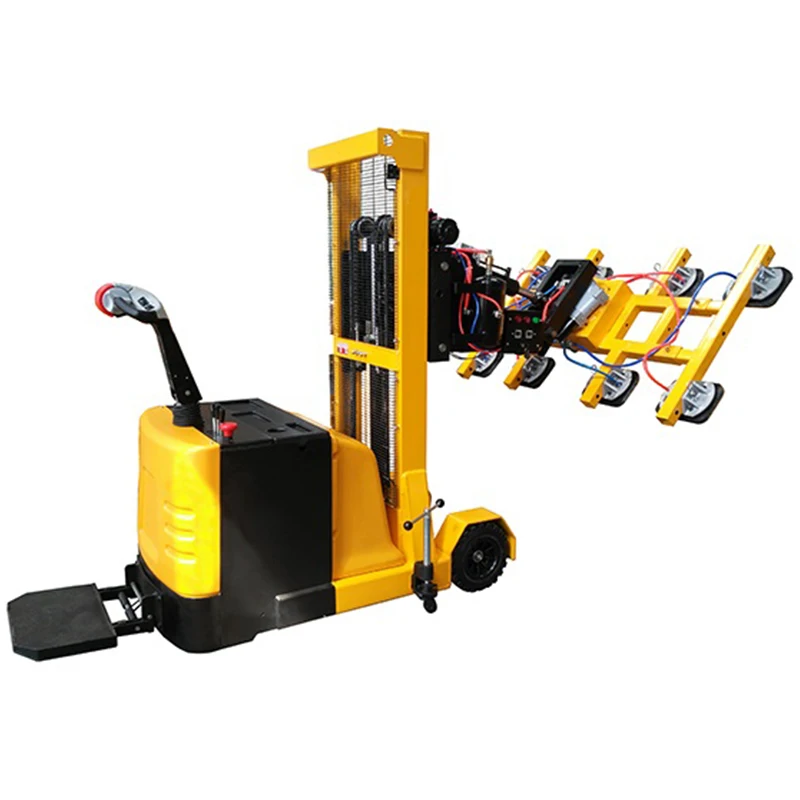

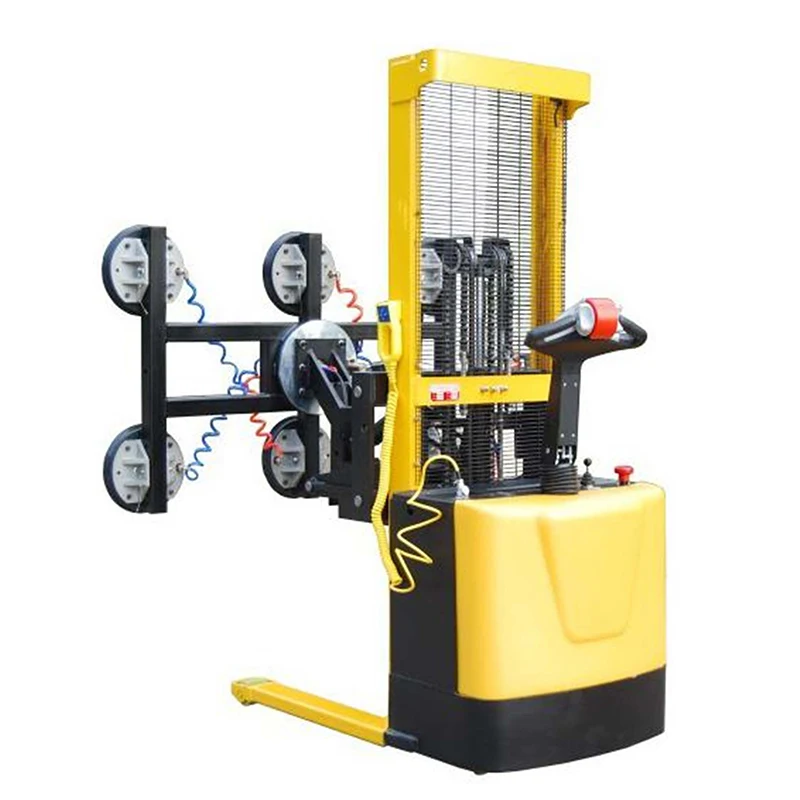

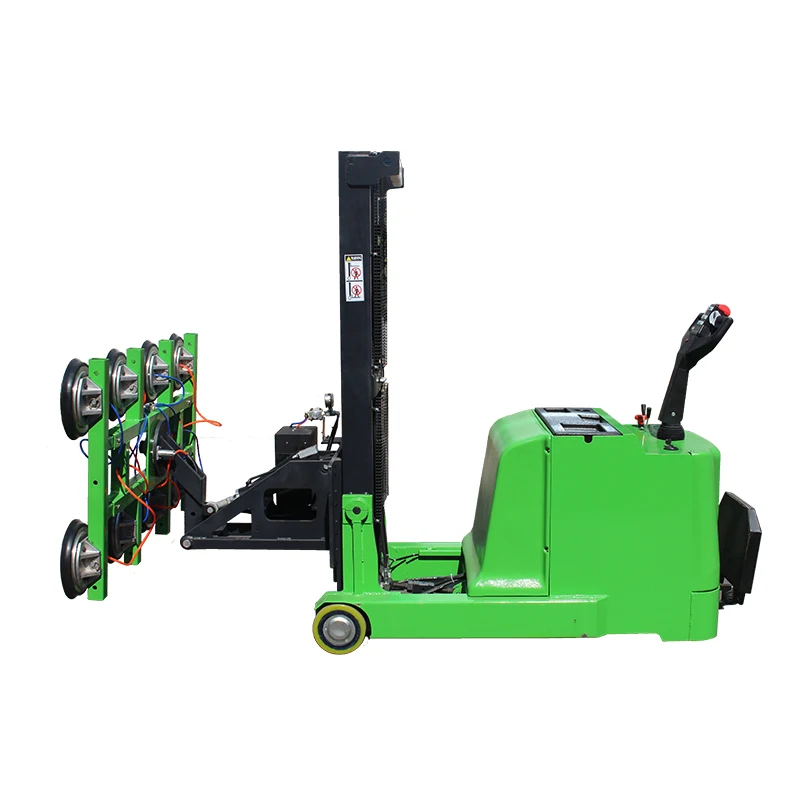

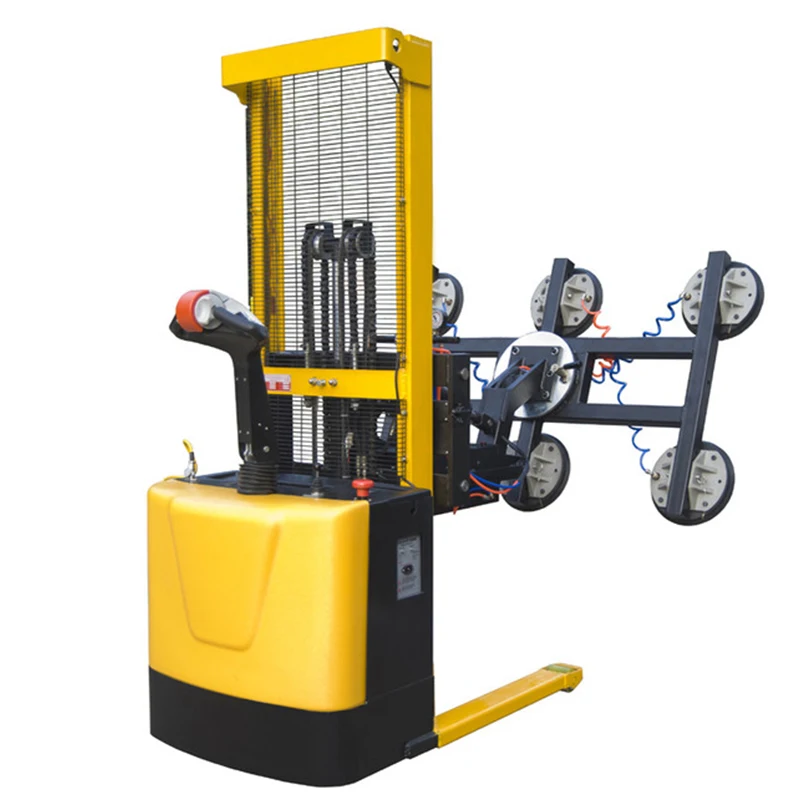

800kg Load 1.5m Height Full Electric Floor Crane Vacuum Lift
- OEM & ODM Service -
SAGAFIRST Brand Vacuum Lifter are specially designed for handling different kinds of heavy plate,board and glass,useful for installing steel board,glass wall,moving such as granite,marble.Easily handle lifting,moving and rotating with vacuum suction caps and powerful drive system.
Product Description
GL-HD series Vacuum Lifter: heavy duty vacuum lifter,easy to move around
Self-propelled drive,Higher lift cap,available upon request.Electric side shift 100mm both right/left. Electric tilting forwards/backwards from vertical to horizontal or reverse.Suction plate is manual rotating.
Handling Equipment: Special design for handling difference kind of heavy plate,such as steel,glass,granite,marble and so forth,with vacuum suction caps.
Vacuum Robot: The vacuum suction is designed with automatic pressure control doable routes to avoid system failure.Ideal for loading/unloading transporting,rotating and installation.Easy for operation,with the following functions:
GL-HD-4020 | ||||
Max. Load Capacity | 400kgs | 600kgs | 800kgs | 800kgs |
Safe Load Capacity | 200kgs | 300kgs | 400kgs | 400kgs |
Lifting Height | 1500mm | 1500mm | 1500mm | 2500mm |
QTY of Caps (customized) | 4pcs | 6pcs | 8pcs | 8pcs |
Cap Diameter | D300mm | D300mm | D300mm | D300mm |
Plate Size (customized) | 1220x1830mm | 2440x1830mm | 3660x2440mm | |
Drive Motor | 24V/500W | 24V/700W | 24V/900W | 24V/900W |
Hydraulic Motor | 24V/2000W | 24V/2000W | 24V/2000W | |
2x12V/100Ah | 2x12V/160Ah | 2x12V/160Ah | ||
Charger | 24V/10A | 24V/15A | 24V/20A | 24V/20A |
1. Self-propelled drive. Manual rotating.
2. Electric lift up to 1.5M 2.5M
3. Higher lift cap. is available upon request.
4. Electric side shift 100mm both right & left.
5. Electric tilting forwards/backwards from vertical to horizontal or reverse.
Options

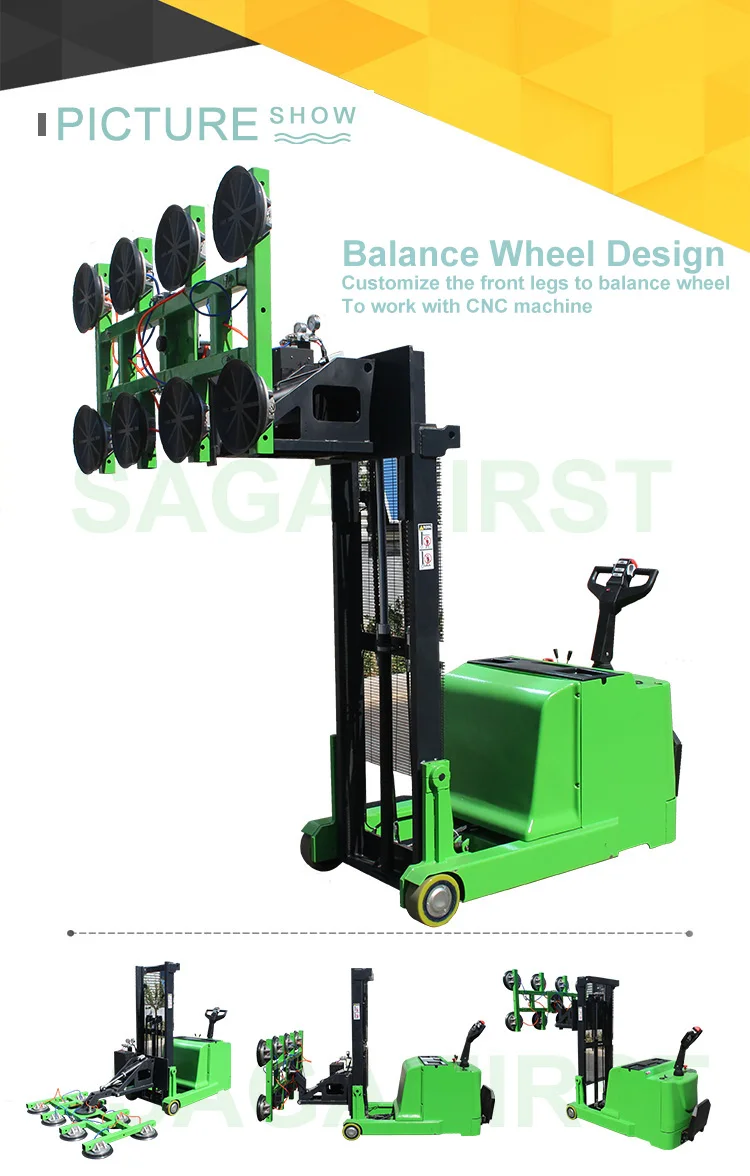

GL-HD series is of floor crane chasis. The 2pcs of front supporting legs can be customized to balance wheel, using in combine with a CNC machine. Its max lifting height is 1.6m to 2.6m with 90° vertical up/down .It's widely used to handle and move heavy panels in workshop and warehouse,like handle marbles to a CNC machine for cutting and move to another place.Price is economic.

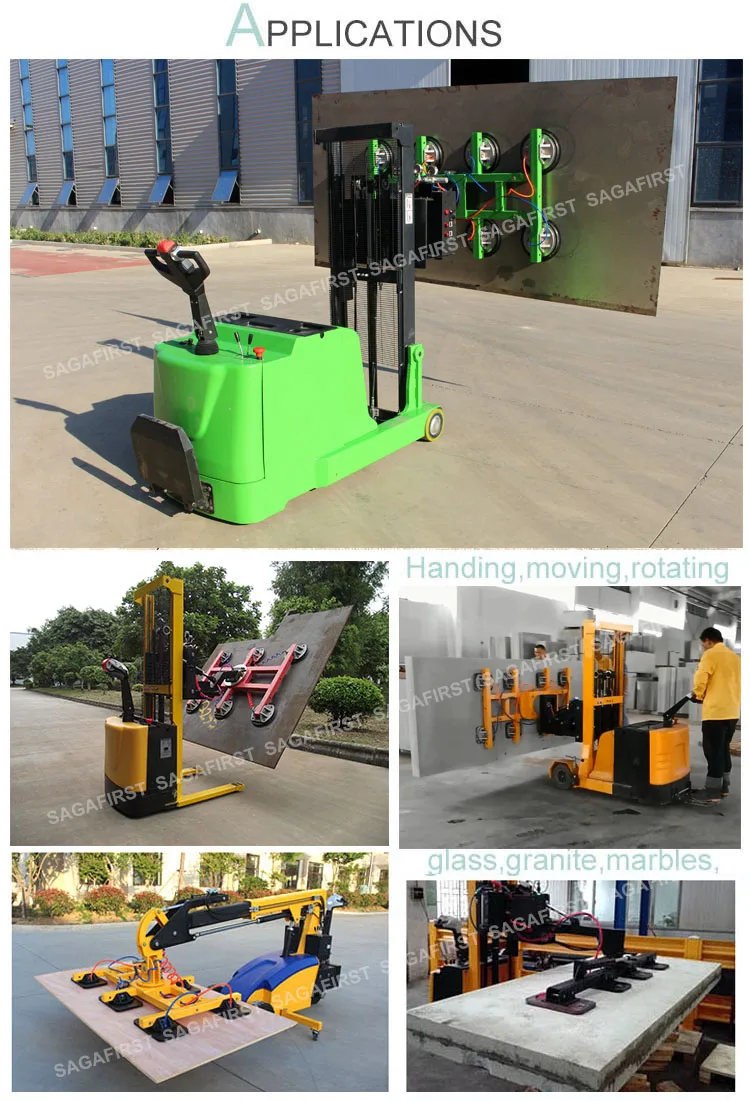

Applications
Sagafirst Vacuum Lifter is specially designed for handling different kinds of heavy plate, board and glass, useful for installing steel board, glass wall, moving such as granite, marble. Easily handle lifting, moving and rotating with vacuum suction caps and powerful drive system.
Certifications
All of sagafirst scissor lift tables are approved by European certificates and meet the international standards.
Questions | Answers |
Are you a factory or trading company? | We're factory with over 12years exporting experience. |
What's the MOQ? | 1UNIT,the more,the better. |
What's the payment terms? | <USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD100,00: TT or Irrevocable L/C At Sight. |
Do you offer OEM&ODM service? | Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc. |
What's the delivery time? | 15~20days after down payment |
What's the quality warranty? | 24 months.Offer free parts for replacement. |
How can I get the after-sales service? | We offer videos,pictures and technical guidance immediately. |
What's your QA&QC policy? | 3times 100% inspection before shipping. |
Can you tell me your clients in my country? | Of course. But only after the permittance of customers. |
