Flow Volute Casing Pump Electric Water Centrifugal Pump 1 Year Except Wearing Parts Mixed Stainless Steel or Cast Iron Ce HW
- Category: >>>
- Supplier: Zhejiang Yonjou Technology Co. Ltd.
Share on (1600145396272):
Product Overview
Description

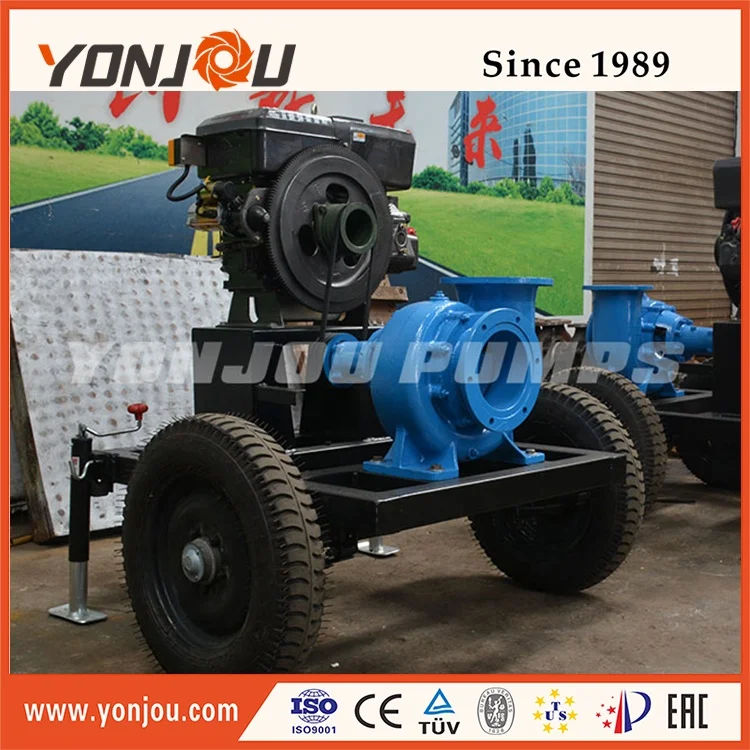

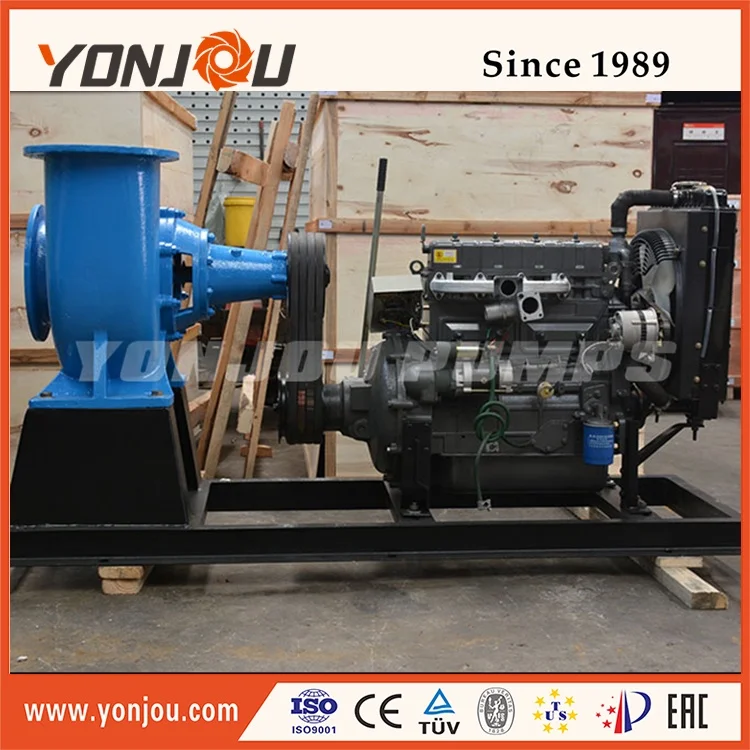

HW Agricultural irrigation diesel engine pump slurry
Product Description
Introduction:

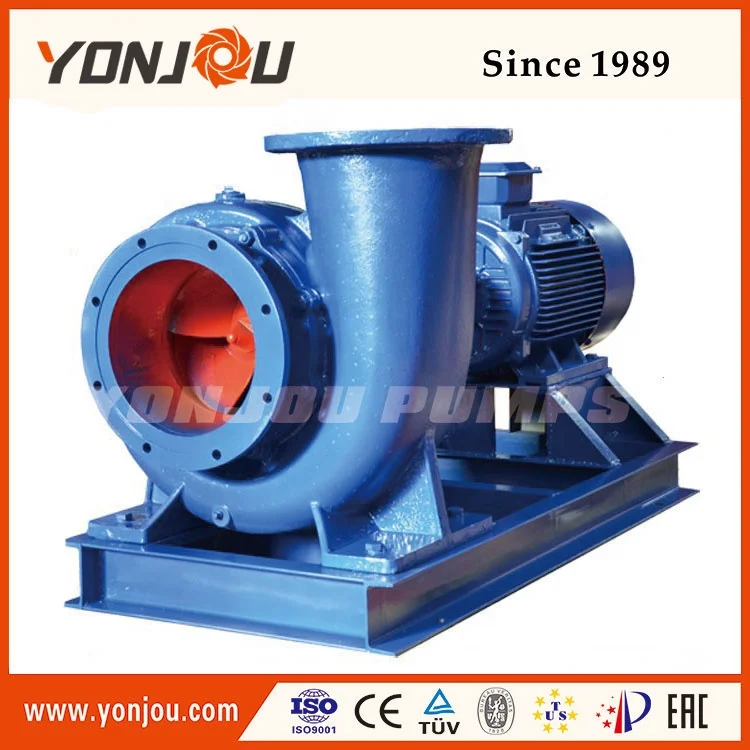

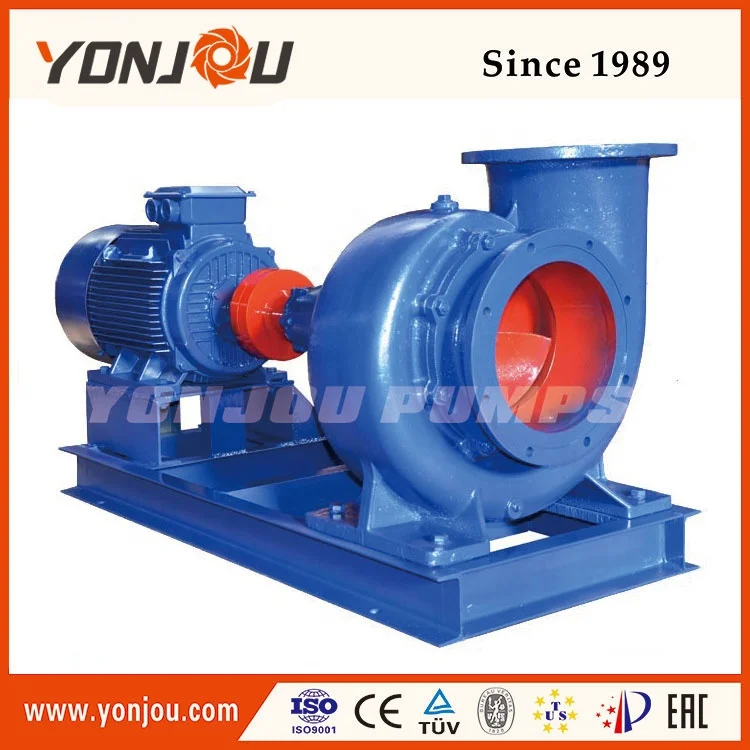

1.The HW mixed flow pump is horizontal, single stage, single suction volute type pump; it is suitable for transporting clean water or similar chemical liquid whose temperature is under 50°C.
2.The mixed flow pump has the features of simple structure, reliable in operation, easy installation, high efficiency, small dimension, light weight.,
3.It is in high efficiency and energy saving type, mainly used for agricultural irrigation, sugar factory, paper making factory and can also be used for floods and rain water drainage.
Product details:
| Mixed flow pump |
Mixed flow pump: | HW type mixed flow pump for agricultural irrigation |
Model: | HW |
Material: | Cast iron and customized |
Color: | Blue and adjustable |
Mode: | Horizontal |
Impeller: | Closed impeller |
Drive: | Belt or coupling |
Seal: | Soft packing seal or mechanical seal |
Medium temperature: | <=50°C |
Speed: | 1450r/min,970r/min |
Theory: | Centrifugal pump |
Structure: | Single stage pump |
Usage: | Clean water |
Power: | Electric or diesel |
Standard or Nonstandard: | Standard |
Application: | Irrigation, water supply and drain |
Outlet diameter: | 100-800mm |
Capacity: | 10.8-5400m³/h |
Head: | 3-118m |
Power: | 3-550kw |
Warranty: | 1year |
Certificate: | ISO9008 |
OEM: | Acceptable |
Feature: | High efficiency, easy maintenance, no clogging |
Performance data:
| Model | Capacity | Head | Speed | Effciency | Power(kw) | NPSHr | ||
| (l/s) | (m³/h) | (m) | (r/min) | (%) | Shaft | Motor | (m) | |
| 100HW-5 | 25 | 90 | 5 | 2900 | 79 | 1.55 | 2.2 | 4 |
| 100HW-8 | 25 | 90 | 8 | 2900 | 81 | 2.42 | 3 | 4 |
| 100HW-12 | 25 | 90 | 12.5 | 2900 | 81 | 3.78 | 5.5 | 4 |
| 150HW-5 | 50 | 180 | 5 | 1450 | 82 | 2.99 | 4 | 2.7 |
| 150HW-8 | 50 | 180 | 8 | 1450 | 82 | 4.78 | 2.7 | |
| 150HW-12 | 50 | 180 | 12.5 | 2900 | 82 | 7.47 | 6 | |
| 200HW-4 | 95 | 340 | 4 | 1060 | 81 | 4.6 | 4 | |
| 200HW-5 | 100 | 360 | 5 | 1450 | 81.5 | 6.01 | 4 | |
| 200HW-8 | 100 | 360 | 8 | 1450 | 83.5 | 9.39 | 11 | 4 |
| 200HW-12 | 100 | 360 | 12.5 | 1450 | 83.5 | 14.68 | 4 | |
| 250HW-4 | 125 | 450 | 4.2 | 980 | 82.5 | 6.3 | 4 | |
| 250HW-5 | 150 | 540 | 5 | 1180 | 82 | 8.97 | 4 | |
| 250HW-7 | 125 | 450 | 7 | 980 | 83 | 10.5 | 15 | 4 |
| 250HW-8 | 150 | 540 | 8 | 1180 | 84 | 14.01 | 4 | |
| 250HW-12 | 150 | 540 | 12.5 | 1180 | 84 | 21.88 | 4 | |
| 300HW-4 | 197 | 710 | 4 | 780 | 83.5 | 4.4 | 11 | 4 |
| 300HW-5 | 220 | 792 | 5 | 970 | 83 | 12.99 | 4 | |
| 300HW-7 | 216 | 780 | 7 | 980 | 84 | 17.7 | 22 | 4 |
| 300HW-8 | 220 | 792 | 8 | 970 | 85 | 20.3 | 4 | |
| 300HW-12 | 220 | 792 | 12.5 | 970 | 85 | 31.72 | 4 | |
| 350HW-4 | 278 | 1000 | 4.3 | 980 | 85 | 16.6 | 22 | 4.5 |
| 350HW-8 | 278 | 1000 | 8 | 980 | 85.5 | 25.5 | 4.5 | |
| 400HW-5 | 400 | 1440 | 5 | 730 | 84 | 23.34 | 4 | |
| 400HW-7 | 350 | 1260 | 6.8 | 730 | 86 | 28.1 | 30 | 4 |
| 400HW-8 | 400 | 1440 | 8 | 730 | 86 | 36.48 | 4 | |
| 400HW-10 | 390 | 1400 | 10 | 730 | 86 | 44.5 | 55 | 4 |
| 400HW-12 | 400 | 1440 | 12.5 | 730 | 86 | 57 | 5.5 | |
| 500HW-6 | 550 | 1980 | 6.2 | 580 | 86 | 38.9 | 45 | 5.5 |
| 500HW-7 | 650 | 2340 | 7 | 730 | 85 | 52.48 | 5.5 | |
| 500HW-11 | 650 | 2340 | 11 | 730 | 87 | 80.57 | 5.5 | |
| 650HW-7 | 940 | 3400 | 6.5 | 450 | 90 | 68 | 90 | 5.5 |
| 650HW-10 | 923 | 3322 | 9.7 | 490 | 89 | 98.6 | 115 | 5.5 |
Packaging & Shipping
Testing
Company Information
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
