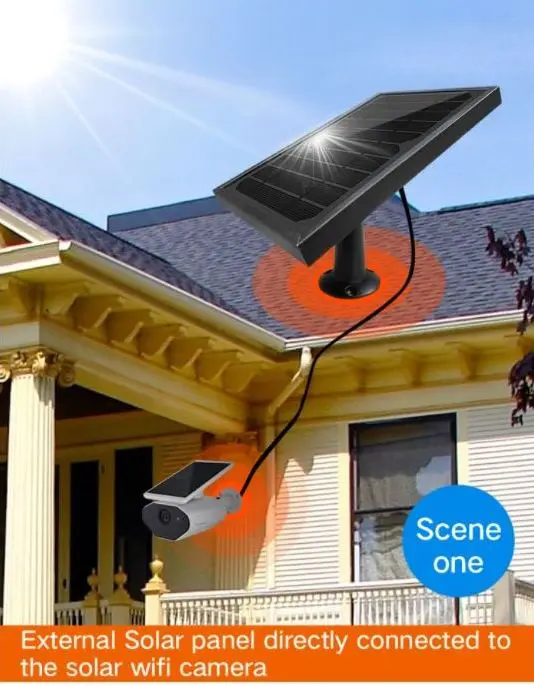

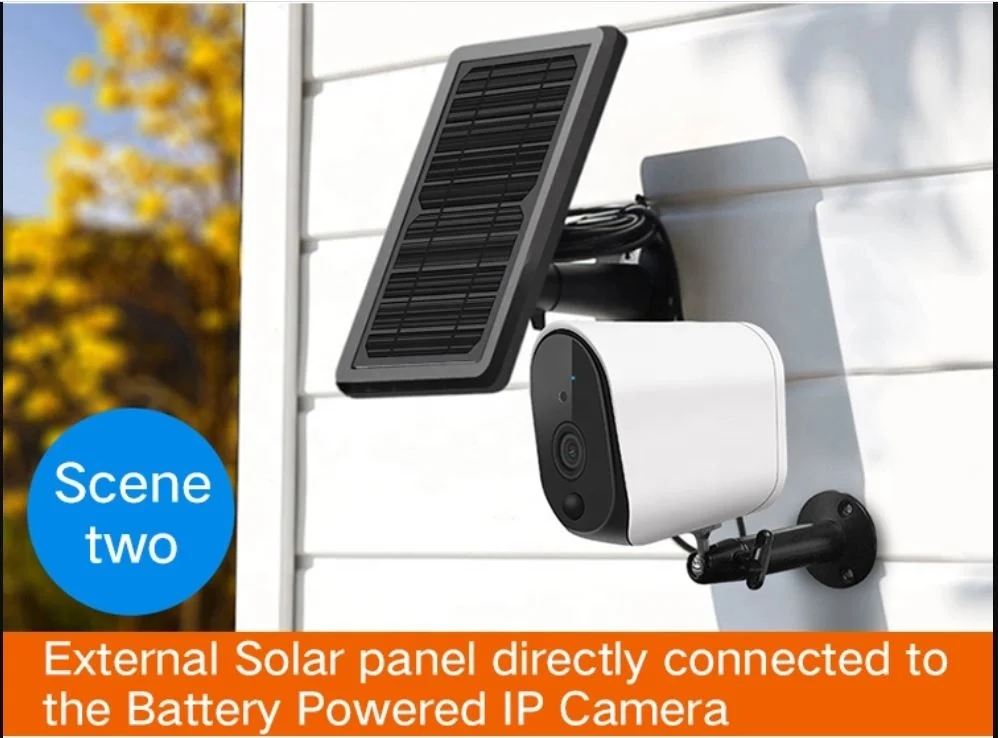

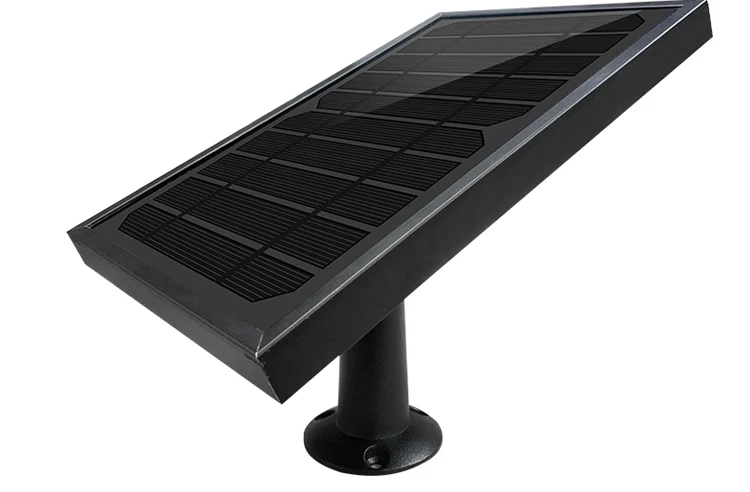

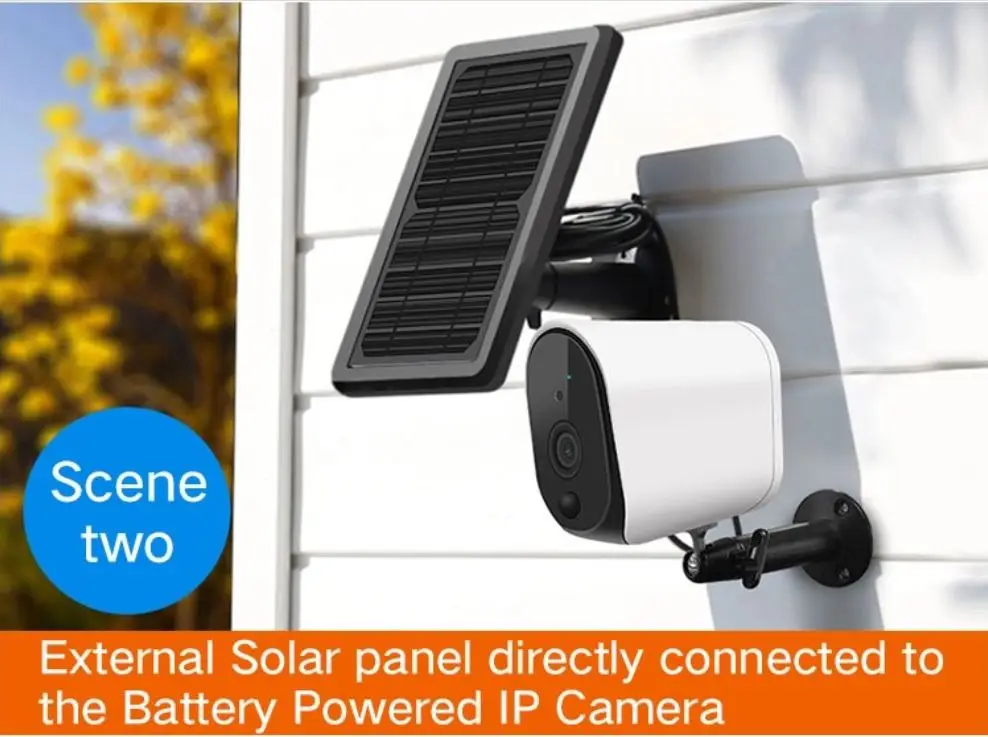

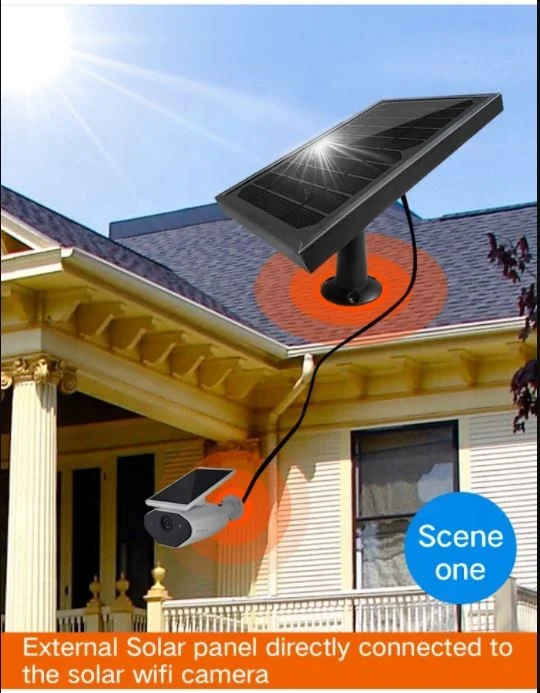

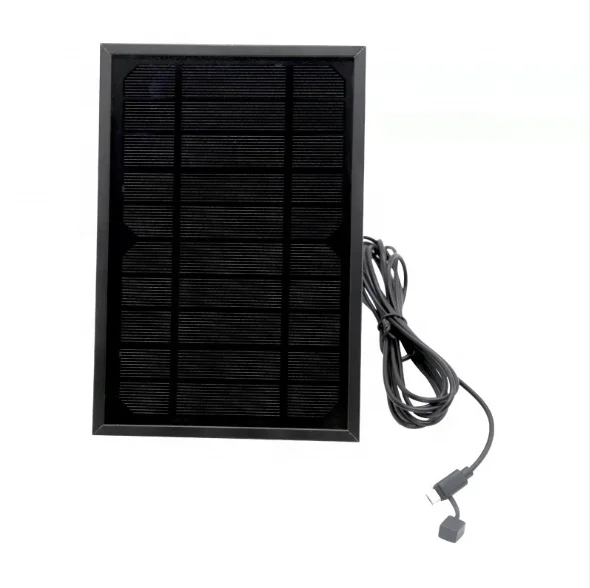

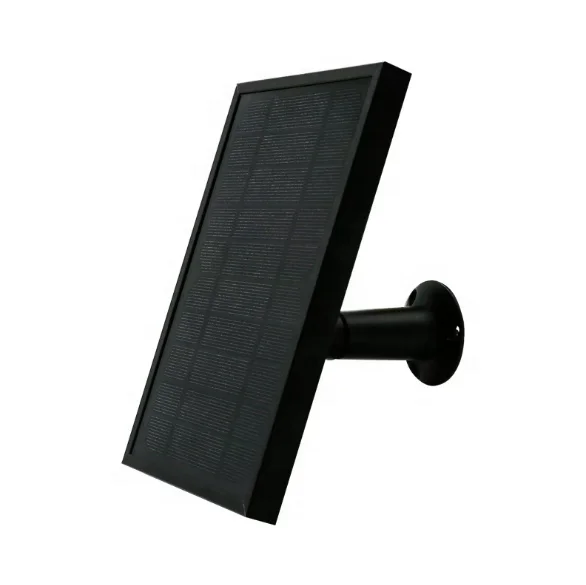

Solar Home System outdoor 5W External Solar panel with 3 meter wire charger for security ring camera
- Category: >>>
- Supplier: Raygleam New Energy Technologies Co. Ltd.
Share on (1600145459548):
Product Overview
Description
Product Description
Raygleam standard mini &small panel use unique PERC cells technology. The panel made with conducting resin paste without ribbon to minimizes the optical and resistive losses, improve mechanical load, and are able to withstand harsh weather conditions and are almost impervious to corrosion.
Key Features
★ The latest PERC solar cells technology.
★ Improved 15~20% power of output than the traditional panel.
★ Minimizes the optical and resistive losses.
★ 2 years workmanship and materials warranty.
★ Minimizes the optical and resistive losses.
★ 2 years workmanship and materials warranty.
Specification
Typical Electrical Data | ||
at STC: lrradiance 1000 W/m2 module temperature 25°C AM=1.5; | ||
Model | RG-005M/5 | |
Pmax (W) | 5 | |
Power Tolerance | 0 ~ +3% | |
Vmp (V) | 5.0 | |
Imp (A) | 1.0 | |
Voc (V) | 5.07 | |
Isc (A) | 1.12 | |
Working Temperature | -40°C ~+ 85°C | |
Nominal Operating cell temperatures | 45± 2°C | |
Temperature coefficient of Pmax | -0.4%/ °C | |
Temperature coefficient of Voc | -0.3 %/ °C | |
Temperature coefficient of Isc | 0.06 %/ °C | |
Temperature coefficient of Vmpp | -0.35 %/ °C | |
Nominal Voltage | 5V | |
Max. System Voltage | 500Vdc | |
Max. Fusing Current | 10A | |
Mechanical Data | ||
Cells Type | Prime Monocrystalline Shingled Solar Cells | |
Module Dimensions (L/W/H) (mm) | 245*175*85 | |
Module weight | 0.73kg | |
Cell's Efficiency | 21.40% | |
Front Cover (material/ thickness) | Tempered Glasses/3.0mm | |
Back Sheet (color) | Black | |
Frame | Anti-Corrosion+Ultraviolet-proof PVC | |

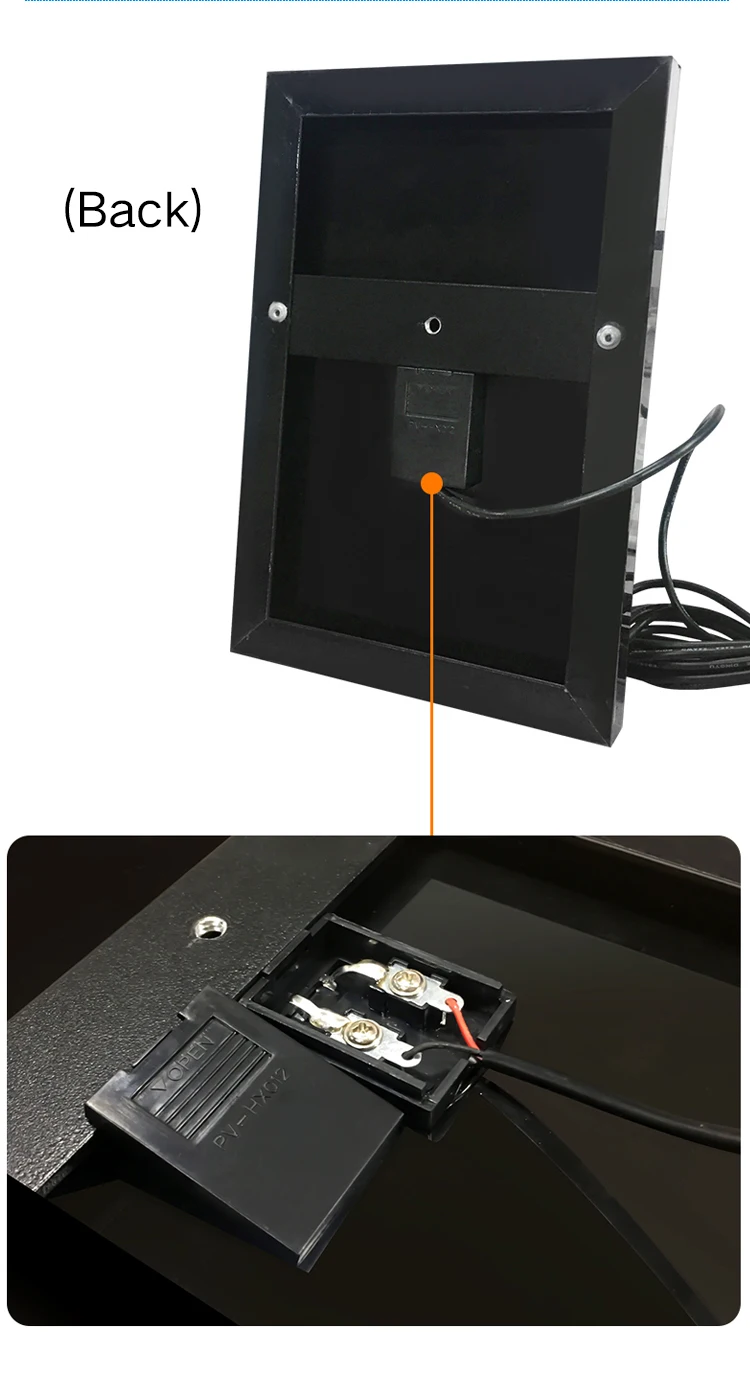

Junction Box (protection degree) | ≧IP65/IP68 with by-pass diode | |
Cables & Connectors | 3.0 m/Micro USB | |
Package Information | ||
Package | Single Package | |
Pieces of Carton | 25 | |
Gross Weight of Carton(KG) | 22 | |
Carton Dimension (mm) | 530*410*640 | |
