YSESU 2000A LED Low Price Portable Medical Electrosurgical Unit Ligasure Electrical Surgical Generator With Bipolar

Product Overview

Description

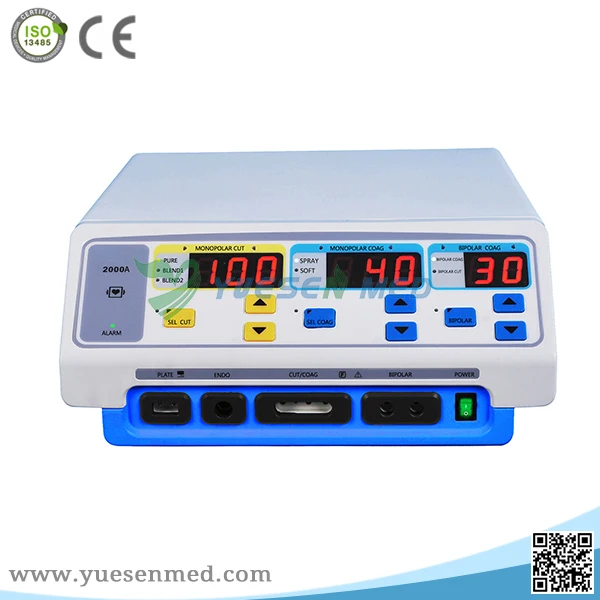

YSESU-2000A LED Low Price Portable Medical Electrosurgical Unit Ligasure Electrical Surgical Generator With Bipolar





 Main Features

* Max 300W Electrosurgical Generator, with mono-polar and bipolar function.

* Seven working modes: pure cut, blend1, blend2, spray coag, soft coag, bipolar coag, bipolar cut.

* Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.

* Microprocessor controlled,.With audible and visual indicators and errors codes during the process of outputting.

* Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.

* Both hand and foot controlled.

* Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.

* The unit always remember the last setting when it turned off.

* Remote control function. The surgeon can adjust the outputs by power control ESU pencil.

* The ESU unit can be connected with laparoscope and endoscope, etc.

* Protection against over-voltage and over-current.

* Defibrillation protected.

* Convection refrigeration without ventilator.

* Mounted on a 4 wheels cart(optional).

* Meets the requirements of international safety standards EN60601-1 and EN60601-2.



Technical Specifications

      Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)

Operating frequency: 416KHz

Power rating: 1100VA±10%



Seven working modes:

*Mono-polar Cut

a) Pure cut:1W~300W( Load 800Ω)

b) Blend1:1W~250W(Load 800Ω)

c) Blend2:1W~200W(Load 800Ω)



*Mono-polar Coag

d) Contact Coag:1W~80W( Load 800Ω)

e) Forced Coag:1W~120W( Load 800Ω)

*Bipolar

f) Bipolar Coagulation: 1W~50W( Load 200Ω)

g) Bipolar Cut: 1W~90W( Load 200Ω)

*Power Consumption: ≤1100VA



Standard Accessories

Code	Accessories Name	Quantity
1	Electrosurgical Pencil	5pcs
2	Electrosurgical Pad	10pcs
3	Electrosurgical Pad Cable	1pcs
4	Double Footswitch	1set
5	Bipolar Forceps	1pcs
6	Bipolar forceps cable	1pcs
