Hot Selling Cheap Price Cnc Horizontal Turning Lathe Machine
- Category: >>>
- Supplier: Shanghai Sealion Machine Tool Co. Ltd.
Share on (1600145490974):
Product Overview
Description
Product Description
Specification
Model No | 型号 | C5820 | C5225 | C5240 | C5250 | C5263 | C5280 |
Max Machining Diameter(mm) | 最大加工直径(mm) | 2,000 | 2,500 | 4,000 | 5,000 | 6,300 | 8,000 |
Max Machining Height(mm) | 最大加工高度(mm) | 1,400 | 1,600 | 1,600 | 2,000 | 2,500 | 3,000 |
Max Load on Table(Kg) | 工作台承重(Kg) | 6,300 | 10,000 | 15,000 | 32,000 | 63,000 | 100,000 |
Table Diameter(mm) | 工作台尺寸(mm) | 1,800 | 2,250 | 3,500 | 4,200 | 5,800 | 6,300 |
Main Motor Power(Kw) | 主电机功率(Kw) | 55 | 55 | 75 | 75 | 110 | 130 |
Table Rotary Speed(r/min) | 工作台转速(r/min) | 2.5-80 | 2-63 | 2-40 | 1-35 | 0.34-25 | 0.25-25 |
Horizontal Travel X(mm) | 水平移动行程 X(mm) | 1,300 | 1,400 | 2,200 | 2,700 | 3,950 | 4,450 |
Vertical Travel Z(mm) | 垂直移动行程Z(mm) | 1,350 | 1,000 | 1,000 | 1,250 | 1,600 | 2,000 |
Feeding Speed of X&Z(mm/min) | X&Z进给速度(mm/min) | 1-2,000 | 1-2,000 | 1-2,000 | 1-3,000 | 1-3,000 | 1-3,000 |
Position Accuacy of X&Z(mm/1000mm) | X&Z定位精度(mm/1000mm) | +/-0.03 | +/-0.03 | +/-0.03 | +/-0.03 | +/-0.03 | +/-0.03 |
Size of Machine LxWxH (M) | 机床尺寸 长x宽x高 (M) | 3.7x3.6x4.9 | 5.4x4.6x4.9 | 6.8x5.0x5.0 | 8.4x6.3x5.5 | 14.2x7.2x9.2 | 15.7x8.7x9 |
Weight of Machine (Kg) | 机床总重量 (Kg) | 25,000 | 35,000 | 50,000 | 80,000 | 180,000 | 260,000 |
Configuration
Configuration List:
Siemens/Fanuc System
Electric Tool Post
A/C for Electric Box
Threading
Servo Main Motor
Full Cover with Chip Conveyor
ATC System
Configuration List:
Siemens/Fanuc System
Electric Tool Post
A/C for Electric Box
Threading
Servo Main Motor
Full Cover with Chip Conveyor
ATC System
Features of Machine:

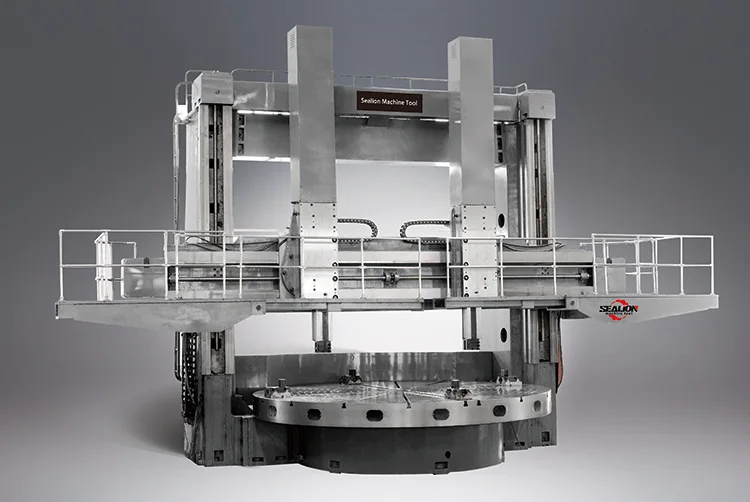

Double column vertical lathes are designed with hydrostatic bearings for better cutting performance. It is equipped with a variety of modern features and is best suited to the manufacturer's processing requirements. The machine is compatible with automatic tool change system (ATC) and ATC as well as complex machining functions. Regarding the column heightening model, there is a double sliding column system. The cross beam can move up and down to achieve better cutting accuracy. Users can choose one to match their own processing needs.
With those models, factory operators can use advanced tools to assist in better processing. The double column vertical lathes are capable of handling different types of tasks to meet a wide range of machining requirements.
The heavy-duty spindle incorporates a high precision hydrostatic bearing designed to withstand high axial and radial loads. In the hydrostatic system, pockets of oil between the base of the machine and the table eliminate contact between mating surfaces and promote friction-free operation. The combination of the high/low motor and 2 speed gearbox provides the benefits of a 3-speed transmission. Power is transmitted through a Class 1 ring and pinion gear that provides a further gear reduction and torque multiplication.
The X and Z axes are a box way design that facilitates heavy duty machining and high precision. The Turcite B-coated ways are completely enclosed and feature a forced lubrication system. The rigid twin column design and heavy base are best castings, heavily ribbed to minimize thermal distortion and dampen vibration.
Advantages:
The machine is suitable for rough or fine machining of auto, bearing, wind power, motor and water pump etc.
The base and column use one-piece high quality castings.
X&Z are using brand linear guideway.
Main transmission is driven by frequency or servo motor, simple structure and high transmission efficiency.
Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It can reach high accuracy and fast moving.
Machine can equip optical ruler to realize full close loop control.
Full cover is your optional together with chip conveyor and coolant system.
Siemen or Fanuc system.
Double column vertical lathes are designed with hydrostatic bearings for better cutting performance. It is equipped with a variety of modern features and is best suited to the manufacturer's processing requirements. The machine is compatible with automatic tool change system (ATC) and ATC as well as complex machining functions. Regarding the column heightening model, there is a double sliding column system. The cross beam can move up and down to achieve better cutting accuracy. Users can choose one to match their own processing needs.
With those models, factory operators can use advanced tools to assist in better processing. The double column vertical lathes are capable of handling different types of tasks to meet a wide range of machining requirements.
The heavy-duty spindle incorporates a high precision hydrostatic bearing designed to withstand high axial and radial loads. In the hydrostatic system, pockets of oil between the base of the machine and the table eliminate contact between mating surfaces and promote friction-free operation. The combination of the high/low motor and 2 speed gearbox provides the benefits of a 3-speed transmission. Power is transmitted through a Class 1 ring and pinion gear that provides a further gear reduction and torque multiplication.
The X and Z axes are a box way design that facilitates heavy duty machining and high precision. The Turcite B-coated ways are completely enclosed and feature a forced lubrication system. The rigid twin column design and heavy base are best castings, heavily ribbed to minimize thermal distortion and dampen vibration.
Advantages:
The machine is suitable for rough or fine machining of auto, bearing, wind power, motor and water pump etc.
The base and column use one-piece high quality castings.
X&Z are using brand linear guideway.
Main transmission is driven by frequency or servo motor, simple structure and high transmission efficiency.
Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It can reach high accuracy and fast moving.
Machine can equip optical ruler to realize full close loop control.
Full cover is your optional together with chip conveyor and coolant system.
Siemen or Fanuc system.
More Products
Company Profile
Sealion Machine Tool is a professional company for metal cutting machine tools. We supply different kinds of machine tools to various countries, such as South Africa, Malaysia, Korea, Indonesia, Singapore, Thailand, Italy, etc. We offer our customer tailor-made technology support and 7x24 after sale service. SEALION innovates and offers turnkey solutions for both production lines and individual machines.Sealion Machine Tool specialized in lathe in both vertical and horizontal, floor type boring & milling machine, CNC machining center and rotary table. The production facility is located in Anhui, Wuhu. Based on the 30,000 square meter plant, we manage to satisfy all demands of our customers. YOUR MACHINE IS MY MISSION!
Certifications
Why Choose Us
Packing & Delivery
FAQ
1.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2.When is the delivery time?
About 1-3months. the delivery time will be confirmed by different machines with different configura-
3. How to handle the warranty period?
During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.
4. Payment terms
30% of the whole contract value should be paid as the advance payment after the contract has been signed. The other 70% of the whole contract value should be paid before shipment.
