Sc218 Digital Weighing Bridge Load Cell 25 Ton For Truck Scale
- Category: >>>
- Supplier: Shenzhen Sensor And Control Company Limited
Share on (1600145644054):
Product Overview
Description

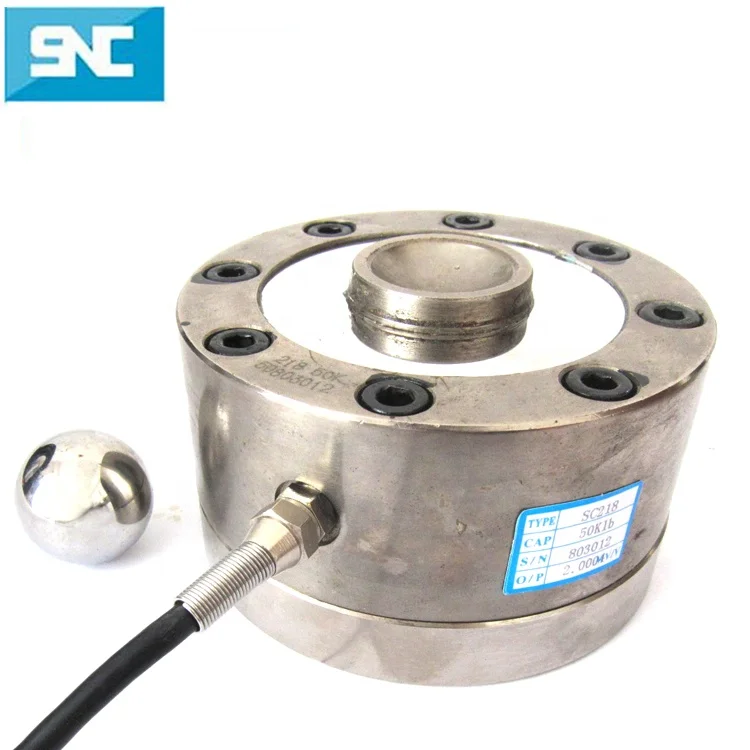

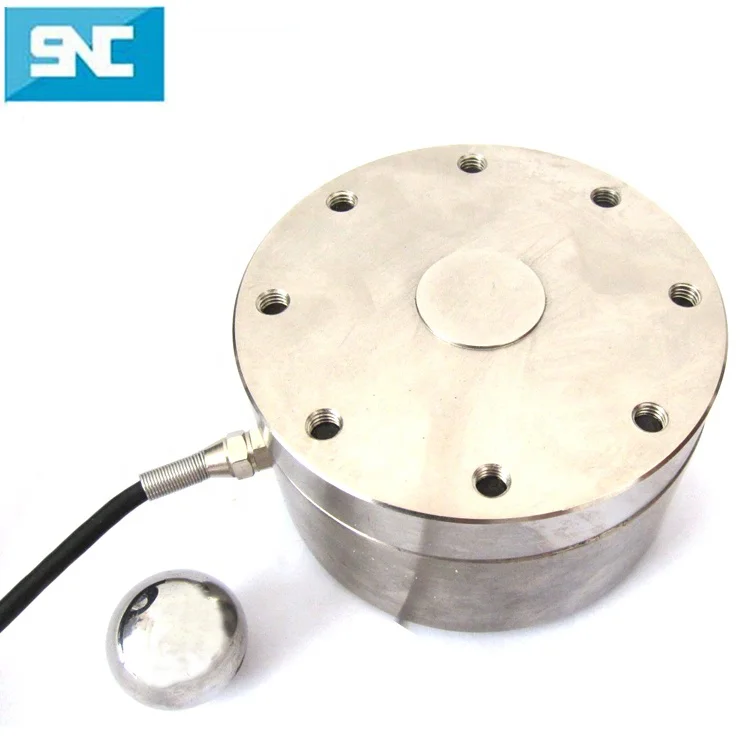

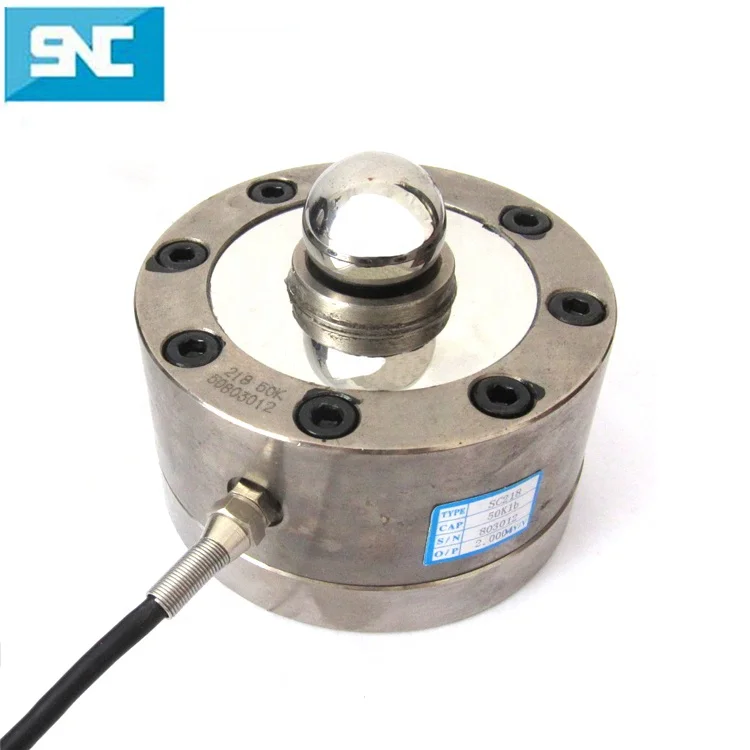

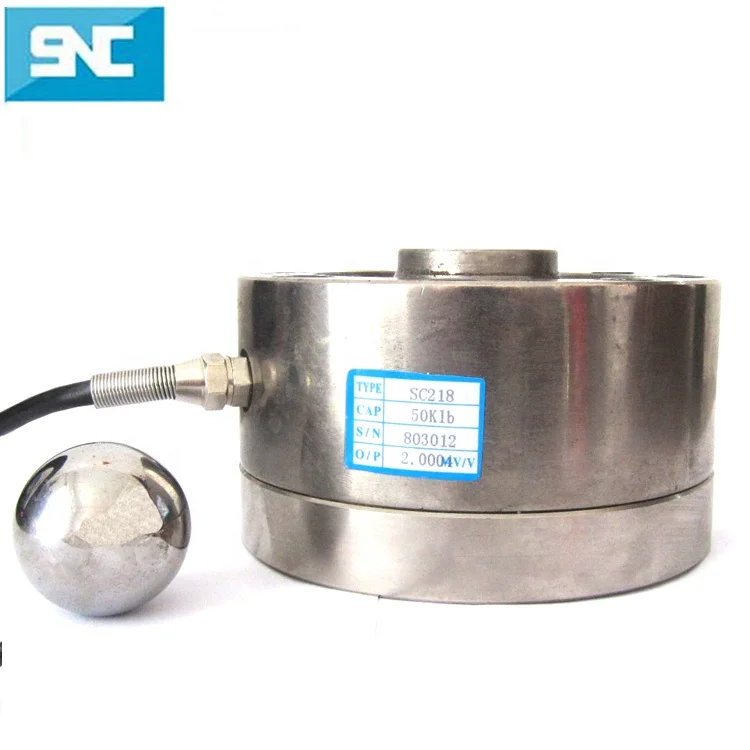

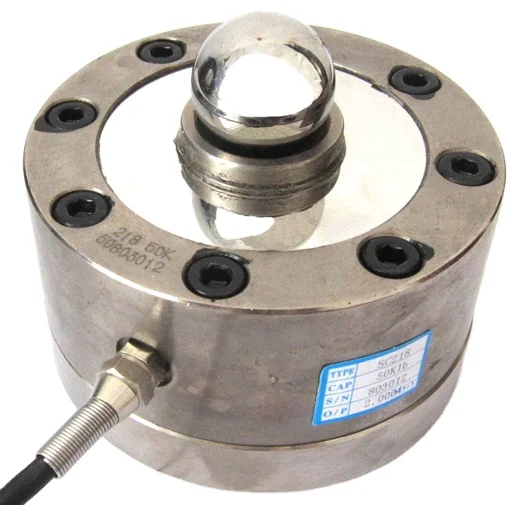

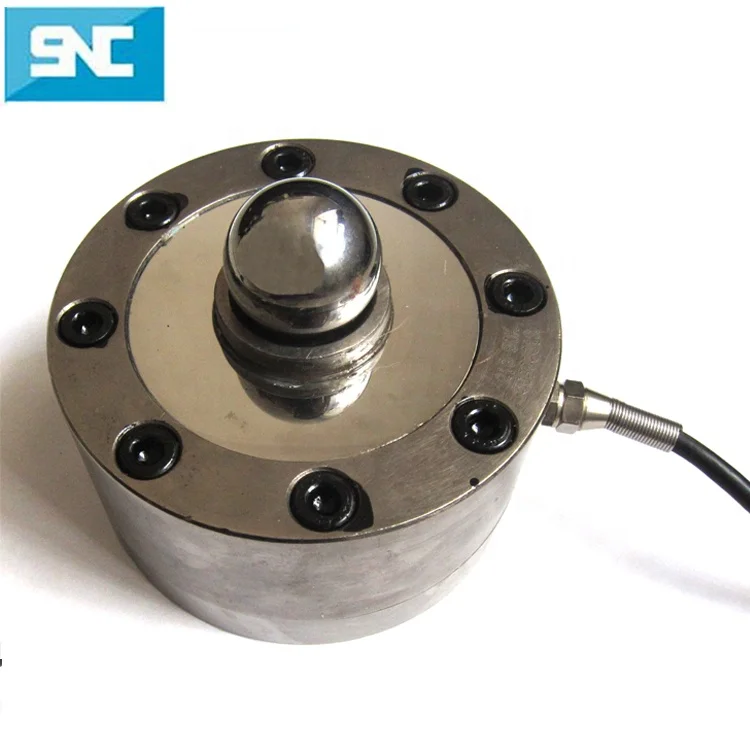

Sc218 Digital Weighing Bridge Load Cell 25 Ton For Truck Scale
Features:
Model: SC218
Capacity: 5klbs-200klbs, 2ton-100 ton
Material: Alloy steel
Application: Platform scale, floor scale, testing machine
Accuracy: 0.05% ~ 0.03%F.S
Feature: Tension and Compression load cell
Anti-corrosion, anti-oil and high anti-water level IP67
Product Description

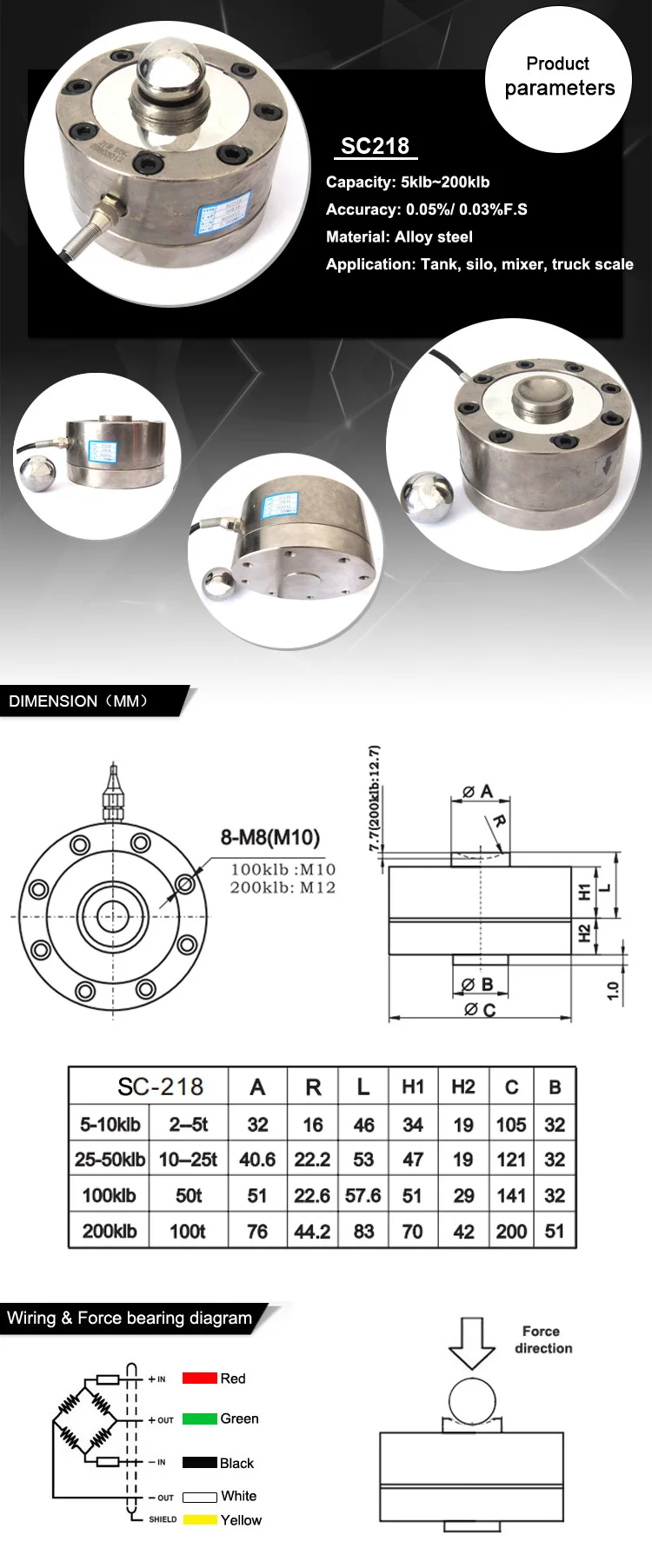

Parameter:
| Application | Truck scale |
| Model | SC218 |
| Capacity | 5klb-200klb / 2ton-100 ton |
| Rated output | 2.0±0.04mV/V ( T ) 4.0±0.04mV/V ( klb ) |
| Accuracy class | C2 C3 |
| Maximum number of verification intervals | 2000Nmax 3000Nmax |
| Minimum load cell certification intervals | Emax/5000 Vmin Emax/7500 Vmin |
| Combined error | ≤±0.030 % RO ≤±0.020 % RO |
| Creep | 0.016 %RO/30min |
| Temp. effect on sensitivity | 0.0016 %RO/℃ |
| Temp. effect on zero | 0.003%RO/℃ 0.002%RO/℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 365±10 ohm 725±8 ohm |
| Output resistance | 350± 3ohm 700± 5ohm |
| Insulation resistance | 5000 MΩ(50V) |
| Recommended excitation voltage | 8-15V |
| Compensated temperature range | -10-40℃ |
| Operating temperature range | -35-+80 ℃ |
| Safe overload | 150 %RO 120%RO |
| Ultimate overload | 200%RO 150 %RO |
| Loadcell material | Alloy steel stainless steel |
| Connecting cable | 5-25klb Φ5.7x8m, 5-200klb Φ5.7x13m |
| Method of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |
