hydraulic toe lift jack hydraulic toe jack toe jack
A hydraulic toe jack allows a user to easily transport heavy machinery and equipment by getting under and lifting it with very low minimum ground clearance .
The toe jack is made of parts such as:
The toe jack is made of parts such as:
1 Top and toe are integrated and made of high strength alloy.
2 hydraulic pump and lever to lift efficiently
3 Returning springs make the top return the original place after turning valve smoothly.
4 A handle for convenient portability

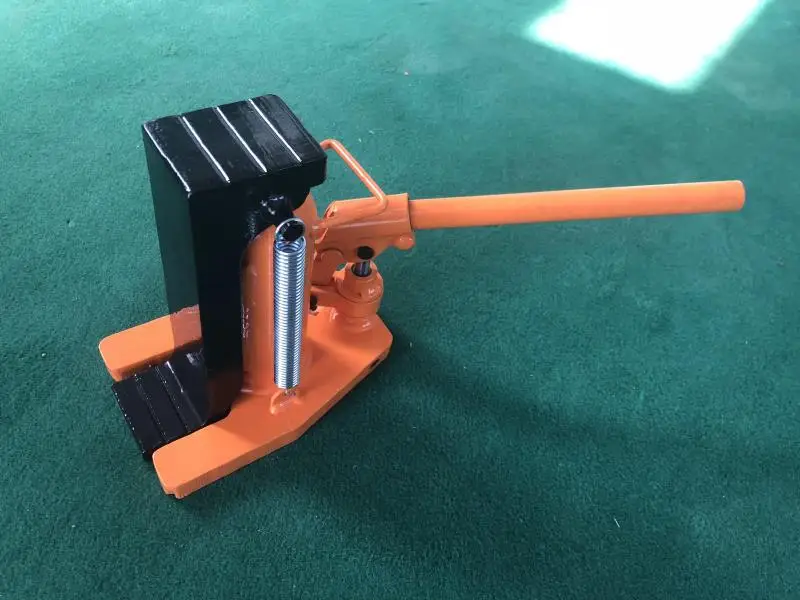

Details of hydraulic toe jack

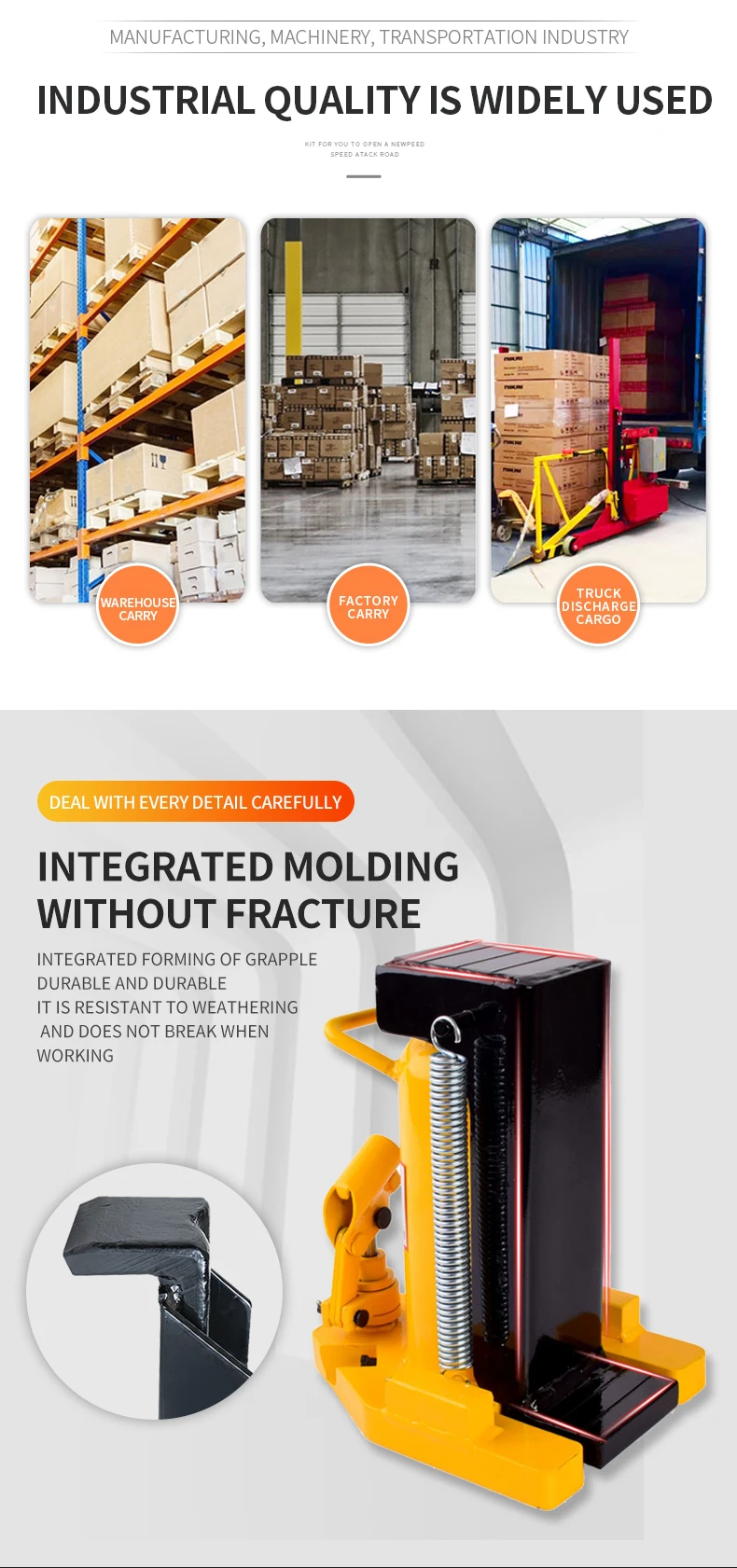

Toe and top of hydraulic toe jack are integrated in one and made of high strength alloy.
Efficient hydraulic pump and lever of hydraulic toe jack for quick lifting.

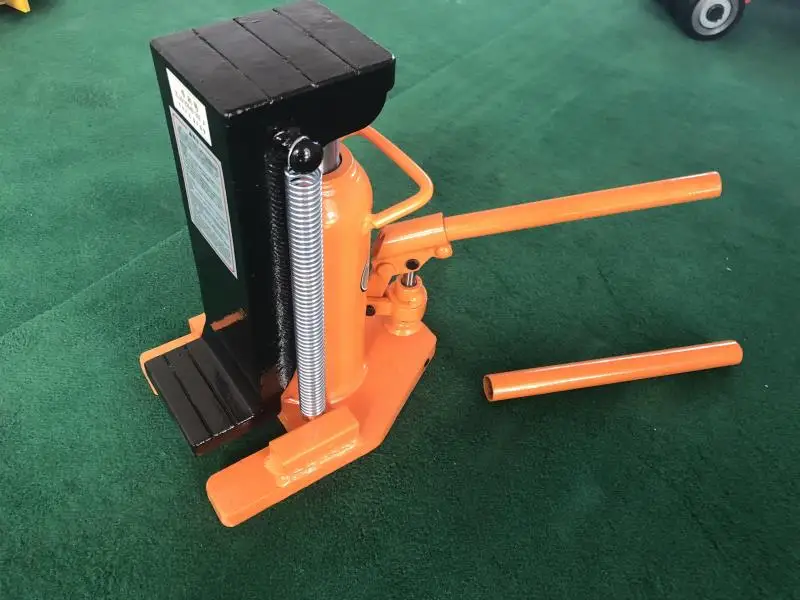

Display of hydraulic toe jack

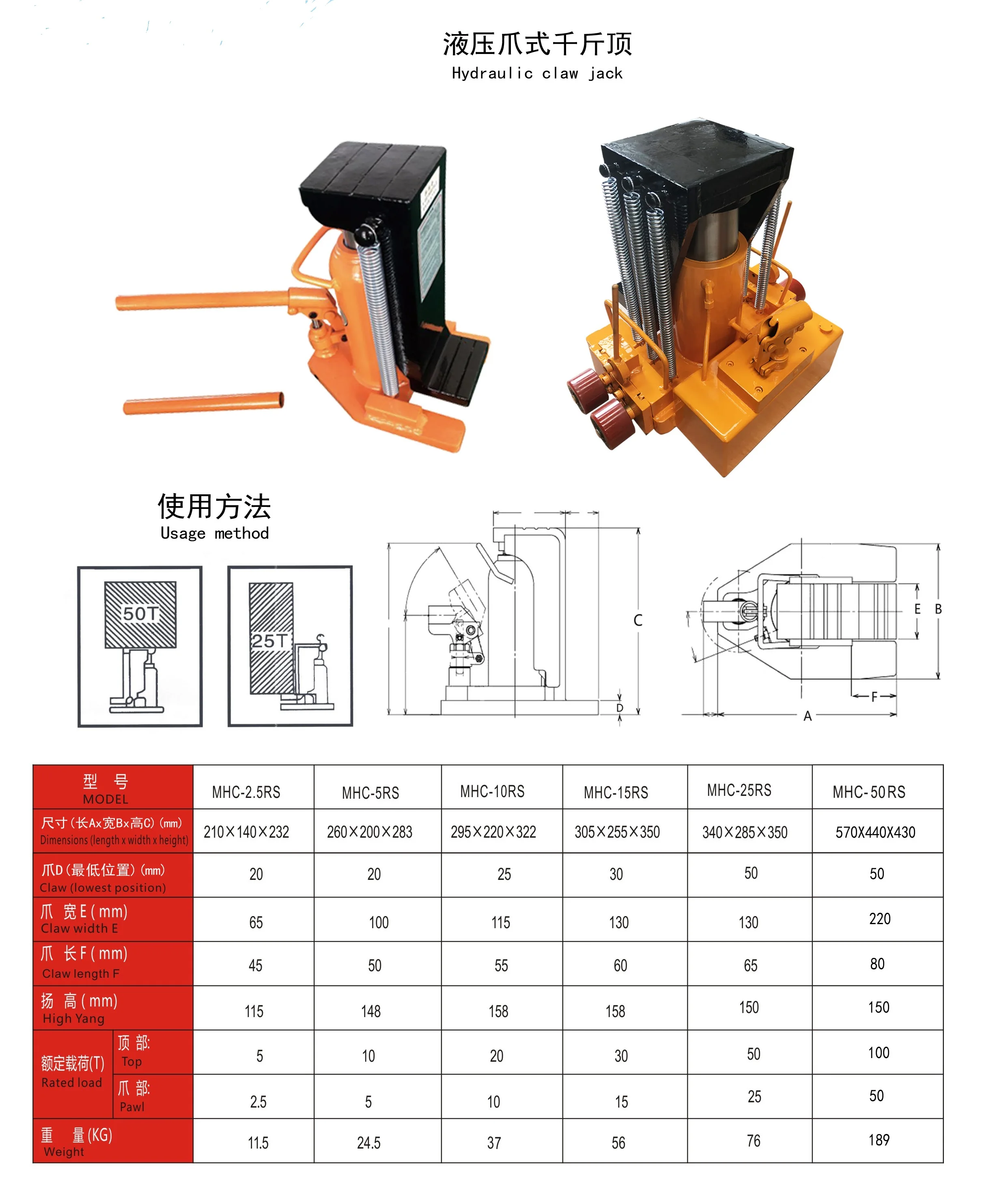

Parameters of hydraulic toe jack
Model | MHC-2.5RS | MHC-5RS | MHC-10RS | MHC-15RS | MHC-25RS | MHC-50RS |
Top capacity | 5T | 10T | 20T | 30T | 50T | 100T |
toe capacity | 2.5T | 5T | 10T | 15T | 25T | 50T |
ground clearance | 20mm | 20mm | 25mm | 30mm | 50mm | 50mm |
toe width | 65mm | 100mm | 115mm | 130mm | 130mm | 220mm |
toe length | 45mm | 50mm | 55mm | 60mm | 65mm | 80mm |
Dimension | 210*140*232mm | 260*200*283mm | 295*220*322mm | 305*255*350mm | 340*285*350 mm | 570*440*430 mm |
weight | 11.5kg | 24.5kg | 37kg | 56kg | 76kg | 189kg |

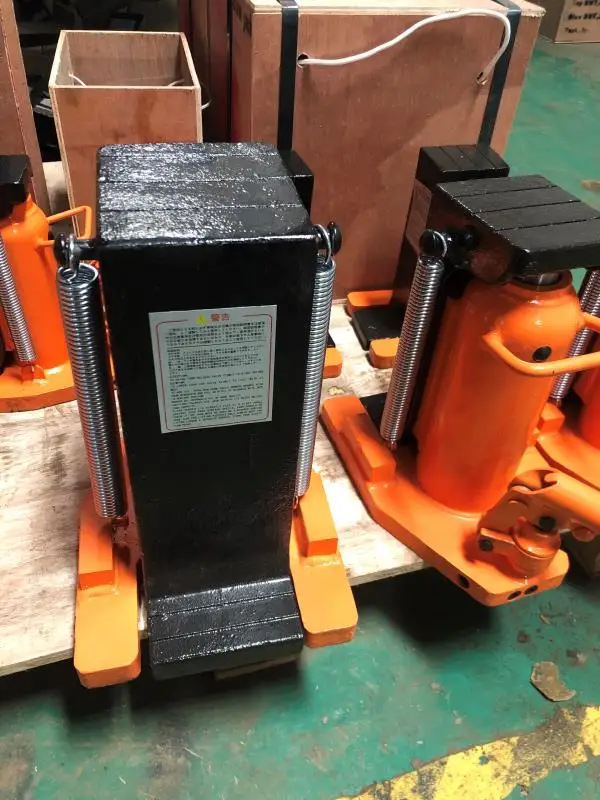

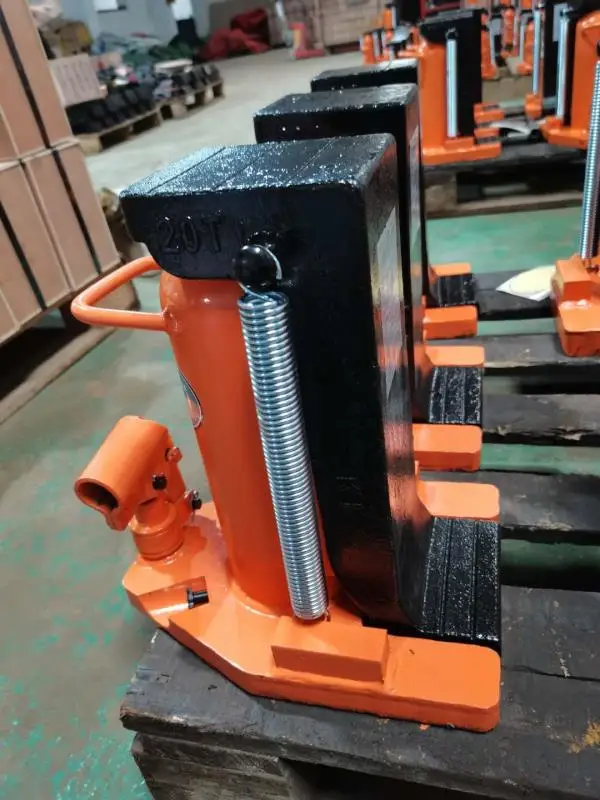

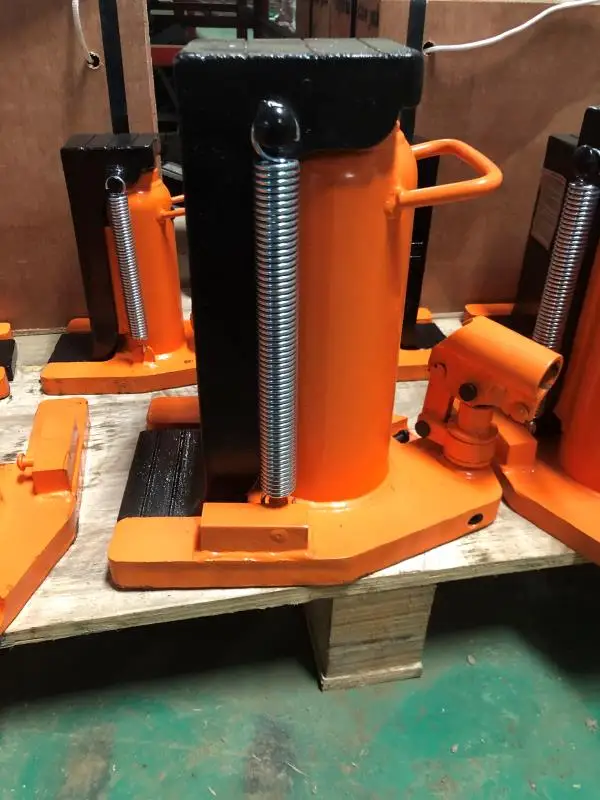

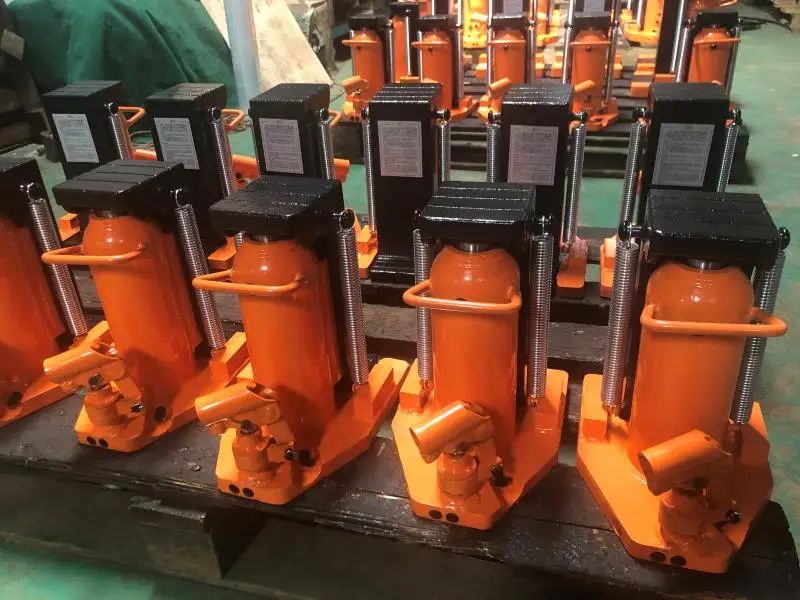

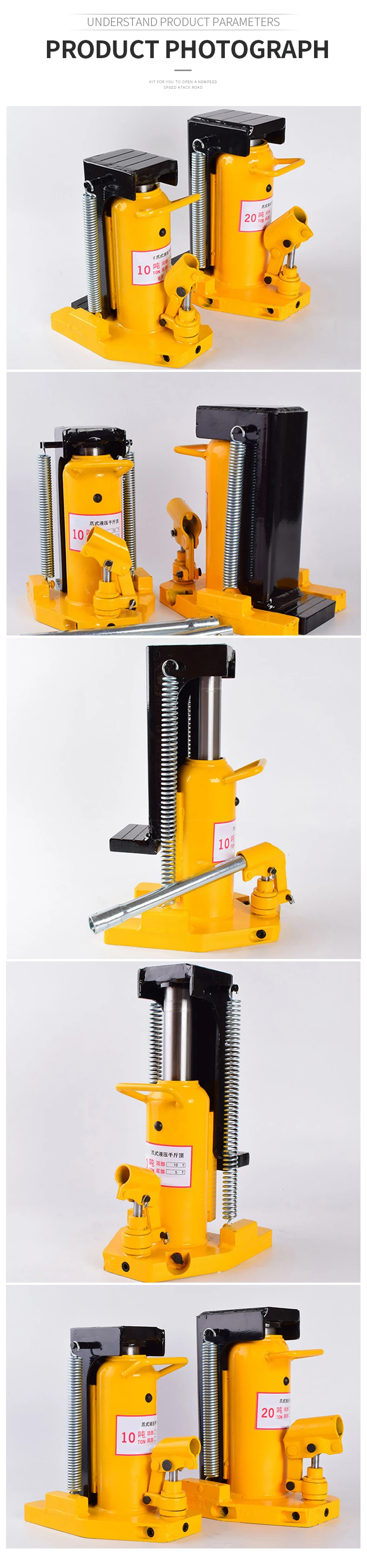

real pictures of hydraulic toe jack
With abundant manufacturing experience and skill of hydraulic toe jack,quality hydraulic toe jack and regular yield per year are well guaranteed.
Our hydraulic toe jacks are exported to Asia,Europe and America.And conforms Ce certificate.
