4 Position Magnetic Stirrer with Time Control
- Category: Laboratory Heating Equipments >>>
- Supplier: Shanghai Yanhe Instrument Equipment Co. Ltd.
Share on (1600146229487):
Product Overview
Description
4 Position Magnetic Stirrer with Time Control
Parameters of the our models

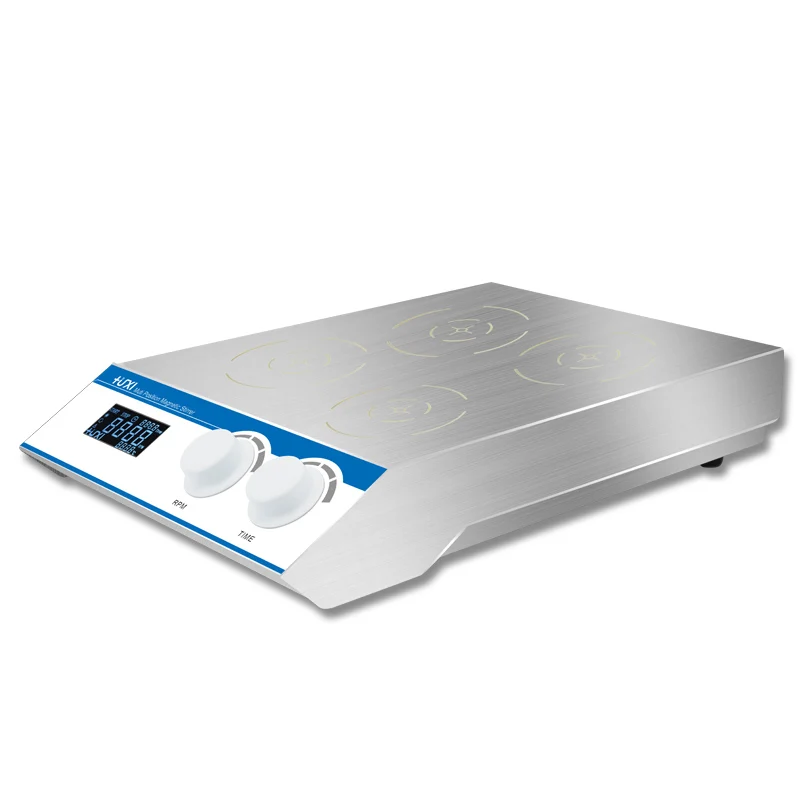

Model | HMS-4D | HMS-6D | HMS-8D | HMS-12D |
Mixing position (pcs) | 4 | 6 | 8 | 12 |
Mixing position distance(mm) | 100 | 100 | 100 | 100 |
Capacity for each position | 500 | 500 | 500 | 500 |
Speed range(rpm) | 30-1500 | 30-1500 | 30-1500 | 30-1500 |
Set time range(h/min) | 99/59 | 99/59 | 99/59 | 99/59 |
Display mode | LED | LED | LED | LED |
Power(W) | 50 | 75 | 100 | 150 |
Shell Material | 316L | 316L | 316L | 316L |
Allowable ambient temperature(℃) | 5-40 | 5-40 | 5-40 | 5-40 |
Allowable ambient humidity(%) | 80 | 80 | 80 | 80 |
Voltage(V/Hz) | 100-240 50/60 | 100-240 50/60 | 100-240 50/60 | 100-240 50/60 |
Working plate Dimension(mm) |
290*240 |
405*240 |
520*240 |
520*360 |
Exterior Dimension W*D*H(mm) | 350*240*70 | 465*240*65 | 580*240*65 | 580*360*65 |
Packing Dimension(mm) |
593*401*166 |
593*401*166 |
703*418*141 |
703*418*141 |
Protection level | IP64 | IP64 | IP64 | IP64 |
Net weight | 4.5 | 5.5 | 7 | 10 |
Gross Weight | 5.5 | 6.5 | 8 | 11 |
Standard 7*25mm stir bar (piece) | 4 | 6 | 8 | 12 |
