99.95% High Purity Various Dimensions Tungsten Pipe/tube hot sale in stock supplier manufacturer from baoji tianbo metal company
- Category: >>>
- Supplier: Baoji Tianbo Metal Materials Co. Ltd.
Share on (1600146263457):
Product Overview
Description
Product Description
99.95% High Purity Various Dimensions Tungsten Pipe/tube hot sale in stock supplier manufacturer from baoji tianbo company
Tungsten based composites are strong refractory metal materials manufactured by a strictly controlled process involving pressing, sintering and infiltrating with copper or silver. They are highly resistant to heat, electric arc, wear and deformation at high temperature welding, flash butt and spot welding. They also have excellent electrical and thermal conductivity. The properties of Tungsten composites are related to the copper/silver-to-Tungsten ratio. If the Tungsten content improves, the electric arc and wear resistance will increase while the thermal and electrical conductivity, on the contrary, reduce.
Due to their unique properties, Tungsten based composites are widely used where the combination of good electrical and/or thermal conductivity and low thermal deformation is necessary, for example:
In electric resistance welding as electrical contacts or heat sinks.
In electrodes for electrical discharge machining (EDM) and electrochemical machining (ECM)
1.The tungsten tube has a fairly high purity, and the purity is more than 99.95%.
2.The density is 18.2 g/cm3;
3.The recommended working temperature should be lower than 2500 ℃;
4.The tungsten pipe is less polluted;
5.Standard : GB/T 4187-1984 ASTM F288-90;
6.The surface of tungsten tube is silver gray metallic luster.
wolfram pipe factory price
Tungsten Size
| Diameter (mm) | Wall thickness (mm) | Length (mm) |
| 30-50 | 2–10 | <1300 |
| 50-100 | 3–15 | |
| 100-150 | 3–15 | |
| 150-200 | 5–20 | |
| 200-300 | 8–20 | |
| 300-400 | 8–30 | |
| 400-450 | 8–30 | |
| 450-500 | 8–30 |
Note:Your special request for tungsten pipe/tube will be available.
wolfram pipe factory price
Chemical Composition
| Grade | Tungsten content | Content of impurity elements | |
| Total content | Each content | ||
| W1 | ≥99.95% | ≤0.05% | ≤0.01% |
| W2 | ≥99.92% | ≤0.08% | ≤0.01% |
| WAL1,WAL2 | ≥99.95% | ≤0.05% | ≤0.01% |
wolfram pipe factory price

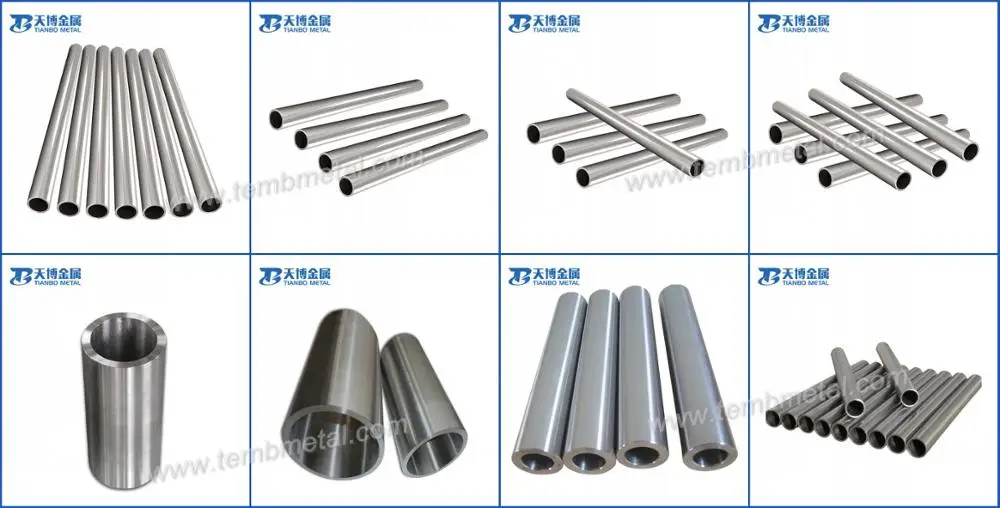

Product Show
wolfram pipe factory price

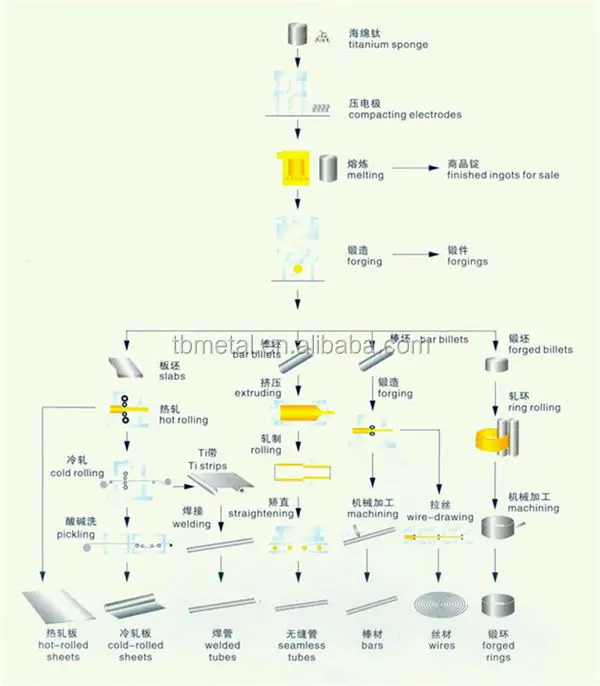

Processing
wolfram pipe factory price
Features of Tungsten Pipe
1.high melting point, high strength,
2.outstanding thermal conductivity,
3.excellent resistance to electrochemical corrosion,excellent resistance to oxidation at high temperatures
4.The production processes of tungsten tube include isostatic pressing, IF induction sintering, CNC vertical turning, CNC milling, coreless grinder and wire cutting;
5.The tungsten tubes we produced are with high-precision, finish surface, straight size, and high temperature deformation.
6.There are two kinds of tungsten tubes: one is with diameter 8--70 mm, wall thickness more than 3mm, maximum length 300mm and density no less than 18.8g/cm3. Another one is with diameter 70—500mm, wall thickness more than 8mm, maximum length 700mm and density no less than 18.3g/cm3.
wolfram pipe factory price
Application
Tungsten tube is widely used in the thermocouple protection tube, sapphire crystal furnace and high temperature furnace, etc. Tungsten is usually sintered processed and with 8mm wall thickness. Tungsten tube contributes stability to the hot zone. While high in thermal inertia, tungsten tube may prolong the growth cycle of the sapphire. The maximum wall thickness of one that rolled from tungsten plate is 2mm with low thermal inertia. But they are not as reliable and durable as normal ones.
Company Information
Baoji Tianbo Metal Materials Co., Ltd. Is a professional manufacturer of metal materials, providing various specifications of tungsten, molybdenum, tantalum, niobium, titanium and other materials and deep processing products for different customers.
If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!
Why Choose us?
- Excellent workers
- Strict Quality Control
- Top quality products
- Innovative design team
- Fastest lead time
- The most rapid reply
- Highly efficient management
- Customized to meet your unique specs
- Factory visit warmly welcomed
- Convenient transportation
Packaging & Shipping
We ship worldwide by EMS ,DHL ,UPS ,FedEx ,TNT and so on.
We are unable to control the delivery time because it is processed by Third-party service, but if the parcel has not arrive within expected time, please contact us, we will help you to track it and give you a satisfied reply.
FAQ
1.Are you a factory or trading company?
Our factory has 10 years experience in production.
2.Are you able to provide samples? MOQ?
Yes, we can supply you free sample. MOQ:1kg.
3.Do you accept customed?
Yes, we can according to your unit weight or drawings processing.
4.Do you inspect the finishing products?
Yes, each product will be inspected by our QC before shipping.
5.What is the shipping cost?
It mainly depends on weight, volume, packing size and destination port.
6.What's your delivery time?
In stock, 1-2 days, if not, according to your quantity.
