Product Overview
Description
Product Description
Specification
Model No | TPX6111 | TPX6111/2 | TPX6111/3 | TPX6113 | TPX6113/2 |
Spindle Diameter(mm) | 110 | 110 | 110 | 130 | 130 |
Spindle Taper | Morse 6 | Morse 6 | Morse 6 | Metric 80 | Metric 80 |
Max Torque of Spindle(N.m) | 1225 | 1225 | 1225 | 3136 | 3136 |
Max Axis Resistance of Spindle(N) | 12250 | 12250 | 12250 | 31360 | 31360 |
Speed steps of spindle | 22 | 22 | 22 | 24 | 24 |
Speed range of spindle(r/min) | 8-1000 | 8-1000 | 8-1000 | 4-800 | 4-800 |
Power of main motor (Kw) | 7.5 | 7.5 | 7.5 | 15 | 15 |
Facing head diameter(mm) | 600 | 600 | 600 | 750 | 750 |
Speed steps of facing head | 18 | 18 | 18 | 18 | 18 |
Table Size(mm) | 1100x960 | 1100x960 | 1250x1100 | 1600x1400 | 1800x1600 |
Table Load(Kg) | 5000 | 5000 | 5000 | 8000 | 8000 |
T-slot size(mm) | 22 | 22 | 22 | 28 | 28 |
Number of T-slot | 7 | 7 | 7 | 9 | 11 |
X Travel (mm) | 900 | 1250 | 1600 | 1600 | 2000 |
Y Travel (mm) | 900 | 900 | 1200 | 1400 | 1800 |
Z Travel (mm) | 1400 | 1400 | 1400 | 2000 | 2000 |
W Travel Spindle (mm) | 600 | 600 | 600 | 900 | 900 |
U Travel (Facing Head) | 180 | 180 | 180 | 250 | 250 |
Rapid Speed(mm/min) | 2500 | 2500 | 2500 | 2500 | 2500 |
Diamension(m) | 4.91x2.5x2.8 | 4.93x2.9x2.8 | 5.1x3.4x3.1 | 7.0x3.7x3.5 | 7.0x4.7x3.8 |
Weight(Kg) | 11500 | 13000 | 14000 | 24000 | 29300 |
The TPX6111/6113 horizontal milling and boring machine which produced by our company is the finishing equipment in general machines.
It has the functions of drilling, reaming, boring, milling and turning threads and so on. In addition, there is a facing head in front of the spindle, and the slider in the facing head can move to get radial feed. Therefore, it can bore large size holes, turning circle and plane and cutting grooves.
This machine is made up of bed, A-post, headstock, longitudinal saddle and transverse saddle, worktable, D-post and hammer. Each part moves as the headstock moves vertically along the guide of the A-post, and the worktable can move longitudinally, transversely and do the rotational motion.
This series of machines have the following advantages:
1)\tThe spindle rotation and the feed moving of the machine are all controlled by the hydraulic preselection, and the operation is simple and convenient. During the speed change, the indicator lights on the button plane can send out signals.
2)\tThe distribution of each moving parts of the machine and the clamping and loosening of the moving parts are all used hydraulic automatic interlocking which has high automation.
3)\tThe coordinates of the vertical movement of the headstock and the transverse movement of the worktable all have numerical display function, which improves the machining accuracy of the parts. The vertical coordinate display function of the worktable can also be provided according to the special requirements of users.
4)\tThe main guides of the horizontal milling and boring machine such as the bed, the A-post, the saddle, all use the electric contact surface heating and self-cooling quenching, which can make the guide rail have a high hardness and prolongs the service life.
5)\tThe horizontal guides of the machine are all protected by pull plate type.
6)\tThere are electrical and liquid interlocking relations between the moving parts of the machine. When the machine is working, only one moving motion is allowed, and the other parts are clamped automatically (except the spindle and the slide on the facing head).
7)\tThe insurance combinations are arranged in the feed box and the quick box, which to make the machine safe when the machine is overloaded.
8)\tThe programmable logic controller is adopted in the electrical control of the machine, so the machine’s performance is very reliable.
It has the functions of drilling, reaming, boring, milling and turning threads and so on. In addition, there is a facing head in front of the spindle, and the slider in the facing head can move to get radial feed. Therefore, it can bore large size holes, turning circle and plane and cutting grooves.
This machine is made up of bed, A-post, headstock, longitudinal saddle and transverse saddle, worktable, D-post and hammer. Each part moves as the headstock moves vertically along the guide of the A-post, and the worktable can move longitudinally, transversely and do the rotational motion.
This series of machines have the following advantages:
1)\tThe spindle rotation and the feed moving of the machine are all controlled by the hydraulic preselection, and the operation is simple and convenient. During the speed change, the indicator lights on the button plane can send out signals.
2)\tThe distribution of each moving parts of the machine and the clamping and loosening of the moving parts are all used hydraulic automatic interlocking which has high automation.
3)\tThe coordinates of the vertical movement of the headstock and the transverse movement of the worktable all have numerical display function, which improves the machining accuracy of the parts. The vertical coordinate display function of the worktable can also be provided according to the special requirements of users.
4)\tThe main guides of the horizontal milling and boring machine such as the bed, the A-post, the saddle, all use the electric contact surface heating and self-cooling quenching, which can make the guide rail have a high hardness and prolongs the service life.
5)\tThe horizontal guides of the machine are all protected by pull plate type.
6)\tThere are electrical and liquid interlocking relations between the moving parts of the machine. When the machine is working, only one moving motion is allowed, and the other parts are clamped automatically (except the spindle and the slide on the facing head).
7)\tThe insurance combinations are arranged in the feed box and the quick box, which to make the machine safe when the machine is overloaded.
8)\tThe programmable logic controller is adopted in the electrical control of the machine, so the machine’s performance is very reliable.
More Products
Company Profile

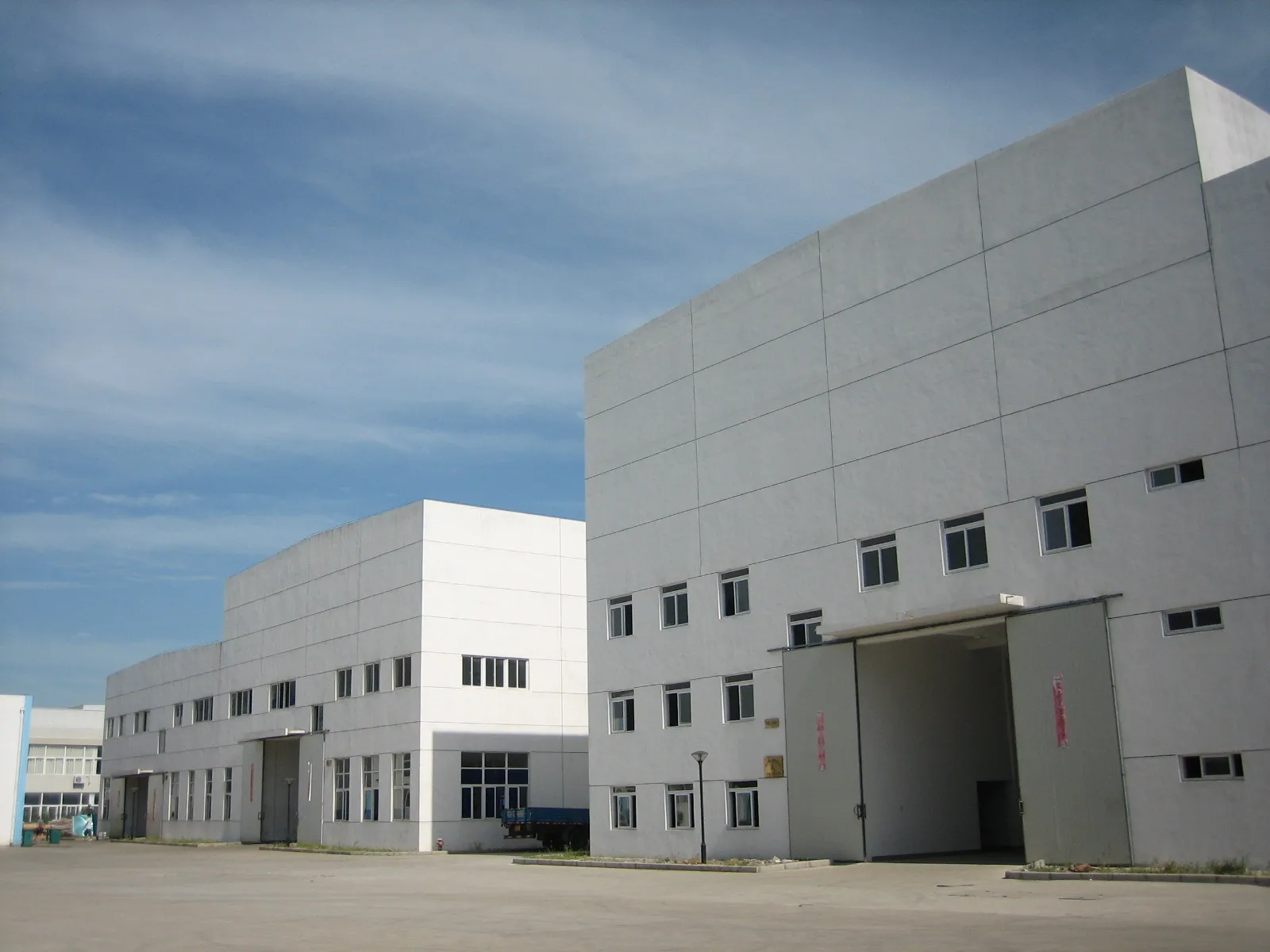

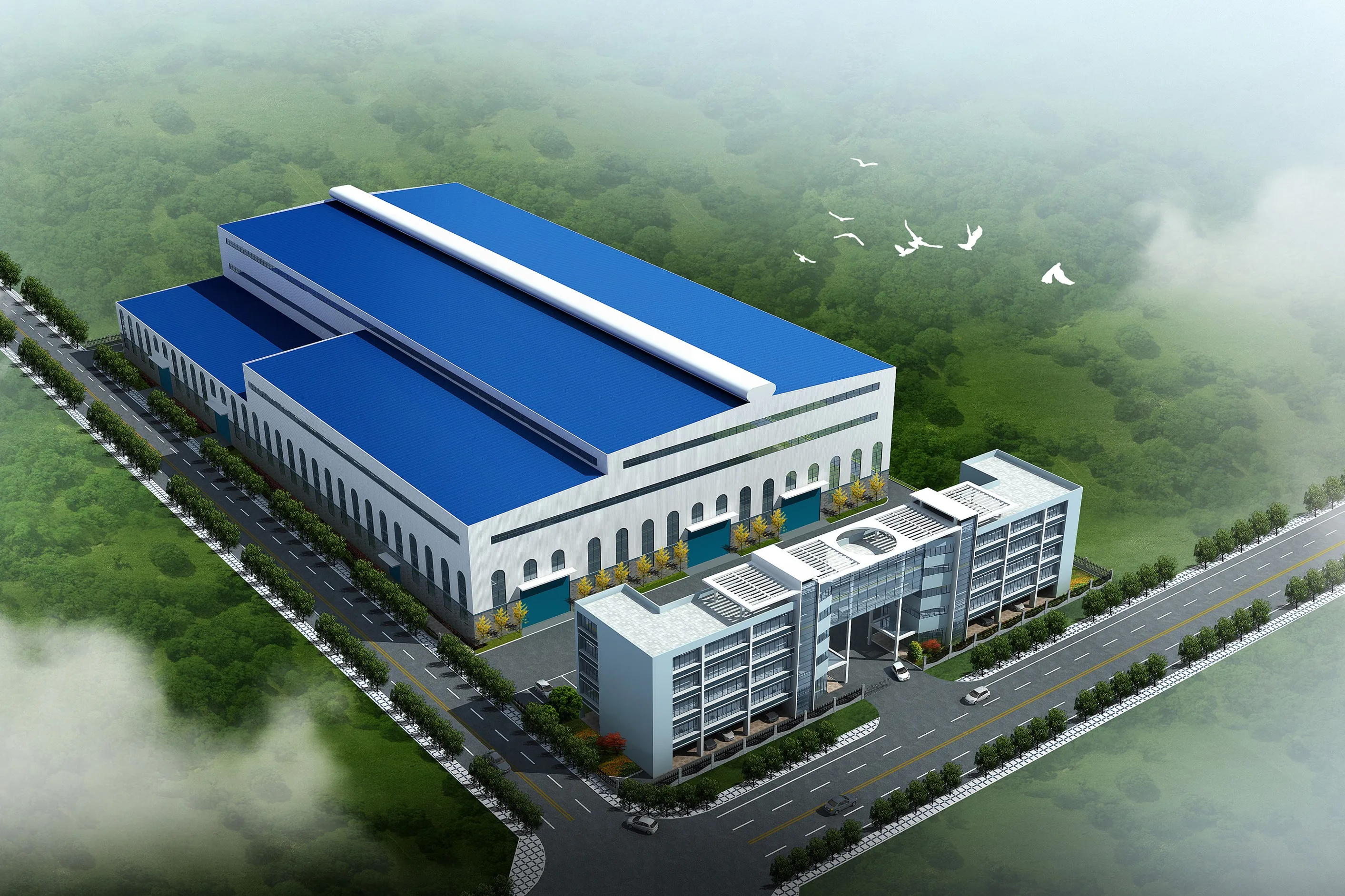

Sealion Machine Tool is a professional company for metal cutting machine tools. We supply different kinds of machine tools to various countries, such as South Africa, Malaysia, Korea, Indonesia, Singapore, Thailand, Italy, etc. We offer our customer tailor-made technology support and 7x24 after sale service. SEALION innovates and offers turnkey solutions for both production lines and individual machines.Sealion Machine Tool specialized in lathe in both vertical and horizontal, floor type boring & milling machine, CNC machining center and rotary table. The production facility is located in Anhui, Wuhu. Based on the 30,000 square meter plant, we manage to satisfy all demands of our customers. YOUR MACHINE IS MY MISSION!
