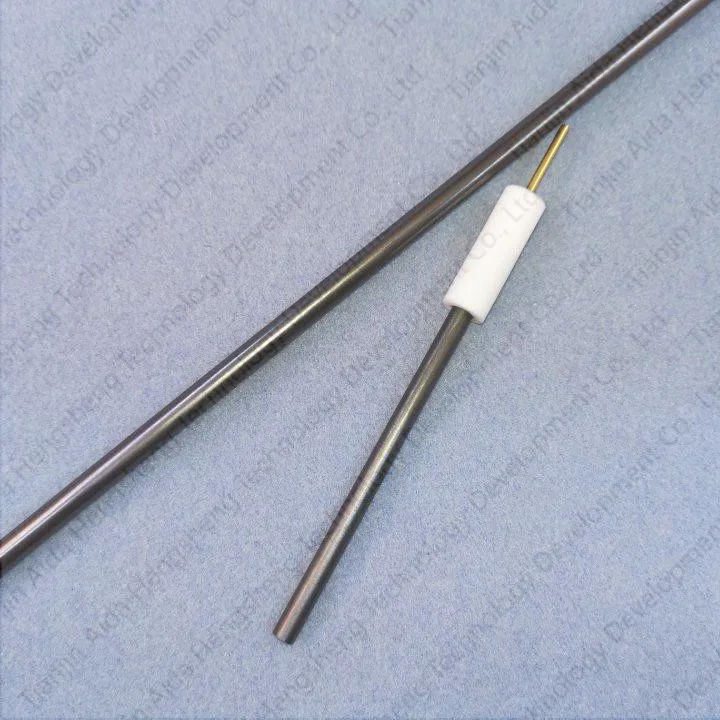

Graphite counter electrode

Product Name:

Graphite counter electrode

Product Number:

C303 C304 C305 C306

Product Type:

Counter electrode

Product Features:

mported high purity graphite is adopted and it is convenient to use. The electrode could be customer-designed according to the
requirements.

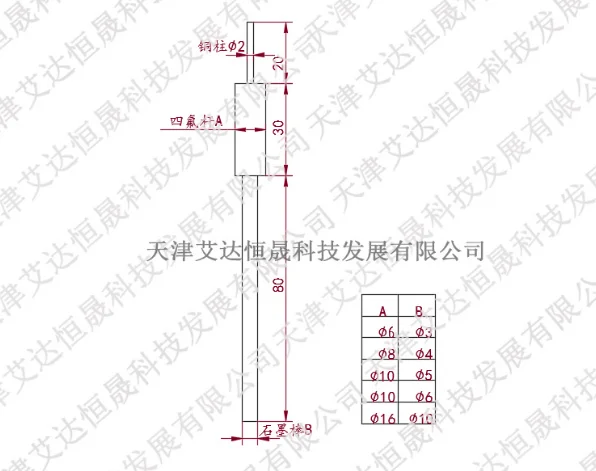

Parameter descriptions

Inner core material:

Graphite

Sheath material:

polytetrafluoroethylene

Terminal length:

20 mm

Sheath material length:

30 mm

Electrode length:

130 mm

The size of the electrode could be designed according to the customer requirements. If customer-designed electrodes were needed,
please let us know before ordering.

Product Number

Graphite Diameter（mm）

Tetrafluorone Diameter（mm）

C303

Φ3

Φ6

C304

Φ4

Φ8

C305

Φ5

Φ10
