High Temperature Resistance Black Wrap Surface 3 Inch Flexible Water Mud Suction And Discharge Rubber Hose (1600147071099)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

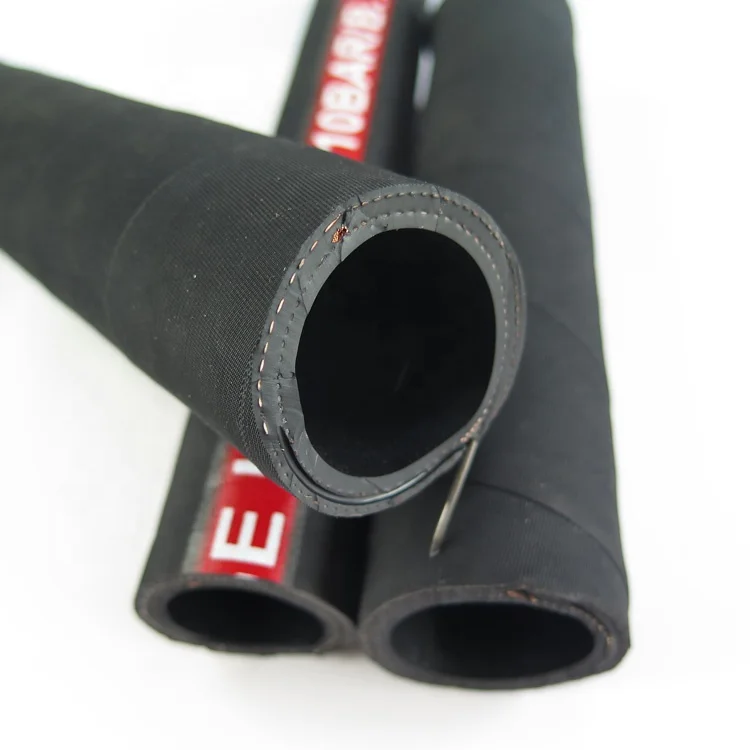

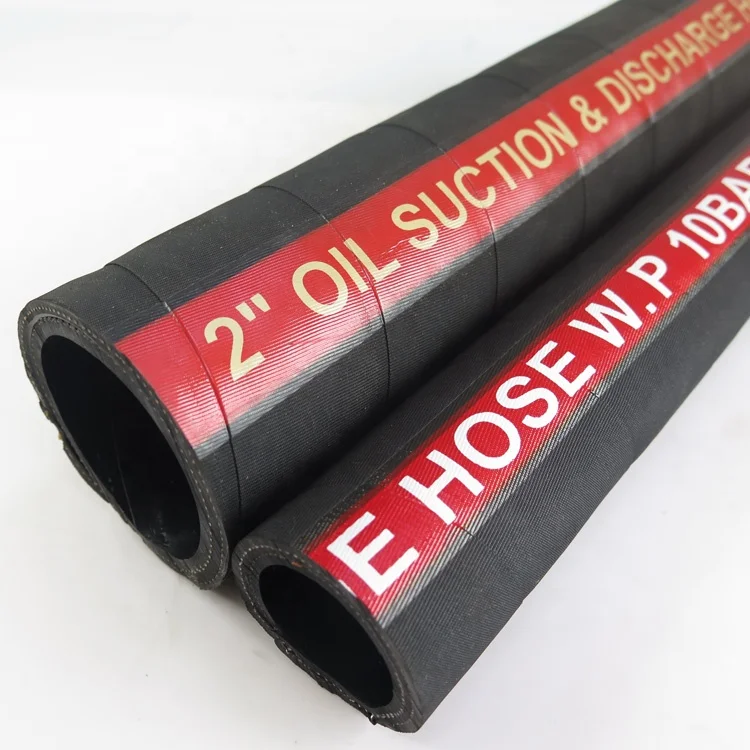

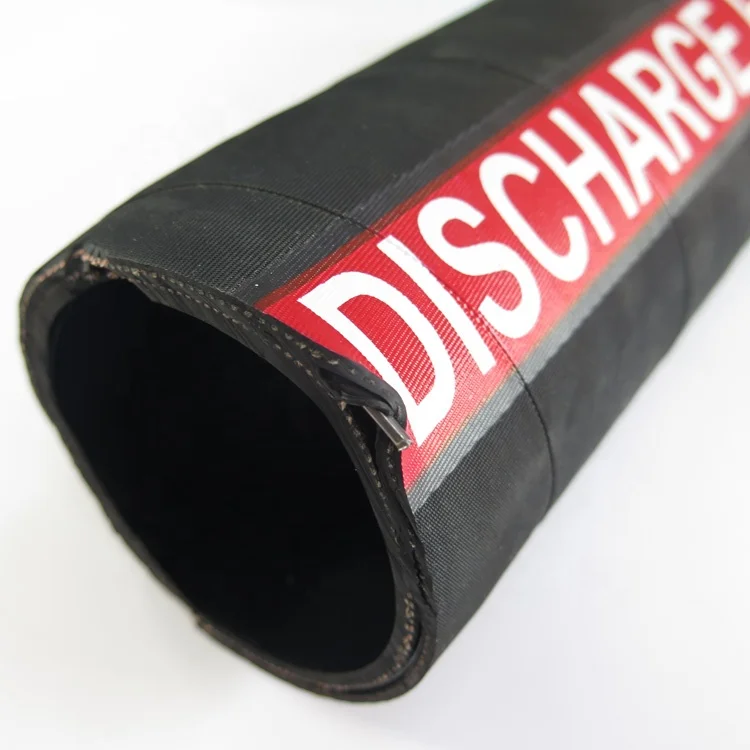

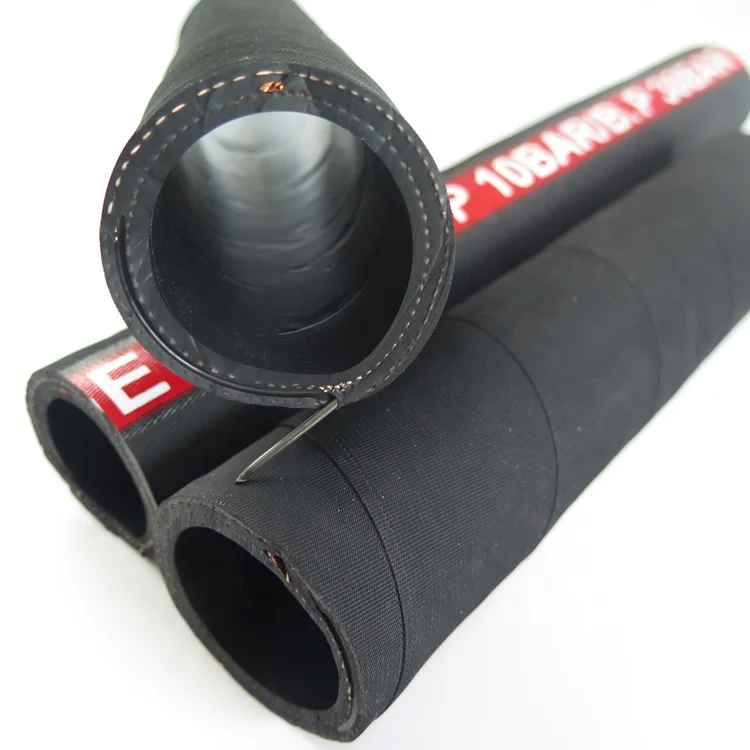

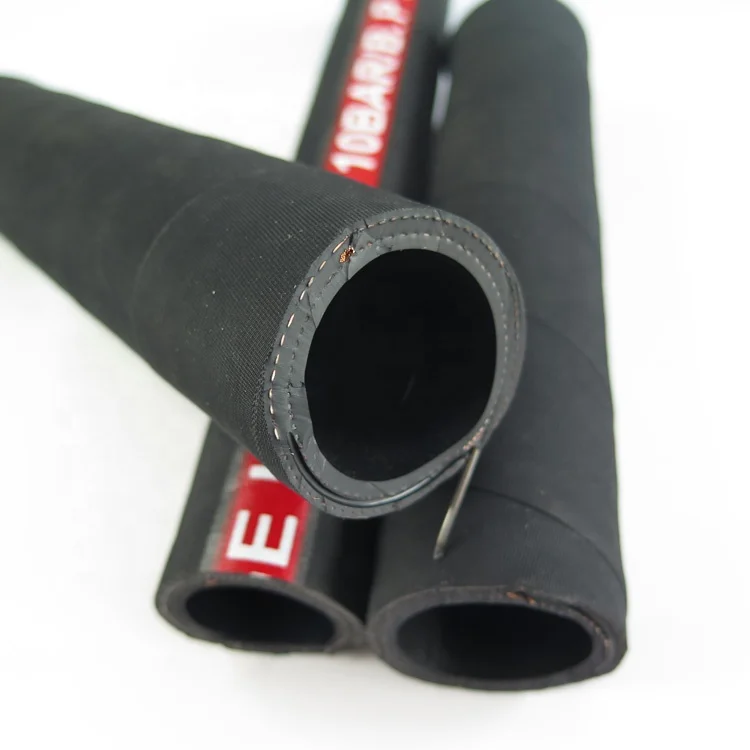

High Temperature Resistance Black Wrap Surface 3 Inch Flexible Water Mud  Suction And Discharge Rubber Hose


APPLICATIONS


Suction lines, return lines.


Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water.





HOSE MARKING:YATAI HYDRAULIC HOSE  SAE 100 R4  1″(DN25) W.P 20BAR 300PSI








































































































































































YATAI
PART.REF.
HOSE SIZE I.DR.O.DO.DMAX W.PMIN B.PMIN B.RW.T
DNdashinchmmmmbarpsibarpsimmKg/m
TB R4 1616-105/8"-26.02130064930960.59
TB R4 1919-123/4"-29.0213008412201250.55
TB R4 2525-161"-35.0172507010101500.68
TB R4 3131-201.1/4"-42.014200568102000.84
TB R4 3838-241.1/2"-48.510140426102541.02
TB R4 5151-322"-61.57100284103001.42
TB R4 6363-402.1/2"-76.0462172503552.15
TB R4 7676-483"-88.0456162304572.85
TB R4 8989-563.1/2"-103.0345121805303.45
TB R4 102102-644"-115.0235101406103.90






  • CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +212°F; -40°C / +100°C




  • INSERT: SHF TYPE




  • TUBE: OIL RESISTANT SYNTHETIC RUBBER




  • REINFORCEMENT:TWO TEXTILE REINFORCEMENTS WITH STEEL HELICAL BODY WIRE




  • COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER




  • APPLICABLE SPECS: SAE 100 R4





Product Description


xqy4_01xqy4_02xqy4_03








Packaging & Shipping


xqy4_05xqy4_06xqy4_08xqy4_09xqy4_10





FAQ


 Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
