High quality 3 years warranty CE ROHS DC24V 10mm 3528 LED 120 LEDs 9.6W/M CCT dual color dimmable 3528 SMD LED strips
- Category: >>>
- Supplier: Huizhou Createlit Technology Co. Ltd.
Share on (1600147182437):
Product Overview
Description

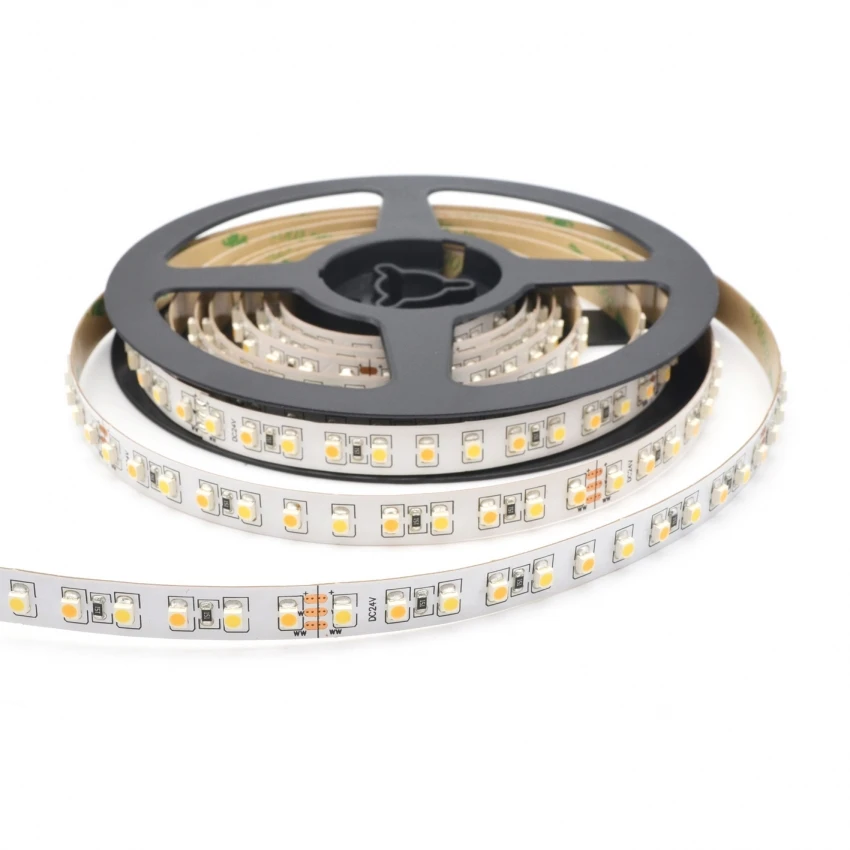

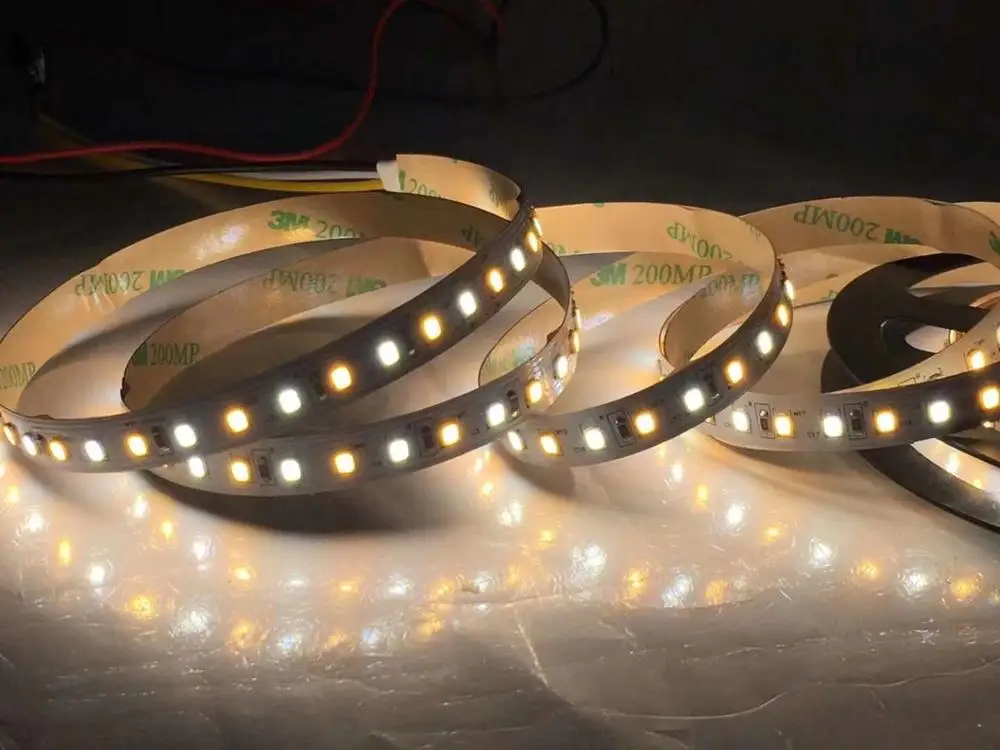

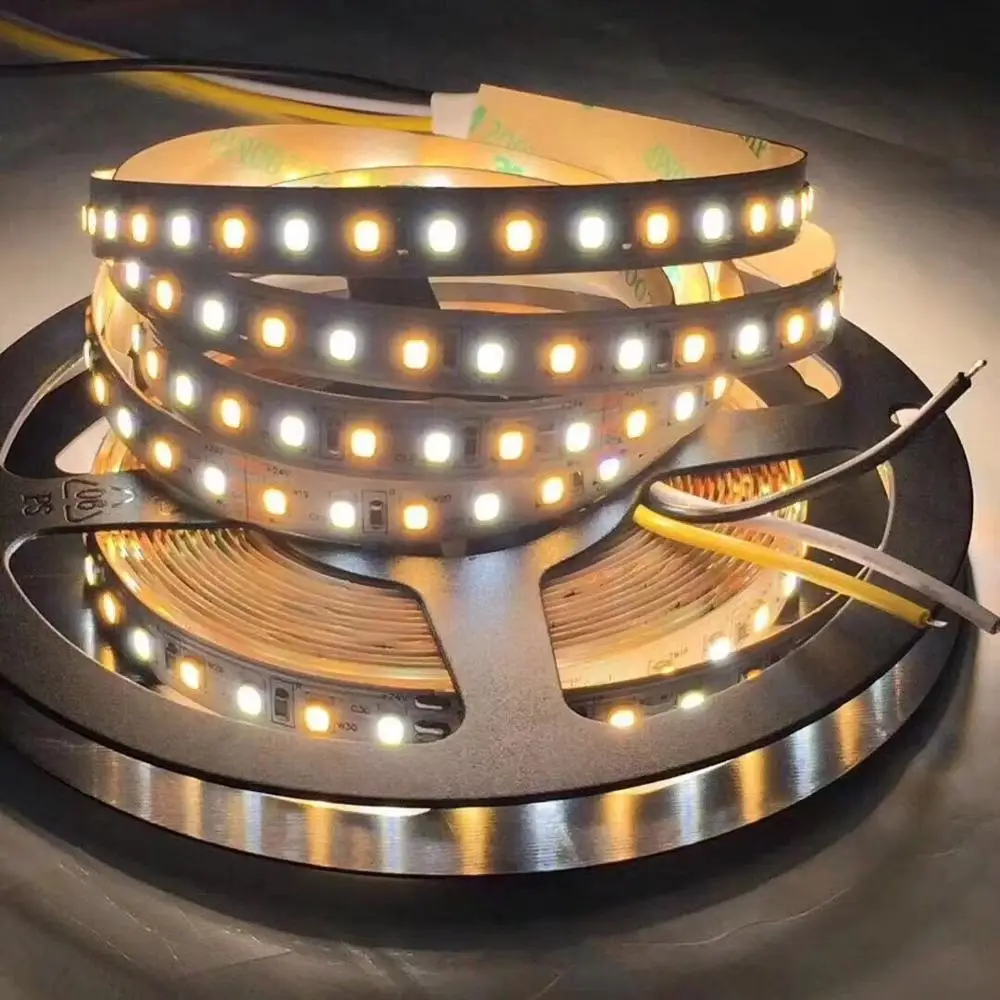

DC24V 10mm 3528 LED CCT dual color dimmable 3528 SMD LED strips LED tapes LED ribbons
Product profile
DC24V 10mm 3528 LED CCT dual color dimmable 3528 SMD LED strips LED tapes LED ribbons
CCT dual white color 3528SMD LED strips
Life span: 50000 hours
Lower power consumption
Easy installation
No UV no IR light radiation
No mercury or other inorganics
No spots, no shadow
Highest optical efficiency
Color temperature for white:
Warm white: 2400-3500K
Pure white: 4000-5500K
Cool white: 6000-7000K
Cold white: 8000-10000K
Available color: white, red, yellow, blue, green, purple
Save and stable for using
CE, Rohs certification
Working voltage: DC24V
Specifications:
DC24V 10mm 3528 LED CCT dual color dimmable 3528 SMD LED strips LED tapes LED ribbons
Two colors for choise:
warm white and pure white; or warm white and cool white; or warm white and cold white; and so on
Color temperature for warm white: 2300K, 2700K,3000K, and 3500K
Color temperature for cool white: 6000K, 6500K, 7000K, and 8000K
Beam angle: 120°
LED type: 3528SMD LED
LED quantity per meter:120pcs/M
Power:9.6W/meter
Standard length per reel: 5 meters (don’t include the length of wire)
Flexible PCB
PCB color: white
External power supplier
Voltage requirement: DC24V
Power output type: constant voltage
IP grade: IP20
Main characteristics:
| Model No. | LED Q'ty/M | Voltage | Power/M | Width of FPC | Power output tpye | Packing |
| CL-3528-120-10-WC-CCT02 | 120 | DC24V | 9.6W | 8mm | Constant voltage | 5meters/reel |
Remarks:
The measured power values will be lower than the value on table above. Because it has internal resistance of the FPC. The measured voltage values on the end of FPC will also lower than the one on the beginning side. It is also because of the resistance. When you install the strips, please use the series-parallel connection.
Connection:
Remarks:
Each strip can only connect up to 5 meters. Not recommend more reels. Once above 5 meters, recommend series-parallel connection.
Installation notices:
1. Follow the wiring diagram to connect the strips.
2. Please do the installation strictly according the working parameter we offered.
3. Please keep the products under the antistatic shielding when installation. Don’t use the sharp tool to touch the products.
4. Product installation surface must be smooth, clean. Or else product will fall off.
5. 3M double glue is on the back of the product. Tear off the protection paper then install the product to anywhere you need.
6. Please make sure your operation reliability to ensure the life span of the light. Please don’t over-bend or over- fold the strips to avoid to damage the LED.
Environmental requirements:
Working temperature: -20~40 ℃
Storage temperature: -20~80 ℃
Working humidity: 30%~85%
Storage humidity: 10%~90%
Applications:
Energy saving programs
Sustainable energy
Landscape lighting
Display case adornment
Artwork lighting
Commercial lighting
Museum lighting/General lighting
Amusement park adornment
Text symbols lighting
Ad decoration
Bar atmosphere
Signal sign backlight
Archway, canopy and bridge edge lighting
Auditorium walkway lighting
Packaging:
Buyer Feedback
Company Profile
HuiZhou CreateLit Technology Co.Ltd was established in 2019. There are 300 square meters for our factory. We specialize in offering professional service and reliable quality products to our cooperation partners. We have over 10 years production experience in LED area. Our products mainly include LED strips, LED linear module, LED tubes, LED panel lights, LED floodlights, LED high bay lights, and so on. We have cooperated with project customers, supermarkets, advertisement companies, wholesalers, trading companies, and so on. We have sold our products to all of the world, such as Europe markets, America markets, Australia markets, Japan, and so on. Offering our high quality products to the high end markets customers is our goal.
We cooperated with MeanWell TaiWan for driver, with Osram, Cree, Refond Taiwan for LED, and so on. And all of the materials (such as PCB, product house, wires) we use for our products are high quality and environment-friendly.
Each month we design new products to meet our customer demands. The new products are including new features, or new functions, or new structures, or new appearances. We always try our best to offer more energy-saving more environment-friendly and high cost-effective products to the markets.
Create the future with our customer partners together.
Certificate
Package & Shipment
FAQ
Q
Can I have a sample order?
A
Yes, welcome sample order to test and check quality. Mixed samples are acceptable.
Yes, welcome sample order to test and check quality. Mixed samples are acceptable.
Q
What about the lead time?
A
For sample order, it needs 5-7 days.For mass production order, it needs around 15 -25 days.
For sample order, it needs 5-7 days.For mass production order, it needs around 15 -25 days.
Q
Do you have MOQ requirements?
A
No, all quantities are available.
Q
Can you accept OEM or ODM orders?
A
Yes, OEM and ODM both are ok for us. We also can design new products as your requriements.
Q
How do you ship your goods and how long does it take to arrive?
A
We usuall ship by DHL, UPS ,FEDEX or TNT for small order. It usually takes 3-7 days to arrive. For large orders, we ship by air or by sea.
Q
Do your products face to high end markets or lower end markets?
A
Our products face to high end markets. Our products have high quality. And we offer long warranty time from 3-5 years.
Q
What beam color temperatures for your products?
A
From 2200K to 10000K all are available.
Q
Can you accept special size and appearance products order?
A
Yes, we can open the new board for you.
