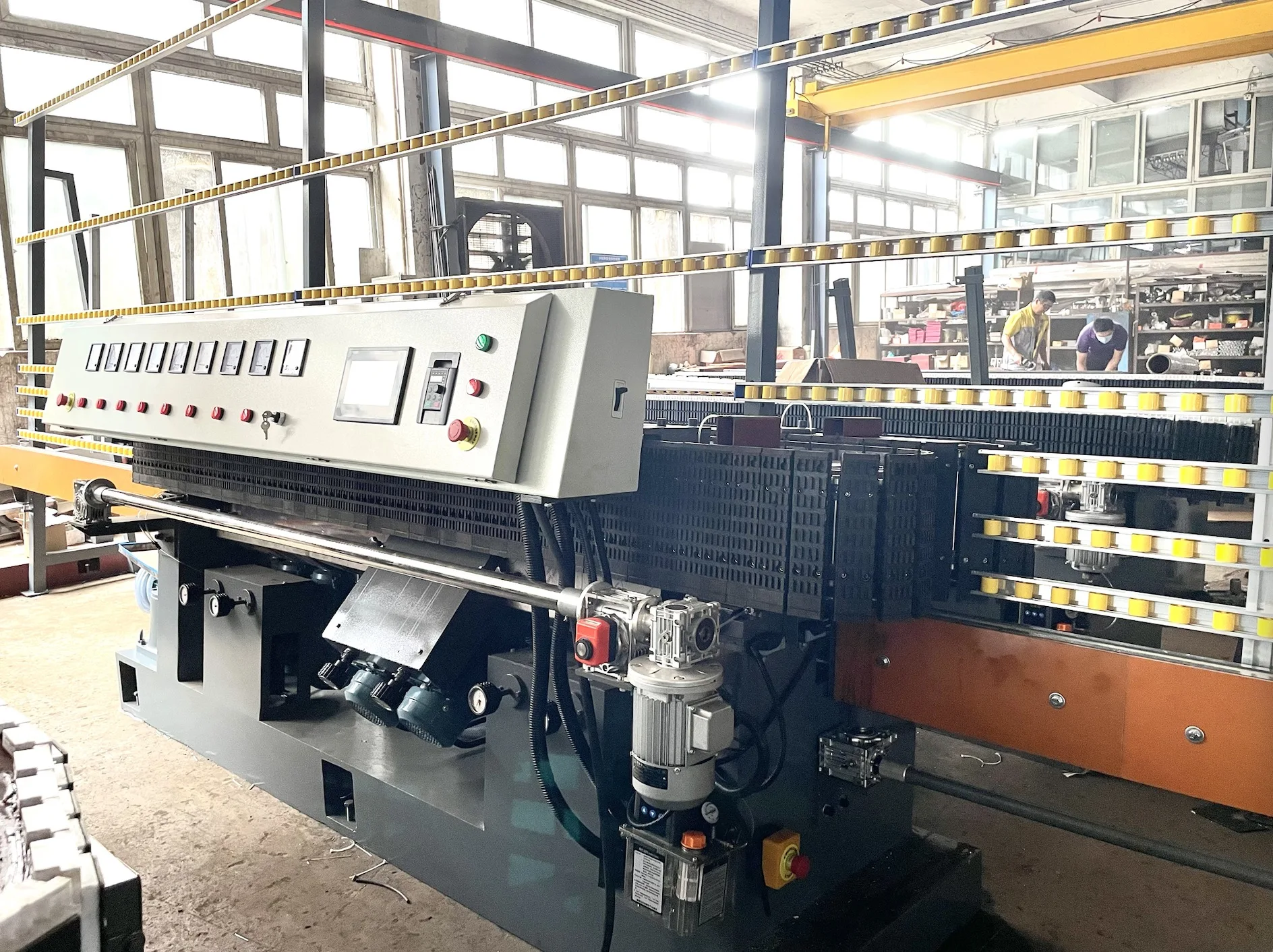

8 motors bearing structure heavy duty glass polisher / glass polishing machine

Product Overview

Description





8 motors bearing structure heavy duty glass polisher / glass polishing machine









Processes rectilinear glass plates in various sizes and thicknesses;



The grinding (roughing), finishing resin and fillets can be performed simultaneously;



The same thickness as the glass sheet can be continuously processed, so that the machine allows having a larger volume of production lines hardening processes, rolling processes and other processing.



Glass type: Float glass for furniture, building, door, windows, home appliances etc







Item	Specification
Maximum flat edging level:	3mm
Maximum arrising width:	2.5mm
Arrise angle:	45°
Max. glass size:	3000x3000mm/2440x3660mm
Min. glass size:	30x100mm
Glass thickness:	3-26mm
Installed power	20kw
Working speed	0.8-6.0m/min
Weight	4500kg
Worktable height	750mm
Overall dimension (L.W.H)	7500x1000x2600mm

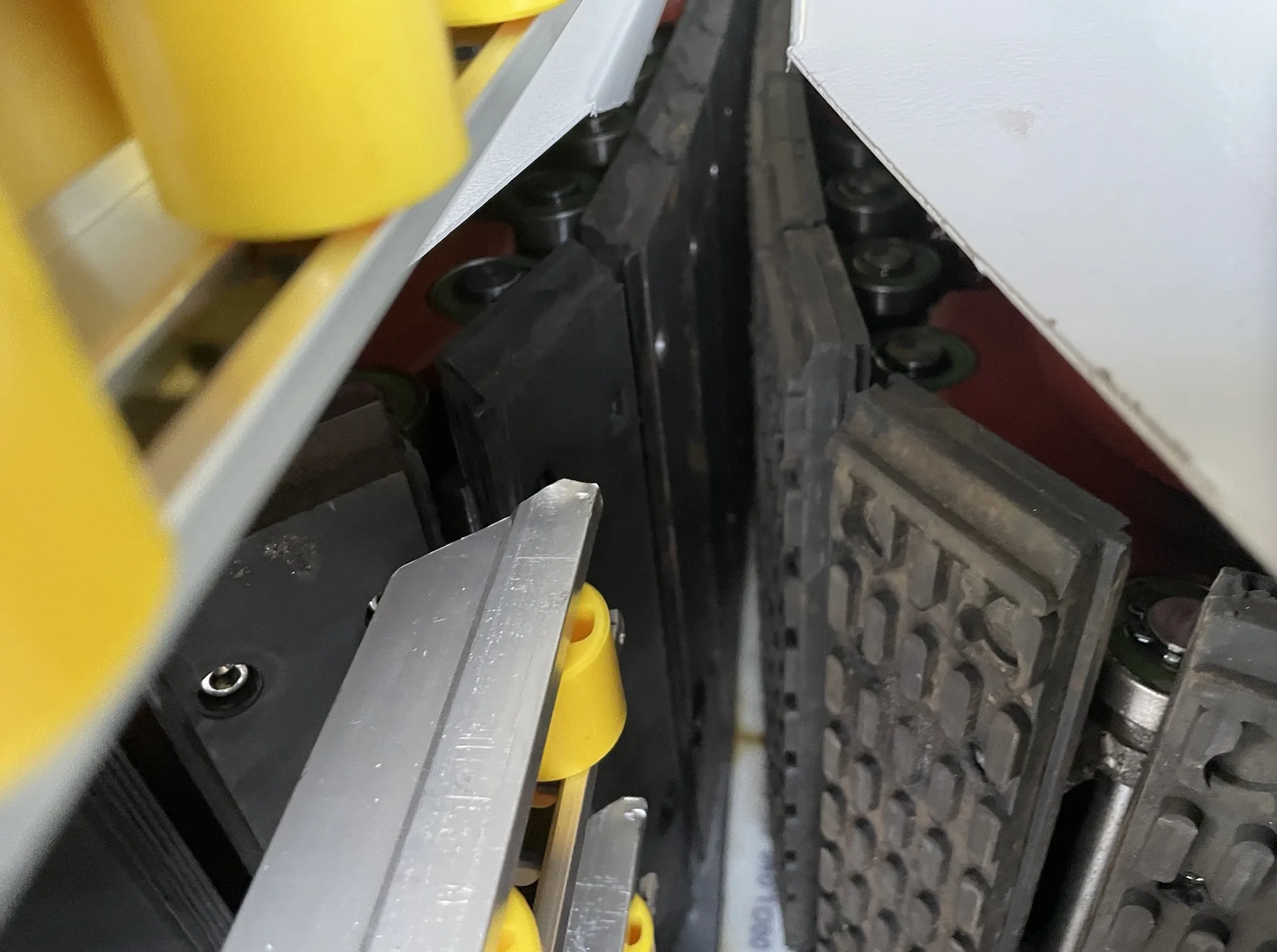

#	Wheels	#	Wheels
1	Diamond wheel,bottom edge	5	Resin wheel for arris
2	Resin wheel,bottom edge	6	BD wheel for arris
3	Resin wheel for arris	7	Yew wheel for bottom edge
4	BD wheel, arris	8	Yew wheel for bottom edge





#	Machine basement	Cast steel

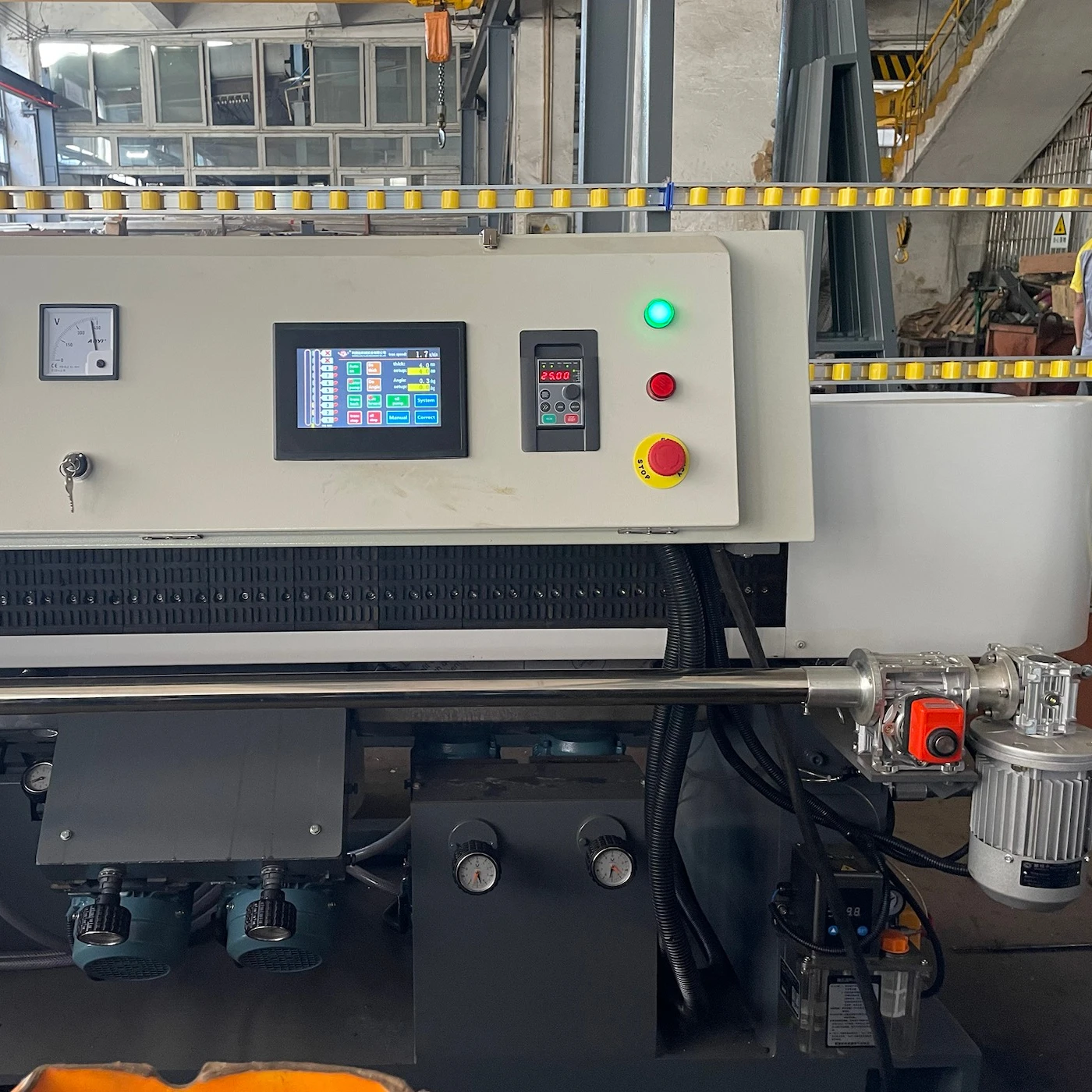

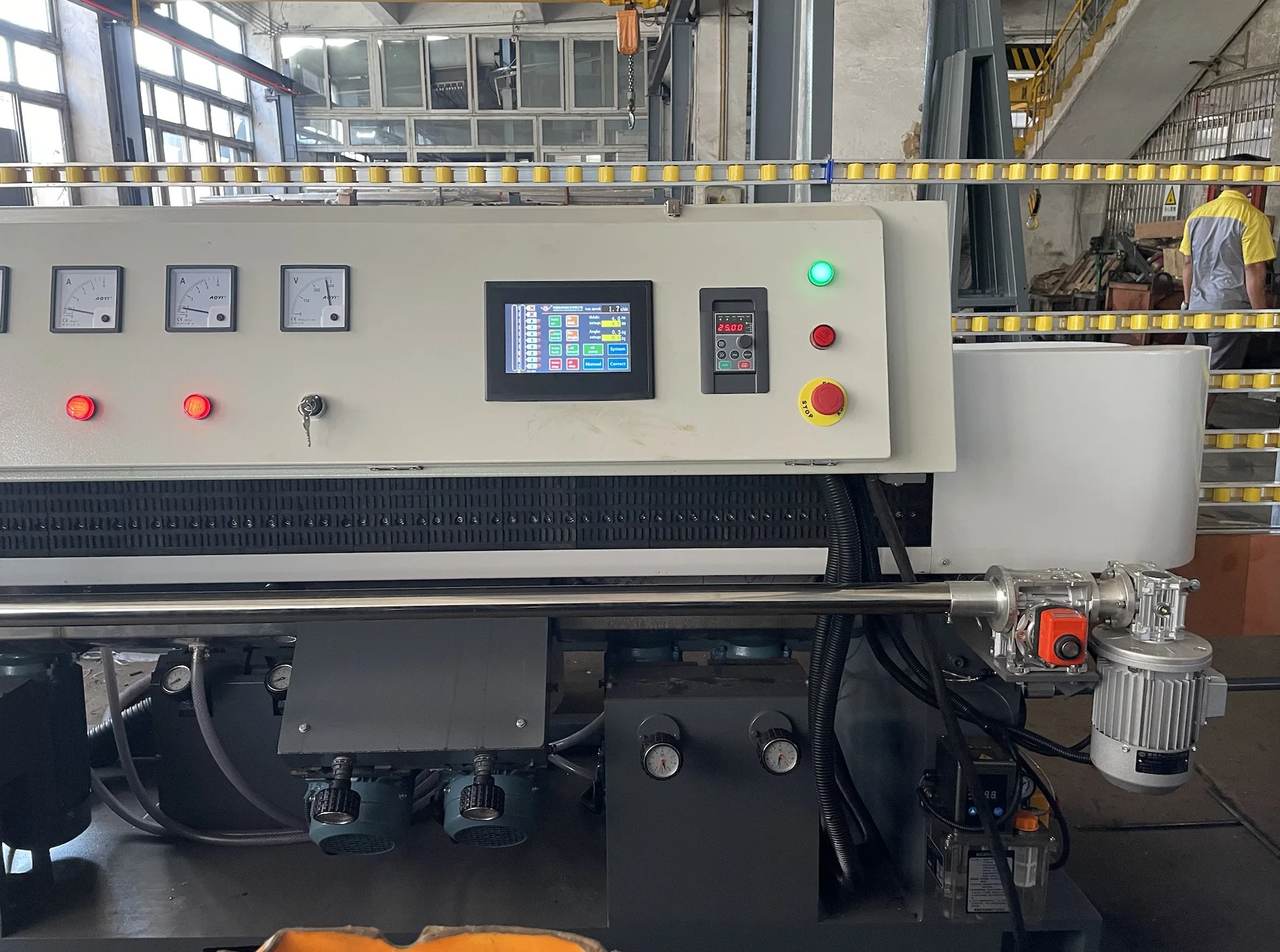

1.	Control system	PLC with touch screen
2.	Thickness adjustment	On screen
3.	Speed adjustment	Converter control
4.	Motor control	On screen, one click start or individual start
5.	Spindle Motors	Mingliang, CDQC, ABB motors for option
6.	Belt	Trimming belt or chain for option
7.	Front rail height adjustment	Yes
8.	Stainless steel water tank	Yes
9.	Aluminum or steel glass rack for option	Yes
10.	Convey system	Chain
11.	Motor quantity	8



















 Warranty and Service.



• 1 year warranty for the machine


•  Life time technical support and parts


•  English version machine operation manual, machine operation video and on site service if necessary







We are a factory specialized in manufacturing of glass cold & hot processing machines.

The main products include glass cutting machine, glass double edging machine, glass vertical edging machine, vertical beveling machine, glass drilling machine, glass shape edging machine, glass sandblasting machine and glass flat/bent tempering furnace.

The factory started production of glass processing machines since year 2000.

All of our machines have CE certifications and thousands of our machines are working well all in customer’s factories over the world .

We have our own export team and service team. We are glad to support our high quality glass processing machines and give our instant, sufficient service to you!
