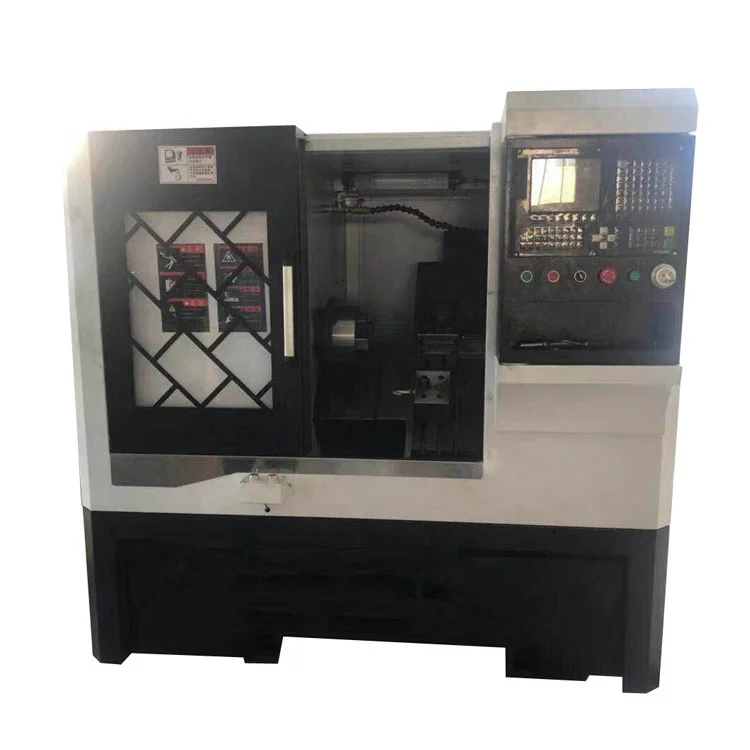

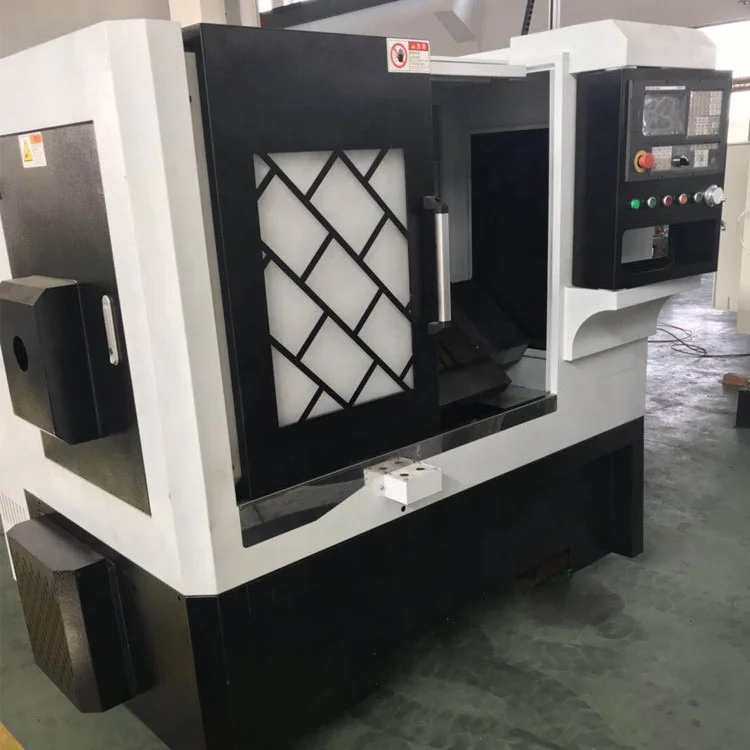

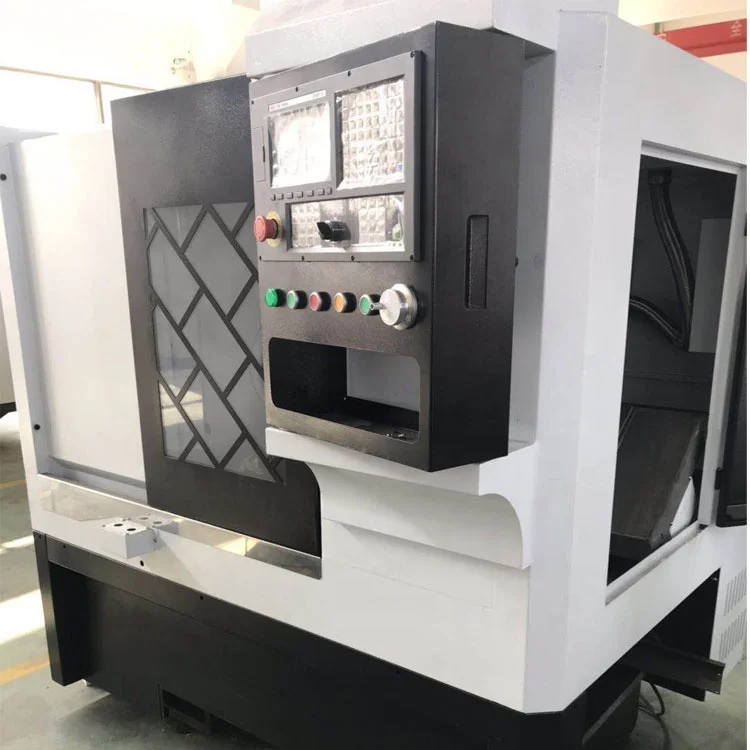

Токарный станок с наклонной платформой CK4030
- Category: >>>
- Supplier: Taian Haishu Machinery Co. Ltd.
Share on (1600147455628):
Product Overview
Description

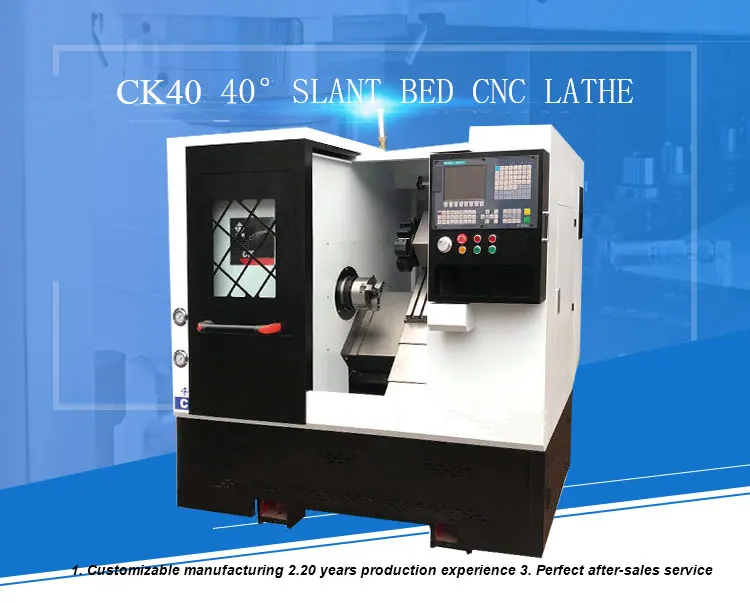

CNC Slant Bed Lathe Machining Center CK4030
Model | unit | CK4030 | CK4045 | CK5055 |
Maximum turning diameter of the bed | φ/mm | 400 | 400 | 450 |
Maximum turning diameter on pallet | φ/mm | 150 | 150 | 150 |
Maximum processing length | mm | 300 | 450 | 580 |
Spindle head form | mm | Spindle unit | Spindle unit | Spindle unit |
Spindle through hole diameter | φ/mm | 49 | 49 | 49 |
Pull tube through hole diameter | φ/mm | 48 | 48 | 48 |
Rail width | mm | 250 | 260 | 355 |
Total length of guide rail | mm | 640 | 790 | 1030 |

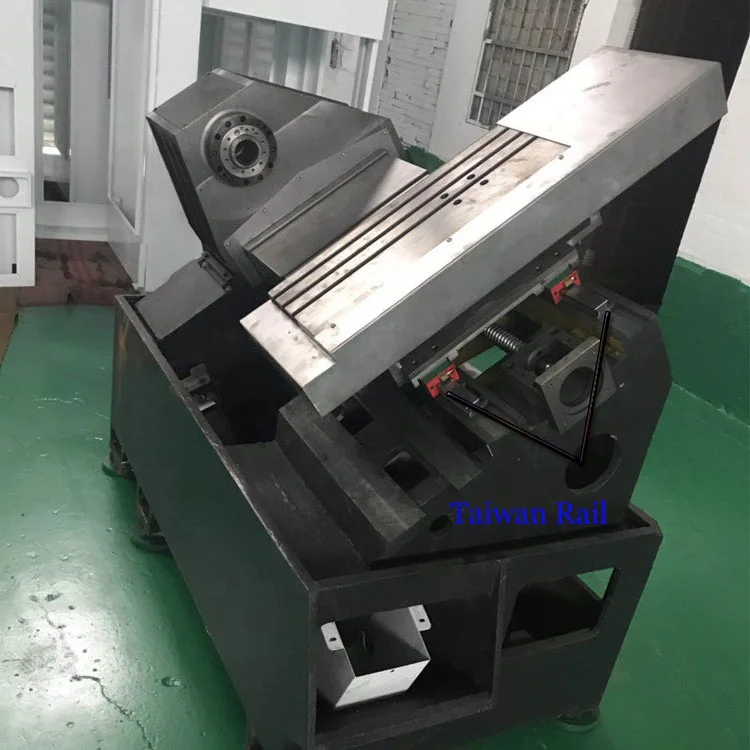

X-direction rail model | mm | HCW30CC2R600 | HCW30CC2R640 | HCW30CC2R700 |
Z-direction rail model |
| HCH30CA2R640 | HCH30CA2R790 | HCH30CA2R1030 |
X/Z axis repeat positioning accuracy | mm | 0.001 | 0.001 | 0.001 |
X-axis (horizontal) maximum stroke | mm | 300 | 340 | 360 |
Z axis (horizontal) maximum stroke | mm | 300 | 450 | 580 |
X fast moving speed | m/min | 8 | 8 | 8 |
Z fast moving speed | m/min | 10 | 10 | 10 |
Maximum spindle speed | r/min | 4500 | 4000 | 3800 |
Tool holder form |
| Can be selected | Can be selected | Can be selected |
Main motor power | Kw | Can be selected | Can be selected | Can be selected |
Machine tool dimensions (L × W × H) | (L×W×H) | 1700*1200*1600 | 1750*1300*1600 | 2300/1700*1500 |
Machine weight | Kg | 1300 | 1500 | 2100 |
