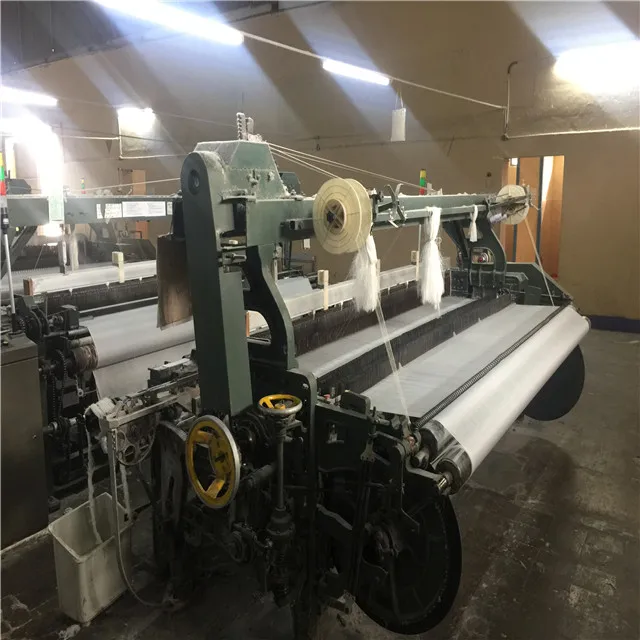

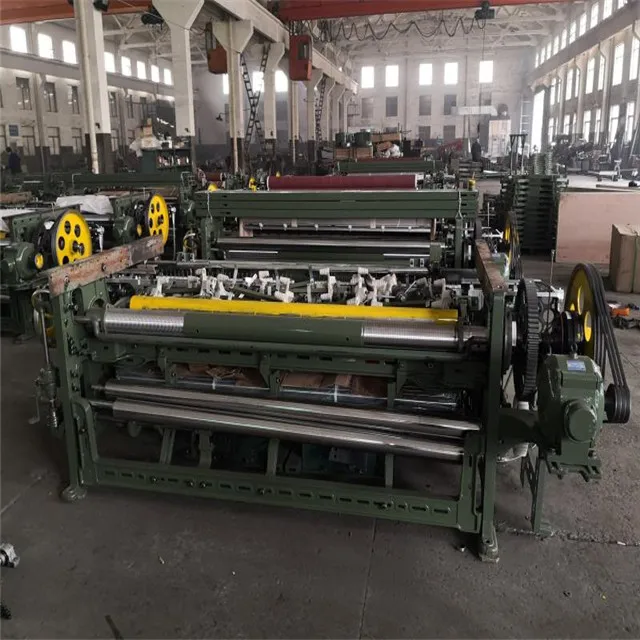

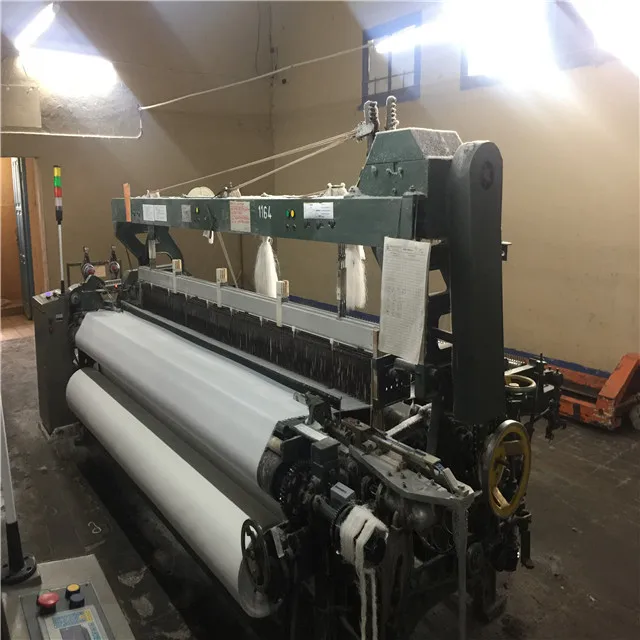

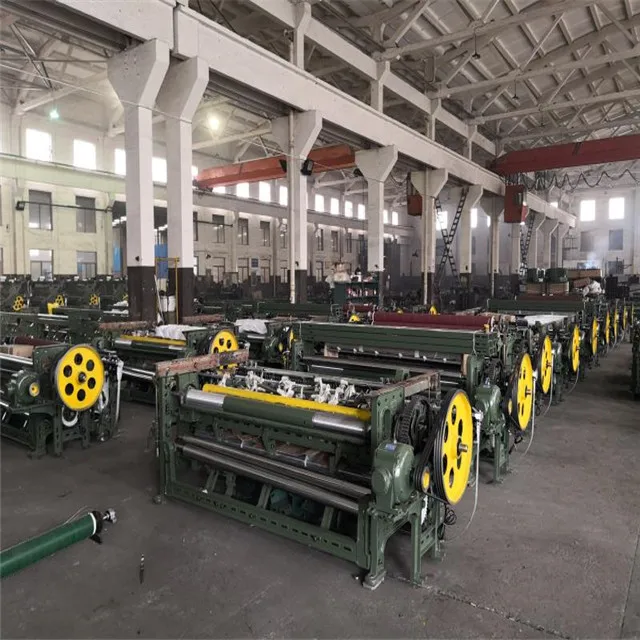

Cheap and popular G1613 Rapier loom with reliable performance
- Category: >>>
- Supplier: Hi-Tech Heavy Industry Co. Ltd.
Share on (1600147649885):
Product Overview
Description
Product Description
Describtion
G1613rapier loom: The design speed is 200RPM, and the machine is featured with simple structure, suitable reliability and convenient maintenance. The machine is suitable for cotton,blended, chemical, helm and etc.Through changing dobby card, the machine can realize the weave fabric of plain, twill, satin, small jacquard.
Main specifications
|
No. |
Standard Speculations |
|
|
1 |
Nominal reed space: |
1800m/,2000mm/2300mm/ 2800mm/ 3000mm/3400mm/3600mm/3800cm
|
|
2 |
Weft insertion type: |
Flexible rapier weft insertion |
|
3 |
Machine hand |
Left hand |
|
4 |
No. of heddle-frame |
Max. 16pcs |
|
5 |
Speed |
160-200r/min(180,200) 120-180r/min (230,280,300,340,360) |
|
6 |
Color selection |
Six color selection box |
|
7 |
Drive |
Single motor,V-belt is driven by clutch and brake |
|
8 |
Shedding motion |
Dobby shedding, horizontal spring box-back |
|
9 |
Beating-up motion |
4 bar linkage mechanism |
|
10 |
Let-off motion |
Vertical outside let-off |
|
11 |
Take-up motion |
Worm take-up motion |
|
12 |
Warp stop |
Electronic warp stop with 6 lines |
|
13 |
Weft stop |
Piezoelectric weft stop |
|
14 |
Temple |
Single row copper needle ring roller |
|
15 |
Selvage winding motion |
Heddle frame selvage binder |
|
16 |
Cloth winding motion |
Torque spring self-press |
|
17 |
Weft cutting motion |
Slay-knock weft cutting device |
|
18 |
Electrical control |
Single-motor control |
Advantages:
1.Applied to broad areas
2.its excellent performance and leading weaving efficiency sets new height for weaving level of rapier looms, providing high efficient weaving solutions for users.
3.Saving energy
4.More optimized Wefting Insertion and Beating –up Mechanism
5.Advanced Electrical control system
Packaging & Shipping
We often use wooden pallet or wooden box, we can also packing up to customers' requirement.
