Product Overview
Description
Features:
1.Slim Module Suitable for Linear Applications
2.Long Life Li-ion Batteries
3.Full emergency output
4.Emergency lighting LED Driver with manual testing
5.Non maintained operation
6.Constant power output
7.Constant current output
8.4-year guarantee for converter
9.Electronic charge system
10.Deep discharge protection
11.Short-circuit-proof battery connect
12.Certificate with TUV CB & CE
Technical Details:
|
Mains Supply
|
220-240Vdc/50/60Hz
|
|
Power Rating
|
5W
|
|
Duration
|
3 Hours
|
|
Recharge Period
|
11.1V 4400mA
|
|
Battery output voltage
|
20-90Vdc
|
|
Charge time
|
20hours
|
|
Ambient temperature range
|
Ta0 °C - Tc +50 °C
|
|
Emergency output current
|
Max 150mA
|
|
Battery Pack
|
7.4V/3000mAH
|
The ATA series for led panel light , and others external driver fixtures

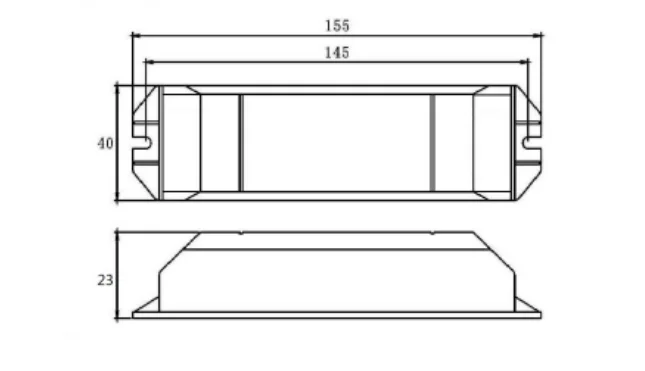

Box size : 200*100*33mm

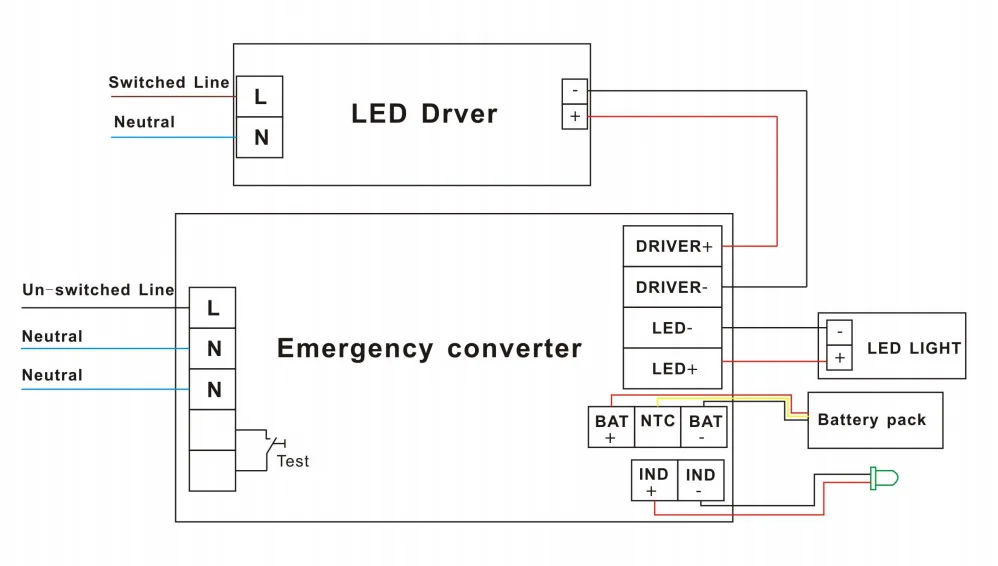

Wire diagram :
Application :
The product is mainly applied to emergency occasions (hotels, restaurants, shopping malls,
offices,public places, etc.), so as to provide emergency lighting for evacuation and fire
operations when there are sudden accidents such as blackouts, fires and earthquakes.
Instruction :
1. Main electric indicator light and charge indicator lamp : the power line is connected to the
AC 220-240 power supply, the green led indicator lights up , indicating that the battery is
charging , the green led indicator lights off , indicating the battery disconnect or failure.
2. Test button : Press the test switch button , the led indicator will go out and the light will be
illuminated from its battery pack , the light is at normal mode while the normal supply is on.
Attention :
1. The power supply voltage of this product : AC220-240V 50/60Hz
2. Placement field
(1)Avoid use in rain or wet places
(2)Avold places such as sun ,furnace, heating and so on for a long time
(3)The ideal enviroment temperature in 0-55℃
(4)The ambient air humidity should be less than 95%
